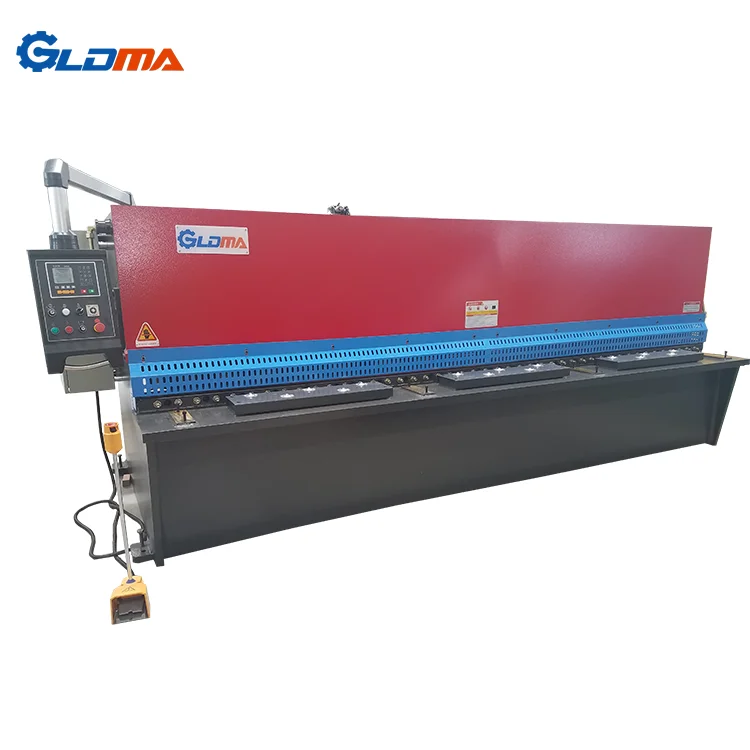

CNC plate mini hydraulic swing beam shearing machine
- Category: Shearing Machine >>>
- Seller: Maanshan,Gilde,CNC,Machine,Tool,Co.,Ltd.
Share on:
Product Overview
Description

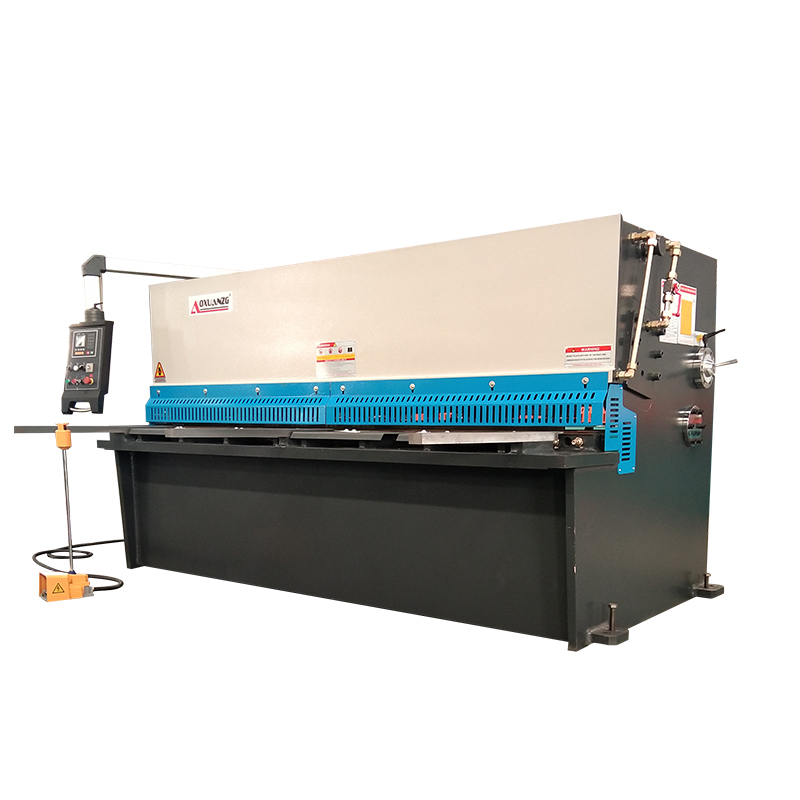

CNC plate mini hydraulic swing beam shearing machine
QC12K-NC hydraulic swing beam shearing machine-ESTUN E21S system
swing beam plate shearing machine,
System:e21s China
DELTA frequency converter
Main motor:Siemens Germany
Valve:Bosch Rexroth Germany

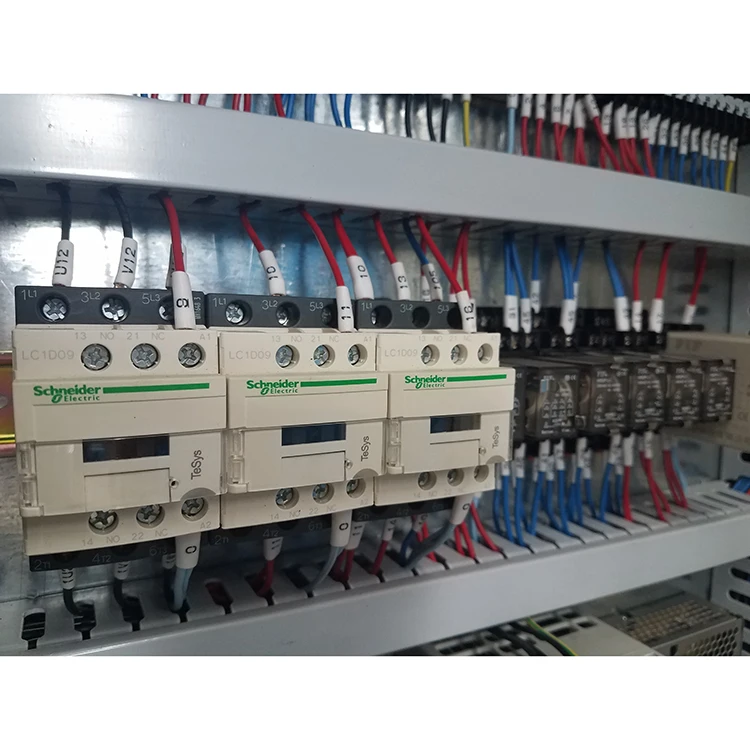

Electrics:Schneider France
Oil pump:Sunny America.
Product description:
1. The design meets EU international standards. Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
2. Backgauge is adjusted by HIWIN high-precision ball screw and linear guide driven by E21S controller.
3. Ball screw and Linear guide structure, using frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.Rigid upper beam runs on 8-point bearings with bending precision of +/-0.01 mm
4. Front safeguard rail adopts opening door cut off power,ensuring the operational safety.
5. Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
Standard Equipment:
1. ESTUN E21S NC controller system.
2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).
3. Steel mono-block construction.
4. DELTA frequency converter
5. Standard electrics from Schneider,France.
6. Standard oil tube connectors from EMB Germany.

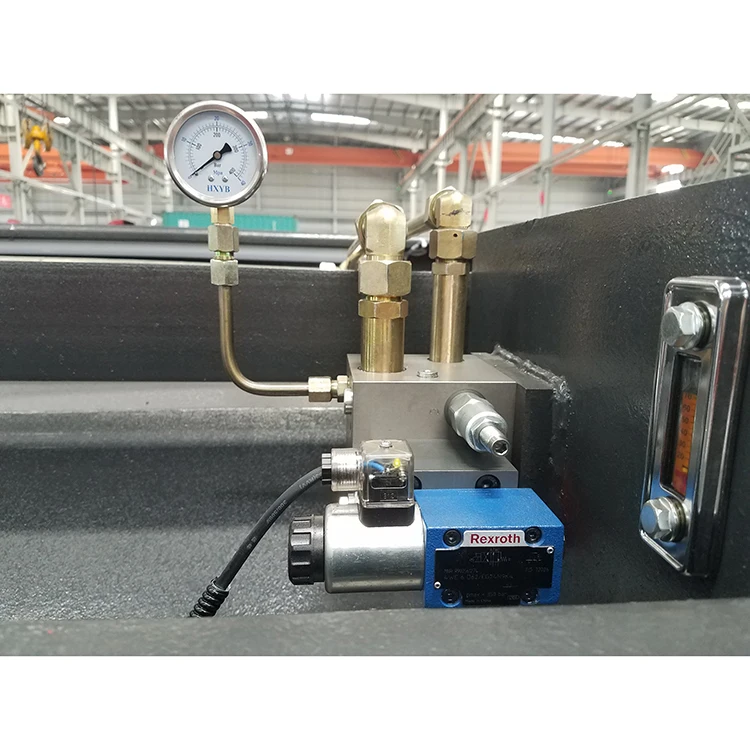

7. Standard valves and oil pump from Bosch Rexroth Germany.
8. Standard main motro from Siemens Germany
9. Hydraulic and electrical overload protection
10. Light guards ensure the safety of operators during operation(optional)

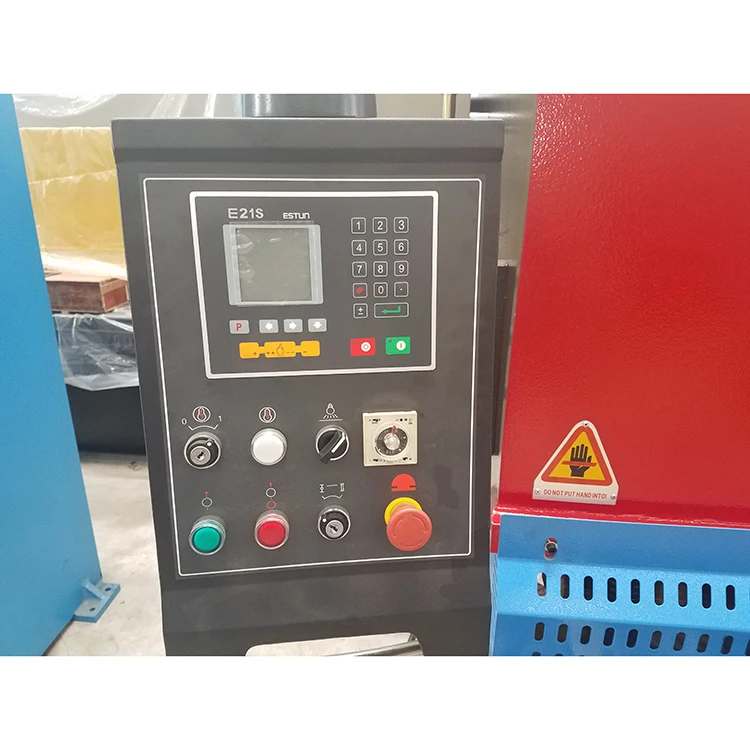

ESTUN E21S Controller:
Backgauge control
Control for general AC motors,frequency inverter
X-axis intelligent positioning
Doubel programmable digital output
Stock counter
Program memory fo up to 40 steps,up to 25 steps per program
One side positioning
Retract function
One key backup/restore of parameters
Units:Mm/inch
Language:Chinese/English
components:
Detailed Pictures:
