RK2674A AC/DC 10KV/20KV & AC 2/20mA DC 2/10mA Withstanding Voltage Tester Pressure Hipot Digital Pressure Tester
- Category: Other Electronic Measuring Instruments >>>
- Seller: Shenzhen,Efortune,Trading,Company,Limited
Share on:
Product Overview
Description
Product Description
Battery Button Transistor Tester LCR-T4 Graphical Resistor Capacitor ESR Transistor Tester
Resistor: 0.1 ω-50Mω
Capacitor: 25pF-100000uF
Inductance: 0.01 mH - 20 H
Working power: DC-9V
Standby current: 0.02 au
Operating current: 25mA
Material: Metal + Plastic
Size: about 11.1 cm / 4.37 "x 2.6 cm / 1.02" x 8.5 cm / "" 3.34 "
[Conversion: 1cm = 0.3937 inch, 1 inch = 2.54 cm]
Features:
1 Support boot voltage detection function
2 Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Automatically testing the component leads and displaying them on the LCD
3 The forward bias voltage of emitter transistor can be determined by detecting the amplification factor and the base number of transistor, MOSFET protection diode, and the like
4 Measure gate threshold voltage and gate capacitance MOSFET
5 The display uses 12864 lcd LCD (128 * 64 characters)
6 High speed, valid component test test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal)
7 One-button operation, power-on test.
8. Power Consumption Shutdown Mode: Less than 20 nA
9. Automatic shutdown function can avoid unnecessary waste, save energy and improve battery life battery.
Package Includes:

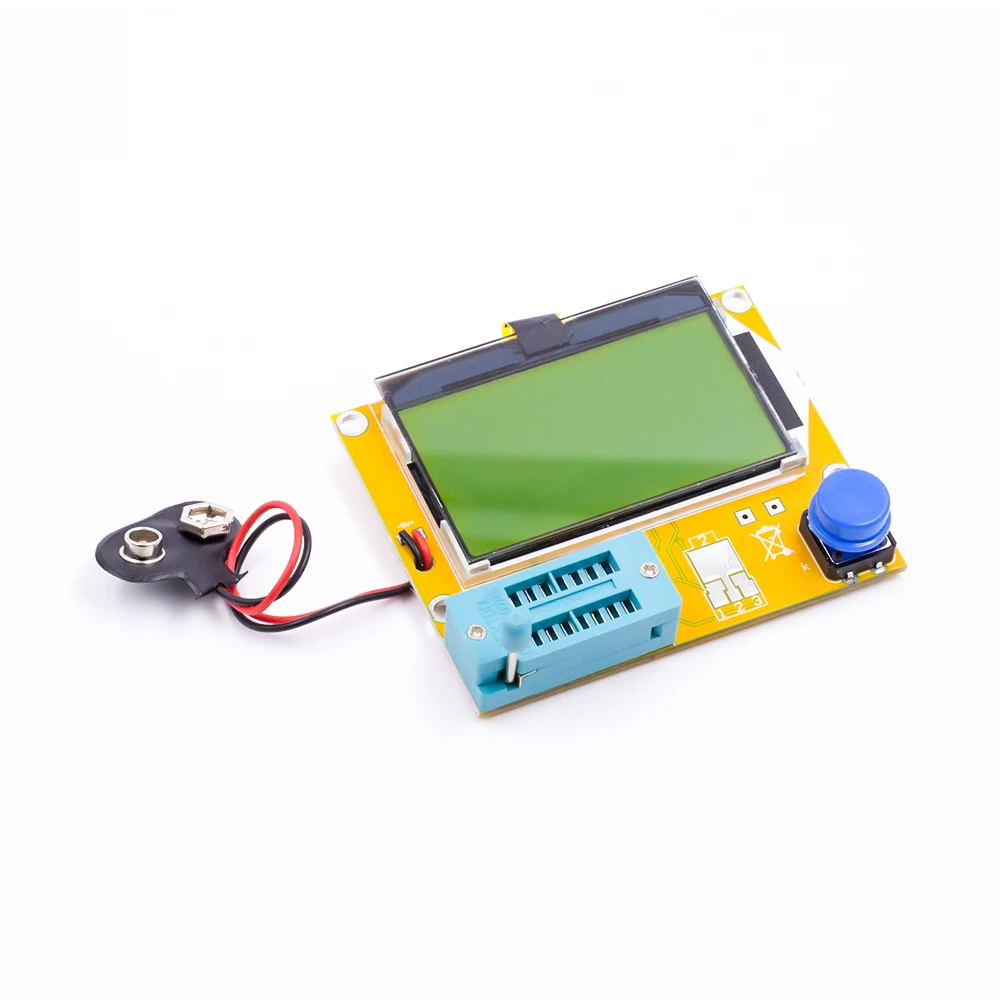

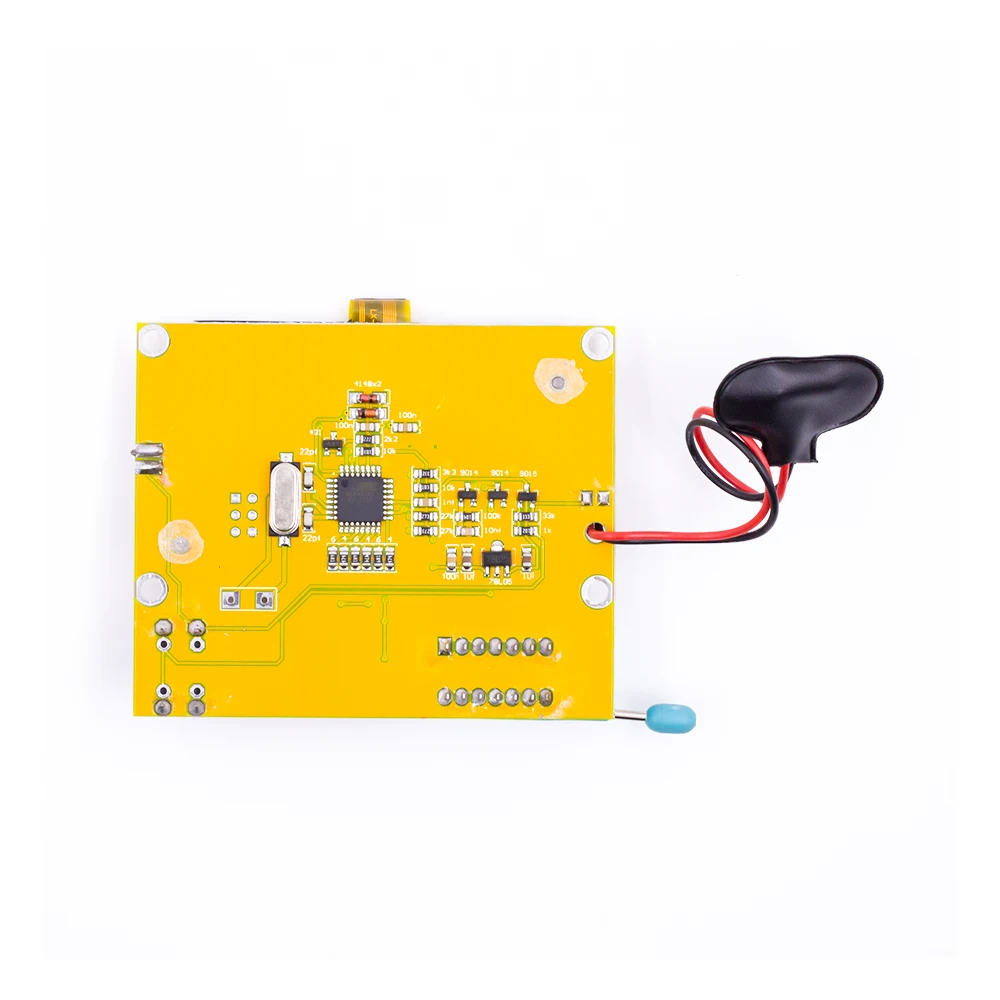

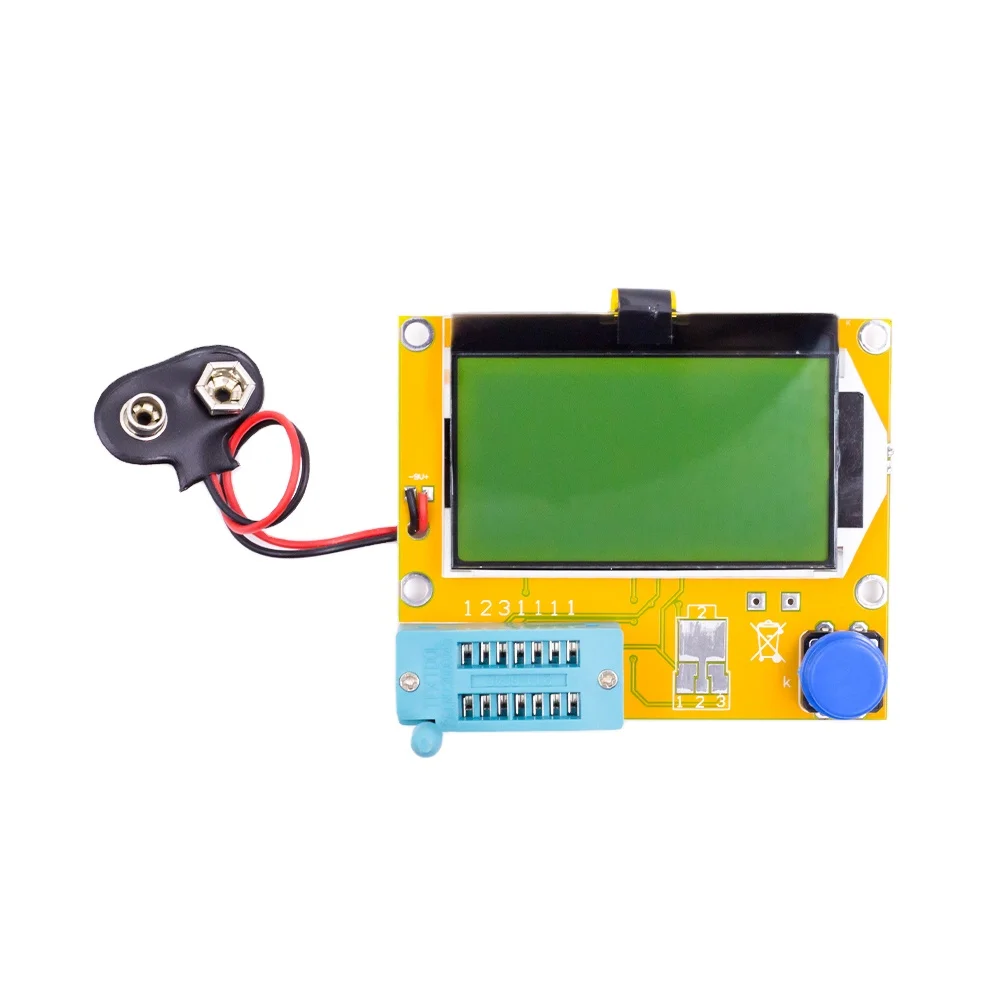

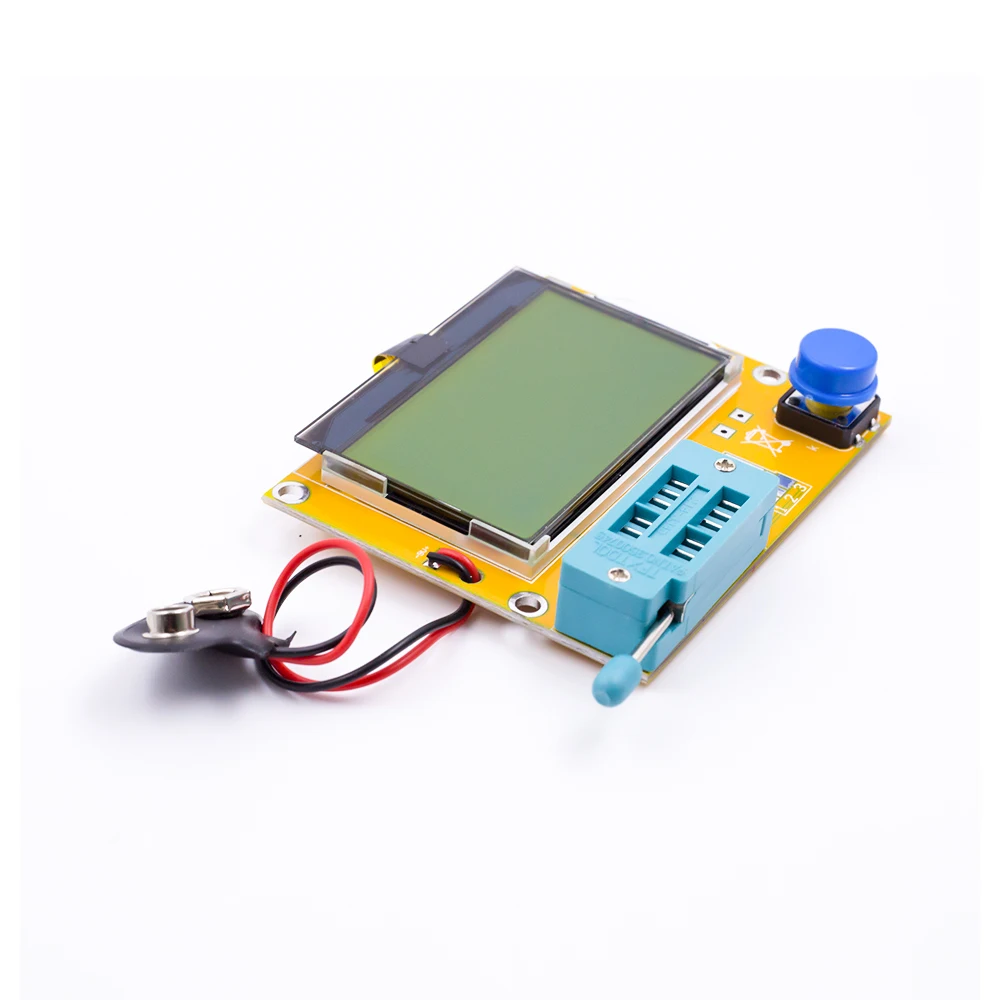

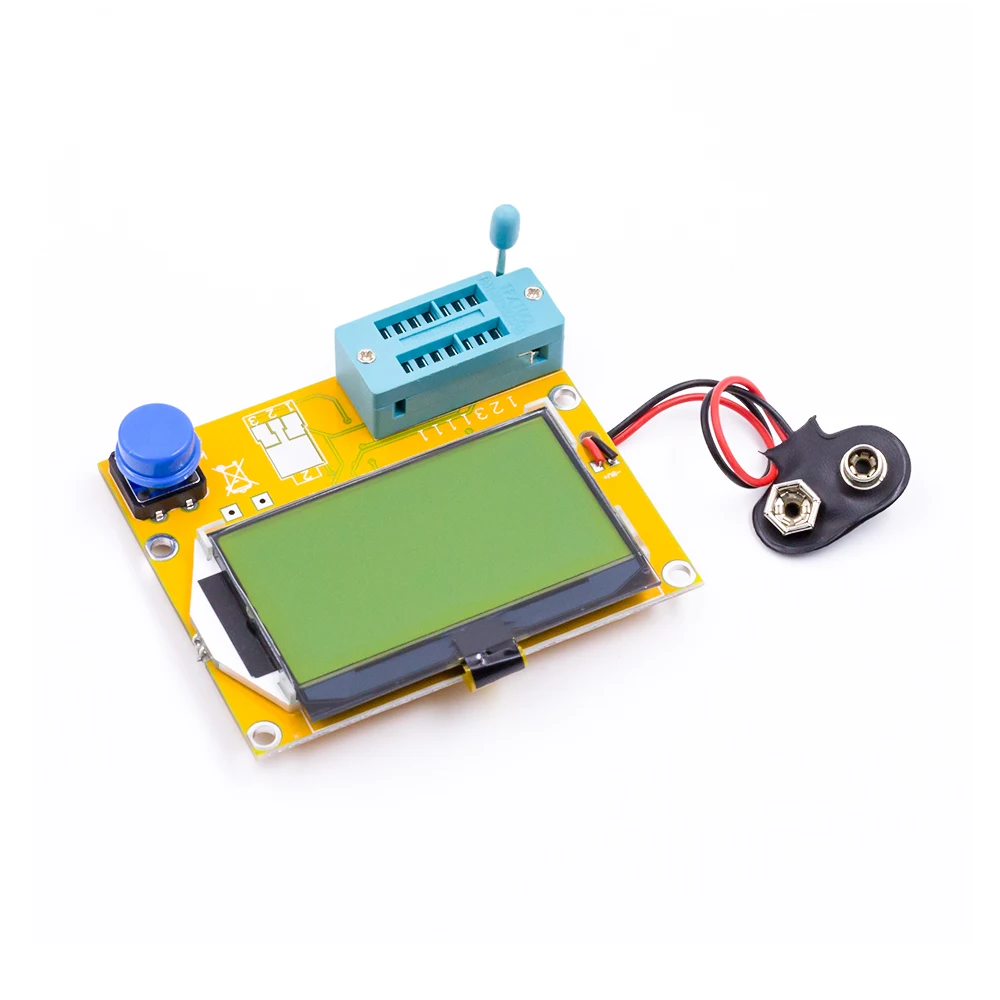

1 x LCR-T4 12864 LCD Graphical Transistor Tester
