L-810 Low price High Building Aviation Obstruction Solar Powered Obstacle Warning light

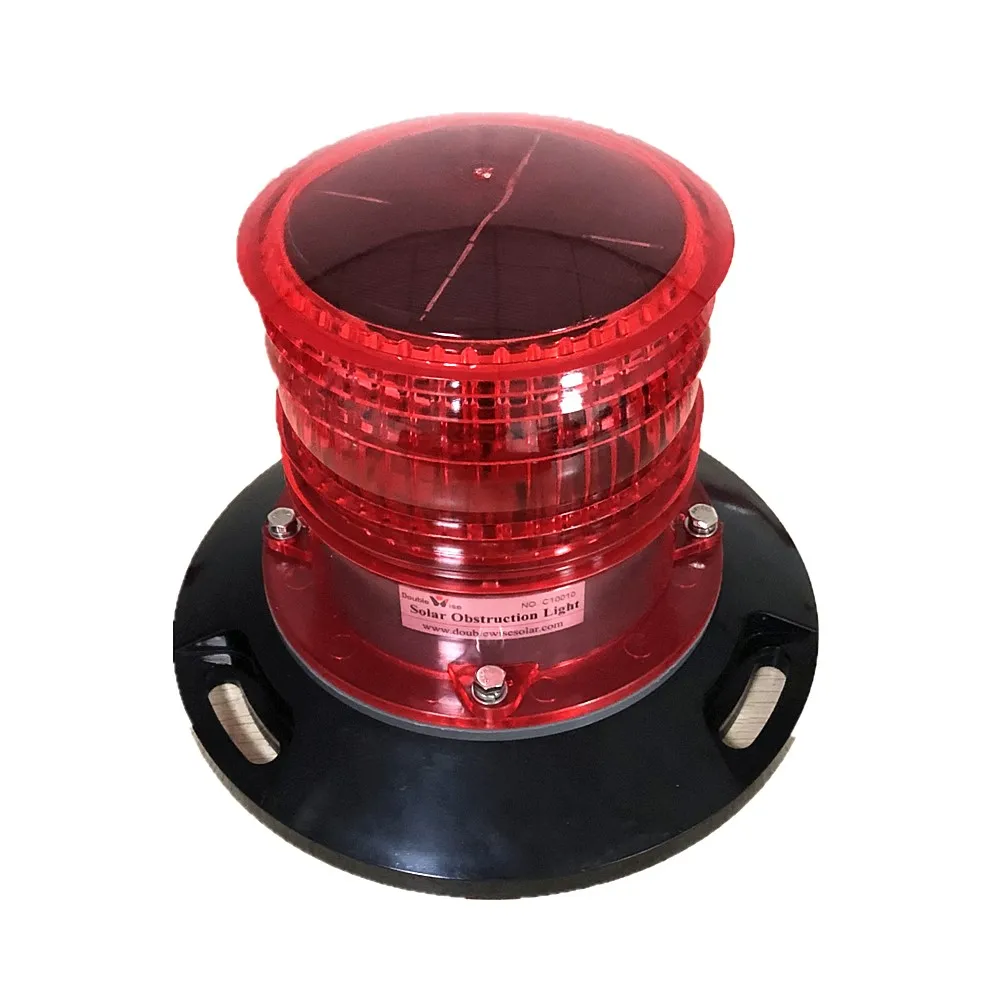

DWS301A is a classical FAA L810 Tower chimney building Aircraft Obstruction Solar Aviation Warning light with the characteristics of self-contained, durable and anti-UV .It is widely used in the Aviation Obstacle Warning of Towers,Chimneys,Cranes,High-Buildings and other dangerous Prominent Parts as a FAA L-810 or a low-intensity Type A of ICAO. It installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Red,Steady-on and its intensity is more than 10cd.
Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.
Turns on at dusk and off at dawn automatically.
Charge under nearly all weather conditions and its minimum autonomy up to 70 hrs from a full charge.
Completely self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Individual dome can protect the solar panel and raise its efficiency.
Manufactured to ISO9001:2015 QAS and certified CE.
Product Parameters
Main Specifications | |
Model / Name | DWS301A / Solar Obstacle Light |
Standards | ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k |
Intensity | Steady-burning Red, more than 10cd |
Visibility / Source | 3Km / Ultra-intensity LED |
Vertical Divergence | ±7.5° at 50% intensity |
Horizontal Output | 360° |
Minimum Autonomy | 70 Hours |
Solar Panel | Mono-crystalline , Maximum Power : 1.5 watts , Efficiency: 20% |
Battery | Ni-Mh battery, Replaceable , 4.8Ah/2.4V |
Lens Material / Weight | Polycarbonate / 0.9kg |
Waterproof | IP65 |
Quality Assurance | ISO9001:2015 CE: CTR090817073E |
Patents | Chinese patents: 02224444.1 and 2014304444553 |
Typical Applications
Related Products
Solar Mini Obstruction Light
DWS202
Medium-intensity Solar Obstruction Light
DWS702
Solar Aviation Light
DWS501A
Our Company
Certifications
FAQ
1.How to determine the kind of an obstacle light?
According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows.
According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows.
2.Is there the Installing Adaptor?
Yes, there is the Flangebase as an Installing Adaptor as follows.
Note:
If you choose to use the FlangeBase for installation, you must order the Flange Base FB-A separately.
#
If you choose to use the FlangeBase for installation, you must order the Flange Base FB-A separately.
#
Packing & Delivery
Packing
The package of DWS301A is a 540*360*200 carton that can be loaded with 6 lights.Each light has a small carton 170*170*170.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
