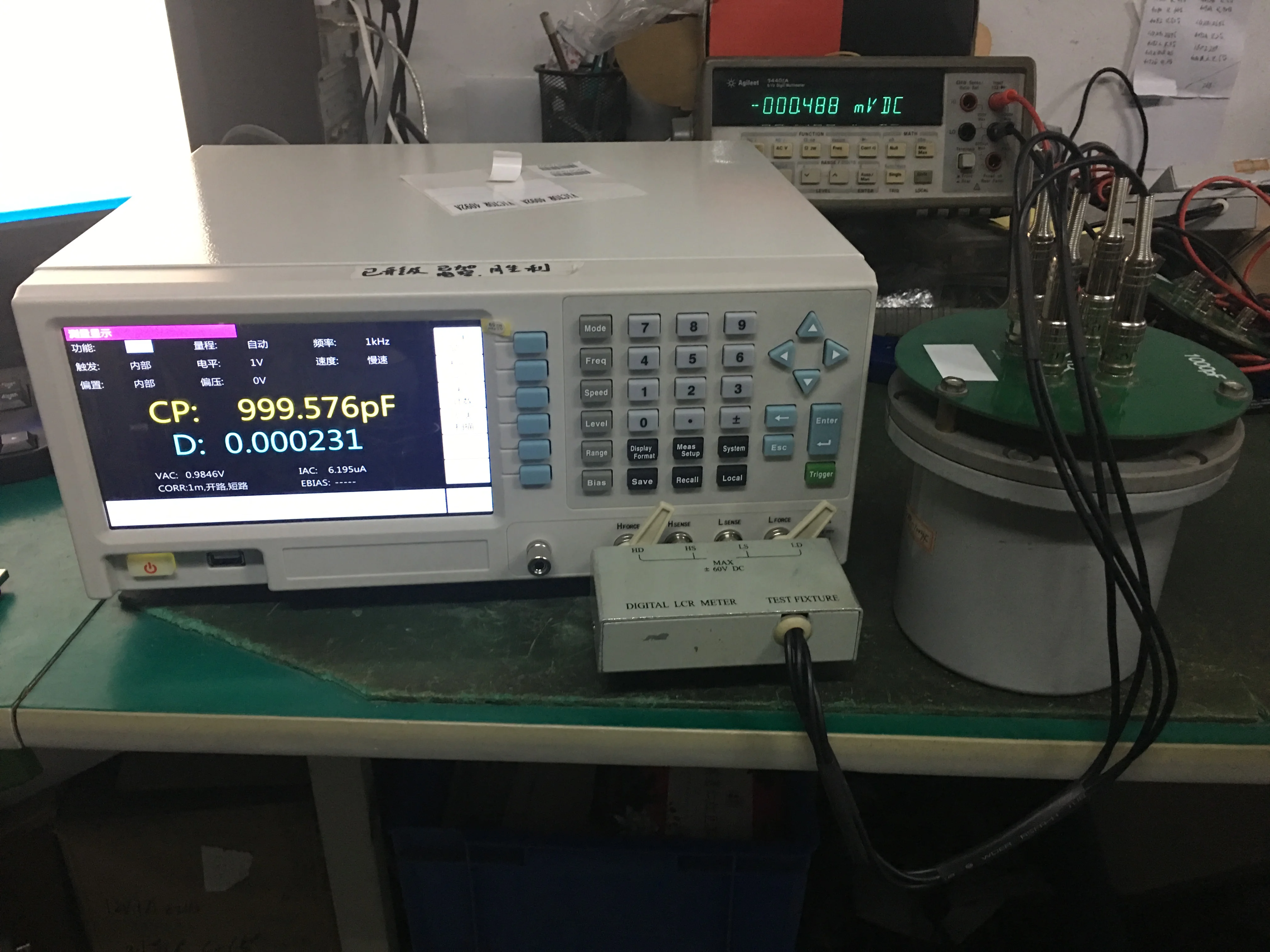

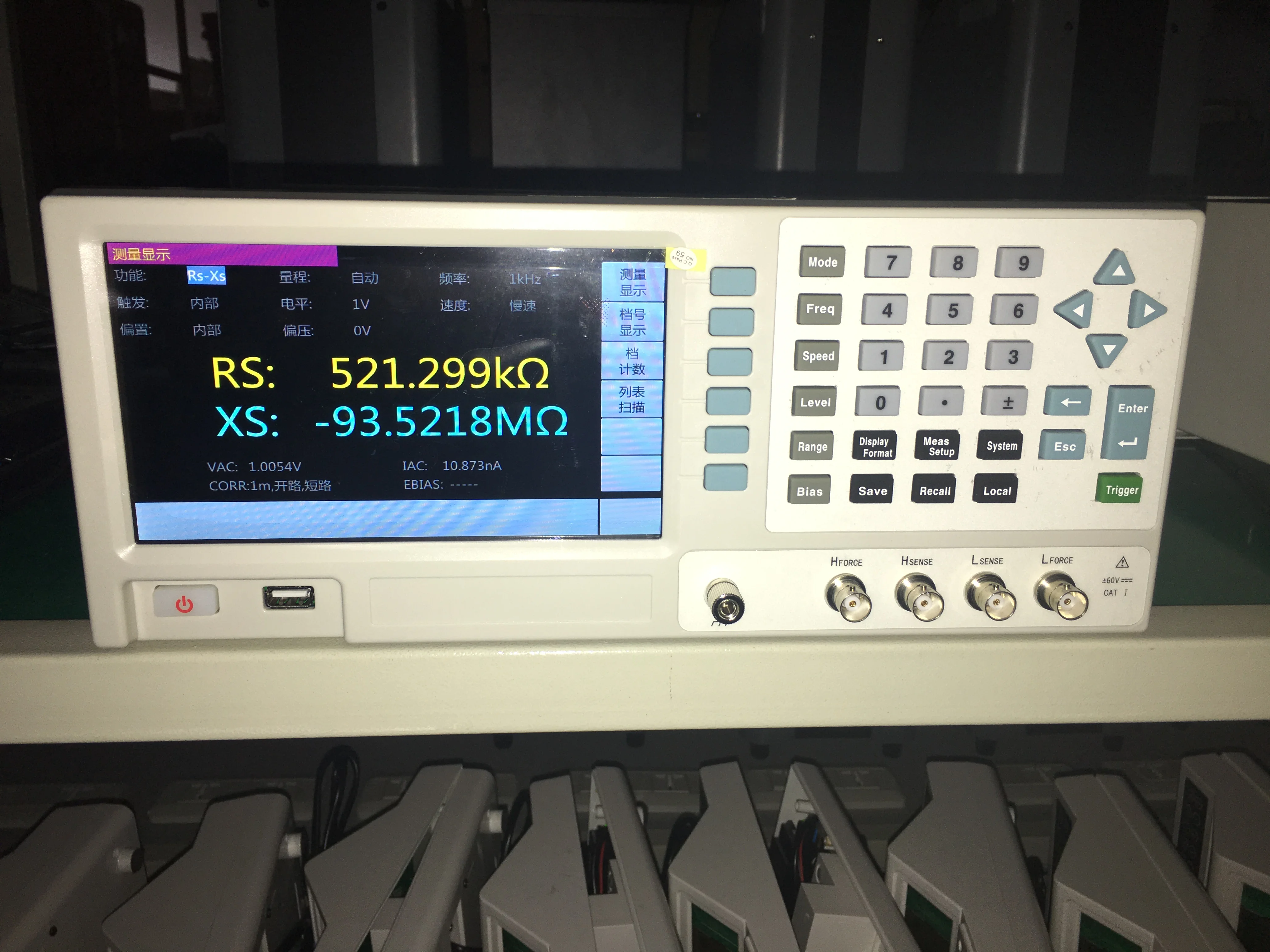

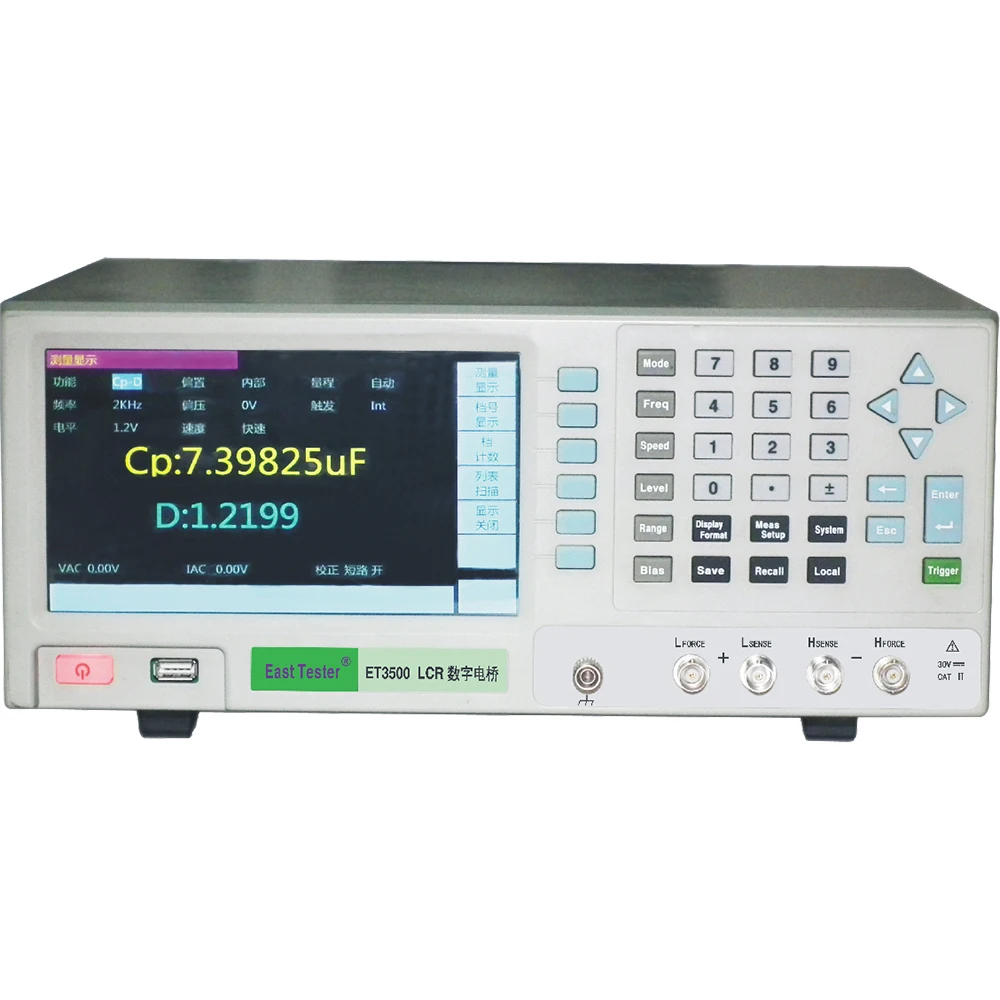

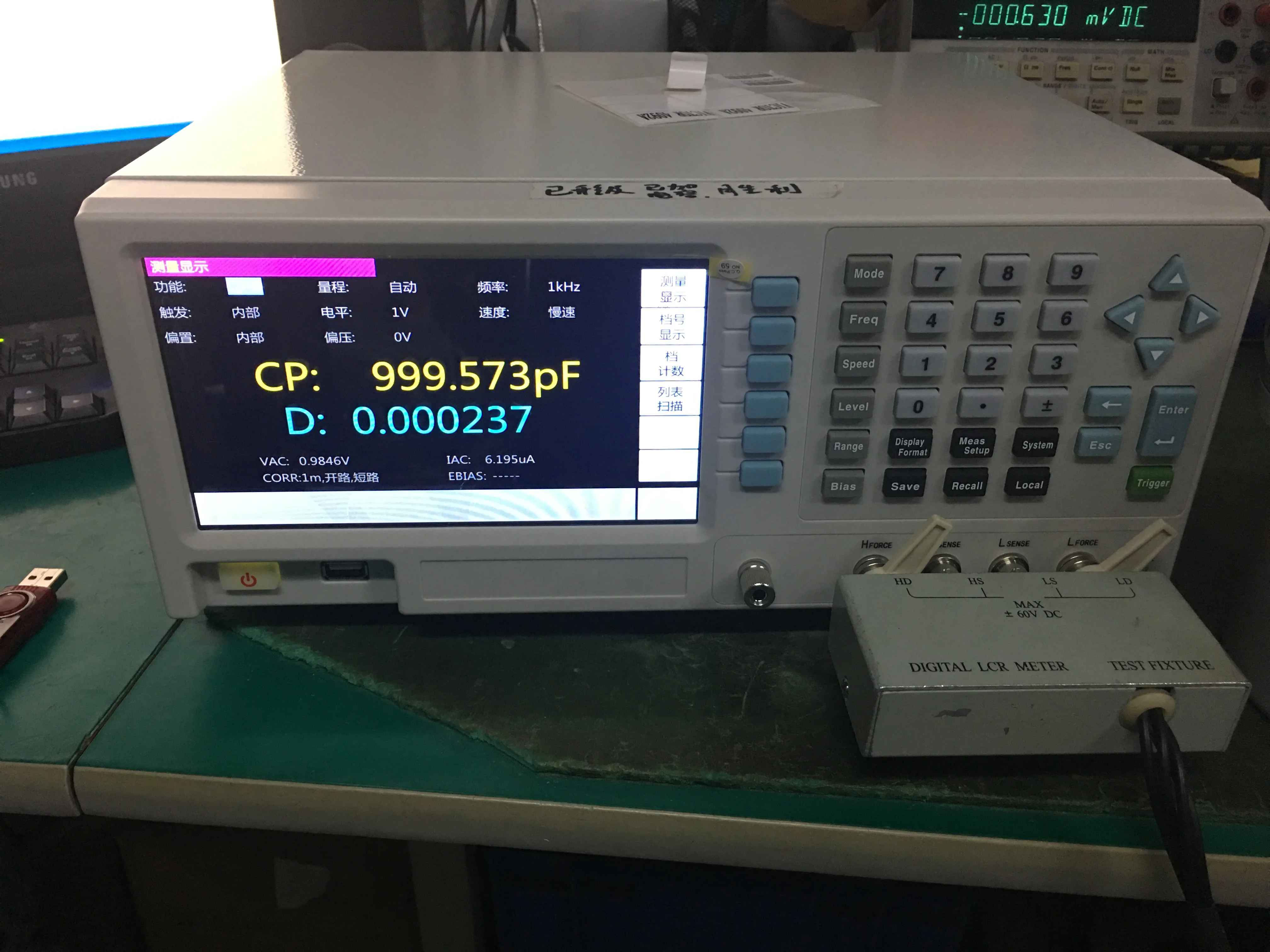

Desktop LCR Meter Digital Electric Bridges 10Hz- 1MHz Measurement Range ET3500 Series

Product features

v  0.05% basic accuracy or 0.1% basic precision

v  A maximum of 200 time/s measuring speed

v  Frequency measurement range of 10 Hz- 1MHz

v  Amplitude of excitation signal 10 mV- 2 V adjustable

v  Internal programmable DC bias voltage

v  External additional DC bias voltage supported

v  Automatic level adjustment of voltage or current

v  V,I testing signal monitoring

v  10-point list scanning testing

v  10-grade sorting and counting

v  256 groups of correcting data for specified frequencies

v  6 digit reading resolution

v  7” LED display screen, Chinese and English interfaces

v  USB, Ethernet, RS232, GPIB, Handler interfaces

Measured objects

v  Passive components: impedance parameter evaluation and performance analysis for capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components and network components.

v  Semiconductor components:C-VDC characteristics of varactors; analysis of parasitic parameters transistors and integrated circuits

v  Other components: impedance evaluation of printed-circuit boards, relays, switches, cables, batteries, etc.

v  Dielectric materials: dielectric constants and loss angle of plastic, ceramic and other materials;

v  Magnetic materials: evaluation of magnetic permeability and loss angle of ferrite, amorphous bodies, and other magnetic materials

v  Semiconductor materials: dielectric constant, electric conductivity and C-V characteristic of semiconductor materials

v  Liquid crystal materials: dielectric constant, elastic constant and other C-V characteristic of liquid crystal unit

Applications

v  Electronic capacitors, substrates, PCB, antennae, ferrite, dampers, SAR phantom materials

v  Aerospace/national defense, stealth technology, RAM (radar-absorbent materials), radar antenna housing

v  Industrial materials, ceramic and composite materials, auto parts, coating

v  Polymers, plastic fibers, films, insulating materials

v  Hydrogel, disposable diapers, soft contact lens

v  Liquid crystal display

v  Other products containing such materials: tires, paints, adhesives

v  Food and agriculture: food preservation (deterioration) study, development of microwave food, package and water content measurement

v  Forestry and mining: water content measurement and oil content analysis of wood/paper products

v  wood/paper products

Pharmacy and medicine: R&D and production of drugs, biological implant, human tissue characterization, biomass and fermentation

General technical specifications

Power voltage:220V.AC ±10%,50Hz;

Power consumption: <20W

Display: 7” TFT LCD, with a resolution of 800*480

Interfaces: Ethernet, RS232, GPIB, USB and Handler interfaces

Service environment: 0°C-40°C

Sizes: 330mm*285mm*136mm (L*W*H)

Standard accessories:

Three-core power cord

Kelvin clips

Lead-type testing clips

Gilded short circuit bar

Optional accessories:

GPIB cable

RS232 serial port line

USB cable

1m/2m test cable

Patchtesting clips

Patch testing clips (with cable)
