LCR4070D Professional LCR digital bridge resistance meter Capacitance tester Inductance multimeter

Product features

6000 Counts & Multi-function:Can display 6000 counts and measure AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Frequency,Duty Cycle,Diode,and Continuity Testing.

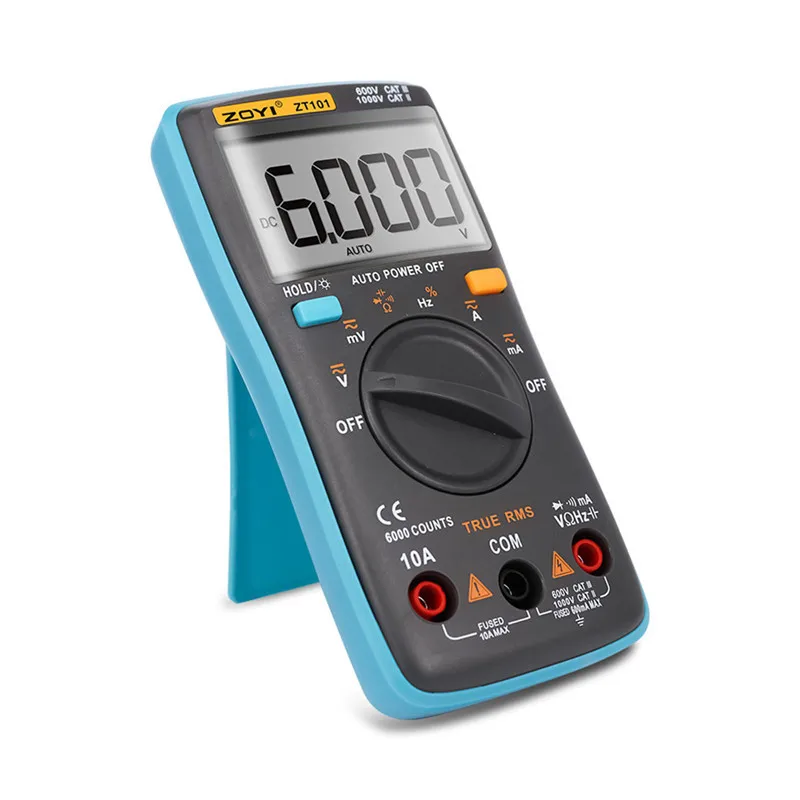

Portable Design:There is a back bracket for supporting multimeter, and also can collect test probe for your convenience.

Wide range of applications:It's perfect home tools for the laboratory, factories, radio enthusiasts.

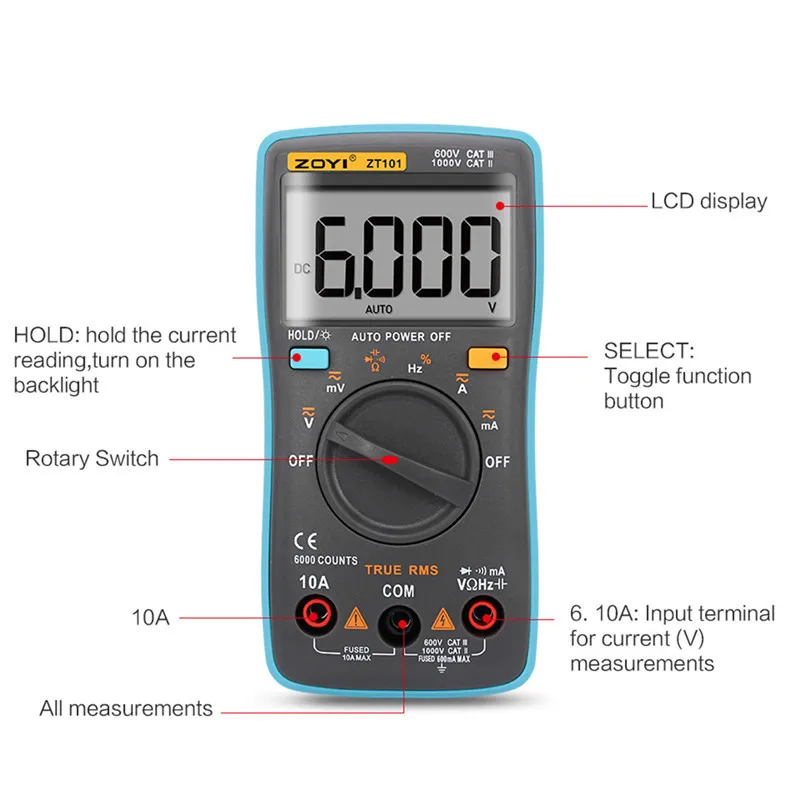

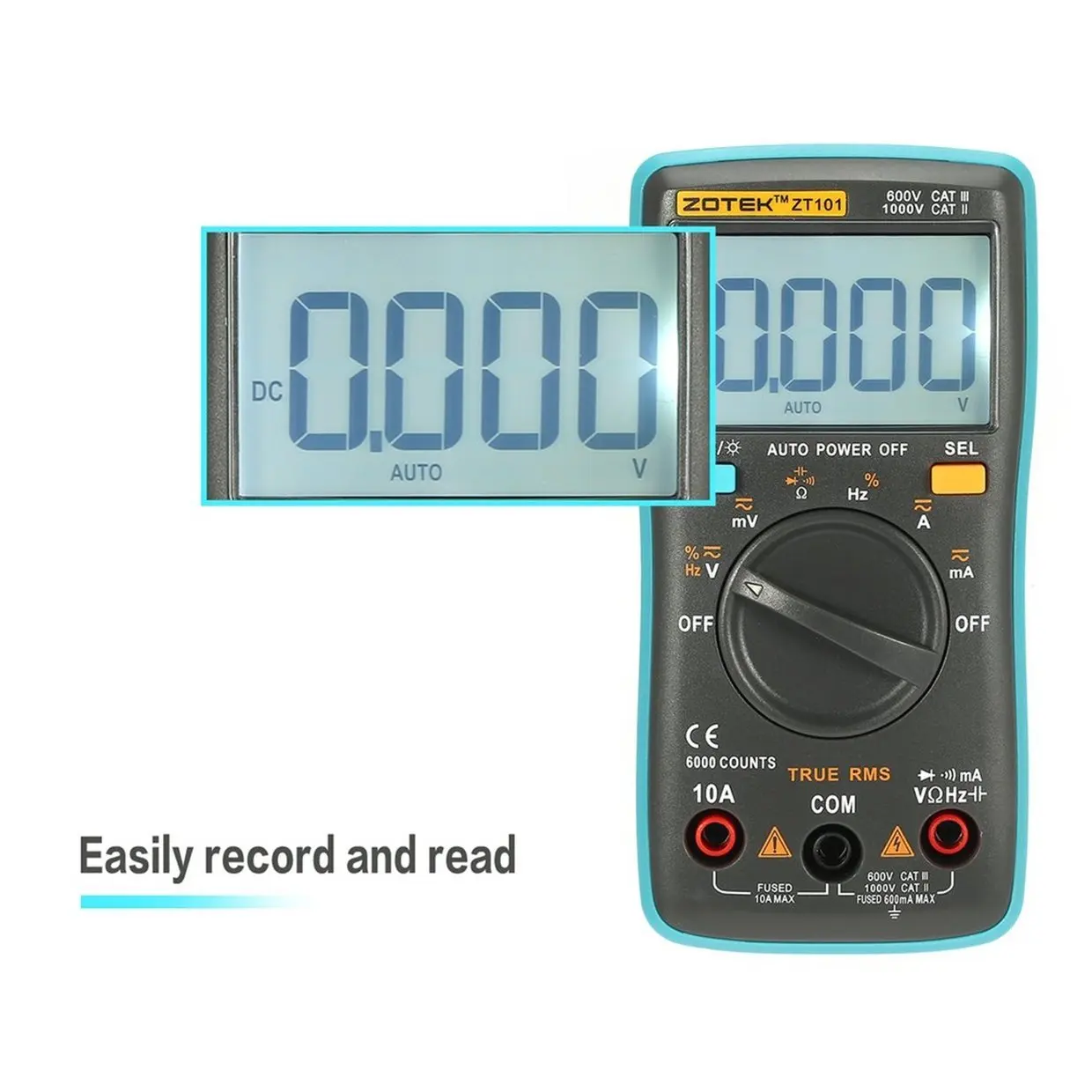

Easy to Use & Clear to Read:With large LCD backlight display, convenient to use and read in a dark environment .

Auto Power off:15 minutes after the rotary switch is opened,the meter automatically enters the sleep state to reduce energy consumption.

Product description

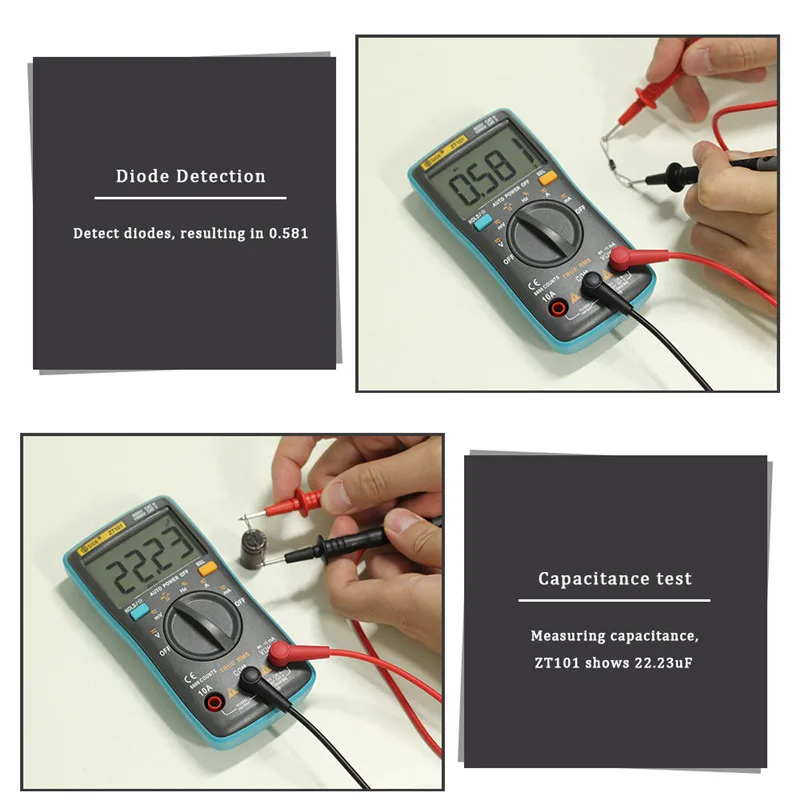

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,Frequency,Duty Cycle,Diode,and Continuity Testing.

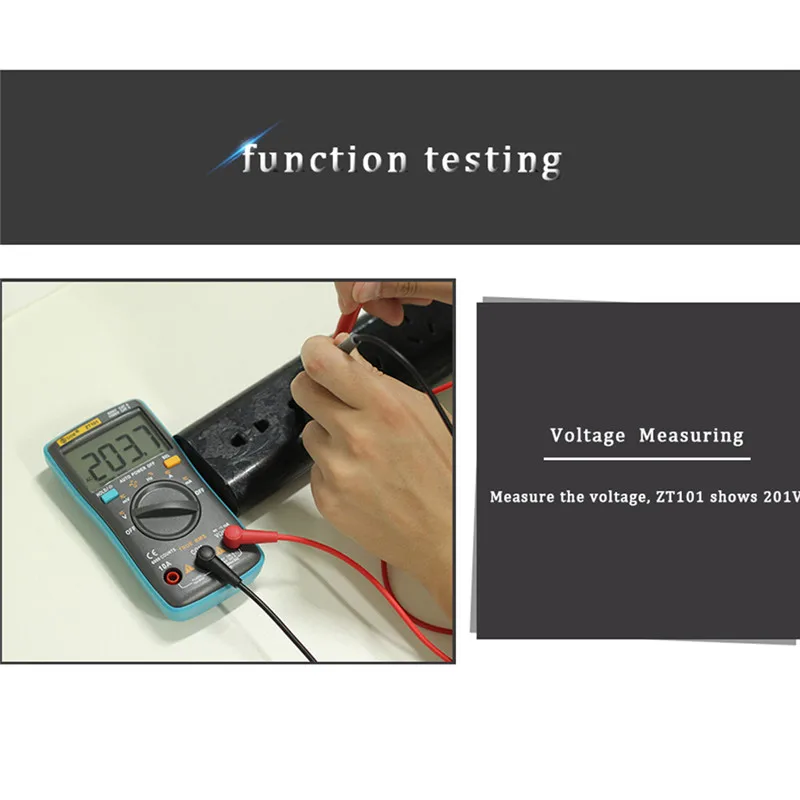

DC volts:60mV/600mV±(0.5%+3),6V/60V/600V/1000V±(0.5%+3)

AC volts:6V/60V/600V/750V±(1.0%+3),60mV/600mV±(1.0%+3)

DC current:6A/10A±(1.2%+3),60mA/600mA±(1.2%+3)

AC current:6A/10A±(1.5%+3),60mA/600mA±(1.5%+3)

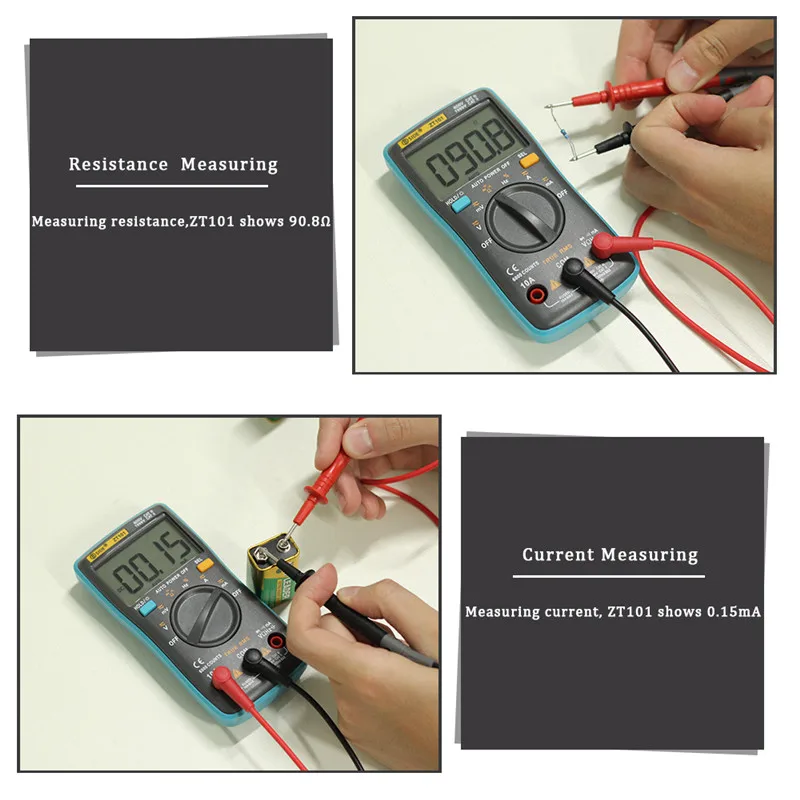

Resistance:600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(0.5%+3),60MΩ±(1.5%+3)

Capacitance:9.999nF±(5.0%+20),99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)

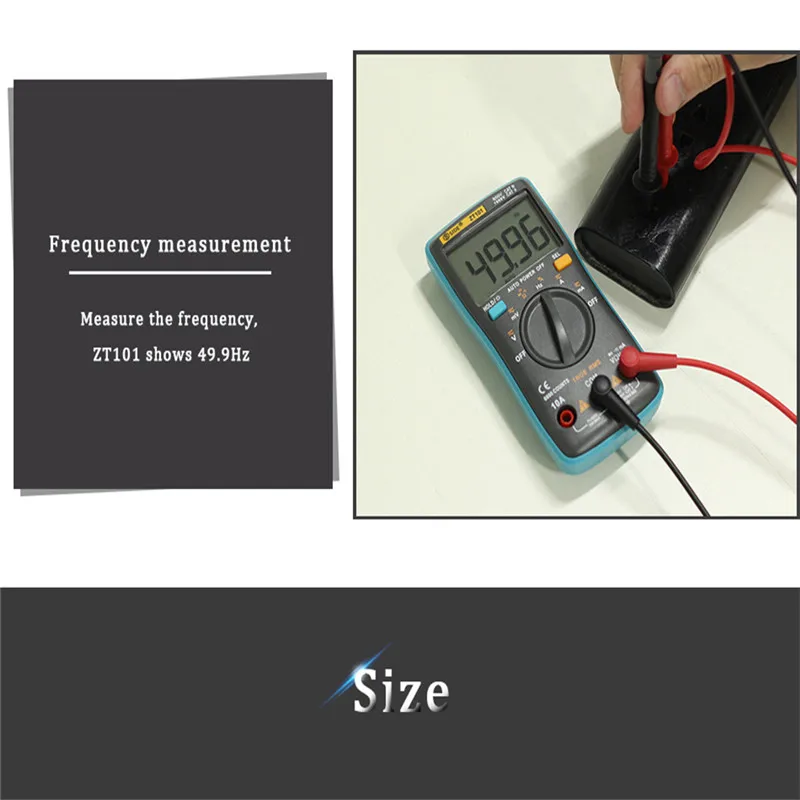

Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz±(0.1% + 2)

Duty Cycle:1%~99%±(0.1% + 2)

Working environment: 0~40C, relative humidity < 75%

Supply power:1.5V AAA battery * 2 (not included)

Product Weight:127g

Product Size:125mm * 65mm * 24 mm

Package Size:16 * 9.7 * 4.5cm / 6.3 * 3.8 * 1.8in

Package Weight:235g / 0.53lb

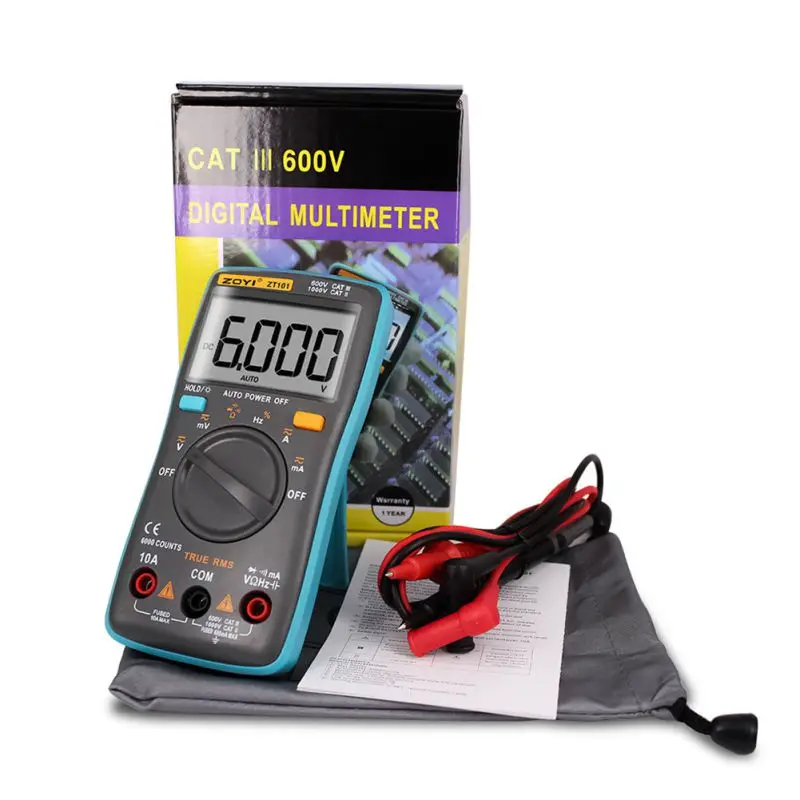

Package List:

1 x Digital Multimeter

2 x Test Leads

1 x English Manual

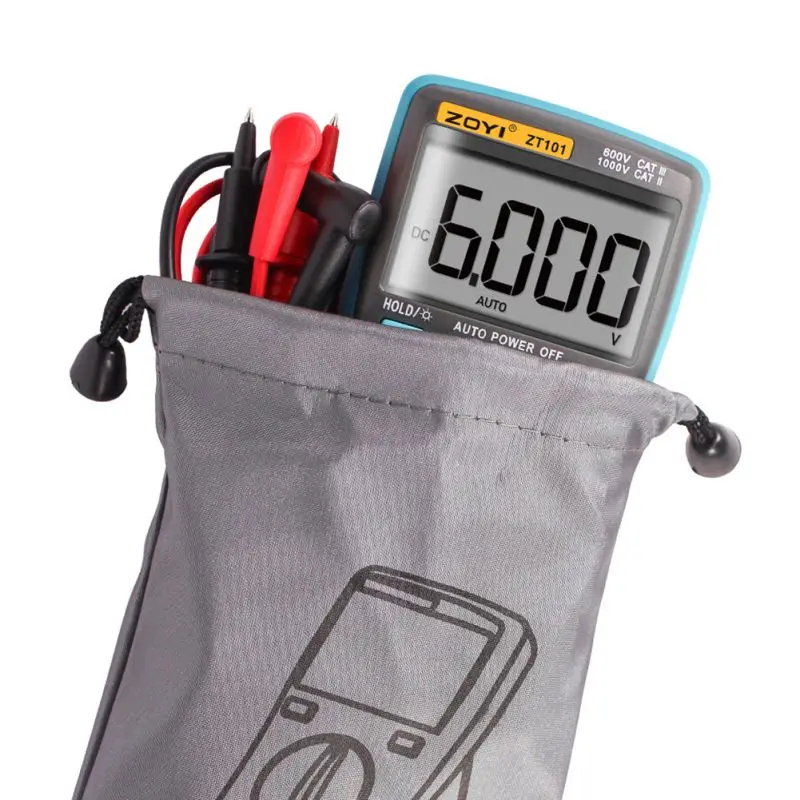

1 x Cloth bag

US $19.50-$24.00
