Product Overview

Description

Product Description

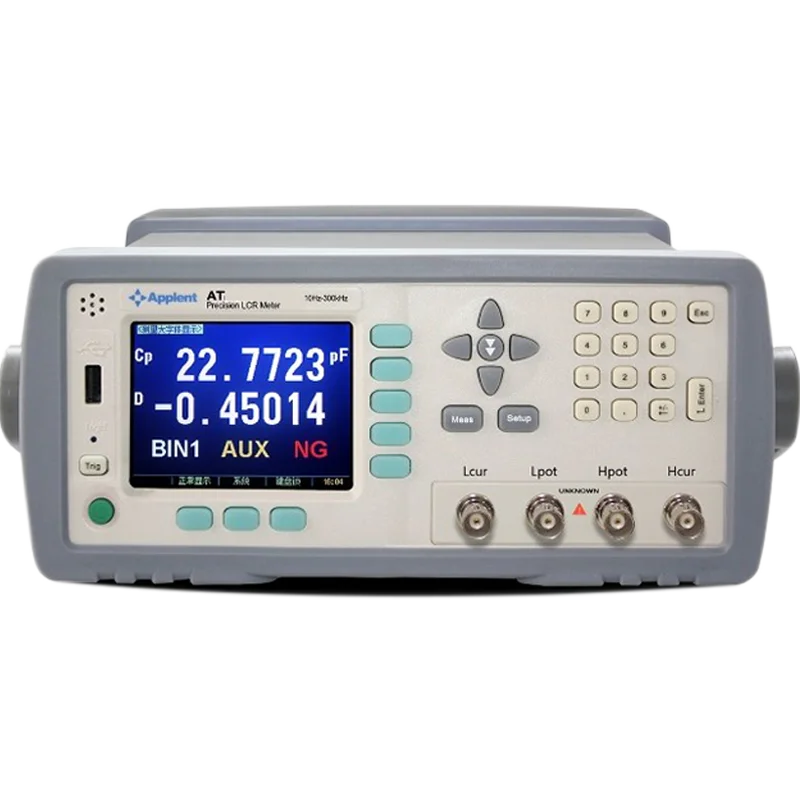

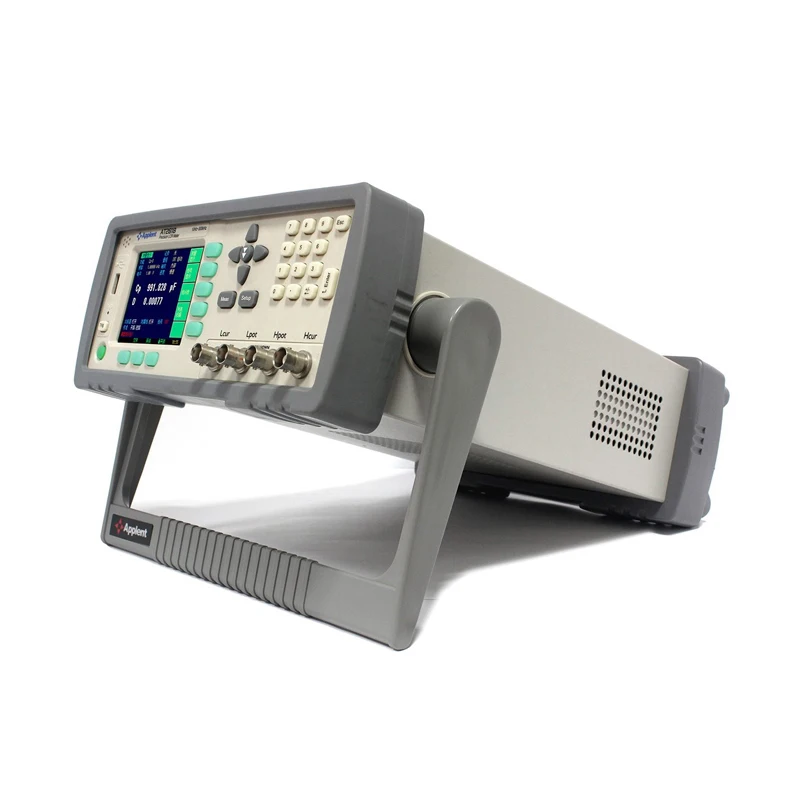

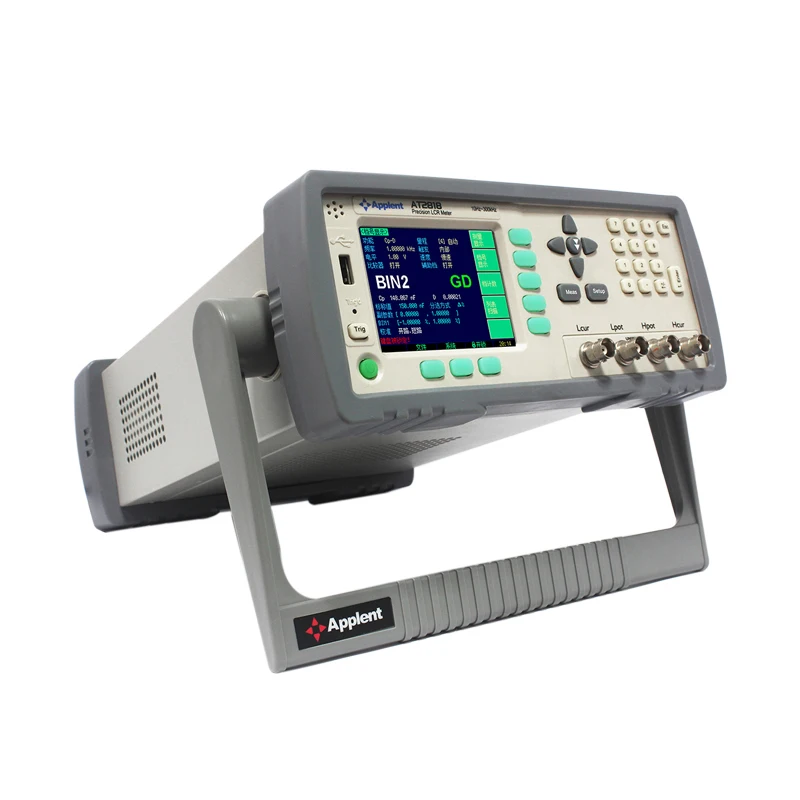

AT3818 adopts true-color TFT-LCD and English operation interface (Chinese also available). AT3818 (Rev B2.0) has been upgraded into continuous frequency with the resolution of 0.001Hz.

Four parameters can be measured simultaneously by AT3818, Any parameters can be set arbitrarily. Both main & sub parameters can be displayed in 6 dgt after the improvement. AT3818 can not only scan 10 kinds of frequency or voltage level list, but also correct three groups of user frequency so as to improve the accuracy.

SPECIFICATIONS

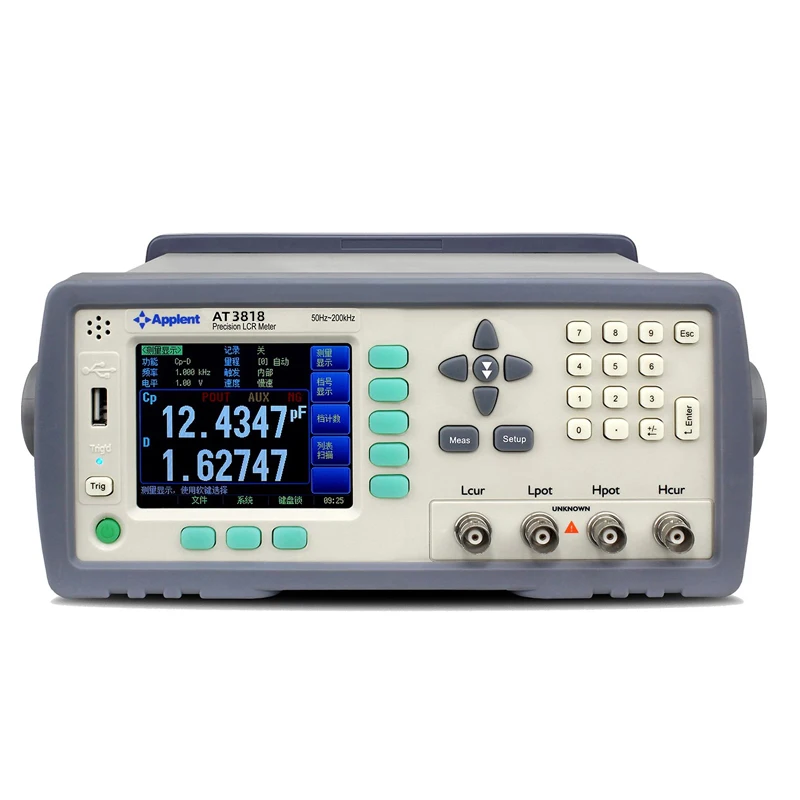

	AT3818 Precision LCR Meter
Parameters	Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg, DCR
Monitor Parameters	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Accuracy	0.05% ± 5 dgt
Frequency	10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz)
Display Range	L: 0.00001mH-999999H C: 0.00001pF - 999999mF R,Z: 0.00001W - 99.9999MW D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 D%: -999999% - 999999% q(deg): -179.999° -179.999° q(rad):-3.14159 – 3.14159 DCR: 0.00001Ω ~ 99.9999MΩ
Source Resistance	30Ω, 50Ω, 100Ω
Range	Automatic, Manual, and nominal, 9 ranges
Display Max	6 digital, principle parameter: 999999; sub parameter:999999; monitor parameter: 999999
Signal Level	0.01V - 2.00V (10mV Step)
Speed	30t/s, 10t/s, 6 t/s, 3 t/s 1-256 times average is available
Comparator	14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max - 999999
List Test	10 group frequency and level scanning measurement
Adjustment	Open & Short circuit sweep frequency reset, 3 point frequency reset and load calibration.
Files	10 group files to save user's setting, 1 group to save system data real-time
Interface	RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 data)
Others	LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display
GENERAL FEATURES
Power Supply	Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Max Power: 20VA
Size	264mm (width)x107mm(height)x350mm(depth) 4kg
ORDERING INFORMATION
Accessories	ATL501E Test cable ATL508A: SMD patch test clip ATL601: Test fixture ATL600: Short-circuit slice ATL108: RS232 Communication cable AC Power Cord
Options	ATL608 SMD patch clamp ATL508: SMD patch test clip ATS2818: Data acquisition software
