Product Overview

Description

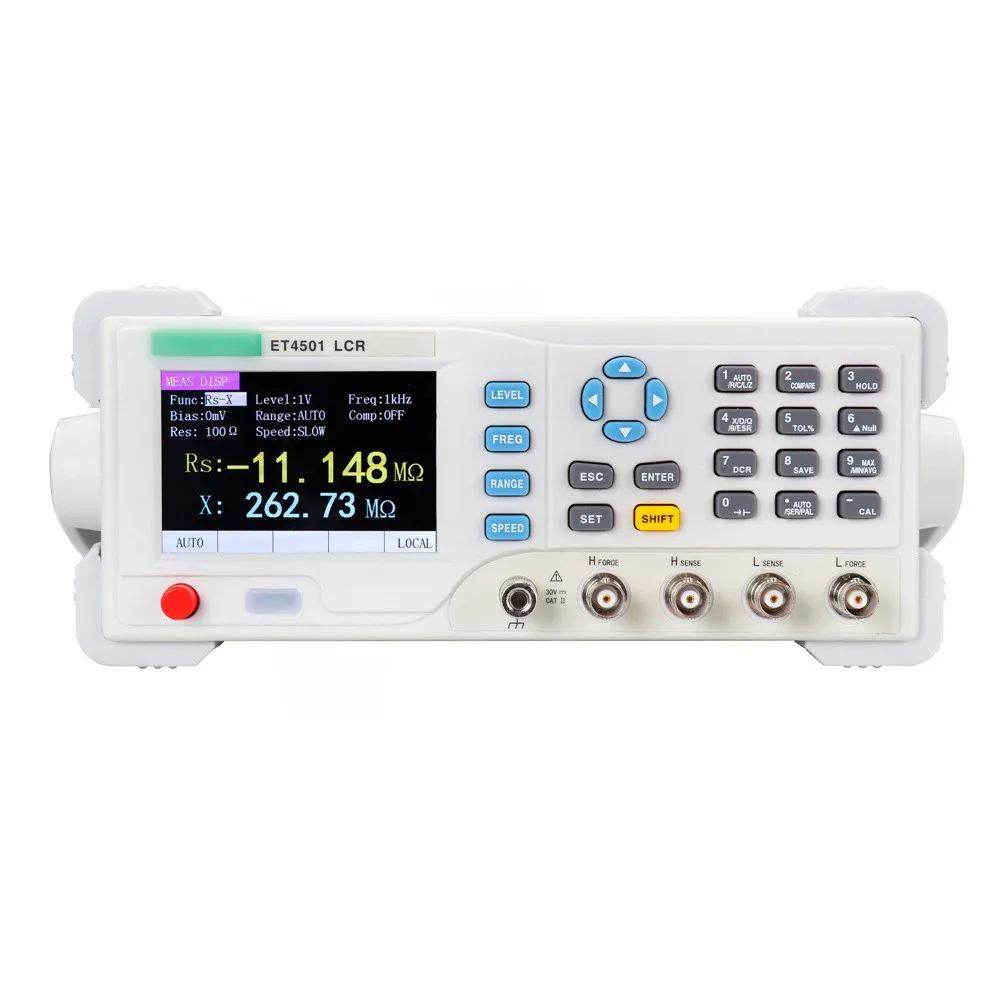

ET4501 LRC Benchtop Digital Bridge Desktop LCR Tester Meter Capacitance Resistance Impedance Inductance Measure

Descriptions:

ET45 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety
of measurement parameters into one body. It is convenient for users to carry out remote control with
USB and RS232 and also perform the sorting of components using handle. In function, it can not only adjust
the output frequency and test level, but also record the value of components in the process of measurement.
In the performance parameters, its basic accuracy
reaches 0.2%.

Features:

 Measurement frequency up to 100kHz
 Test level 100 ~ 2000mV
 Support the measurement of DC resistance and electrolytic capacitor
 Internal bias voltage output (1mV-1500mV)
 Automatic identification of component measurement
 3.5-inch TFT display, 5 and a half bits display

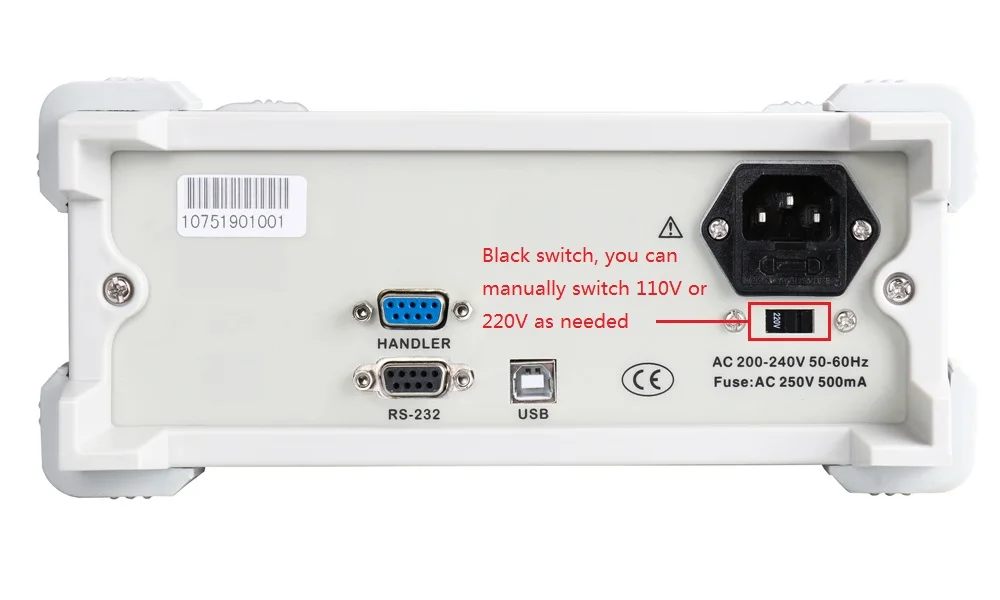

 USB, RS232 communication interface,Handle sorting
 Data recording function (maximum and minimum values, average value)
 Support SCPI communication protocol
 Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users.
 Basic accuracy 0.2%
 Manual and automatic range
 Be equipped with open circuit and short circuit correction
 Comparator has sorting and alarm function

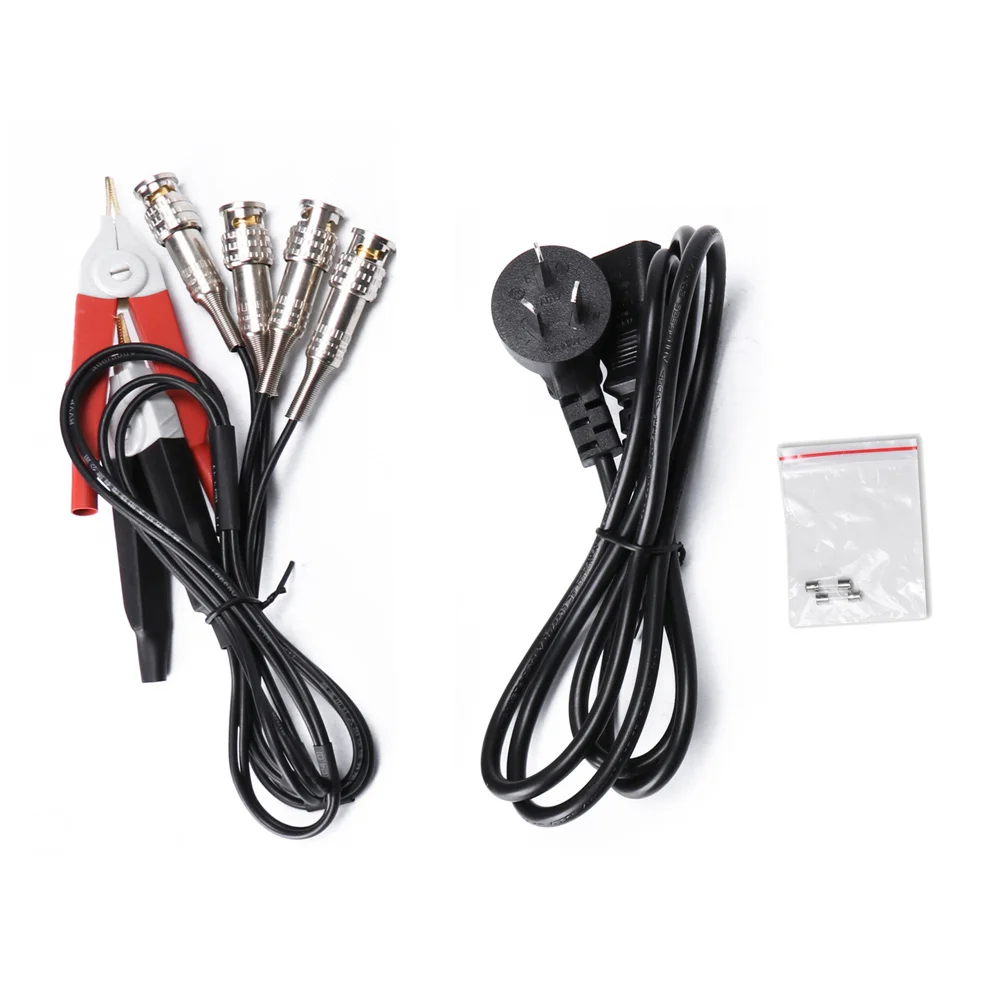

 Provide a variety of test ports

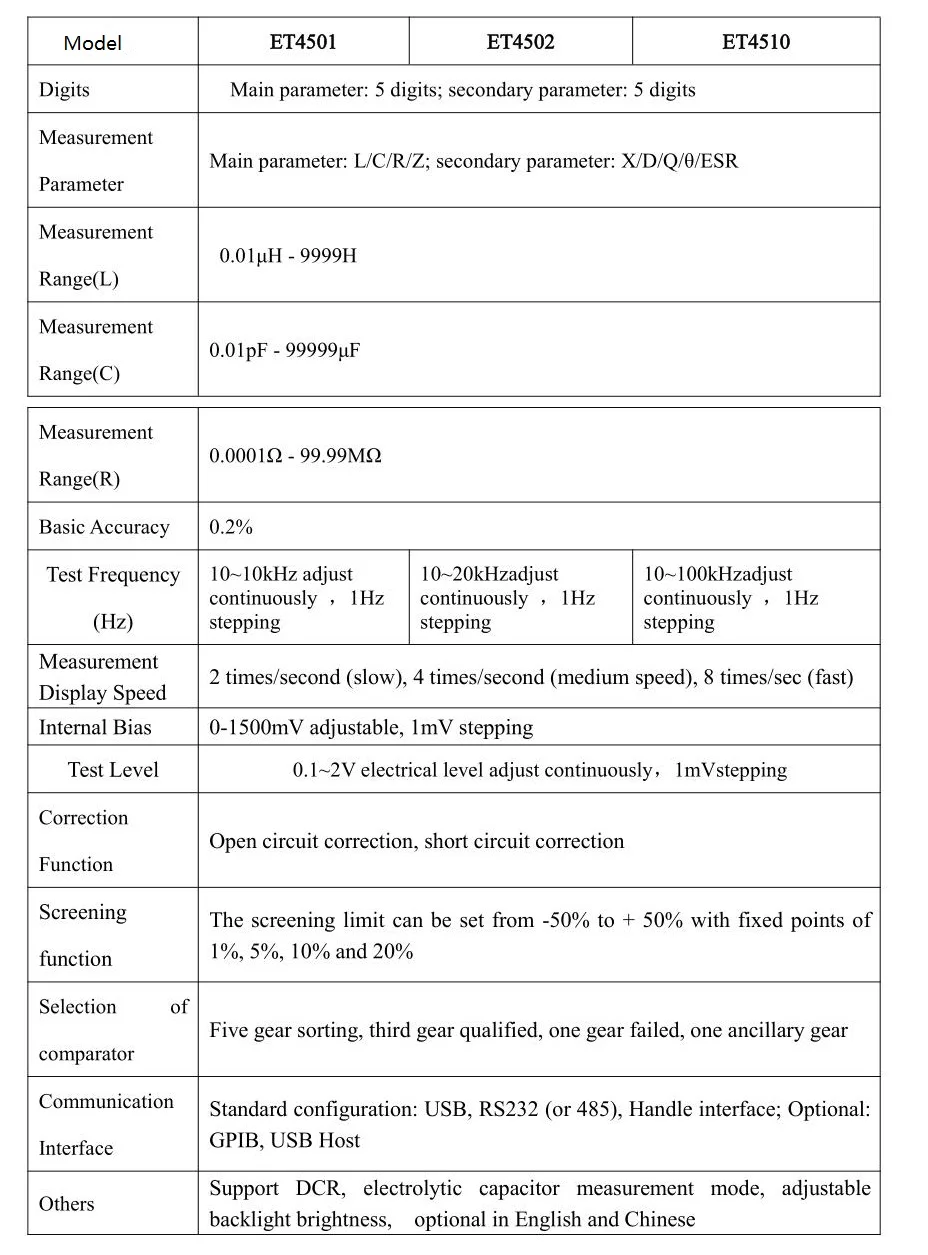

Specifications:
