Shantui crawler bulldozer SD17 SD16TL SD16E SD16L SD16-3 cheap price dozer with overseas engineer service

Product Overview

Description

Shantui crawler bulldozer SD17 SD16TL SD16E SD16L SD16-3 cheap price dozer with overseas engineer service

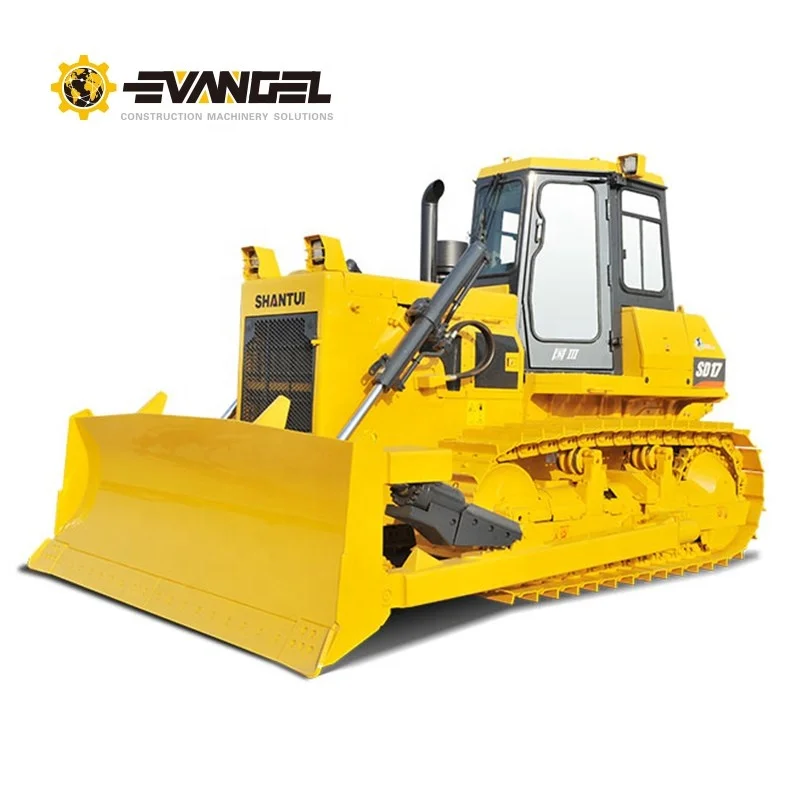

The SD17 crawler-type bulldozer is based on the SD16 bulldozer. It mainly improves the versatility and sealing of the cab, and involves the optimization and upgrading of components such as floor panels, cabs and instrument boxes.
This product is mainly used for the transportation, excavation, backfilling earthwork and other bulk materials of roads, railways, mines, airports, etc. It is an indispensable machine for national defense engineering, mine construction, urban and rural road construction and water conservancy construction. device.

power system :
The Weichai WP10 engine is equipped with sufficient power, easy maintenance, and environmentally friendly features such as high combustion efficiency and meets the national III emission standards.

Transmission system:
Planetary power shifting, forced lubrication gearboxes, hydraulically assisted steering systems make the machine easy to operate, with high transmission power and efficient production efficiency.
The three-component single-stage single-phase hydraulic torque converter has simple and reliable structure, improves the automatic adaptability of the machine, and transmits the power smoothly to the transmission system, which can effectively protect the transmission system and improve the smoothness and comfort of the bulldozer operation. .
Central drive, using spiral bevel gear, first-stage deceleration, splash lubrication.
Steering clutch, wet type, multi-piece spring compression, hydraulic separation, manual-hydraulic operation; steering brake: wet, floating belt, hydraulic boost.

Chassis system:
The eight-beam oscillating and balanced beam suspension structure connects the frame and the walking system to transmit the working load and impact load during operation to the main frame, which effectively improves the stability of the small bulldozer in complex working conditions. When the construction site is uneven, the frame will be swung up and down to reduce the vibration to protect the machine.
Cooling System The closed system maintains the tank pressure at a specific value, which increases the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply enhances the cooling effect.
Electrical system Newly designed instrument box, improved sealing and button operation comfort, using color display intelligent instrument, automatic detection with fault, electronic monitoring of parameters of main components and oil temperature, oil level, water temperature and oil pressure And over-limit alarms enable automatic fault diagnosis and display.
Air-conditioning, instrument integration design, built-in air conditioning duct, improve cooling and heating effects. Cab Newly designed cab with labyrinth seal structure, beautiful appearance, comfort and sealing, floor rack, instrument box, cab integrated installation, synchronous shock absorption, reliability improvement.

Optimized lighting system, Working at night provides a good guarantee.
