Skywin Automatic Small Flat Wafer Biscuit Making Machine Production Line 80Kg/hr
- Category: Biscuit making machine >>>
- Seller: Skywin,Foodstuff,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Skywin Automatic Wafer Biscuit Line Model-27plates Capacity 80Kg/hr
Our wafer production line with stable performance, long service life and perfect after-sales service. All electric components are imported from famous brands. Skywin provides our clients with the one-stop service from design to installation sincerely.
1. SKYWIN Automatic Wafer biscuit line has many models like 27Plates, 33Plates, 39Plates, 45Plates, 51Plates, 63Plates, 69Plates, 75Plates capacity can be customized depend on customer's requirement, 80kg/hr to 240kg/hr.
2. The Energy source can be Electrical Oven, Natural or LPG Gas Oven.
3. Model-27plates capacity is 80kg/hr
Electric component:
Gas system use MADAS from Italy
PLC touch screen: SIEMENS
Transducer: SIEMENS
Switch & Button: Schneider
Motor & Gearbox: SEW.
Bearing: SKF
Electonic: Schneider
Technical Data:
1.Capacity/ : 2 Tons (24h)
2.Loading power/ : 5.52KW((380V, 50HZ)
3.Gas consumption: 13kg/h
4. Finished product rate / :≥98%
5.Requirement for pressure of gas supply: 0.25-3.5kg/cm2: 0.25-3.5kg/cm2
7.Consumption of compressed air 0.9m3/Min/0.8MPA
8.Baking plate size 470mm×325mm
9.Valid sheet cutting size :455mm × 315 mm
10.Baking time: 90s
11.Exterior size of complete line 24.3m×3m×4m (L×W×H)
12.Weight of complete line: About 12T
13.Operator:4 people ( Not Including Packer)
14.Workshop dimension:28m×10m×( ≥3.5m)

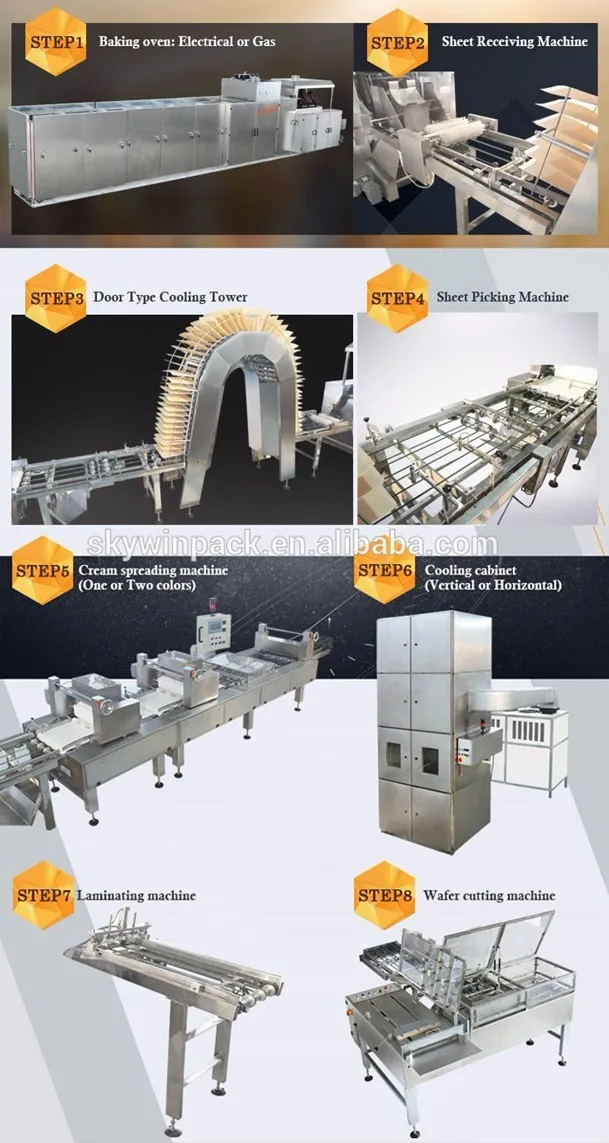

Flat Wafer biscuit processing
Batter mixing--Baking--Creaming--Wafer books laminating--Cooling--Wafer bar cutting and wrapping
Automatic feeding and packing line for option
Detailed Images
Packing & Delivery
Our regular packaging is multilayer packing, safe transport, shipping by sea: Step 1: Mechanical surface coated with preservative solution (to protect stainless steel). Step 2: The plastic cushion packing machine (prevent bump). Step 3: Plastic film packaging (to prevent ventilation). Step 4: Wooden case / frame packaging (easy to transport). Step 5: Tie the bandage outside of the wooden case (reinforcement overall). |
Our Company
We are manufacturer of biscuit cookies machine and packing machine.
Skywin provide one to stop solution and service from biscuit production to packing. We have more than 60 professional staffs to match delivery time. We insist quality and service is all in the business, innovation and researching is service to quality. What customer wants is what we pursuits and we strive to achieve quality, price, and service into a perfect unit. base on “international quality, competitive price”.

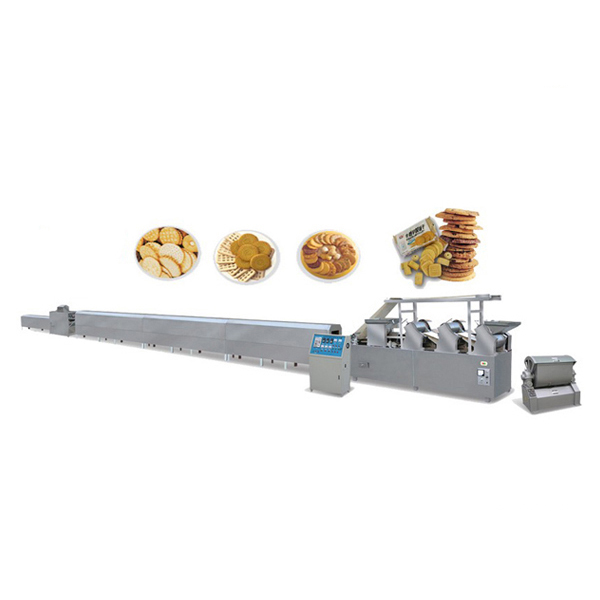

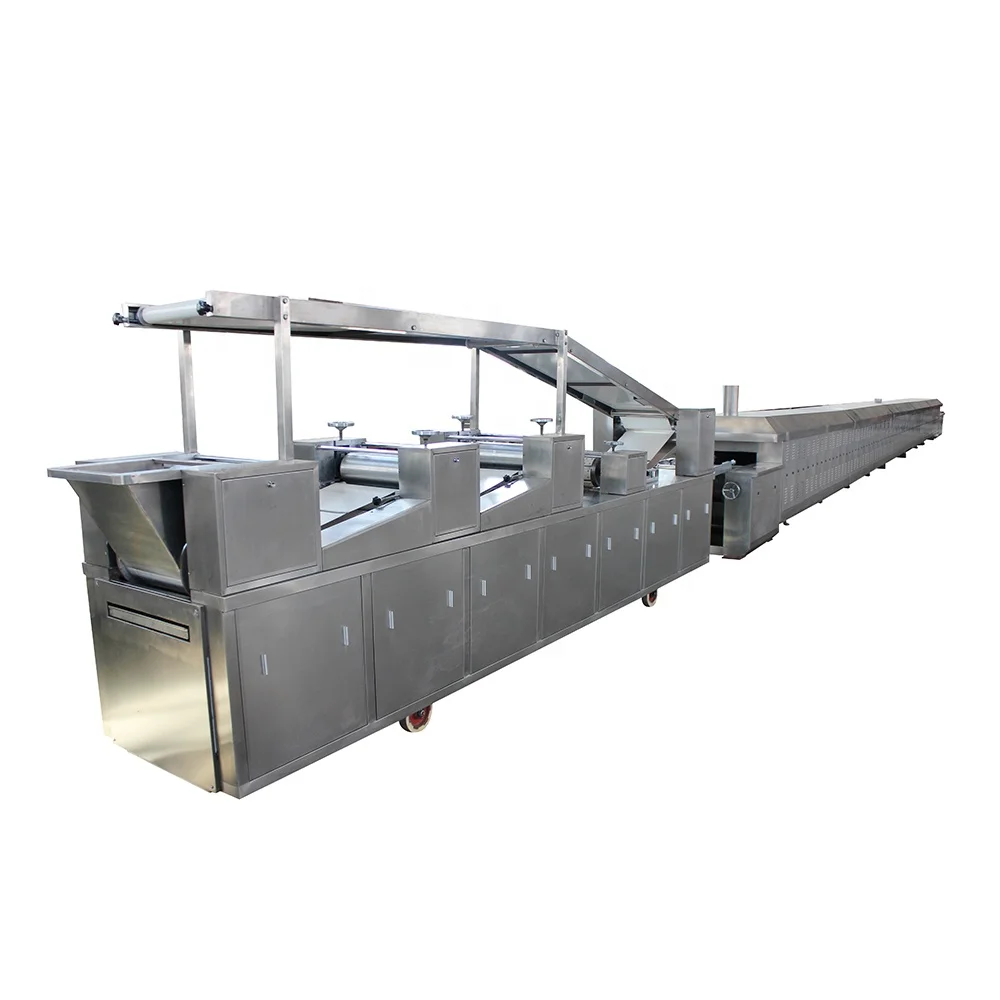

Main product: hard and soft biscuit production line
wafer biscuit production line
cookies production line

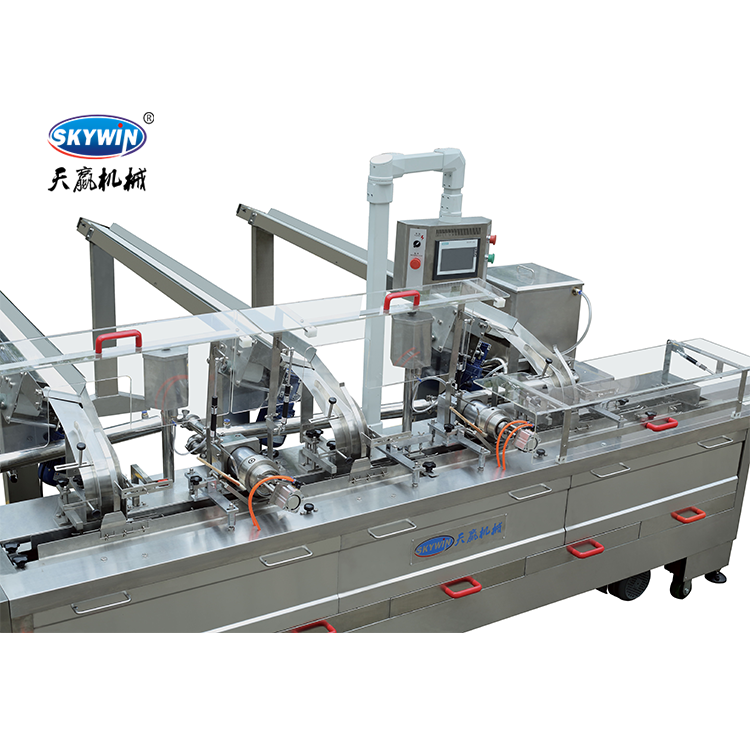

sandwich biscuit machine with packing machine
automatic packing line and so on
