50/60Hz Circuit 12V to 600V AC Voltage Meters Pen Type Digital Multimeter Detector Tester Meter Pen style Detector
- Category: Multimeters >>>
- Seller: Shenzhen,Bodunbaili,Electronic,Co.,Ltd.
Share on:
Product Overview
Description

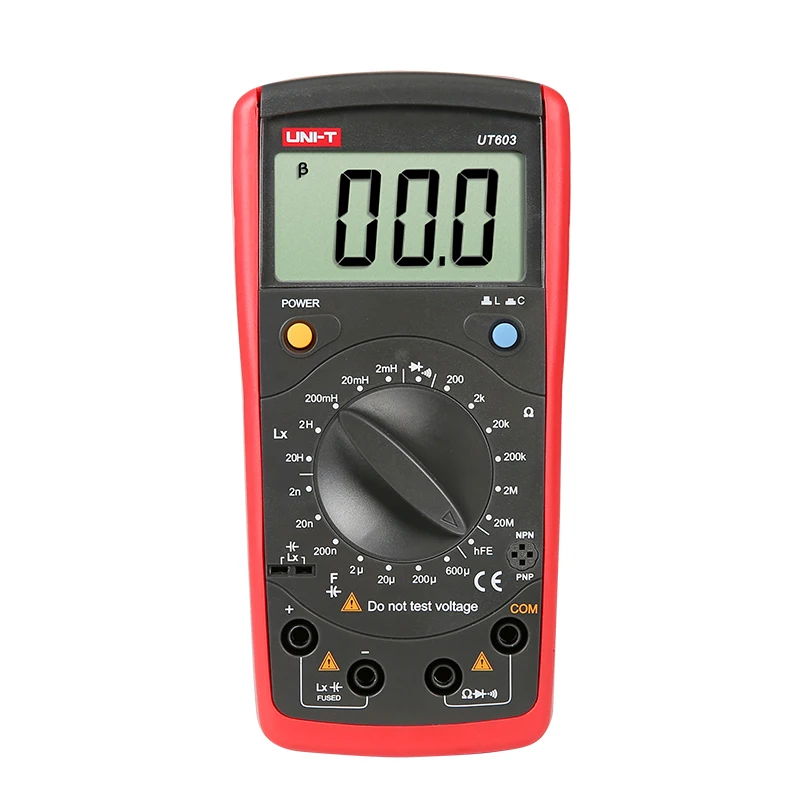

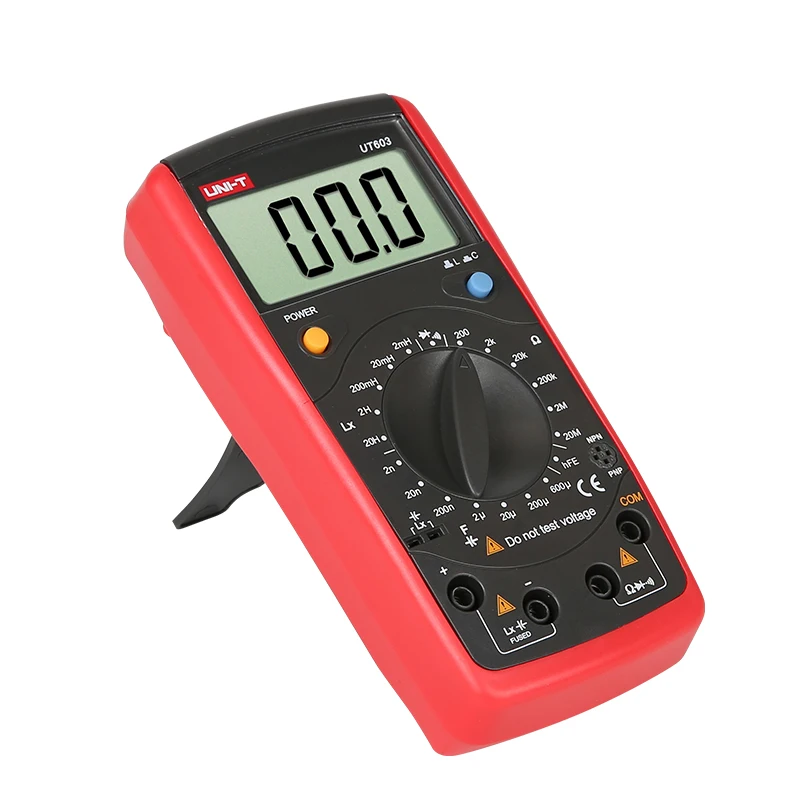

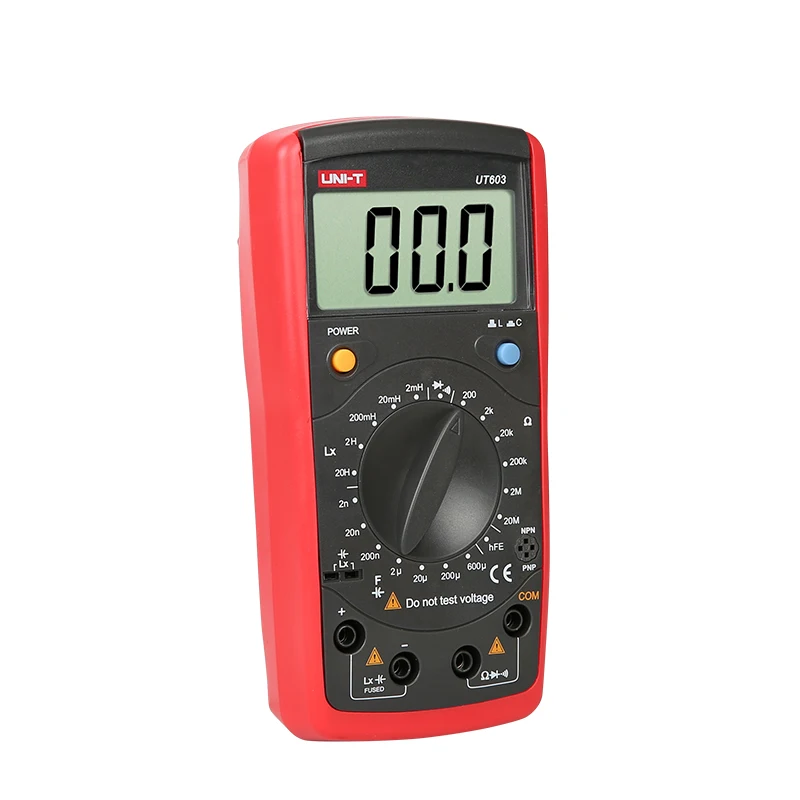

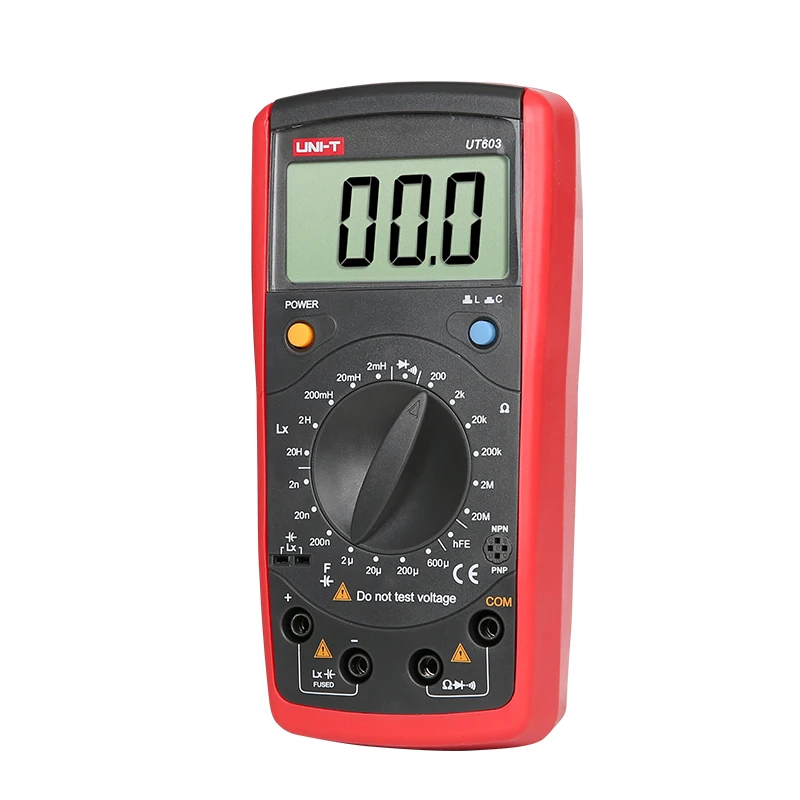

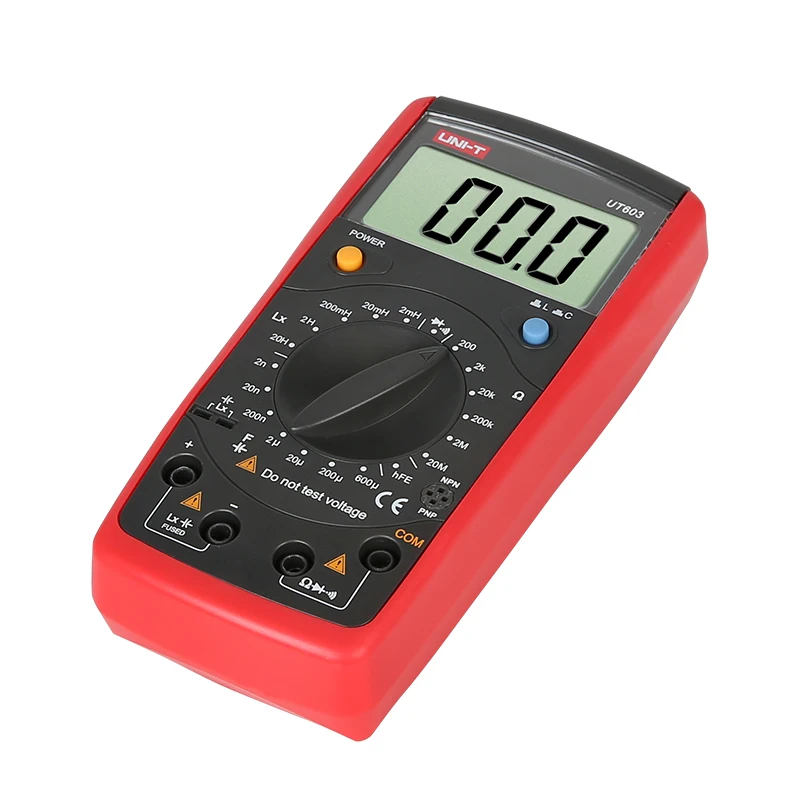

UNI-T UT603 measuring resistance and capacitance inductance Digital Capacitance Tester digital multimeter
Product Description
The UT600 series is a hand-operated 3 1/2-position manual range tester designed to measure resistive, capacitive and inductive components. It has the measurement function of the amplification factor β of the transistor, the forward voltage drop of the diode, and the on-off of the circuit. UT601-capacitance measurement range is wide, high precision (0.1pF ~ 20mF), UT602-inductance measurement range is wide, high precision (0.001mH ~ 200H) and data retention function, UT603 - full-featured (resistance, capacitance, inductance measurement) . Suitable for electrical, laboratory, maintenance, and teaching resistance, capacitance, and inductance testing
| Specifications | Range | UT603 |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2uF/20uF/200uF/600uF | ±(1%+5) |
| Inductance (H) | 2mH/20mH/200mH/2H/20H | ±(2%+8) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 61mm x 32 mm | |
| Product color | Red and grey | |
| Product net weight | UT601/UT602: 310g, UT603: 312g | |
| Product size | 172mm x 83mm x 38mm | |
| Standard accessories | Battery, test leads with alligator clips, holster | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | |
| Standard carton gross weight | 9.6kg | |
