Reasonable Price Sputtering Film 700Bar 1000Bar PPM-T322H Pressure Sensor for High-end Hydraulic Industry 4~20mA Output
Description
The model PPM-T322H pressure transmitter is the ideal solution for customers with demanding performance requirements in many industrial application.It features high accuracy, extended temperature ranges, high stability, high repeatability, low power consumption. The model PPM-T322H offers continuous measuring ranges between 0…10 bar to 0…1000bar in all common engineering units. These measuring ranges can be combined with several standard industry output signal, such as 4…20 mA, 0…10 V, 0…5V and many others.

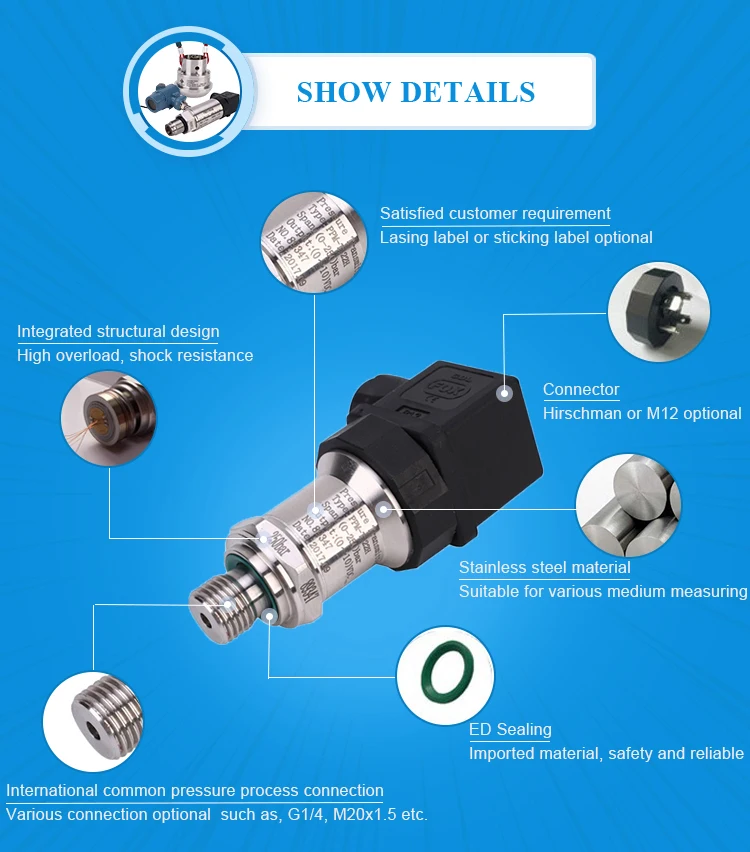

Features of PPM-T322H High accuracy pressure transmitter
1. Cost-effective 2. Wide temperature ranges 3. Long service life 4. OEM accepted 5. Strong anti-interference ability 6. Overvoltage protection
Specification of PPM-T322H Pressure transmitter
Measuring medium
Gas, liquid
Pressure type
Gauge pressure(G), Sealed pressure(S)
Pressure range
0~10bar,16bar,25bar,40bar,
60bar,160bar,250bar,400bar,600bar,700bar,1000bar
Power supply
9-32VDC
Output signal
4~20mA ,0~10VDC,0~5VDC,1~5VDC,0.5~4.5 VDC
Nonlinearity
≤0.25% FS (10bar,16bar,25bar) ≤0.05% FS (≥40bar)
Non-repeatability
≤0.1% FS
Accuracy
0.5%FS
Long-term stability
0.15%FS/year
Medium temp
-40~+125ºC
Operation temp
-40~+105ºC
Zero temp. drift
≤0.02%FS/ºC
FS temp. drift
≤0.02%FS/ºC
Response time
≤1ms(10%~90%)
Insulation resistance
≥1000 MΩ/100V
Overpressure
150%FS (1.5 times FS)
Damage pressure
500%FS (5 times FS)
Vibration resistance
5~1000Hz
Shcok resistance
50g, 20ms
Process connections
G1/4, M14×1.5, or other process connections on request

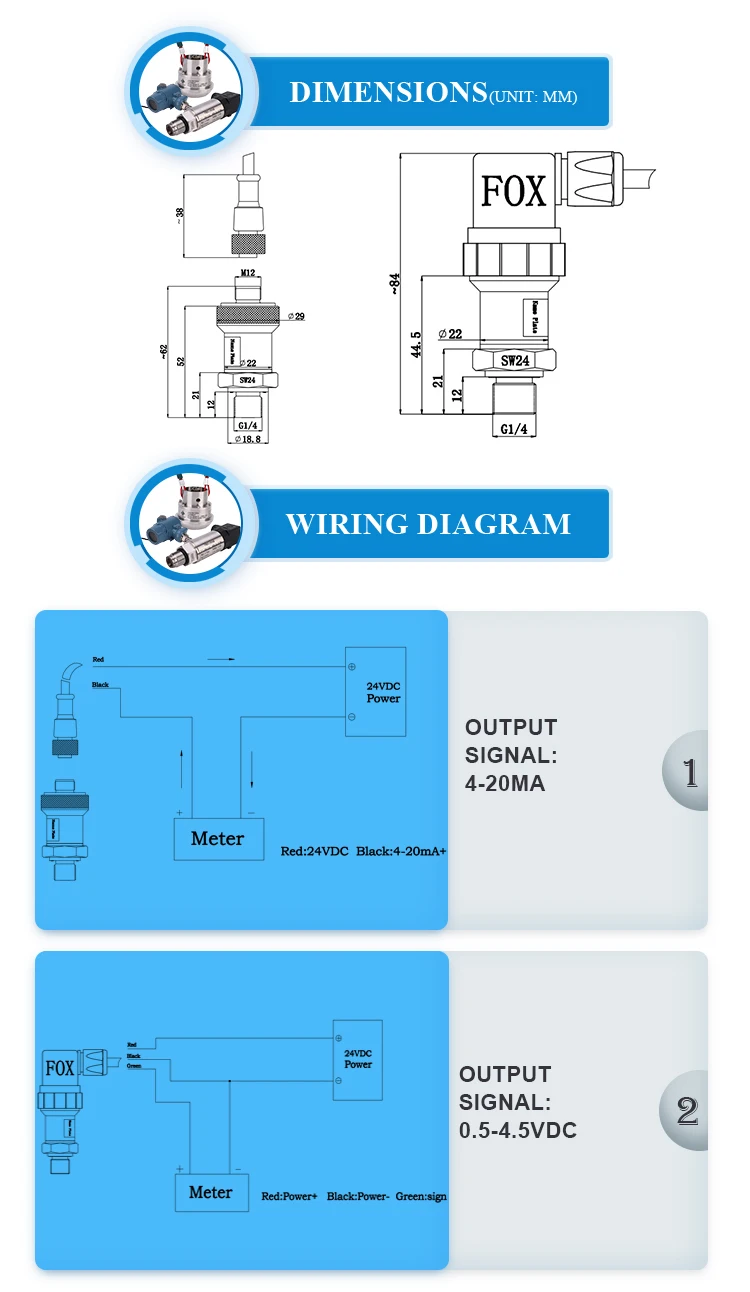

Dimensions in mm of PPM-T322H Pressure Transmitter

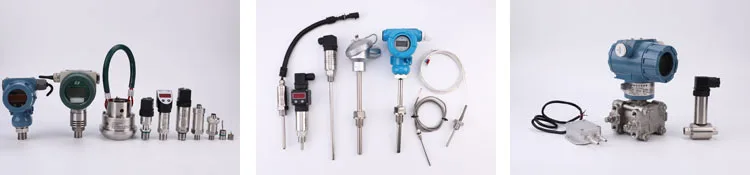

Product Series
Pressure Sensor Series Temperature Sensor Series Differential Pressure Sensor
Application
Chemical-industry Energy-industry Hydraulic control system
Machine-engineering Oil-Gas Water treatment
Applications 1. Level measurement in rivers and lakes. 2. Level measurement in vessel and storage. 3. Control of sewage discharge and pumping stations. 4. Level measurement in cistern and coolant reservoir.
Our Services
1, MOQ: One sample order is acceptable. 2,Price term : EXW, FOBChangsha. 3, Payment: Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order. 4, Packing: Standard export packing, including instructions and certificate. 5, Leading time : 5-10days for samples, 10-30 days for mass production. 6, OEM/ODM isavailable. 7, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder. 8, Warranty: One year free repair for quality warranty, and lifetime free online after-service.
Company Information
Why Choose CSPPM?
Factory Experience: More than 12 years specialized in pressure sensor industry.
Technical: Central south university sensing technology research.
OEM & ODM Service: Accept , Own R&D group.
Quality Assurance: Lifetime technical supports and 12 month warranty.
Industry Certification: CE, Rosh, ATEX Certification.

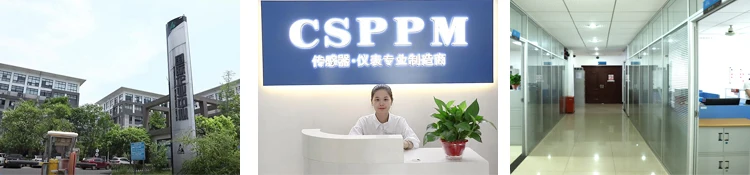

Factory Reception Desk Office Environment

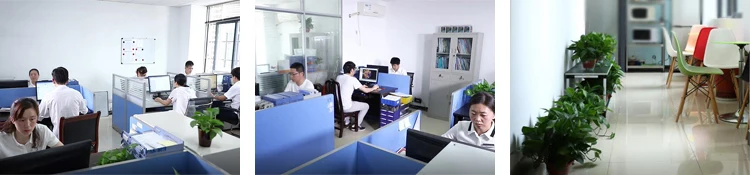

Sales Department R&D Department Rest Area

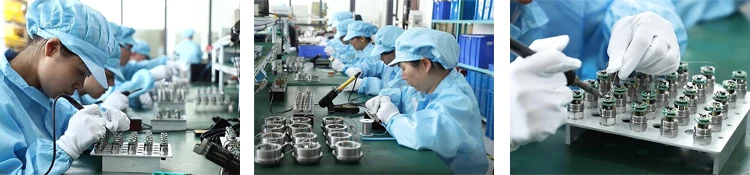

Production Line 1 Production Line 2 Production Line 3

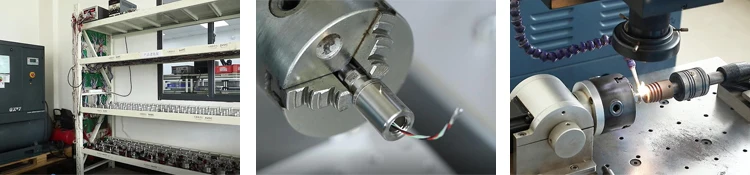

Product Aging Test Laser Marking Product Welding
Our Certifications
Buying Guide
In order to recommend you the most suitable sensor , please show us following necessary information according to your practical situation.
1.what is your application?
2.what purpose do you want to get?
3.what is your medium ? and working temperature?
4.what is your requirement on specification, including as below:
A, Pressure range ? B. Power supply? C. Output signal? D. Accuracy?
E. Process connection? F. Screw size? G.Whether need cable?
H. Package and label requirements?
Your other requirement will be welcome.
Packaging & Shipping
FAQ
Q: How long will you give me the reply? A: we will contact you as soon as we can. Q:Could I visit your factory? A: Sincerely welcome you to visit our factory. Q: Do you provide samples ? A: Yes,we have materials in stock to help you to get the samples as soon as we can. Q: How about the quality of the managements ? A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . Q: What is the warranty for your product ? A: Warranty: 1 years, and lifetime maintenance online after-service.
