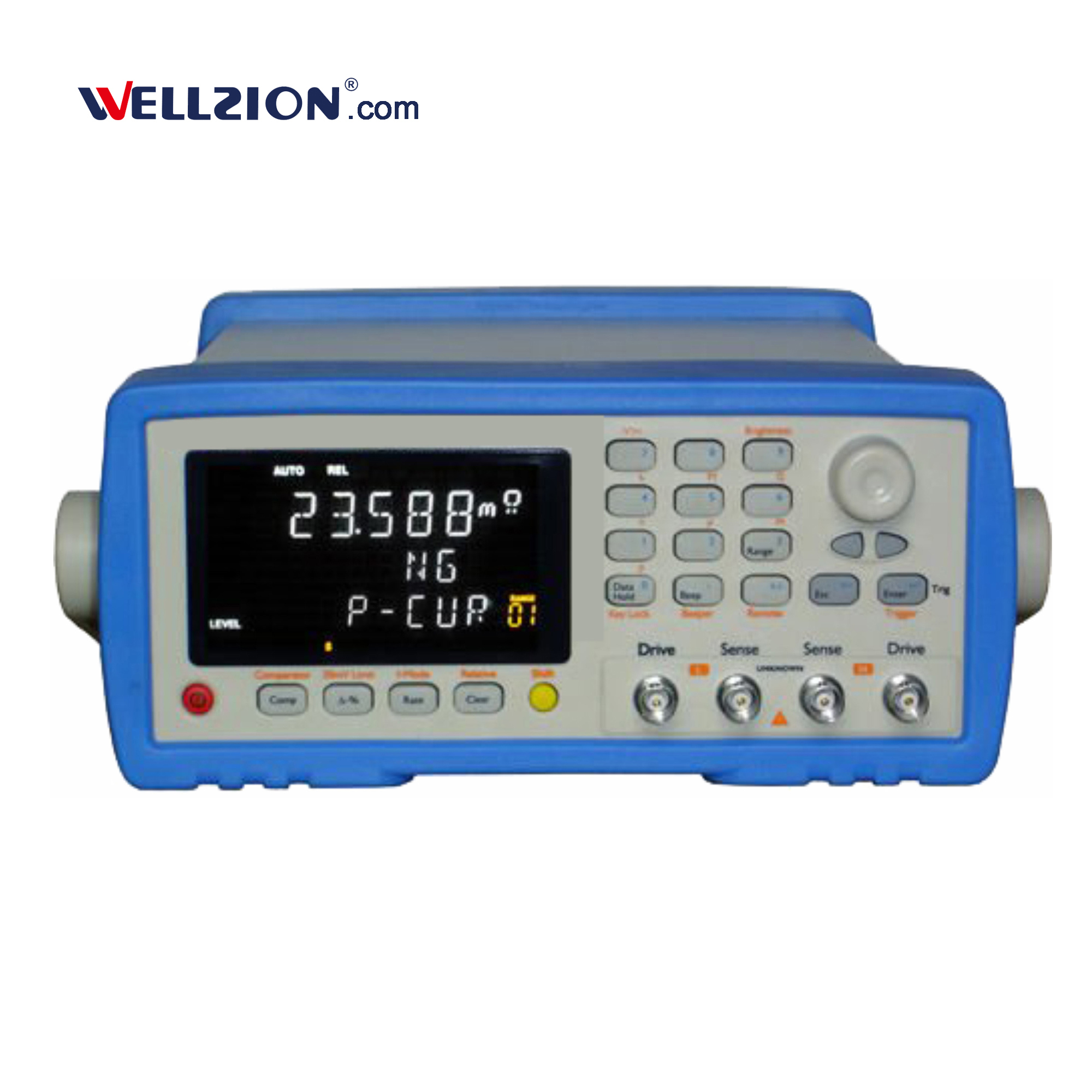

AT520,3.2k Ohm AC Battery Internal Resistance Meter Tester
AT520,3.2k Ohm AC Battery Internal Resistance Meter Tester

AT520,3.2k Ohm AC Battery Internal Resistance Meter Tester

Share on:

Price:
Price in USD:Details

Quantity:

Price request

Product Overview

Description


AT520,3.2k Ohm AC Resistance Tester,AC Low ohm Meter,Battery Internal Resistance Meter



Contact Us Directly


For quick reply


For more discounts


For update info : www.weLLzion.com





Function & Benefits



  •  Four Colors VFD Display

  • Vector Measurement, 3 Parameters Dispaly

  • Calibration: Short circuit zero-setting for all ranges

  • Comparator (sorting) Function): Build-in 30 sets comparators, HI/IN/LOW/GD/NG Display and Output

  • Four-terminal resistance measurement

  • Beeper and brightness can be adjusted

  • Internal,Manual,External and Remote Trig

  • Build-in RS232C and Handler

  • Optional GPIB Interface

  • Compatible with SCPI command sets

  • Keypad lock and Data Hold functions




Applications:



  • Can be used to test all kinds of contact resistance

  • Alkaline batteries, lead batteries Life assessment.

  • UPS Online Measurement.

  • Batteries identification test.

  • Supper Capacitor ESR Measurement.


Specifications










































































ParametersAC resistance, DC voltage, X, Z, θ, L,
AccuracyResistance: 0.3%  Voltage: 0.05%  Inductance: 1%
Measurement RangeResistance: 1μΩ - 3.2kΩ
Voltage: 100μV - 60V DC  Inductance: 10nH - 1H
Signal SourceAC 1kHz, open-circuit voltage < 20mV,measurement current: < 10mA
RangeAutomatic and manual with 6 ranges
Speed20 times/second, 6 times/second, 1 time/second
Result DisplayShow, ΔABS, Δ%, θ, sorting results
Max ReadingResistance: 32,000, Voltage: 60,000
AdjustmentShort-circuit reset for all range, REL function
Comparator30 groups record, NG-LO, GD-IN, NG-HI display and output.beep is adjustable
TriggerInternal, manual, and external
InterfaceRS232C,Handler interface (PLC)
OthersDetection of damage test wire,four-color vacuum fluorescent screen VFD display, keypad lock and data hold function
General Features
Power Supply Voltage: 198V AC - 240V AC  Frequency: 50Hz,   Power: Max 15VA
Dimension & Weight264mm (Width)x107mm (Height)x350mm (Depth), 4kg
