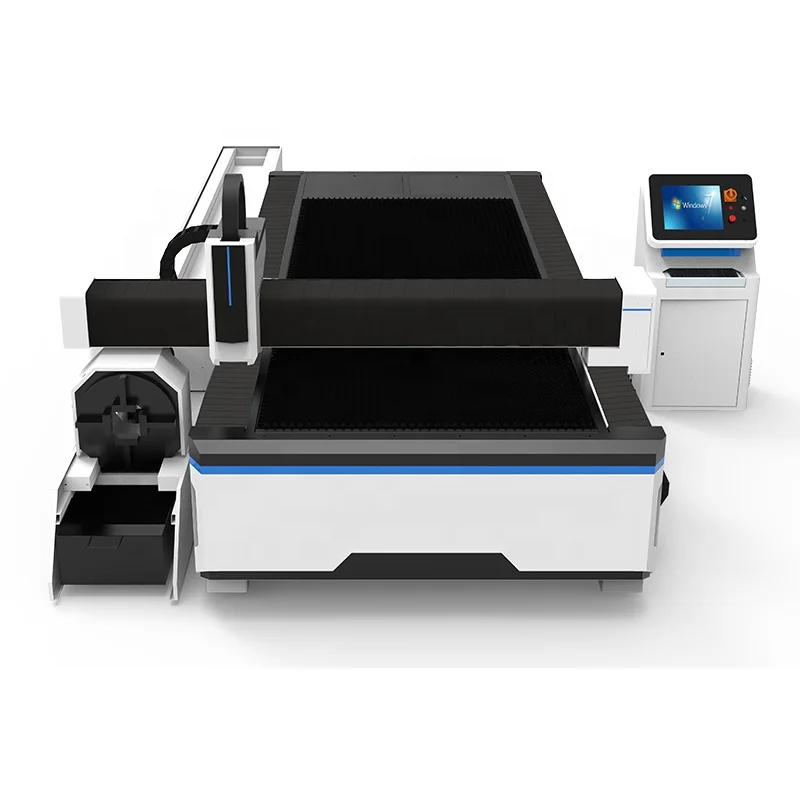

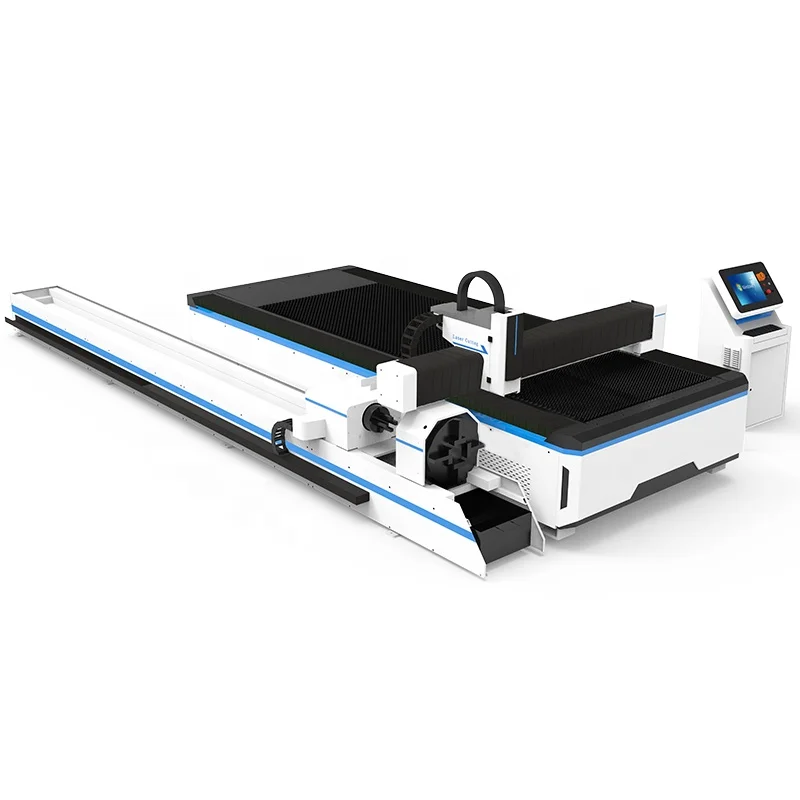

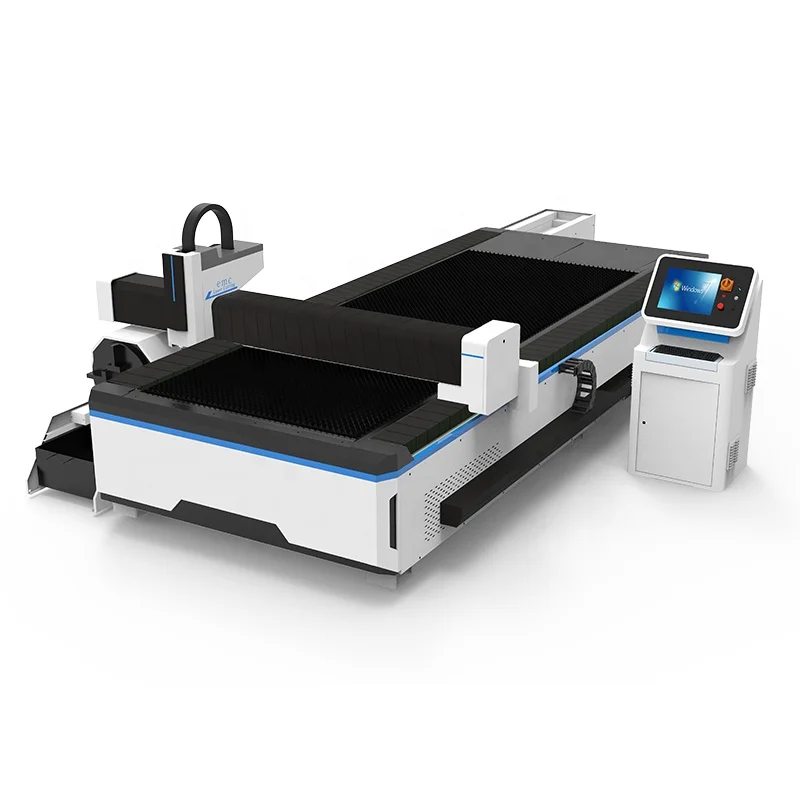

HEADWAY 1000W cnc волоконная лазерная резка металла машина для резки квадратных труб
- Категория товара: Industry Laser Equipment >>>
- Поставщик (Оптовый магазин): Qingdao,Headway,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Parameter
Precision | Parameter |
Host structure | Double drive gantry structure |
Working material table width | 1525mm |
Working material table length | 3050mm |
Cutting steel plate thickness | Carbon steel≤18mm, stainless steel≤8mm |
Exchange time | 0 |

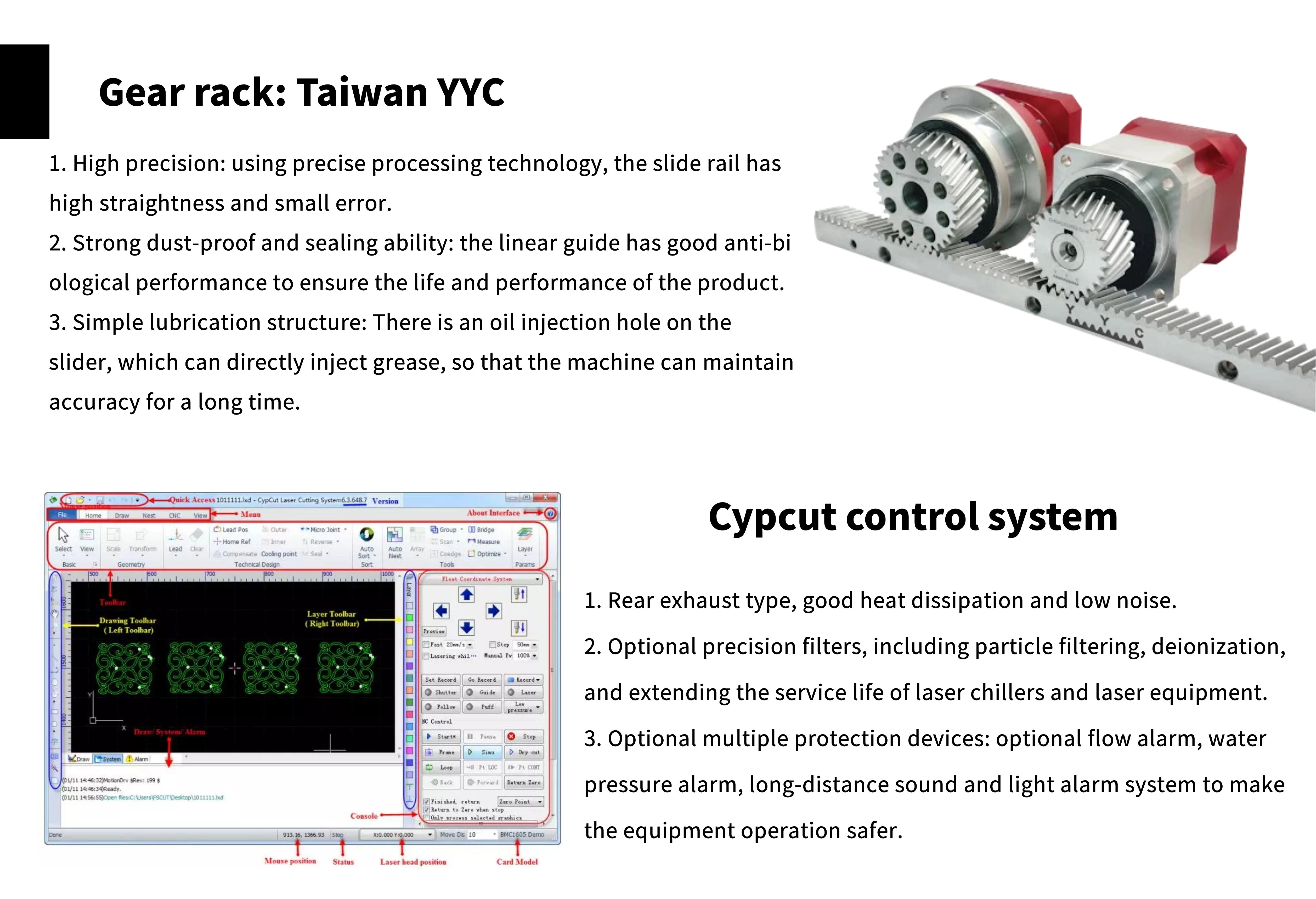

X, Y axis drive mode | Imported precision gear rack (helical gear) |
X axis effective cutting range | 1525 mm |
Y axis effective cutting range | 3050 mm |
X/Y axis maximum linkage | 100m/min |
X, Y axis maximum acceleration | 1.0G |
Phase | 3 |
Power supply rated voltage | 380V |
Frequency | 50HZ |
Total power protection level | IP54 |
Machine weight | 2000Kg |
Dimensions (L*W*H) | 4500mm×2610mm×1700mm |
Show details

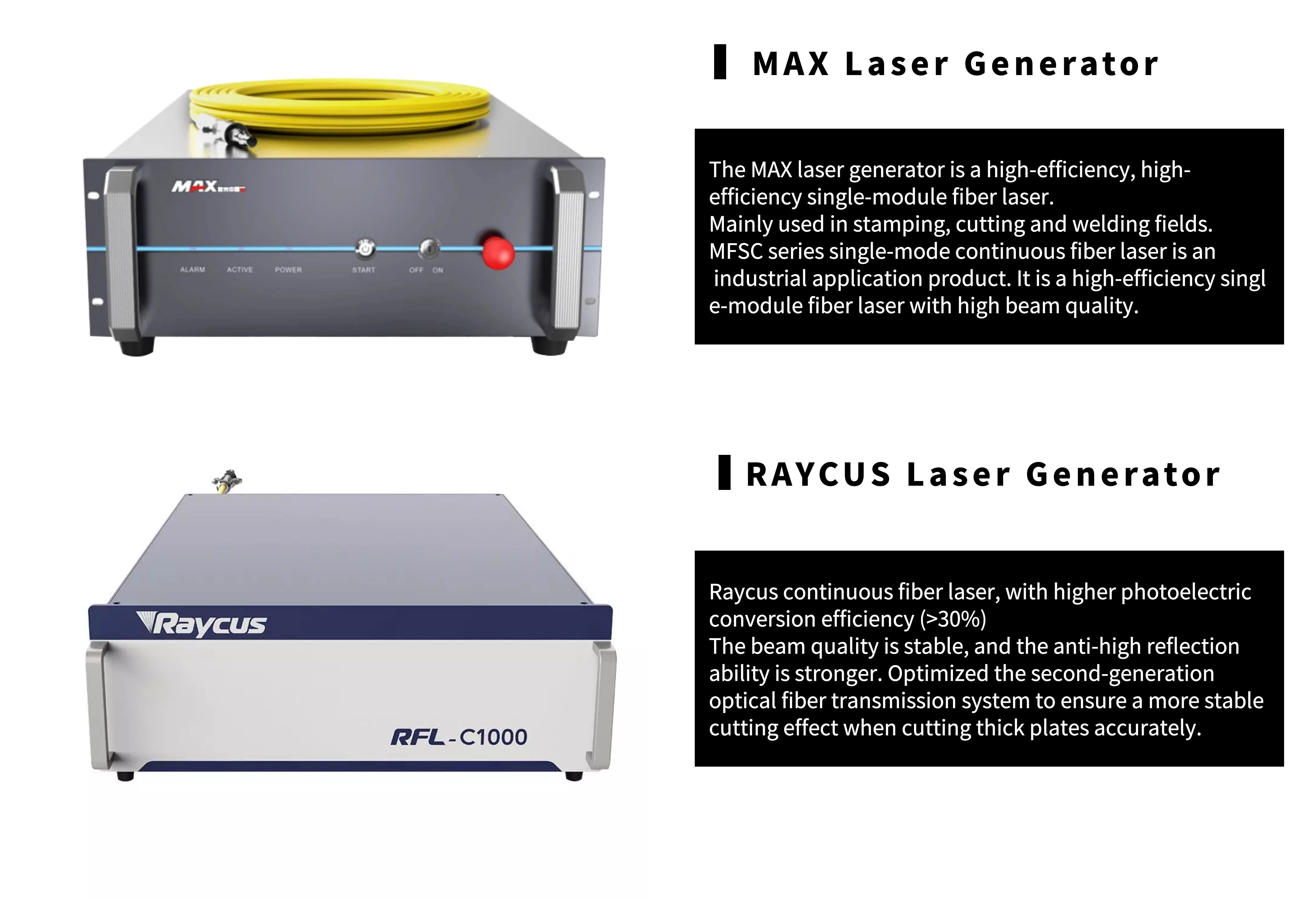

1. Laser Generator
We provide you with 3 types of laser transmitters with mature technology and stable operation for you to choose: IPG, RAYCUS, MAX
2. Important components

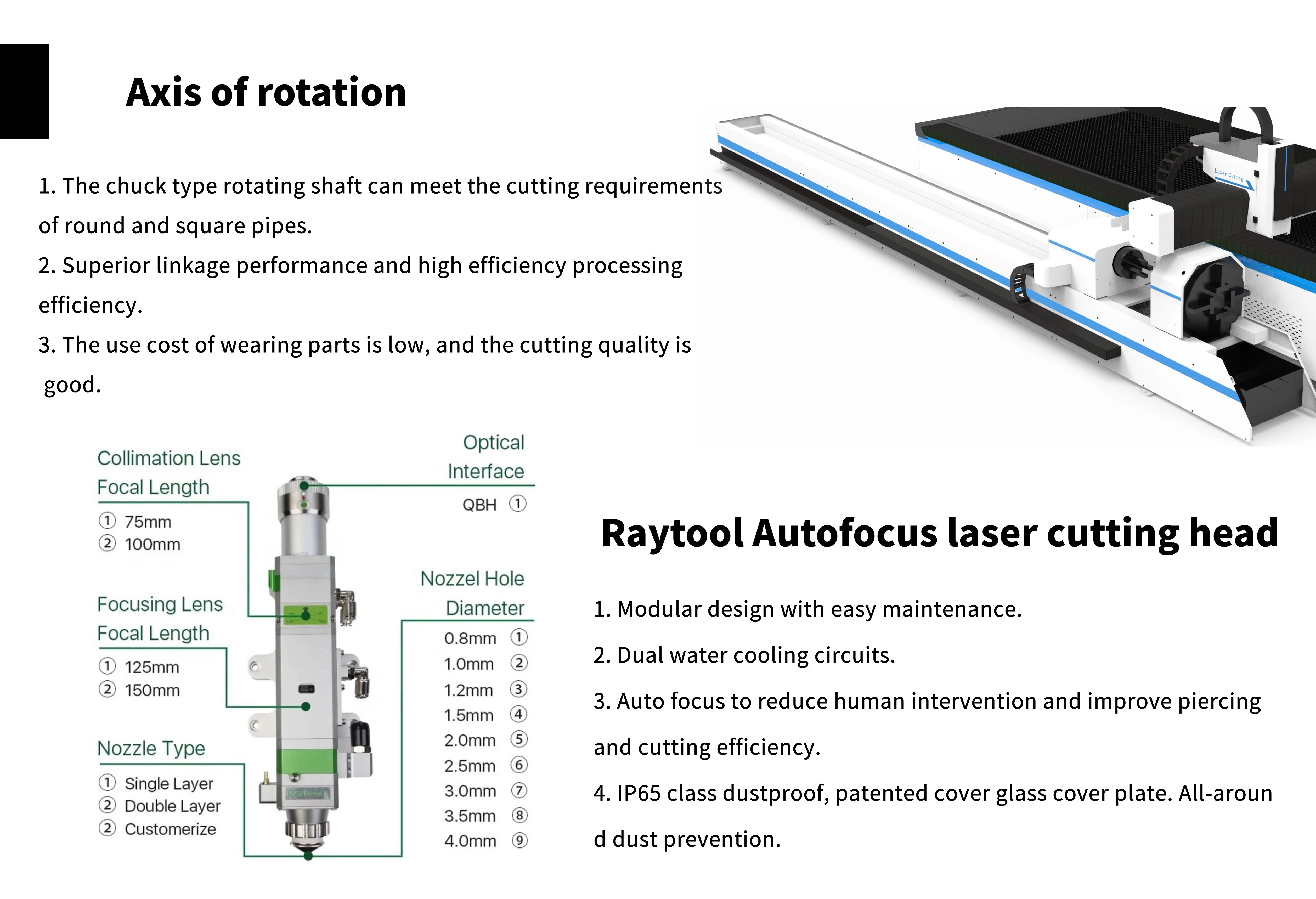

Use Raytools laser head, upgrade to auto focus laser head.

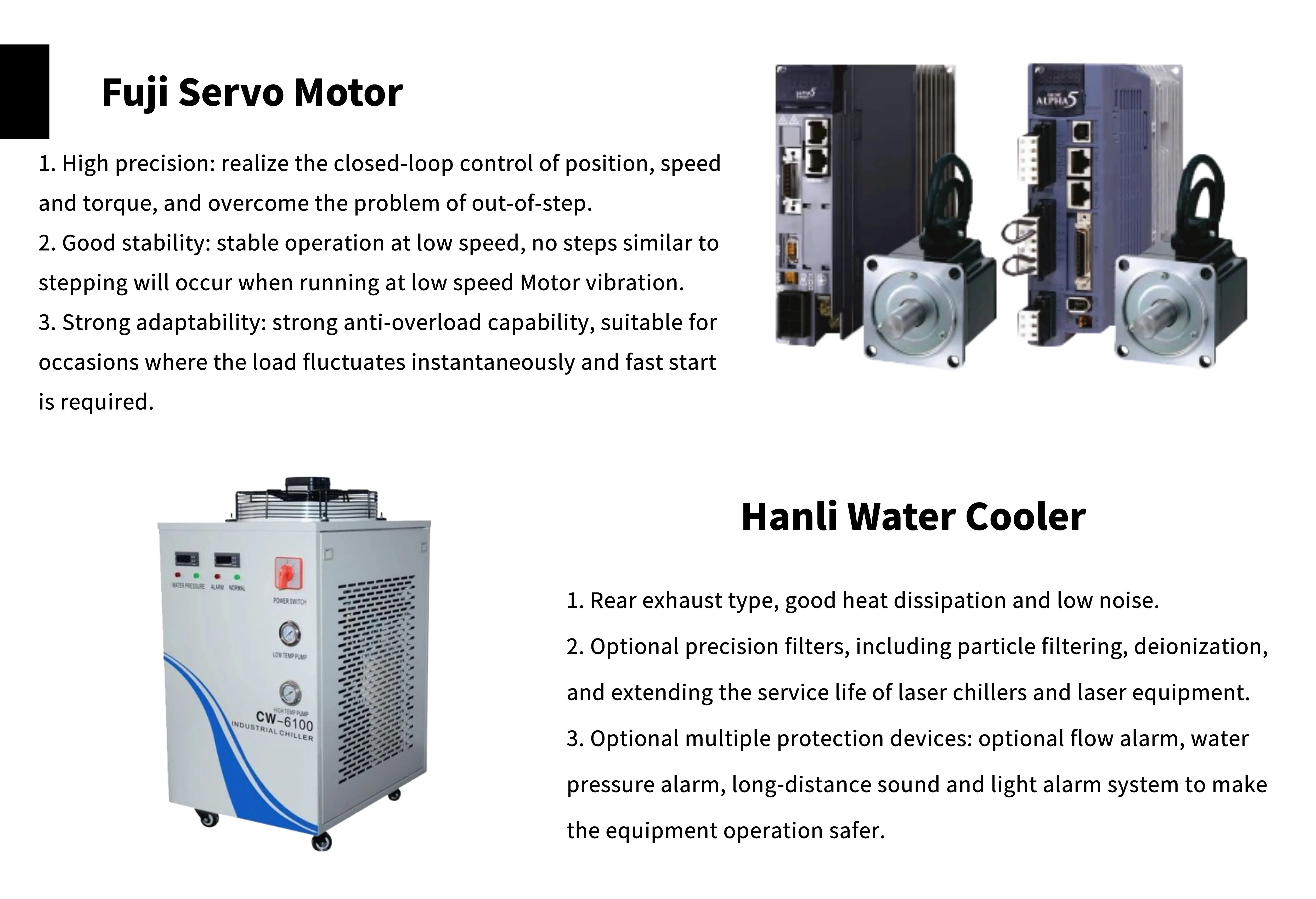

It adopts Japanese Fuji servo motor to match the requirements of laser running accuracy and fast processing.

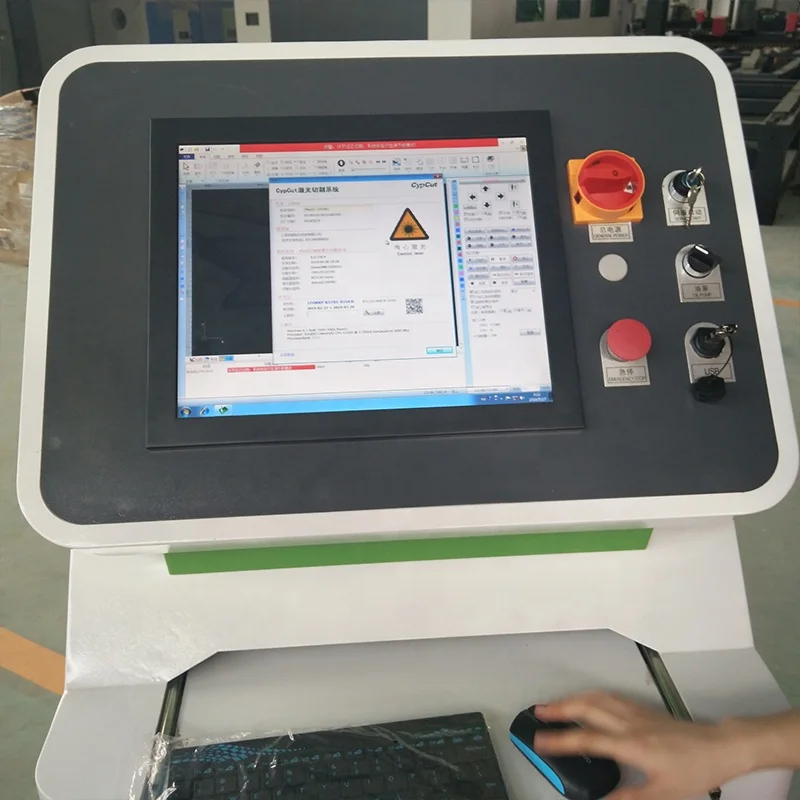

Using Cypcut2000 operating system, simple operation design.
Adopting Hanli water cooler, with good cooling performance, real-time monitoring of temperature changes.
Adopting Hanli water cooler, with good cooling performance, real-time monitoring of temperature changes.

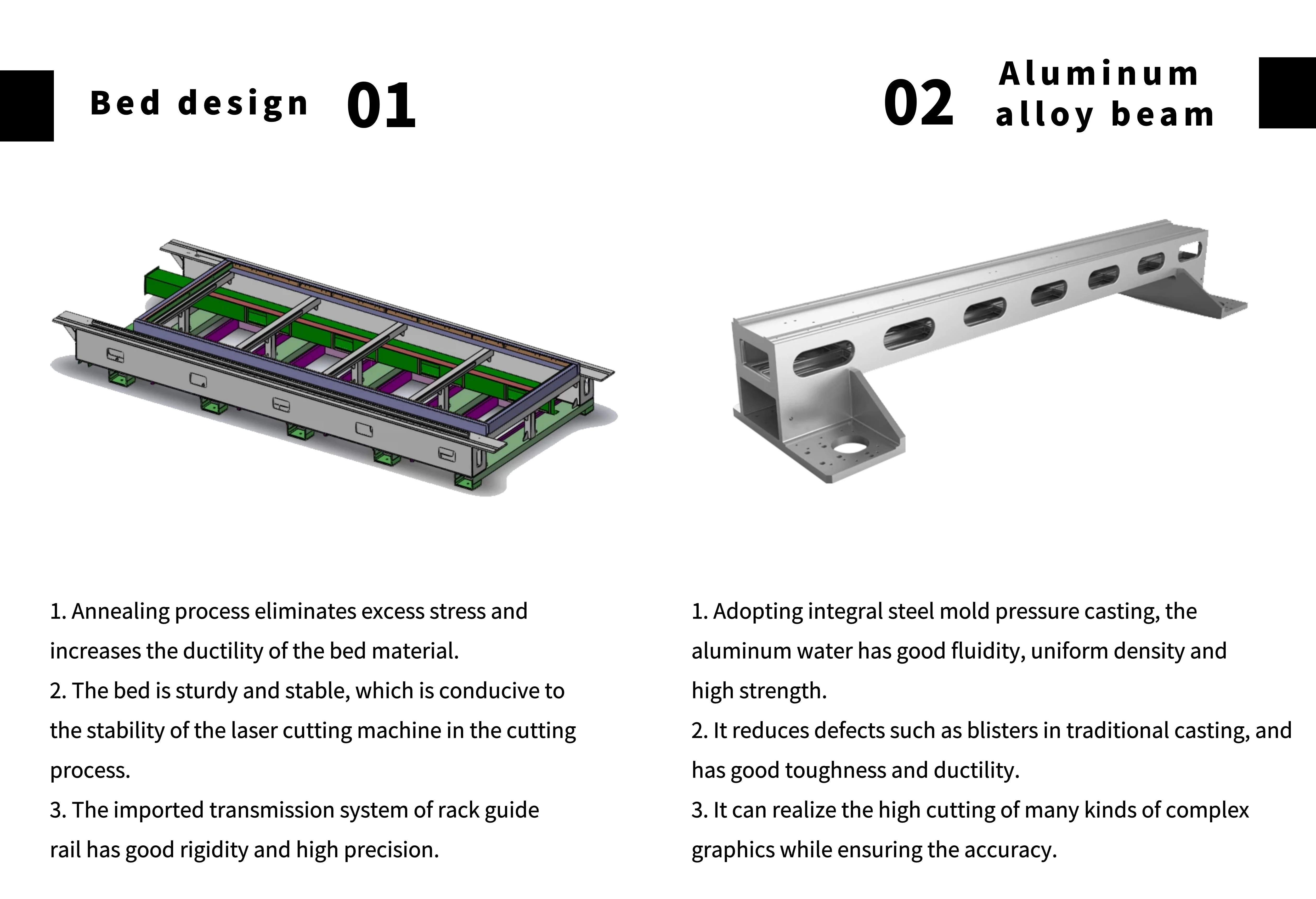

3. Bed design
The machine bed adopts a steel plate integral welded structure. After annealing to eliminate internal stress, it is
roughed and finished after secondary vibration aging treatment, which can better solve the stress generated by welding, thereby greatly improving the stability of the machine tool.
roughed and finished after secondary vibration aging treatment, which can better solve the stress generated by welding, thereby greatly improving the stability of the machine tool.
Using aluminum alloy material, light weight, good dynamic performance;adopting integral casting method, rough machining after annealing to eliminate internal stress, and fine machining after secondary vibration aging treatment to ensure the overall strength, rigidity and stability of the beam.

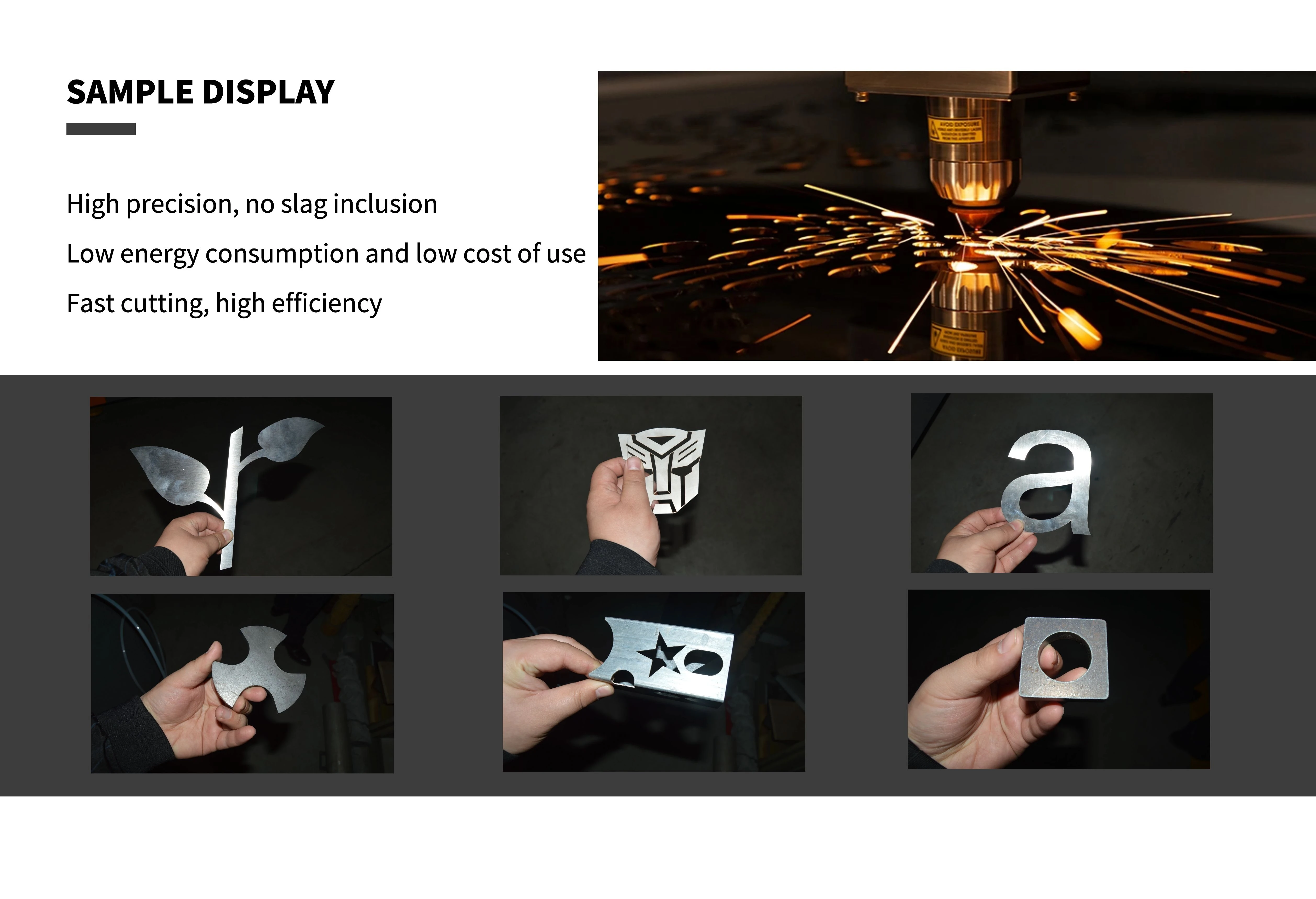

Samples
What is fiber laser cutting machine Application?
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other manufacturing and processing industries.
What materials can laser cutting machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other manufacturing and processing industries.
What materials can laser cutting machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.

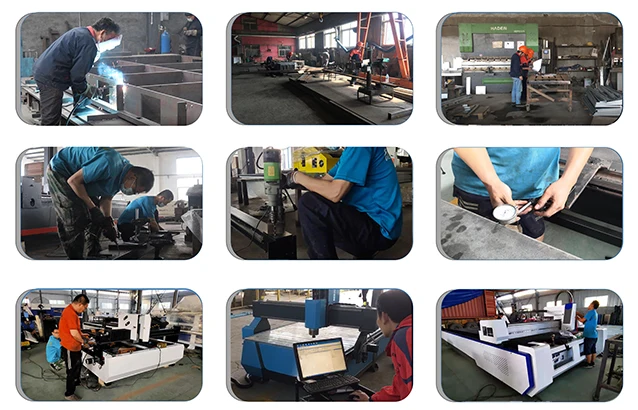

Machine in factory
Headway CNC was formerly known as Shandong Machinery Parts Co., Ltd. It was established in 2005 and specializes in providing stainless steel and carbon steel parts for Chinese machinery manufacturers.
The first engraving machine was officially listed in 2010, and it was also one of the earliest manufacturers of CNC router machines in China. Including: single-head router machine and multi-process CNC router machine. Mainly sold to the domestic market and foreign dealer markets.
In 2013, the company expanded its scale and established an independent plasma and laser division. It was put into production in December 2013. Up to now, plasma machines and fiber laser machines include two types of light industry and heavy industry.
In addition, the company independently developed a precision detachable plasma cutting machine, a detachable fiber laser machine, and a detachable CNC router machine according to market demand, which are economical CNC equipment independently developed.
The first engraving machine was officially listed in 2010, and it was also one of the earliest manufacturers of CNC router machines in China. Including: single-head router machine and multi-process CNC router machine. Mainly sold to the domestic market and foreign dealer markets.
In 2013, the company expanded its scale and established an independent plasma and laser division. It was put into production in December 2013. Up to now, plasma machines and fiber laser machines include two types of light industry and heavy industry.
In addition, the company independently developed a precision detachable plasma cutting machine, a detachable fiber laser machine, and a detachable CNC router machine according to market demand, which are economical CNC equipment independently developed.
Our services

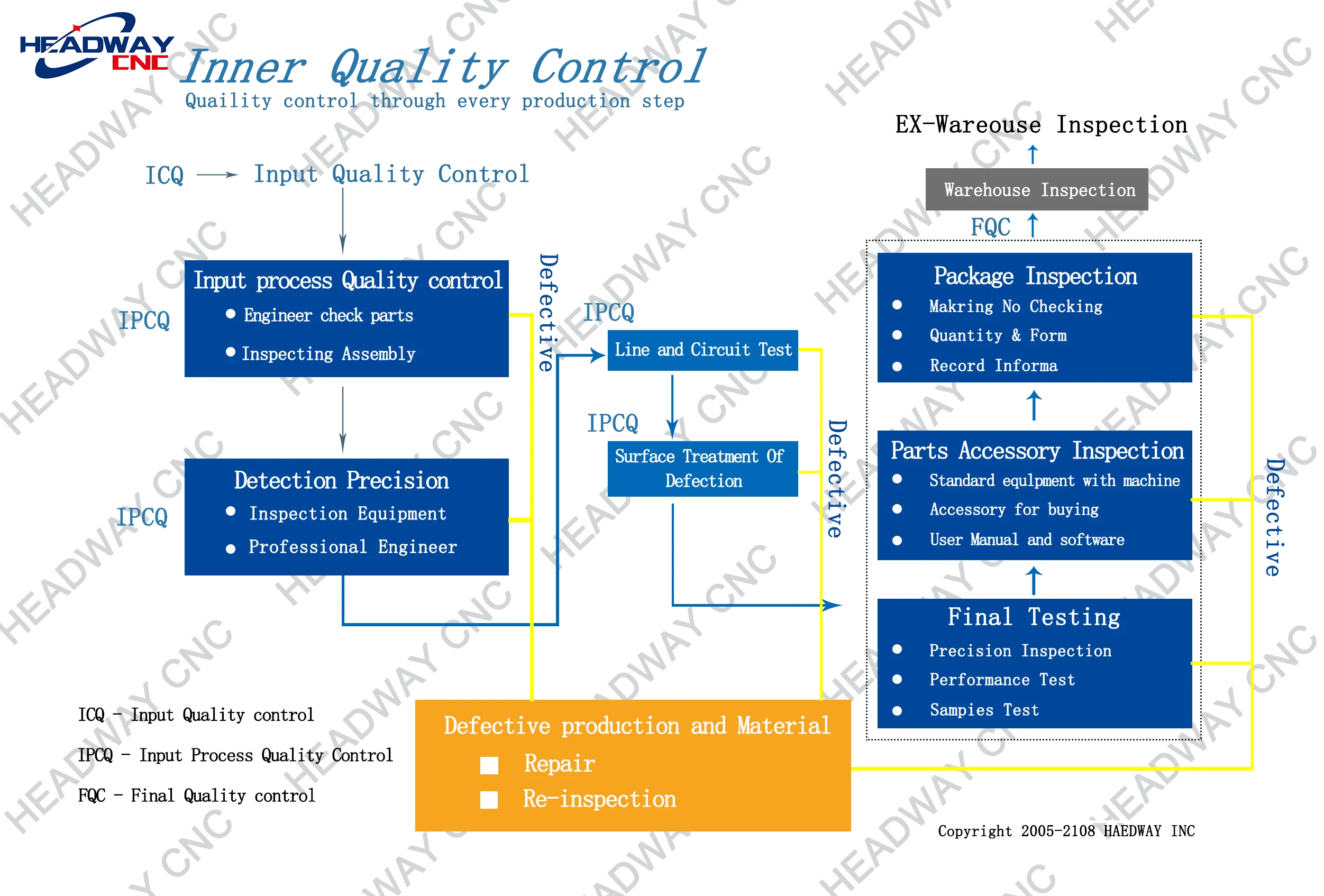

1. Committed to strict quality control and considerate customer service, our experienced staff can discuss your requirements at any time to ensure complete customer satisfaction.
2. Provide 3 years warranty service and 3 years quality tracking service for every customer who purchases fiber laser equipment. If the parts are damaged during the warranty period, we will send you new replacement parts free of charge.
3. Support customization and OEM service.
4. Provide one-stop service to meet the needs of individual users and agency users.
5. 24-hour online service, free technical support.
6. Provide free online teaching services.
2. Provide 3 years warranty service and 3 years quality tracking service for every customer who purchases fiber laser equipment. If the parts are damaged during the warranty period, we will send you new replacement parts free of charge.
3. Support customization and OEM service.
4. Provide one-stop service to meet the needs of individual users and agency users.
5. 24-hour online service, free technical support.
6. Provide free online teaching services.
FAQ
Q1:What is the cutting size of this machine?
A:1500*3000mm For plate,it also can be customized as needed.
Q2:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
Q3:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, technicians online technical support.
3-year warranty, parts can be replaced or repaired.
Q4: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
A:1500*3000mm For plate,it also can be customized as needed.
Q2:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
Q3:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, technicians online technical support.
3-year warranty, parts can be replaced or repaired.
Q4: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
