Standalone Laser Cutting System with Machine Vision--RDV6442G

Technical Parameters

 Laser control signal, and provide adjustable analog voltage, adjustment range is 0~5V.

PWM frequency is between 2KHz to 50KHz, the duty cycles is from 1% to 99%.

 Pulse + dir and +/-pulse are available, pulse effective edge can be set, the maximum pulse frequency is 500KHZ.

 Linear /circular/B Spline interpolation precision is +/-0.5 pulse

 Image process speed>25 frame/s

Position & identification time of single image is less than 50ms

Product introduction

RDV6442G vision cutting system is based on the RDV644XG motion control platform.Combined with advanced graphic image identification and positioning algorithm, especially developed for the automatic identification laser cutting field. This product can be selected the color camera with 2.0 mega pixels.

Application Area

visual positioning, trademark cutting, image analysis

Feature image positioning

Mark point positioning

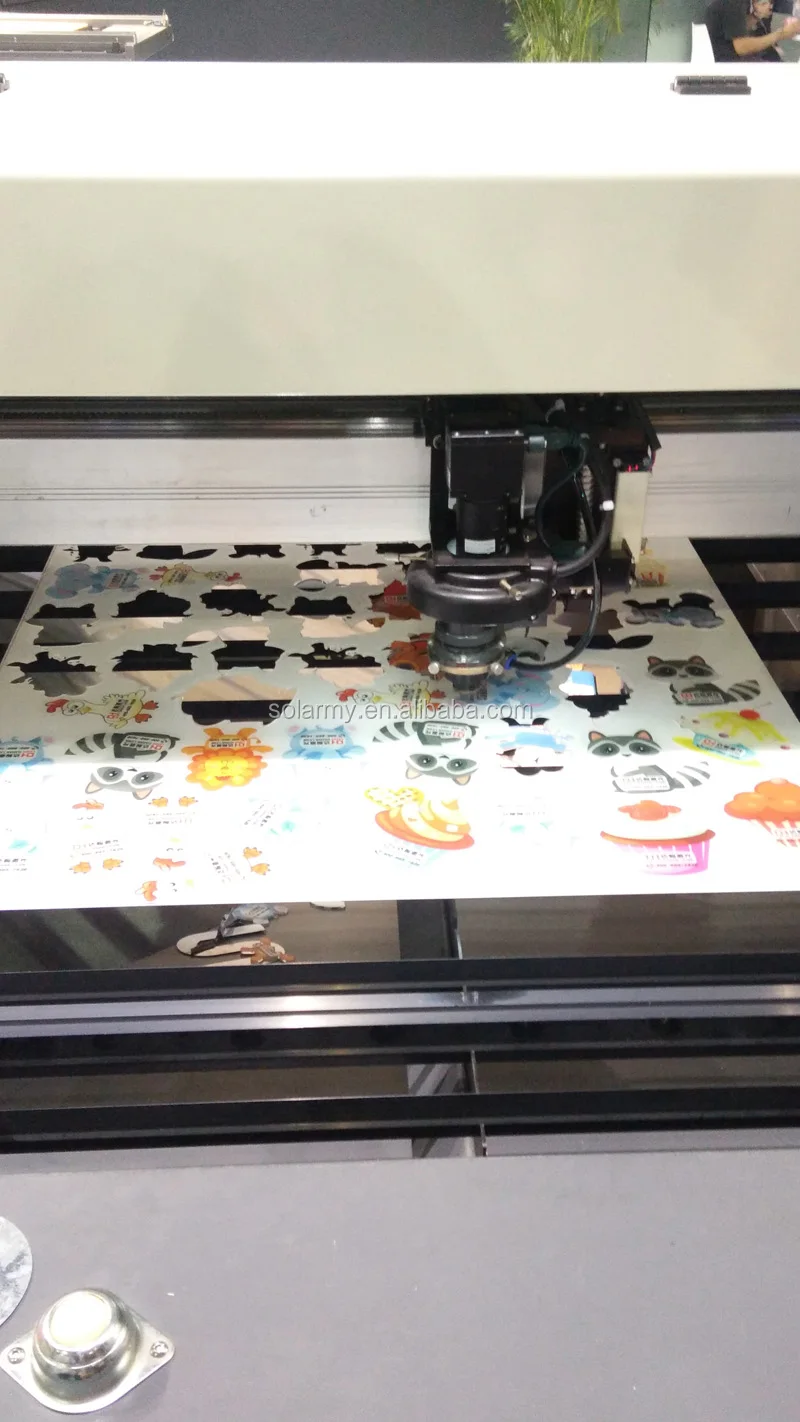

Contour identification and cutting

Ethernet data transmission with data safety verification to ensure the data accuracy when at high speed data transferred.

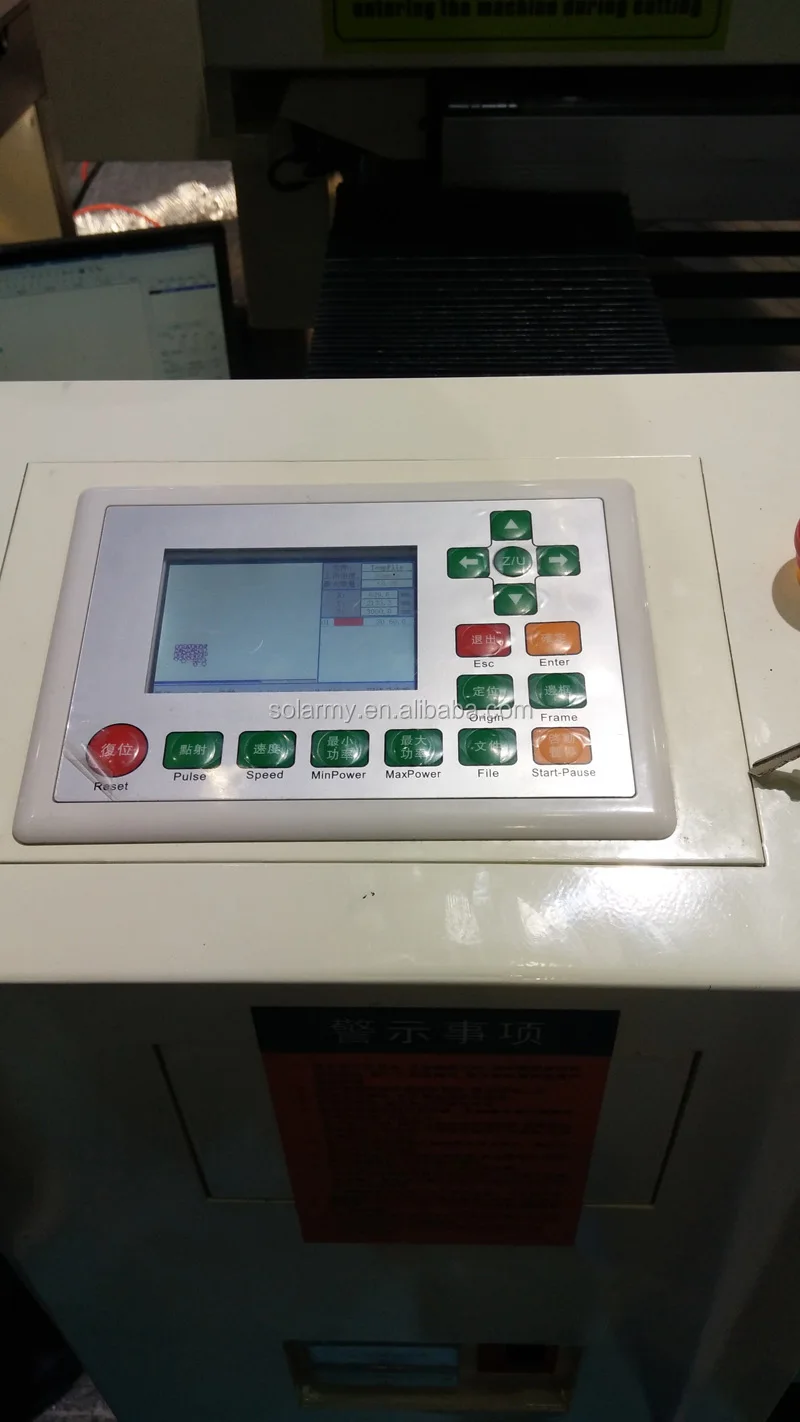

Various signals and sizes operation panels for selection.

Self-adaption identifying path planning

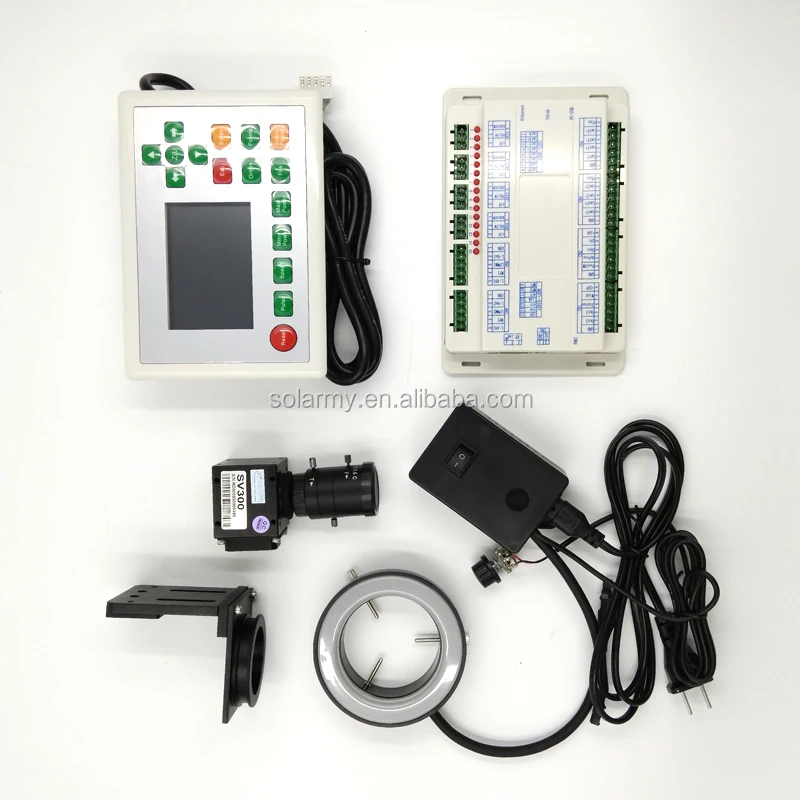

Product Accessories

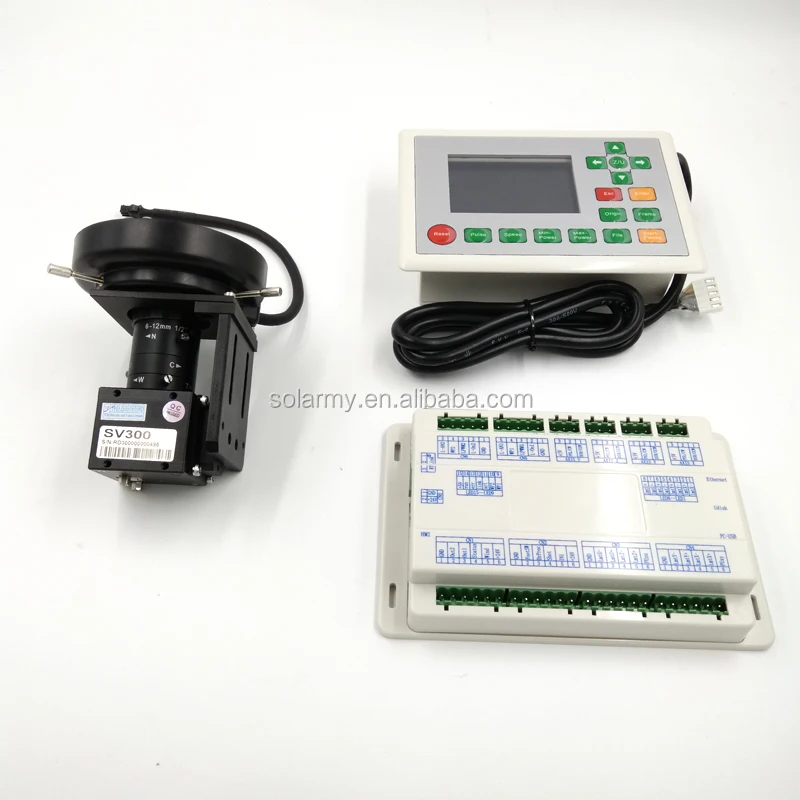

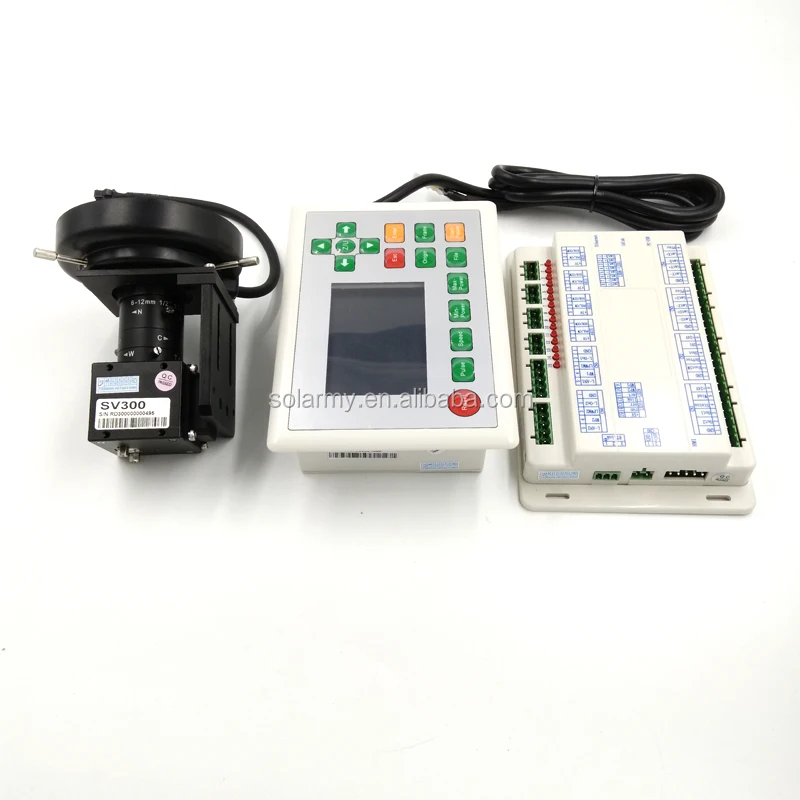

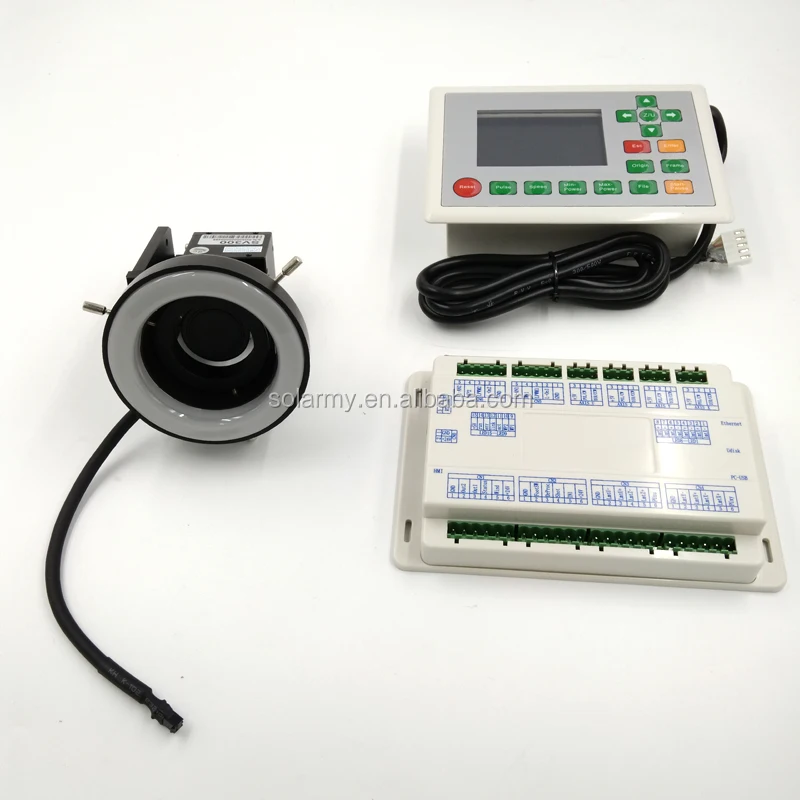

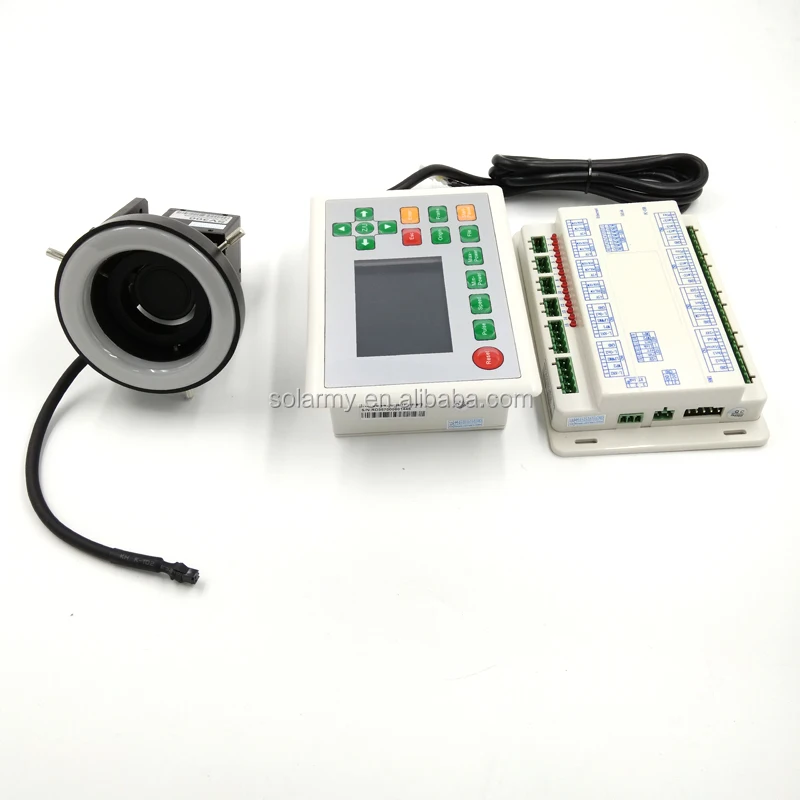

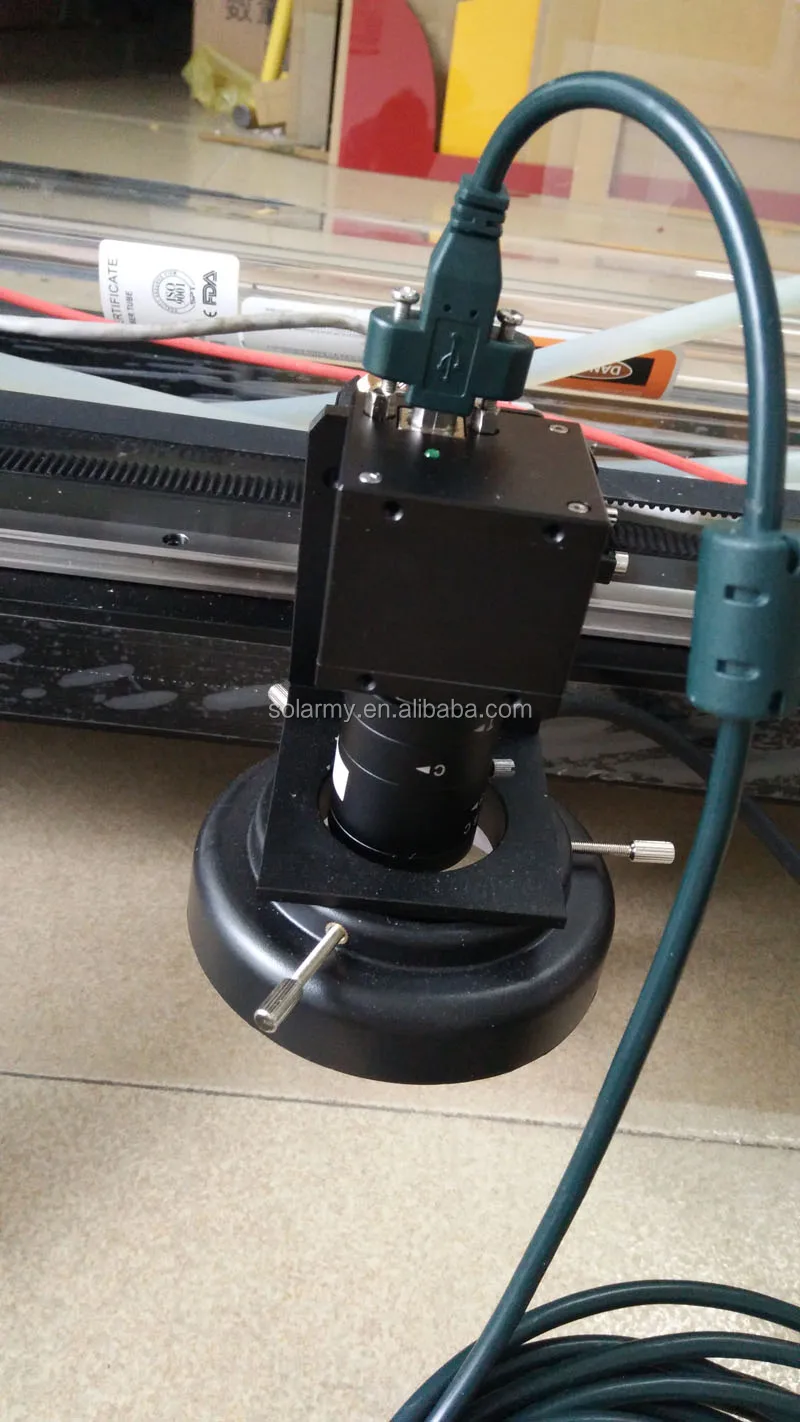

RDV-Light camera light source

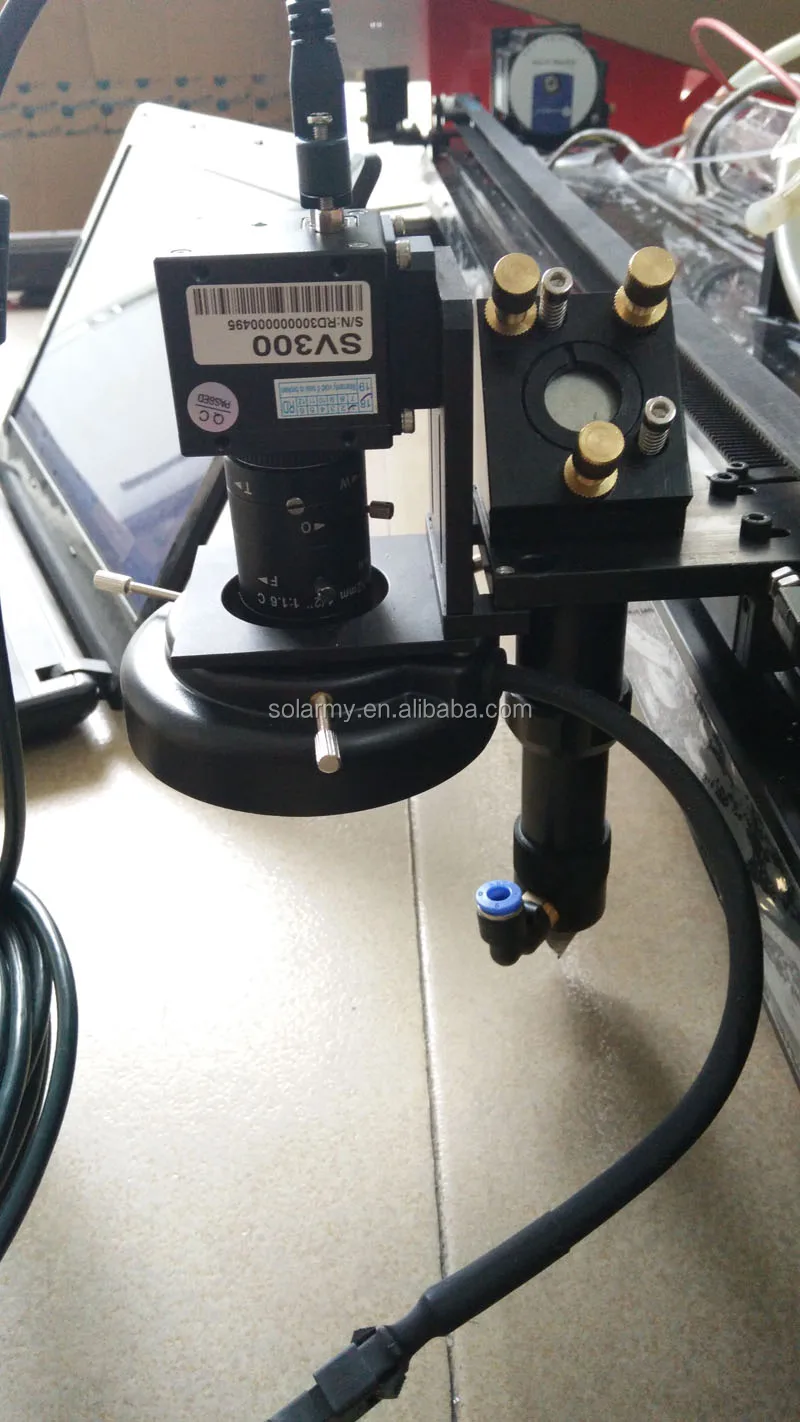

Camera: 2.0 mega pixels, monochrome camera / color camera

 Lens: 6-12mm zoom lens

Mainboard Size:210mm*134mm

Power:24V, A

Environment:Temperature: 0~50℃
