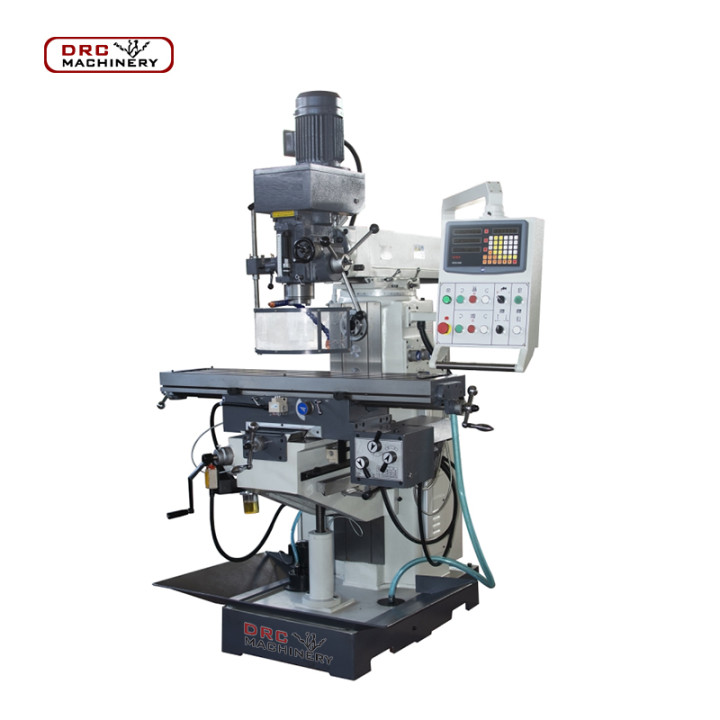

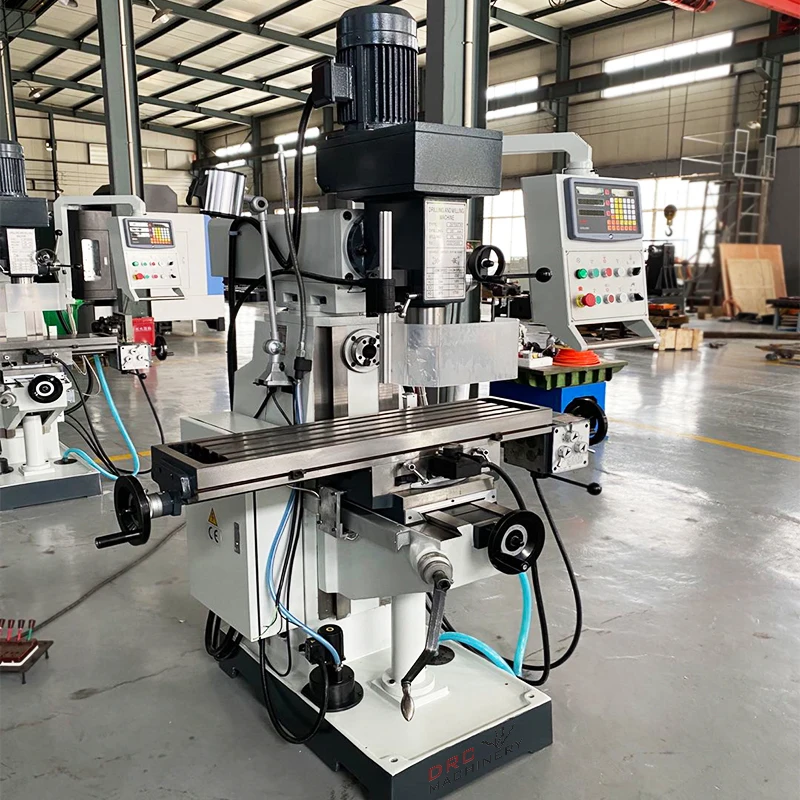

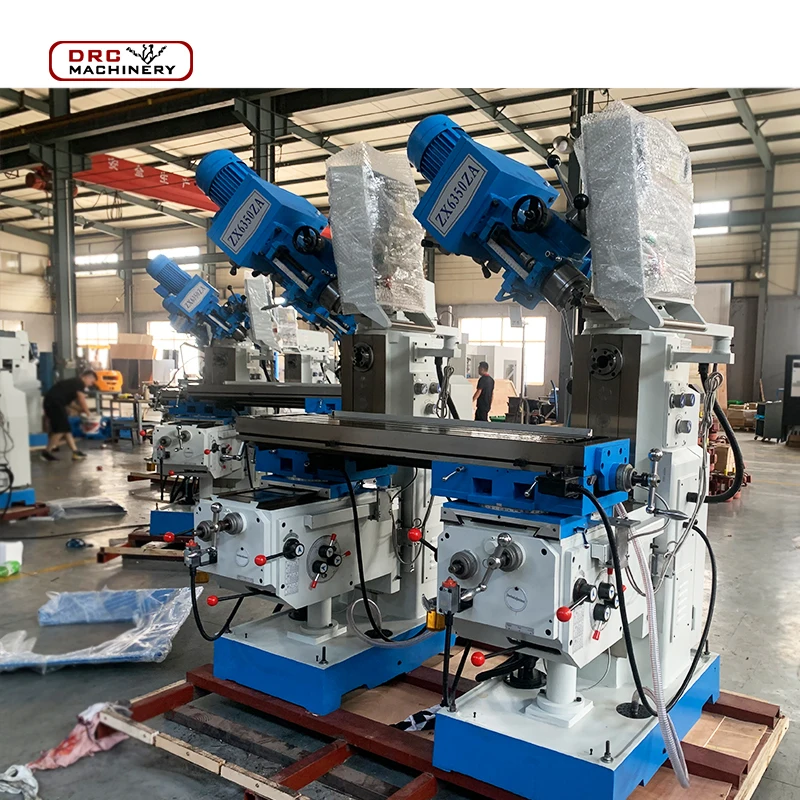

Introduction
Milling, drilling, tapping, boring, reaming
Head swivels or tilts
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position, strong rigidity, strong cutting power




Specification
ZX6350C
ZX6350Z
ZX6350ZA
Max.drilling dia
Φ50/Φ30mm
Φ50/Φ30mm
Φ50/Φ30mm
Spindle taper
ISO30,ISO40,R8, MT4
Max.vertical milling dia
25mm
Max boring dia
120mm
Distance spindle to table surface
100-480mm
140-490mm
80-460mm
Spindle speeds range(V/H)
115-1750rpm
 40-1300rpm
90-2000rpm
38-1310rpm
90-2000rpm
40-1300rpm
Spindle travel
120mm


Table size
1120×280mm
1120×280mm
1250×320mm
Table travel
600×260mm
600×260mm
600×300×430mm
Main motor power(V/H)
0.85/1.5,2.2kw
2.2,2.2kw
1.5,2.2kw
Packing size
1400×1630×2350mm
1400×1630×2350mm
1680×1480×2250mm
N.W/G.W
1200kg/1350kg
1200kg/1350kg
1450kg/1560kg


Standard Accessories:
coolant system, milling chuck, worling lamp, parallel vise QH160mm,
oil tray, wrench, reduction sleeve ,
horizontal milling bar
drill chuck, draw bar
Optional Accessories

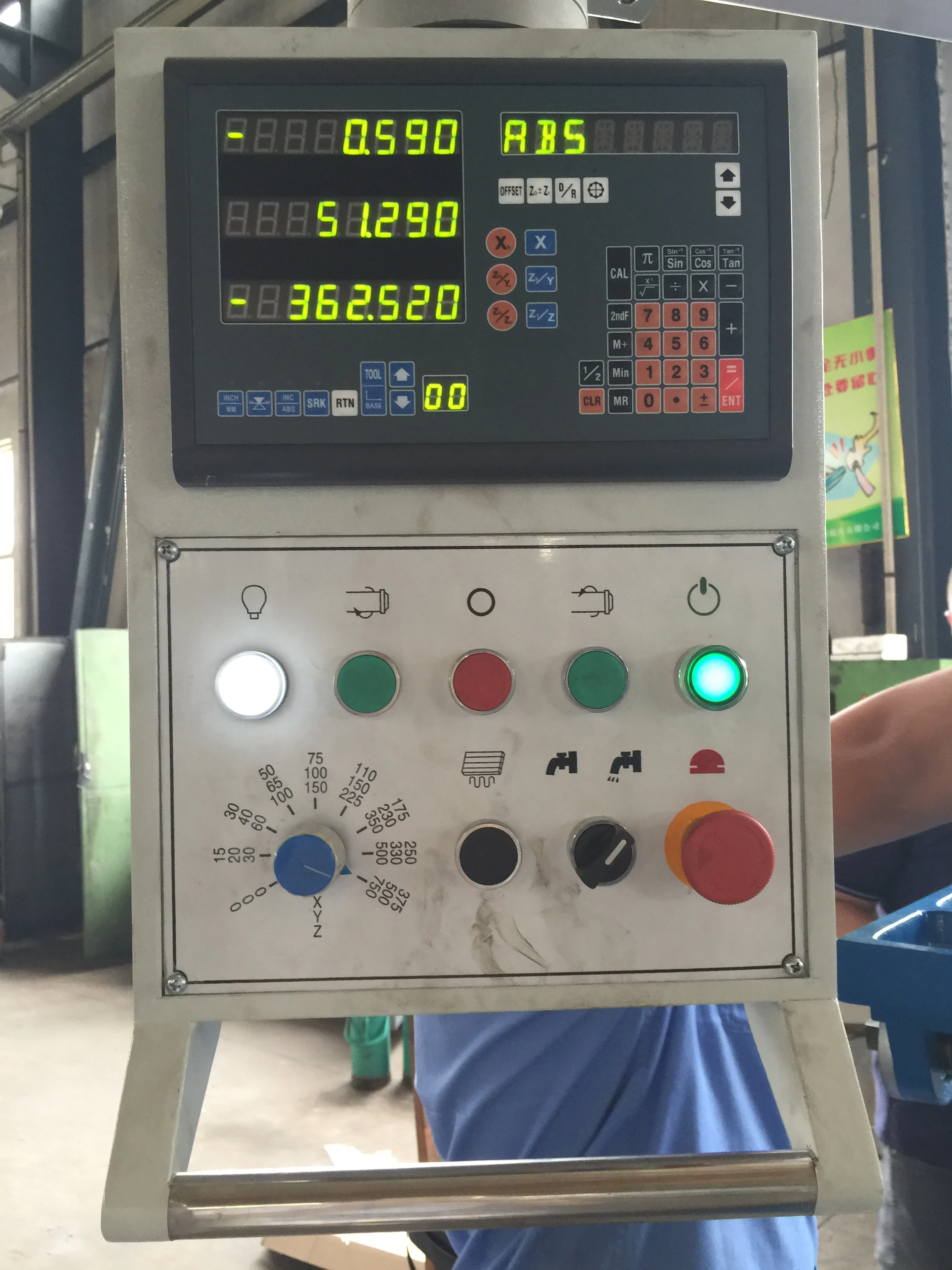

3-axis DRO58 pcs clamping kit
Dividing head
Rotary table
Spindle protection
CE Electrical part
