Медицинское оборудование, аппарат для анестезии Superstar с ларингоскопом для анестезии

Поделиться:


Цена:3 000,00 $ - 3 500,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Product Description

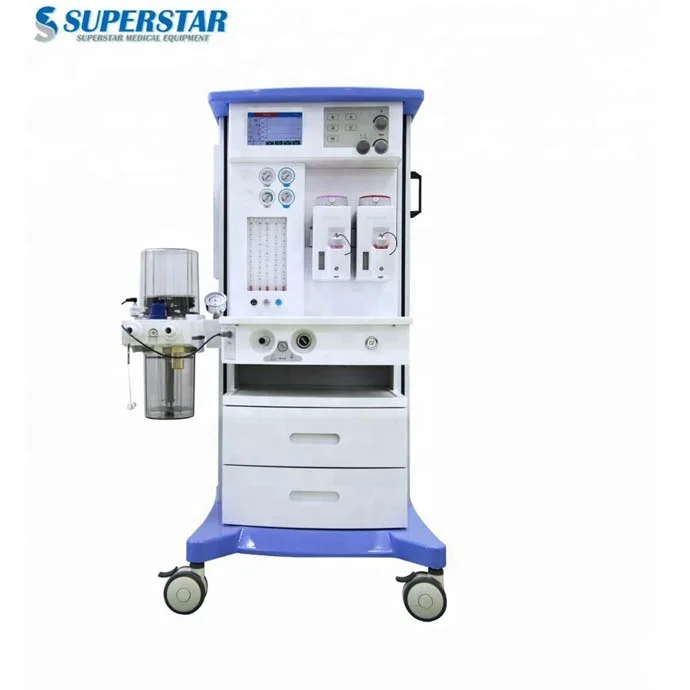

Medical Equipment Superstar Anasthesia Machine with Anesthesia Laryngoscope



Product Application


The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Perlong Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what's more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

Simplicity: easy to use, easy to move with 4 wheels.

Choice: adapt the equipment to your patients and procedures freely

Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including : IPPV, A/C, SIMV, SIGH, MANUAL

Designed and manufactured by Superstar Medical with over 25 years experience in this area.

Flexible configurations to suit your needs.


International standard and advanced technology suitable for wide range use.


Compact interface and touch screen give you better operating experience.

Over 2,000 units installed in the world.


Features

7" TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

High precision flow meter, instantly know the fresh gas flow to your patient.

Integration breathing circuit design, ensure easy operating and keep tidy.

Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

Vital sign monitor and Anesthetic gas monitor are optional.


Yoke for Optional




Specifications



S6100
Specifications
Ventilation modes:
IPPV, A/C, SIMV, SIGH, MANUAL
Ventilator parameter ranges
Flow meter
O2(0.1-10L/min)
N2O(0.1-10L/min)
AIR(0.1-10L/min)
Rapid oxygen supply
35L/min-75L/min
Tidal volume(Vt)
0, 20 mL ~ 1500 mL
Frequence(Freq)
1bpm ~ 100 bpm
I/E
4:1~1:8
PEEP
0cmH2O ~ 30 cmH2O
Pressure triggering sensitivity(PTr)
-20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr)
0.5 L/min ~ 30 L/min
Pressure control (PC)
5 cmH2O ~ 60 cmH2O
SIGH
0(off) 1/100 ~ 5/100
Apnea Ventilation
OFF,5 s ~ 60 s
Pressure Limit
20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq)
0 /min ~ 100 /min
Tidal volume(Vt)
0 mL ~ 2000 mL
MV
0 L/min ~ 100 L/min
Oxygen concentration
15 % ~ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
Alarm and protection
The AC power failure alarm
Power failure or no connection
Internal battery backup low voltage alarm
<11.3±0.3V
No tidal volume
≤5Ml within 6s
High oxygen concentration alarm
19%-100%
Low oxygen concentration alarm
18%-99%
High Airway pressure alarm
20cmH2O-100cmH2O
Low Airway pressure alarm
0cmH2O-20cmH2O
High Minute Volume alarm
Adult(5L/min-20L/min)
Low Minute Volume alarm
Paed(1L/min-15L/min  0-10L/min)
Continuous Pressure alarm
(PEEP+1.5kPa) over 16s
Suffocation warning
5s-60s no spontaneous ventilation
The maximum limited pressure
<12.5 kPa
Fan error
Show on screen
Oxygen deficit
Show on screen
Working conditions
Gas source
O2,N2O/AIR
Pressure
280kPa-600kPa
Voltage
100-240V


Safety


1.Three level alarming system, visual and sound alarm information.

2.With lots of alarming, reminding and protection functions.

3.Advanced power management control technology.

4.With built-in backup power source, when outside power source goes off, back-up power source starts to work.

5.Low O2 pressure alarm and N2O cut-off protection.



Certifications




Detailed Images


Contact: Lilas

WhatsApp/Wechat/Skype: +86 15062291513 QQ:790910607

E-mail: lilas009(@)superstar-med.com & sales009(@)superstarmed.com



Main Features

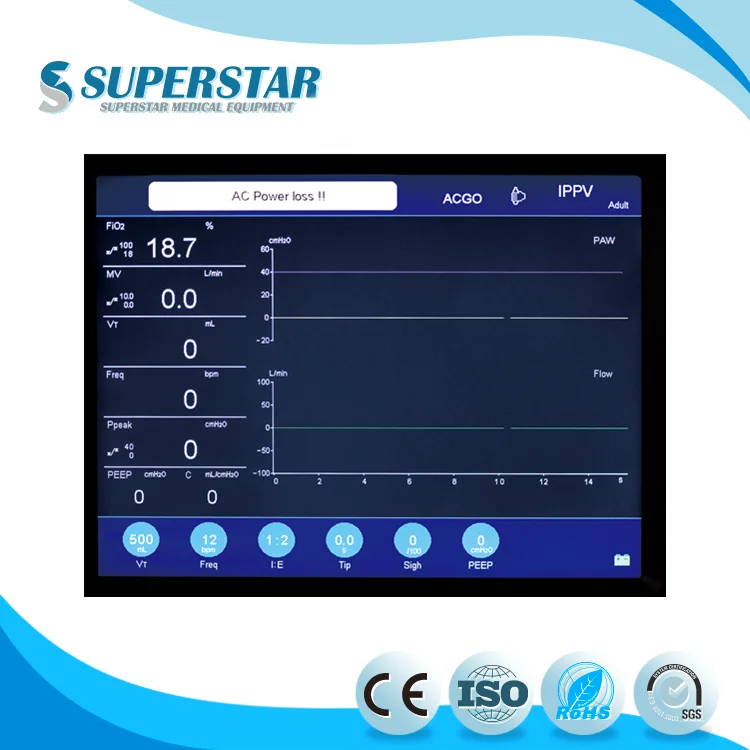

Name: Screen
Brand: Superstar
Original: China
7' inch TFT LCD screen

displays the Ventilation parameters, Alarm information and Oscillogram



Machine Parts

Name: Vaporizer
Brand: Superstar
Original: China
One vaporizers for standard, 2-3 for optional. Halothane, Enflurane, Isoflurane, Sevoflurane for choice.

Vaporizer with temperature, pressure, flow compensation and self-lock function keep safety anytime.




Main Features

Name: Breathing circuit
Brand: Superstar
Original: China

Integrated breathing circuit design.Breathing tube resistants high temperature sterilization of 134degree.


Ensure easy operating and keep tidy.



Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.




As professional ICU Equipments manufacturer, we can do more for you:

1.Good quality products with high technology and stable performance--We have the first batch engineer for ICU equipment in China.

2.Enough choices for customer--Our machine have different range from common level to high level.Every product series have at least 3 choices.

3.Maximize your benefit--We are manufacturer, so the price we give you is the first hand price,it can protect your benefit and your competitiveness in your market.

4.Fast delivery time--We locate in Nanjing which is very close to Shanghai, whenever you need the products, it will only spend one day to Shanghai port.

5.Great support to our customer--We will give 5-10 catalogs with small gift once you give order to us,everything will be delivered with products together.By the way,we can do OEM service for you for free if you need.



Packing & Delivery


Packaging
Size
L 740* W 800* H 1460mm
Weight
98kgs



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Related Products


                 S6100PLUS

              91.8% Response Rate

                                S6100A

                     80.8% Response Rate

                        S6100X

                   70.8% Response Rate



           Ventilator S1100

            60.8% Response Rate

     CPAP NLF-200A PLUS

        59 % Response Rate

    N2O Sedation system S8800B

                  49 % Response Rate



FAQ


Q:Is your company trading company or factory?

We are factory of ICU devices.


Q:Do you have any sole agent in the world ?

For DM6B Veterinary Anesthesia machine, we have sole agent in Mexico , other countries not yet now .


Q:If clients arrange engineers go to your company for training , is it for free ?

For cooperated clients, engineer's accommodation and meals are for free;



For potential customer, only meals for free, clients should pay for engineer's accommodation.

Q:How can we get the VISA / Invitation to visit your company ?

We will do the files for you in Nanjing city , and scan such files to you , go to the Chinese Embassy nearest of your city to get the VISA then .



Q:Do you have any clients in Africa?

Yes, we have . Our products have been sold to more than 200 countries, every client give us great feedback. With good quality and the best services, we have owned our customers' praise.


Q:How to be a agent of your company ?

Thank you so much . You can place a trial order of our products, and do the marketing research to see whether the products have good market demand, if yes, welcome to discuss the details with us .


Q:How many certificates do you have ?

ISO9001,ISO13485, Free Sale certificate, CE certificate


Q:How can I pay for the equipment?

You can pay Dollar,Euro,RMB by T/T,West Union or L/C to our bank as you want.You can also pay by alibaba.



Q:How can I get the machine to my country?

1. By air ( if time is urgent)

2. By sea ( if time is enough)

3. By express ( If the port is far away from hospital)

We can suggest suitable shipping cost for you according our forwarder's suggestion and your detailed address.

Of cause,you can use your own forwarder in China.You just need to tell us the contact of your forwarder and we send the equipment to him/her.



Q:How to install the machines?

All the ICU products are easy to install with our installation video . Every model have the video ,we will send to clients before install it .


Q:Do you have engineer can come to our location for installation ?

Of course . Engineer can speak English very well and have passport so they can go everywhere at anytime .

Clients need to be in charge of their air tickets ,accommodation and meals if Q'ty is not too big .
