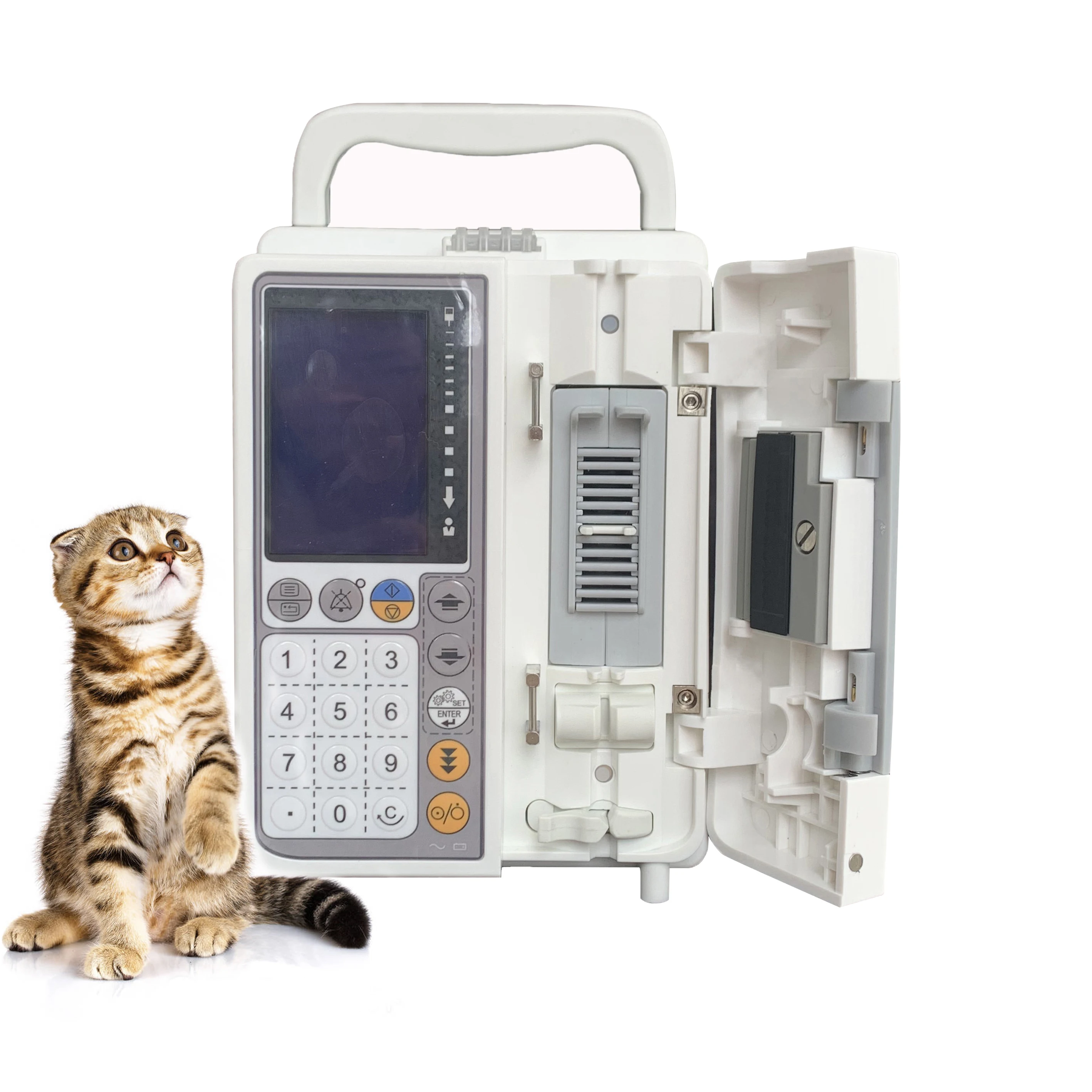

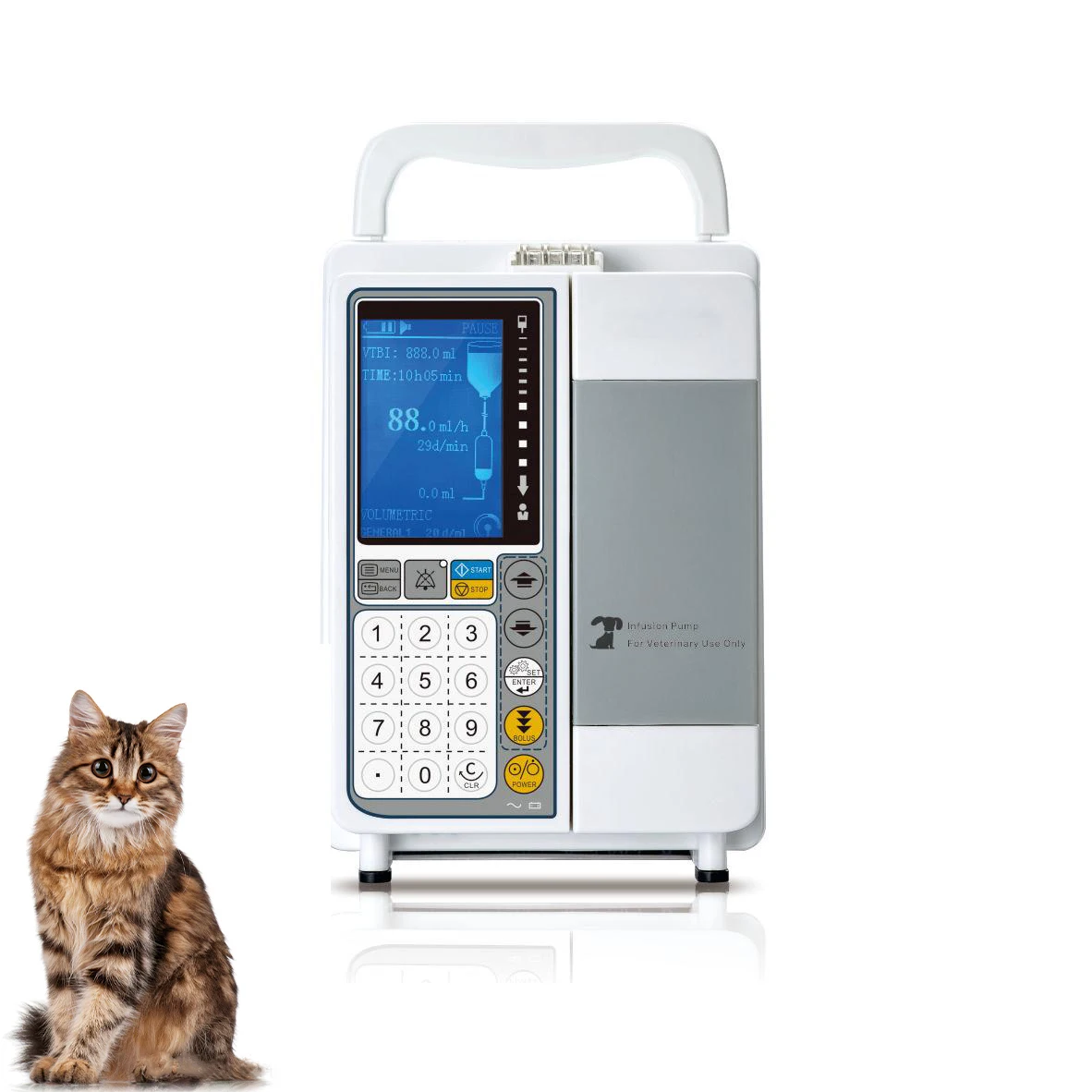

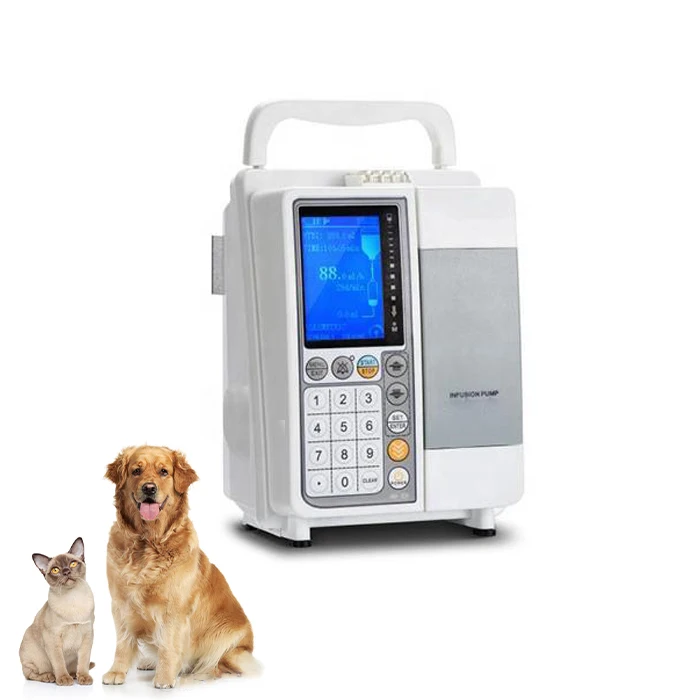

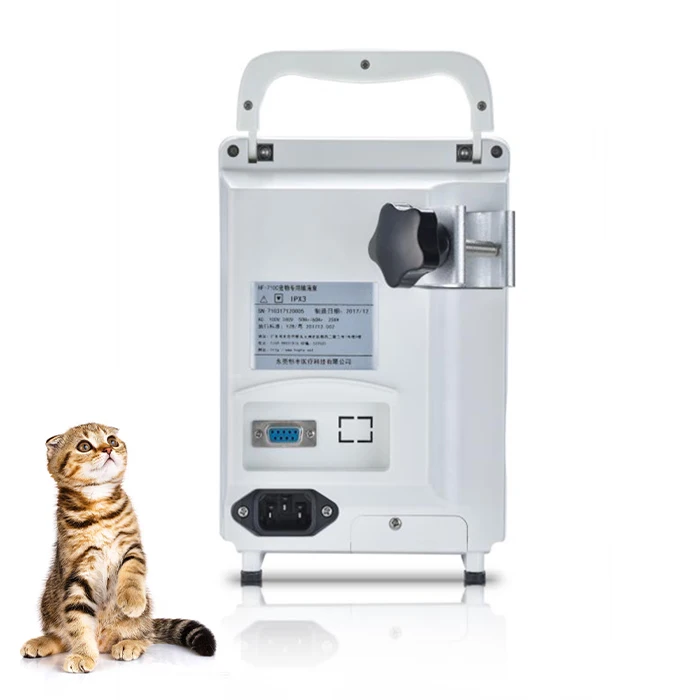

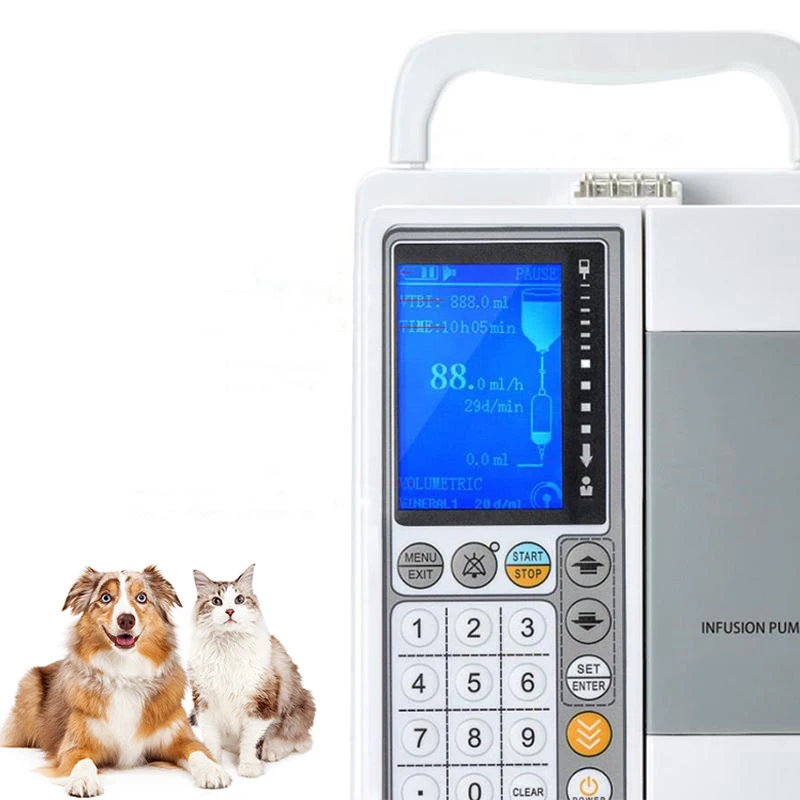

Портативный инфузионный насос Chemo Iv для животных, ветеринарной клиники, больницы

item

value

Place of Origin

China

Brand Name

Esco Medical

Model Number

ES-IP-10

Power Source

Electric

Warranty

1 Year

After-sale Service

Free spare parts

Material

metal, Plastic

Shelf Life

1years

Quality Certification

ce

Instrument classification

Class I

Safety standard

MFDS

Infusion Mode

Volume Mode,Time Mode,Drug Mode> Bolus Mode

Rate Unit

ml/h,volume/time,d/min

IV Sets Flow Rate

Standard single use IV sets

Increment

1.0-99.9ml/h with O.lml/h; 100-1200ml/h with Iml/h

Deviation

Flow Rate: W±5% (after calibration)

VTBI

0.1 -9999.9 ml

Time

Imin ~ 99h59min

Purge Rate KVO

600ml/h, displaying purge volume 0.1ml/h-5.0ml/h, adjustable

Keypad BOLUS

Numeric Keypad

Night Mode Occlusion Pressure

dynamic pressure value display

Volume

0〜9 levels adjustable

Motor Anti-reverse Function

Anti-reverse function to prevent upstream

IV Set Self-Testing

Audio Visual Alarm Message

Air bubble, occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power
disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal

Screen Power Supply

3.2* brightness LCD AC: 100V ~ 240V, 50Hz/60Hz, W 25VA

Battery

Rechargeable Lithium battery: DC11.1V, 2200mAh;operating time: N 8 hours @25ml/h, displaying remaining battery

Operation Conditon Transportation & Storage Classification

Temperature:5°C-40oC,Relative humidity:20% ~ 80% Atmospheric pressure:70-106KPa Temperature:-20°C'-55°C,Relative humidity:10% ~
95% Atmospheric pressure:50-106KPa Type CF,Class 1, IPX3,ISO13485,CE,IEC60601

Dimension

145mm x 150mm x 200mm；

Weight

1.7KG
