Application

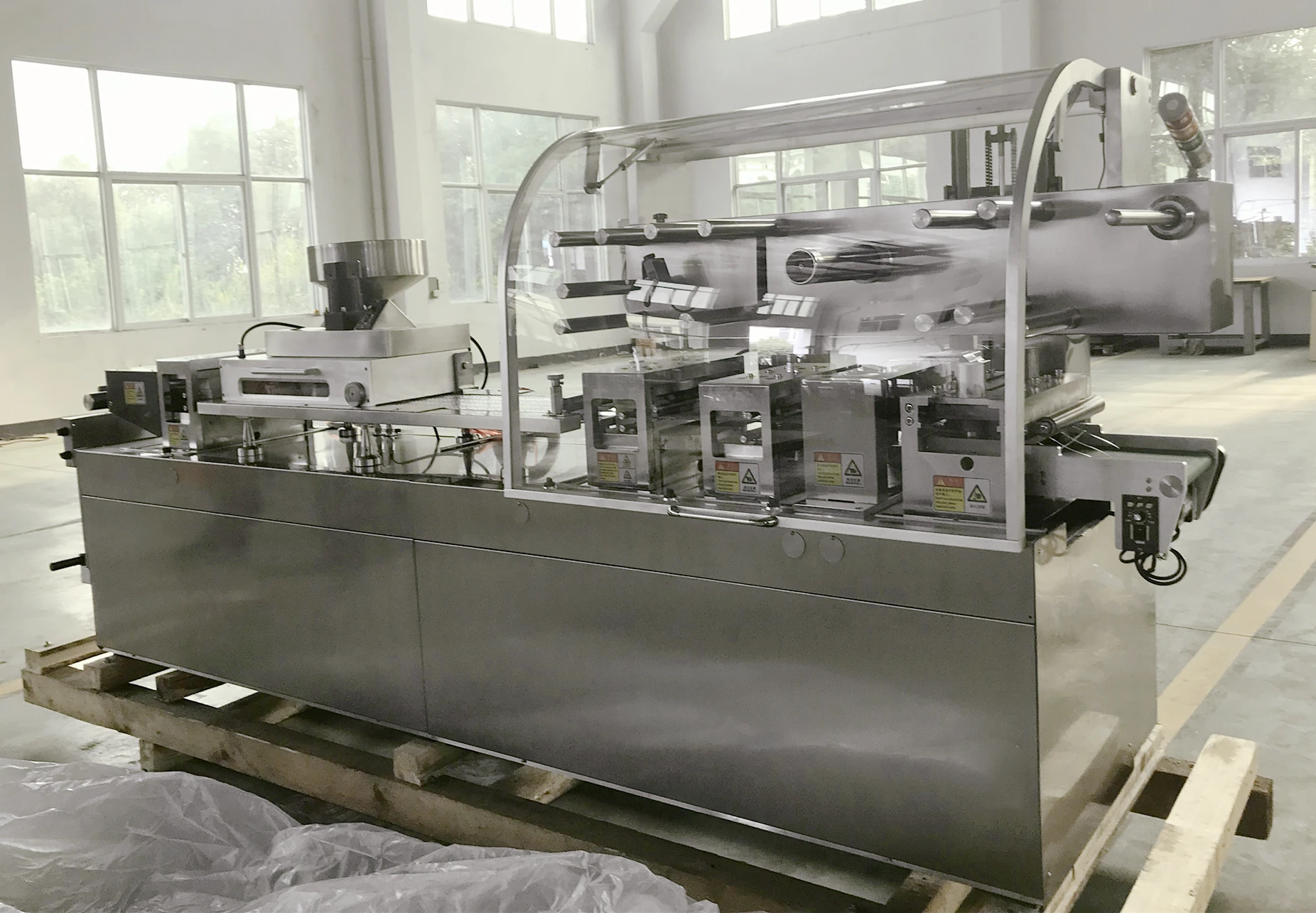

This aluminum blister packing machine is suitable for packaging capsules and tablets that require high packaging standards to protect their quality and extend the validity period. This machine has two functions: aluminum foil cold forming blister and PVC thermoforming blister. These two functions are converted by changing the mold.
Product Paramenters
Model | DPP-260A | DPP-260E | |||
Production Capacity | 15-60 cutting/min | 15-40 cutting/min | |||
Max. Forming Area and Depth | 250*100*13mm | 250*100*12mm | |||
Adjustable Pulling Length | 10-120mm | ||||
Blister Plate Size | Design according to customers’ requirements | ||||
Packaging Material (I.D.Φ75) | Plastic | (0.15-0.4)*270*(Φ300)mm | |||
PTP | (0.02-0.15)*270*(Φ250)mm | ||||
Alu Alu | (0.14-0.17)*270*(Φ300)mm | ||||
Power (Three Phase) | 380V 50Hz 7kw | 380V 50Hz 4kw | |||
Air Compressor (self-prepared) | 0.6-0.8Mpa≥0.36m³/min | ||||
Mould Cooling | Recycle water or circulating water consumption: 60-100L/h | ||||
Dimension (L×W×H) | 3550*900*1900mm (Including foundation) | ||||
Dimension for Each Part | 1850*650*1650mm | ||||
1700*900*1900mm | |||||
Weight | About 2200KG | ||||

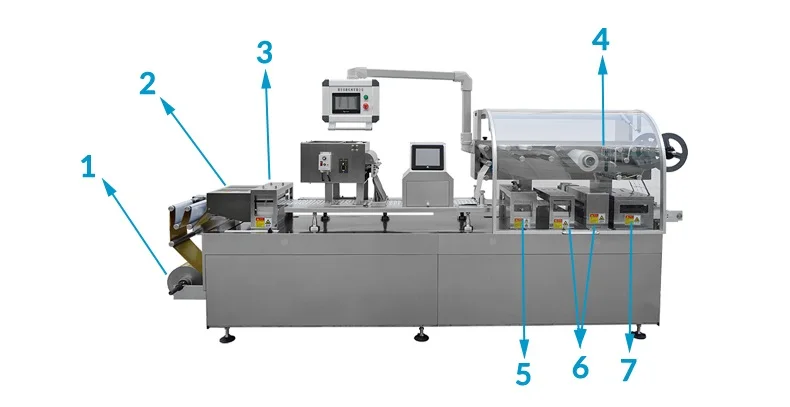

Main Features
1- Unwinding
2- Preheating Box
3- Mould Hot Forming
4- Aluminum Foil Feeder
5- Heat Sealing
6- Creasing & Tracting
7- Punching
1- All key components are made of high-quality stainless steel and aluminum alloy materials.

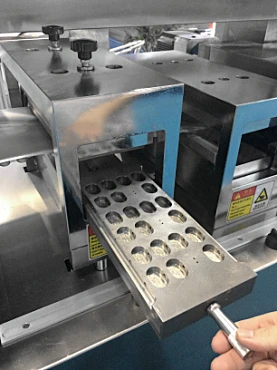

2- Novel mold positioning device, easy to replace the mold.
3- The indentation and batch number stations are separated independently to ensure the clarity of indentation and printing.
4- The transmission of the machine is isolated from the work area to prevent pollution and facilitate cleaning.

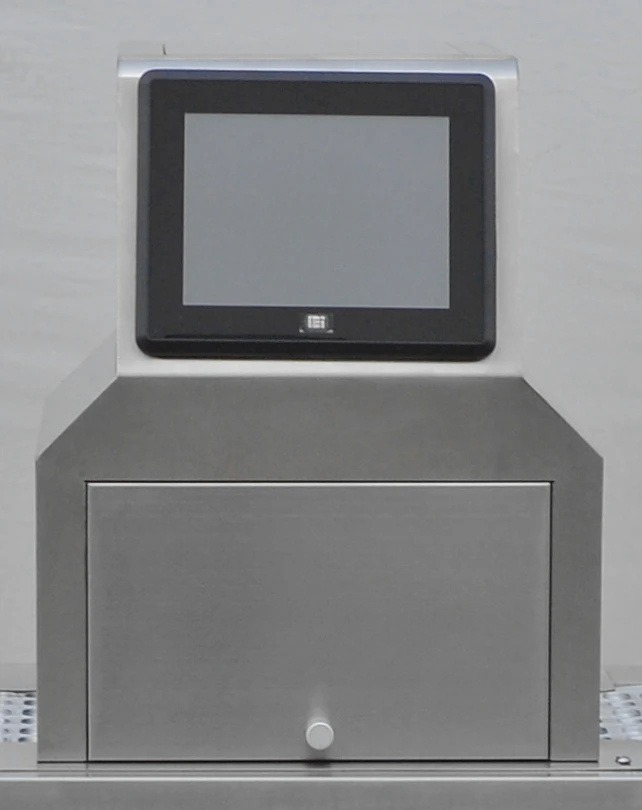

5- The material feeding is controlled by the precision servo motor, and the synchronous precision and the stroke length are set by the man-machine interface.
6- Alu/plastic (thermoforming) and Alu/Alu (cold forming) general mechanism: Alu/Alu filler only needs to replace the mold and the corresponding feeder.
