Automatic PVC Aluminum foil Plastic Pill Soft Gel Capsule Tablet Blister Packaging Machine
Product Description
Technical Parameter

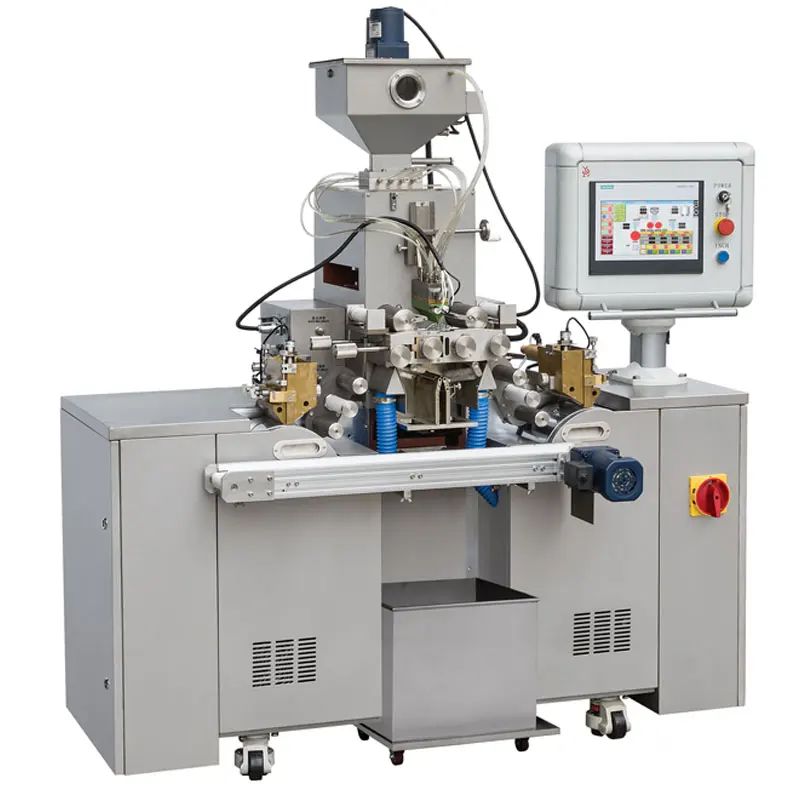

- Soft Gelatin Encapsulation Main Machine
Model | 0.8-110C |
Roller die rated speed | 0~7r/min |
Roller die size | Φ72×110mm |
Single piston feeding volume | 0~0.8ml |
Power supply | 380V 50Hz |
Total power | 6.6kw |
Noise | <75dBA |
Dimension | 1500×550×1700mm |
Net weight | 700kg |

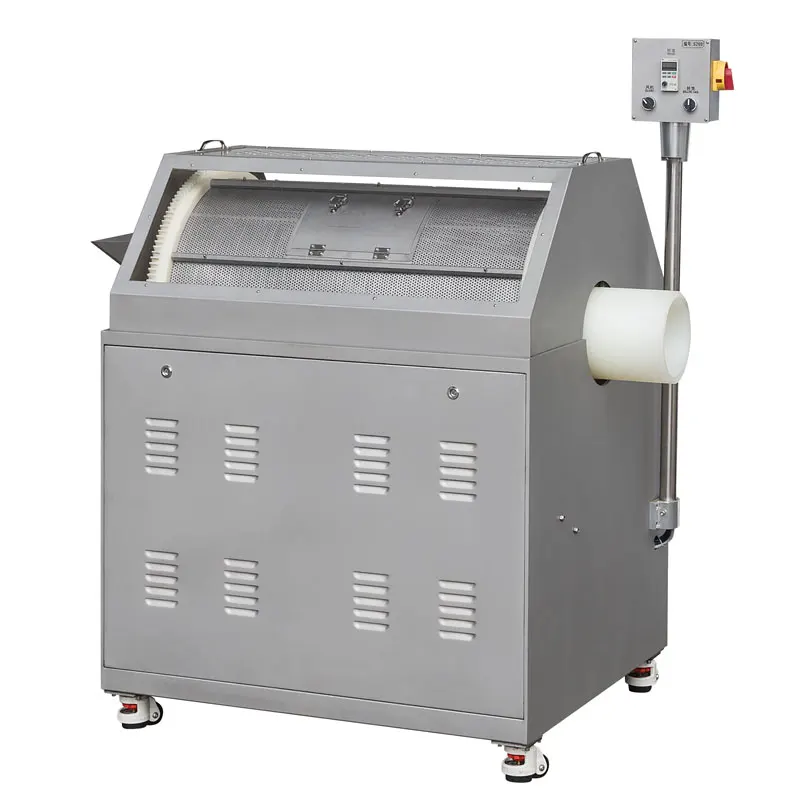

2.Tumble Dryer
| |
Model | ZL-580A |
Rotary cage quantity | 2 sections |
Rotary cage speed | 0~30r/min |
Power supply | 380V 50HZ |
Total power | 2.7KW |
Fan capacity | 960m3/h×3 |
Fan power | 220W×2 |
Dimension | 2080×880×1400mm |
Net weight | 400kg |
Remarks | With three fans for each section, total wind power is 960m3/h ×3. Shorten shaping time to save cost. 304# S.S mesh plate. |

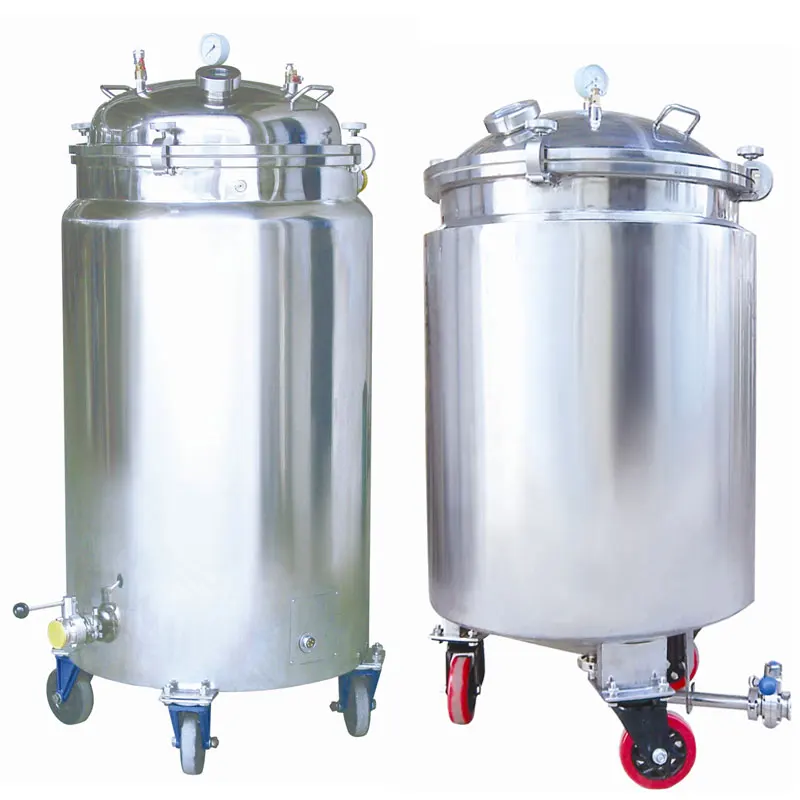

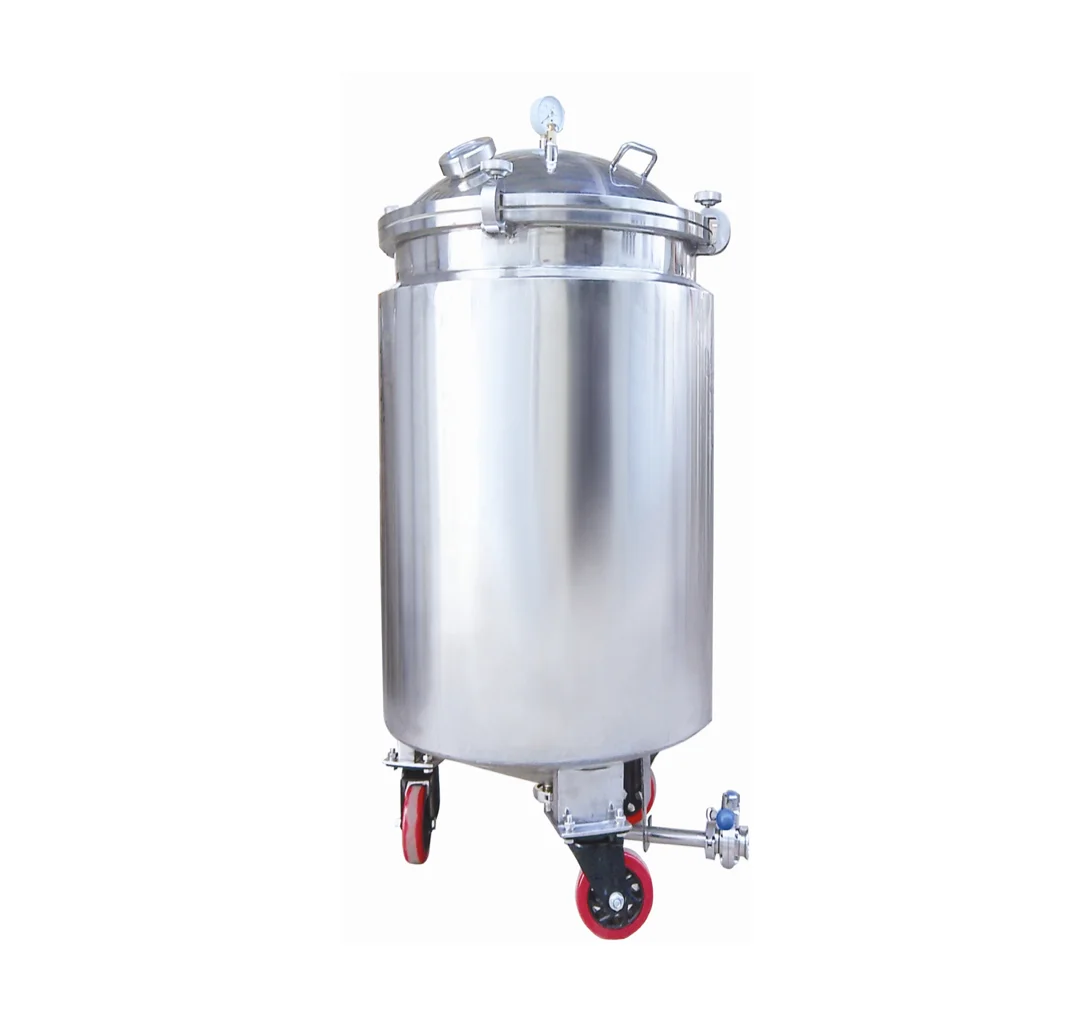

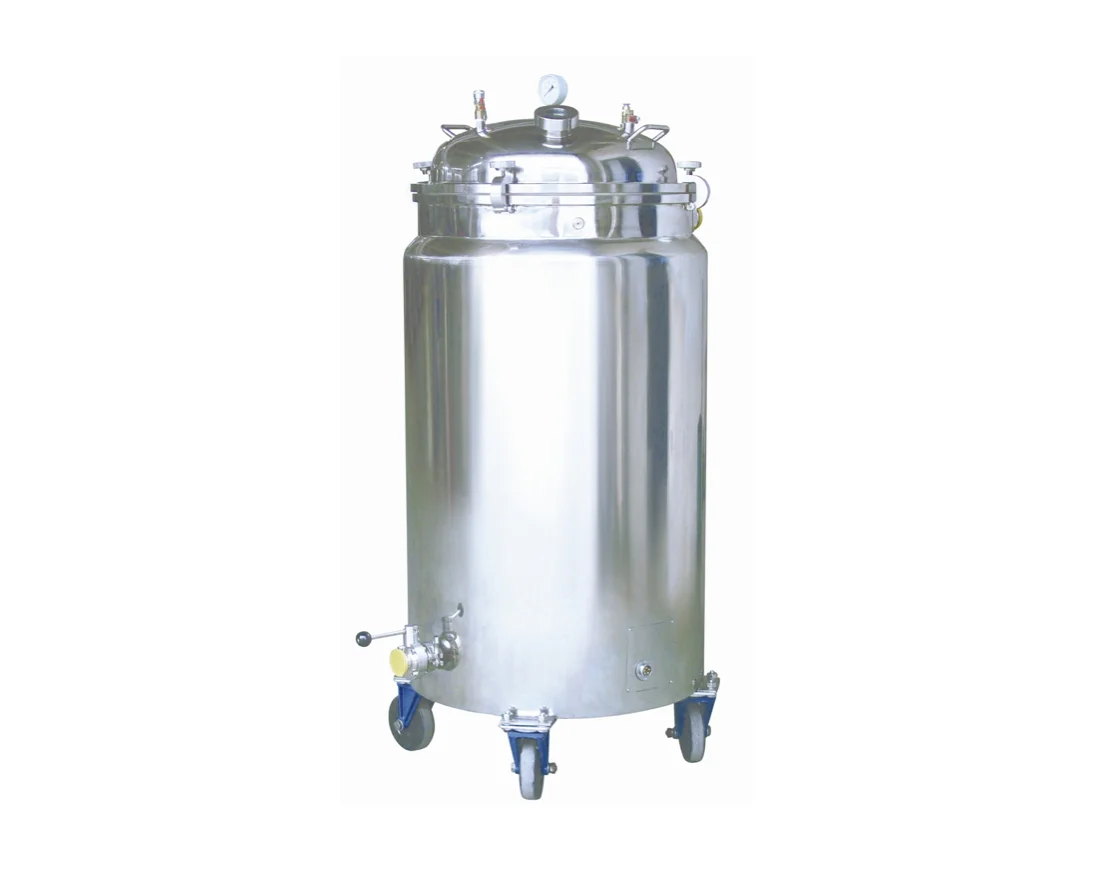

3.Jacketed Gelatin Storage Tank
| |
Model | BW-80 |
Volume | 80L |
Water storage volume | 30L |
Power | 220V 1.5KW |
Dimension | Φ520×1175mm |
Net weight | 100kg |
Remarks | Three layer jacket, 304# S.S. |
4.Material Tank
| |
Model | YL-100 |
Volume | 100L |
Dimension | Φ500×1000mm |
Net weight | 50kg |
Remarks | 304# S.S. |

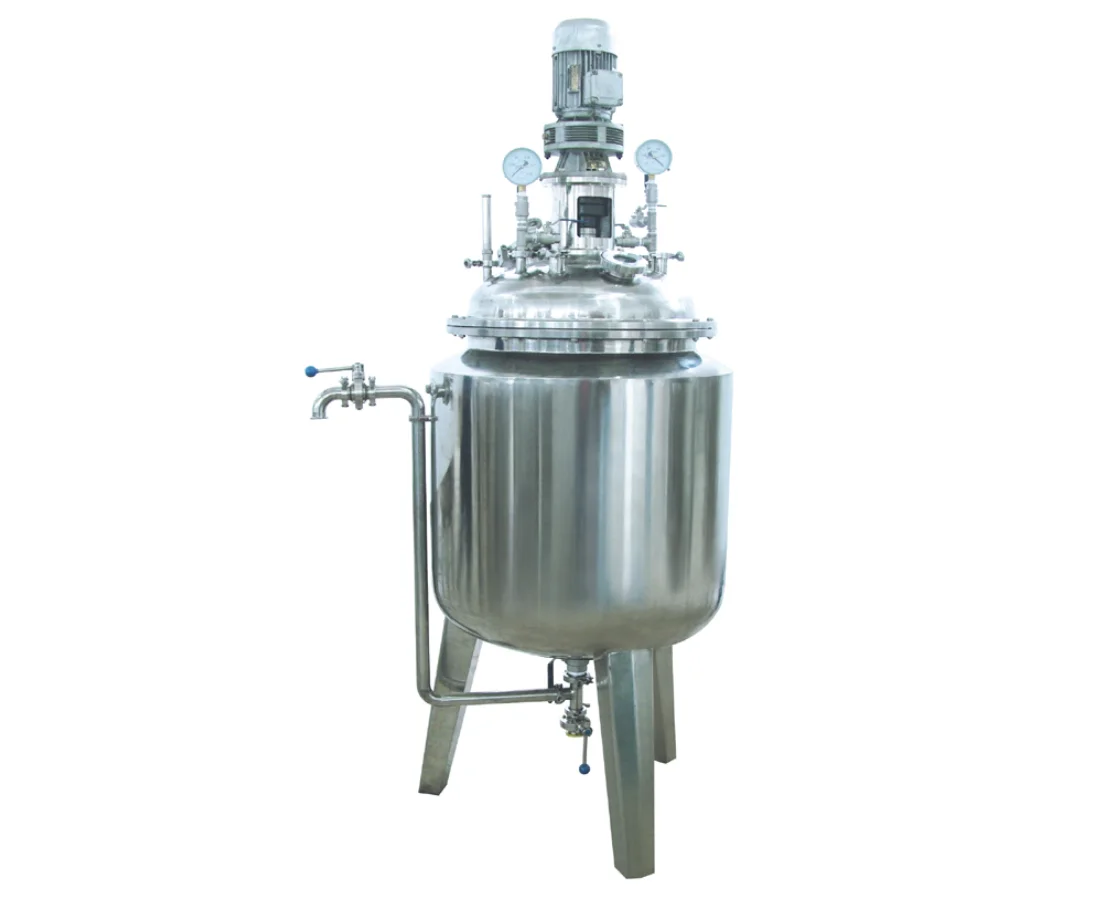

5.Gelatin Melting Tank
| |
Model | HJ-150B |
Efficiency volume | 150L |
Jacket layer hot water volume | 70L |
Motor power | 380V 50Hz 1.1KW |
Heating power | 220V 6KW |
Total power | 7.1KW |
Dimension | Φ800×2260mm |
Net weight | 450kg |
Remarks | Flange connection, easy to clean, holistic heat preservation and economy in sources, three feet support, output by air pressure, reduce the height of workshop. 304# S.S. |

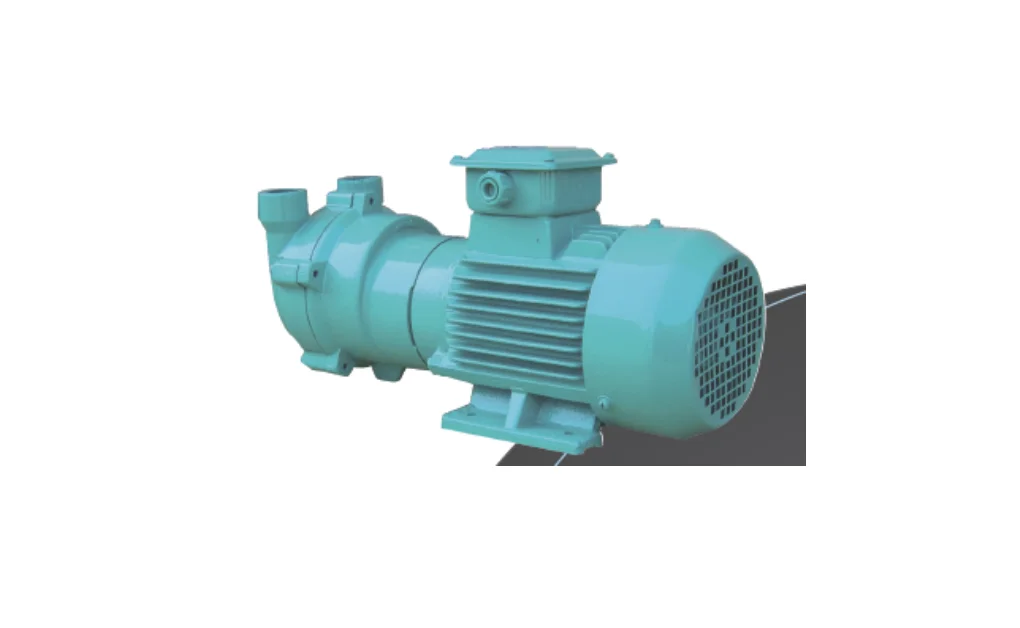

6.Water Ring Vacuum Pump
| |
Model | SK-0.5 |
Total power | 1.5KW |
Dimension | 480×180×225mm |
Net weight | 34kg |
Remark | Placed gelatin melting workshop, used for vacuum defoaming for gelatin melting and medicine preparing. |

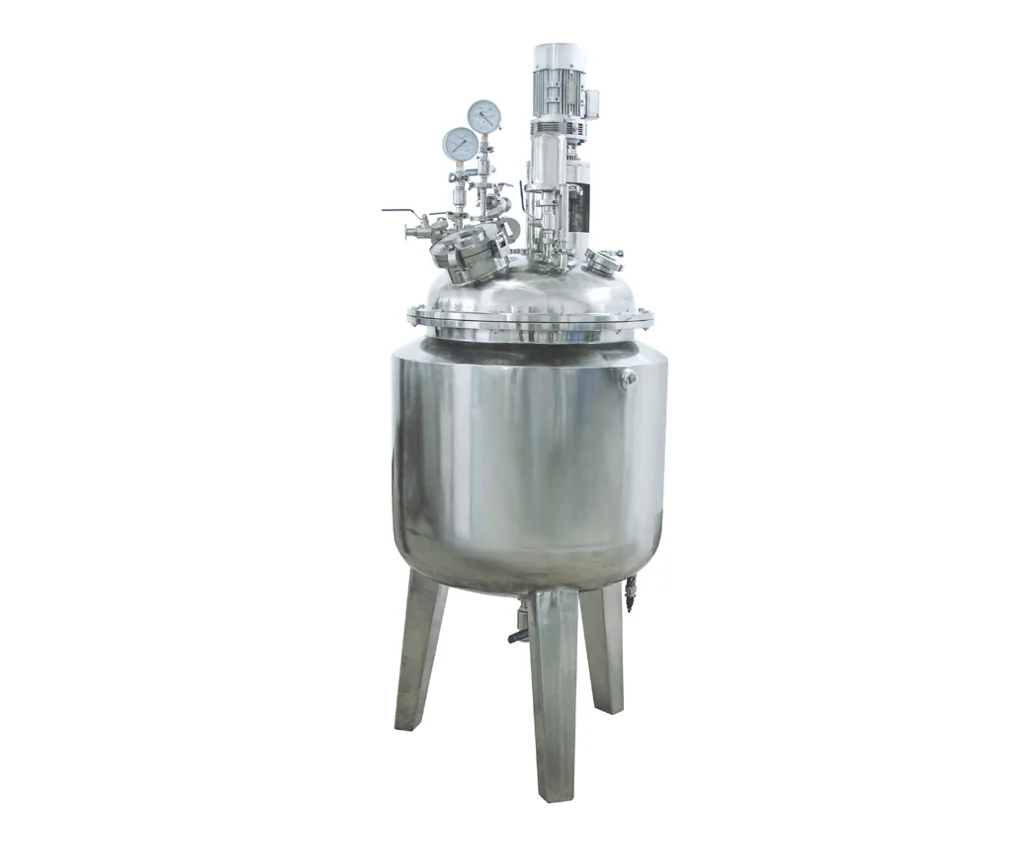

7. Material Preparation Tank
| |
Model | BPY-150 |
Efficiency volume | 150L |
Jacket layer hot water volume | 65L |
Motor power | 380V 50Hz 0.55KW |
Heating power | 220V 4.5KW |
Total power | 5.05KW |
Dimension | Φ800×2170mm |
Net weight | 450kg |
Remarks | Flange connection, easy to clean, holistic heat preservation and economy in sources, electric heating with electric cabinet, three feet support, air pressure discharge for reducing the height of workshop. |

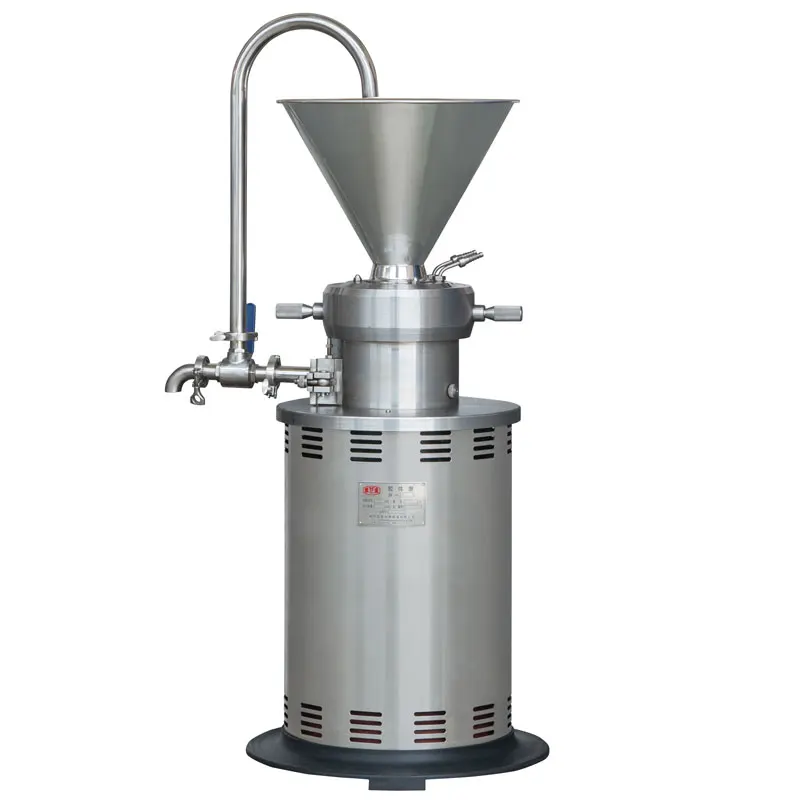

8.Colloid Mill
| |
Model | JTM-130 |
Processing material fineness | 2~50μm |
Output (change for material properties) | 0.5~2t/h |
Motor power | 11KW |
Motor speed | 2930r/min |
Motor voltage | 380V |
Rotor diameter | 130mm |
Dimensions | Φ550×1168mm |
Net weight | 320kg |

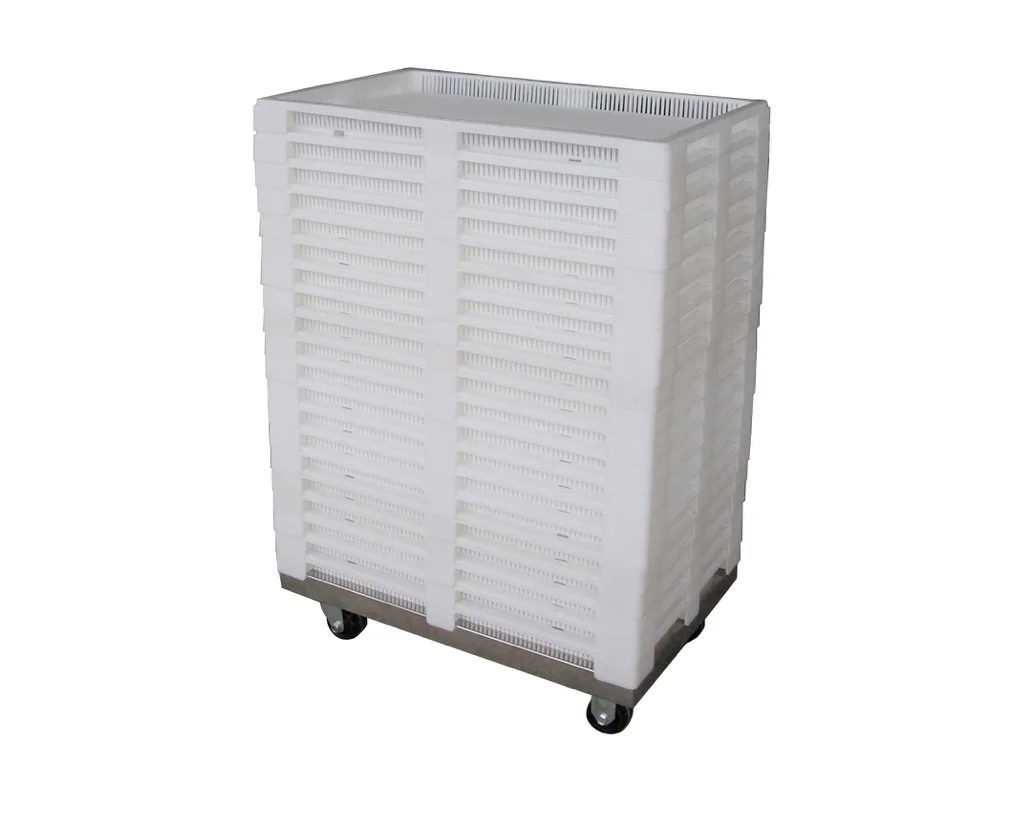

9.Drying Tray
10.Drying Tray Dolly
| ||
Drying tray | Dimension | 750×480×53mm |
Net weigh | 1.65kg | |
material | PET | |
Drying tray dolly | Dimension | 744×476×170mm |
Net weight | 11.60kg | |
material | 304# S.S. | |

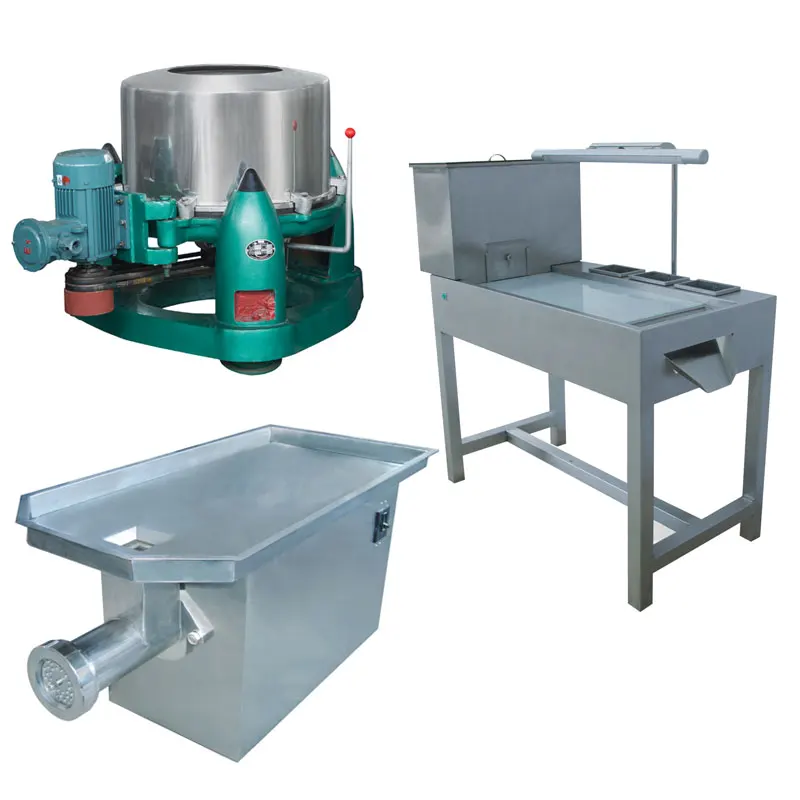

11.Gelatin Pulverizer
| |
Model | FS-100 |
Shattering rotary speed | 120r/min |
Power supply | 380V 50Hz 3KW |
Dimension | 1180×570×630mm |
Net weight | 220kg |
Remarks | 304# S.S. |

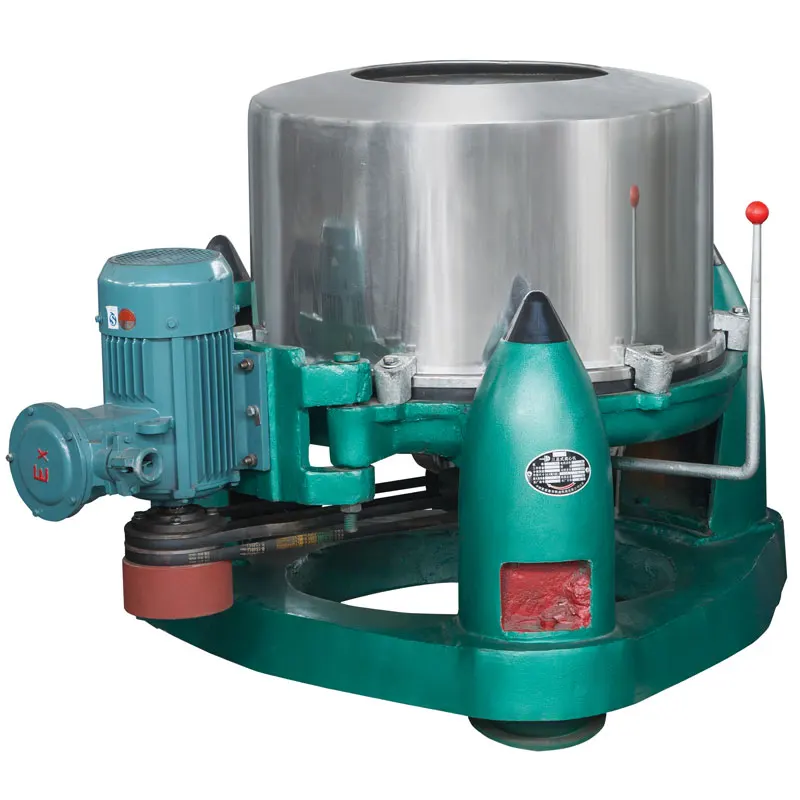

12.Centrifuger
| |
Model | SS-300 |
Power supply | 380V 50HZ 1.1KW |
Dimension | 650×620×500mm |
Net weight | 130kg |

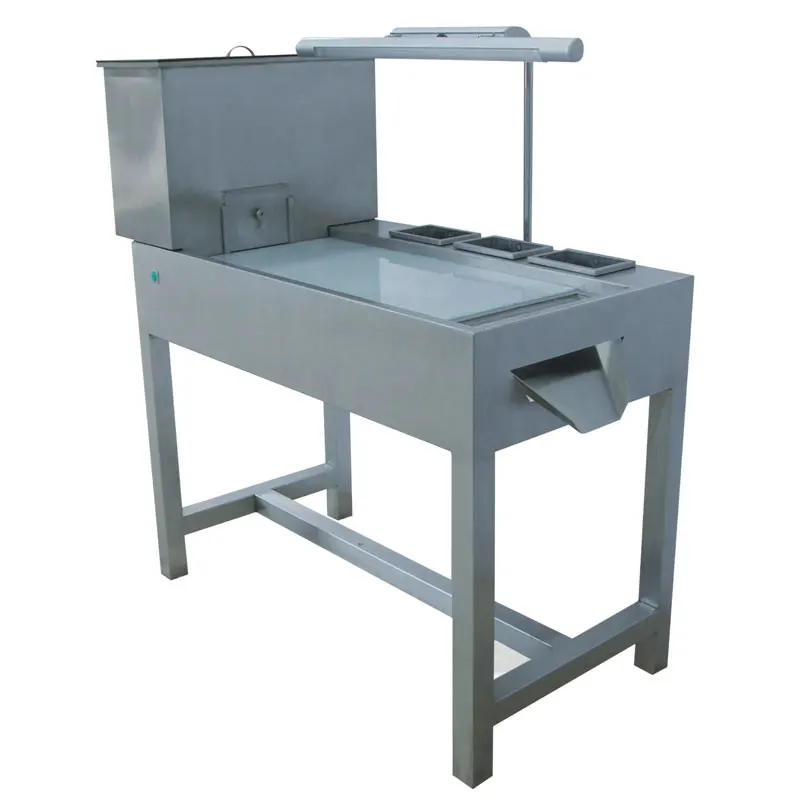

13.Inspection Table
 | |
Model | JYT-A |
Power supply | 220V 60W |
Dimension | 1200×550×1200mm |
Net weight | 65kg |
Remarks | 304# S.S. |

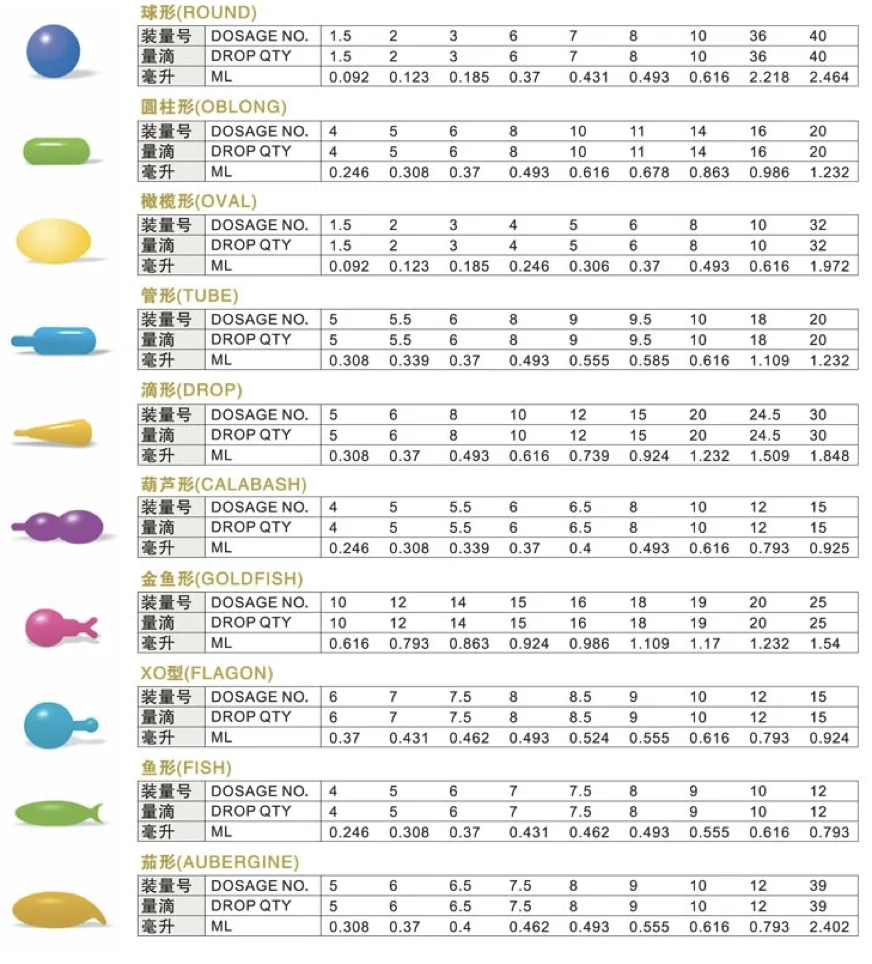

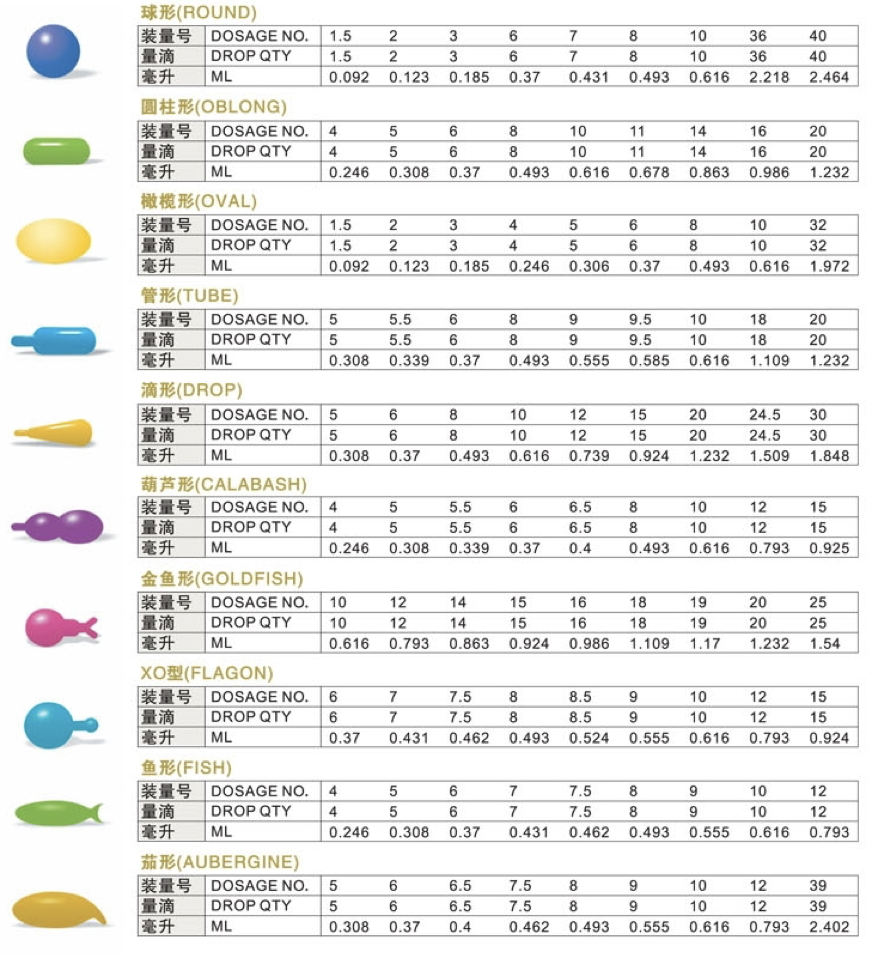

COMMON SOFTGEL SHAPE & DOSAGE
Feature
- Adopts big size touch screen, with fault diagnostic function, can store various kinds of operating parameters, reserve network interface.
- The mould adopts the aviation aluminum alloy, long service life. Optimize design, more mould holes, low net-gelatin rate.
- The gelatin sheet drum wheel, gelatin sheet oil system and mould adopt parallel design, high stability. Mould shaft, gelatin drum wheel and pulling shaft adopt independent variable frequency drive motor, easy to adjust, low noise, and smooth operation.
- The gelatin sheet adopts micro lubrication, and really no need clean, improve efficiency, to save money.
- The gelatin sheet cooling adopt independent professional cold water machine, low energy consumption, high refrigeration efficiency.
- Discharge soft capsule by net-hopper, and form in advance by cold wind, make soft capsule molding more beautiful and conveying more reasonable.
- Material hopper can not only adjust temperature, and mixing with speed adjusting, the more suitable for traditional Chinese medicine suspension liquid.
- Small footprint, complete functions, very suitable for small test and middle test of institution and laboratory, also can be produced in small batches.
