Product Overview

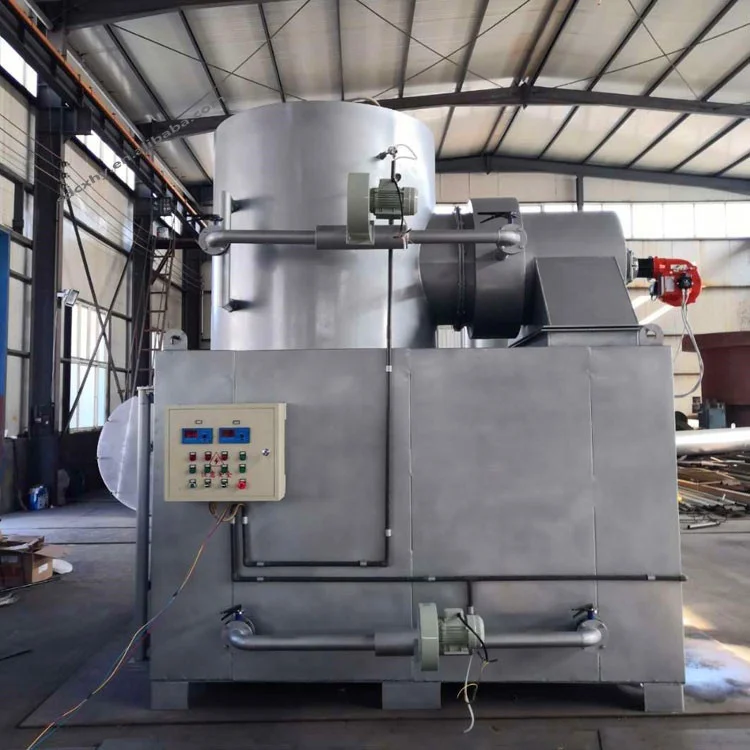

Solid waste incinerator furnace
A.features:
1.Smokeless and no harmful to environment. reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%. temperature of incinerator runing can reach 1100-1300 degrees.
2.Continuously and fully burning.
3.Simple operation.
1.Smokeless and no harmful to environment. reduce the solid mass of the original waste by 80–85% and the volume reduced by 95–96%. temperature of incinerator runing can reach 1100-1300 degrees.
2.Continuously and fully burning.
3.Simple operation.
B. Advantage:
1. Long lifetime
2.Suitable for treating infectious waste
3.Avoid secondary pollution
C.Application:
Hospitals/ Hotels/Stations/ Industries
1. Long lifetime
2.Suitable for treating infectious waste
3.Avoid secondary pollution
C.Application:
Hospitals/ Hotels/Stations/ Industries
Working principle
There are four chambers, two combustors for friendly environment in waste incinerator. There will be no smoke, no smell, no
pollution after be burning.
it was devided into :
1.primary combustion chamber
It is Primary pyrolysis gasifying, Organic matters in the waste would be decomposed into combustible gas in pyrolysis gasifying
method.
2.second combustion chamber
The temperature of secondary combustion chamber should be controlled above 850℃, and the residency time more than 2s.
3.mixture of combustion chamber
Turbulent combustion would remove black smoke and peculiar smell thoroughly. Dioxin and other toxic and harmful objects would be
inhibited to produce from the source.
4. smoke purification chamber
There is an gas absorbtion chamber, it can absorb the gas again.
5.chimney
pollution after be burning.
it was devided into :
1.primary combustion chamber
It is Primary pyrolysis gasifying, Organic matters in the waste would be decomposed into combustible gas in pyrolysis gasifying
method.
2.second combustion chamber
The temperature of secondary combustion chamber should be controlled above 850℃, and the residency time more than 2s.
3.mixture of combustion chamber
Turbulent combustion would remove black smoke and peculiar smell thoroughly. Dioxin and other toxic and harmful objects would be
inhibited to produce from the source.
4. smoke purification chamber
There is an gas absorbtion chamber, it can absorb the gas again.
5.chimney
it can cool down the tempreture of gas.
PRODUCT CONFIGURATION
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | Frequency | Voltage | Size (mm) | Power |
GR-20KG/h | 50hz/60hz/customization | 220V/380V | 1300*800*2250 | 0.59kw |
GR-30KG/h | 50hz/60hz/customization | 220V/380V | 1460*900*2350 | 0.59kw |
GR-50KG/h | 50hz/60hz/customization | 220V/380V | 1600*1150*3000 | 0.59kw |
GR-100KG/h | 50hz/60hz/customization | 220V/380V | 1800*1400*3500 | 0.88kw |
GR-150KG/h | 50hz/60hz/customization | 220V/380V | 2000*1500*3800 | 0.88kw |
GR-200KG/h | 50hz/60hz/customization | 220V/380V | 2200*2000*4800 | 1.69kw |
GR-300KG/h | 50hz/60hz/customization | 220V/380V | 2800*2200*1800 | 1.69kw |
GR-500KG/h | 50hz/60hz/customization | 220V/380V | 2800*2400*1900 | 1.69kw |
Customer Photos
Our Advantages
Product packaging
Company Profile
Zhuchengshi Guanrun Environmental Protection Technology Co., Ltd., mainly produces sewage treatment equipment, sludge dewatering equipment, belt filter press, plate and frame filter，Solid waste incinerator furnace ，degradation treatment equipment, manure fermentation equipment ， Products are widely used in agriculture, , petroleum, chemical, paper, pharmaceutical, food, starch, metallurgy, electricity, coal, slaughter,printing and dyeing and other fields.
