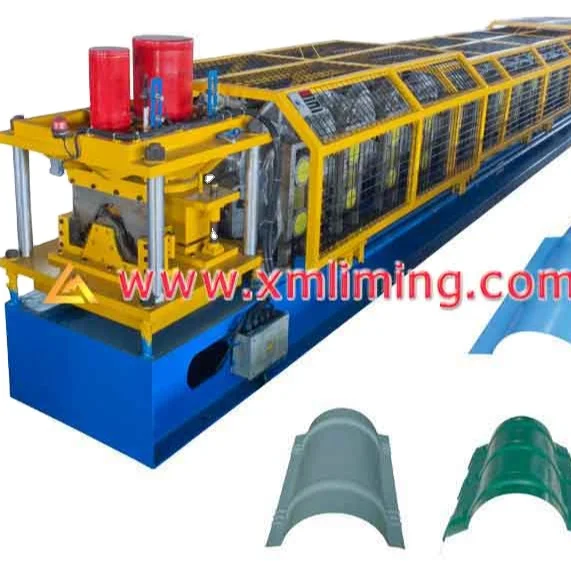

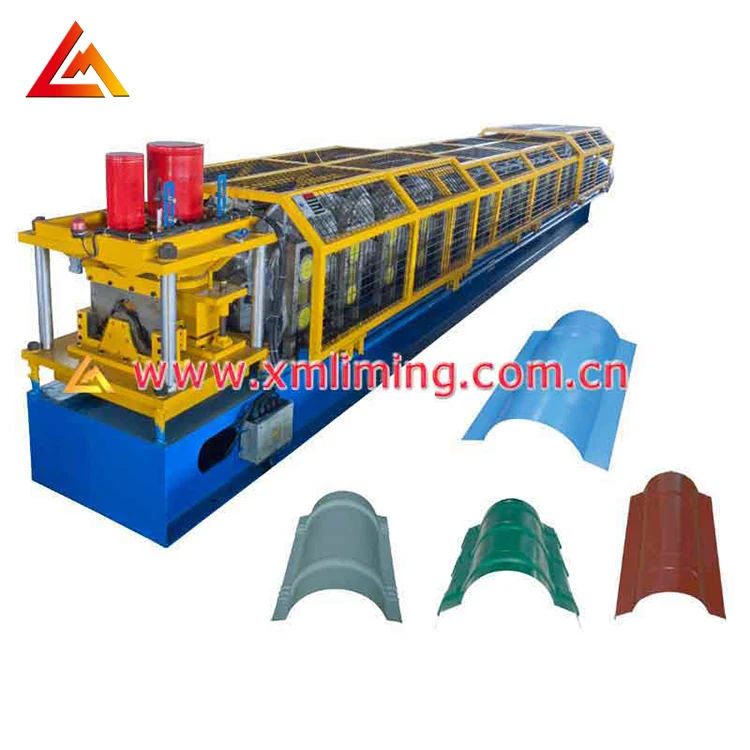

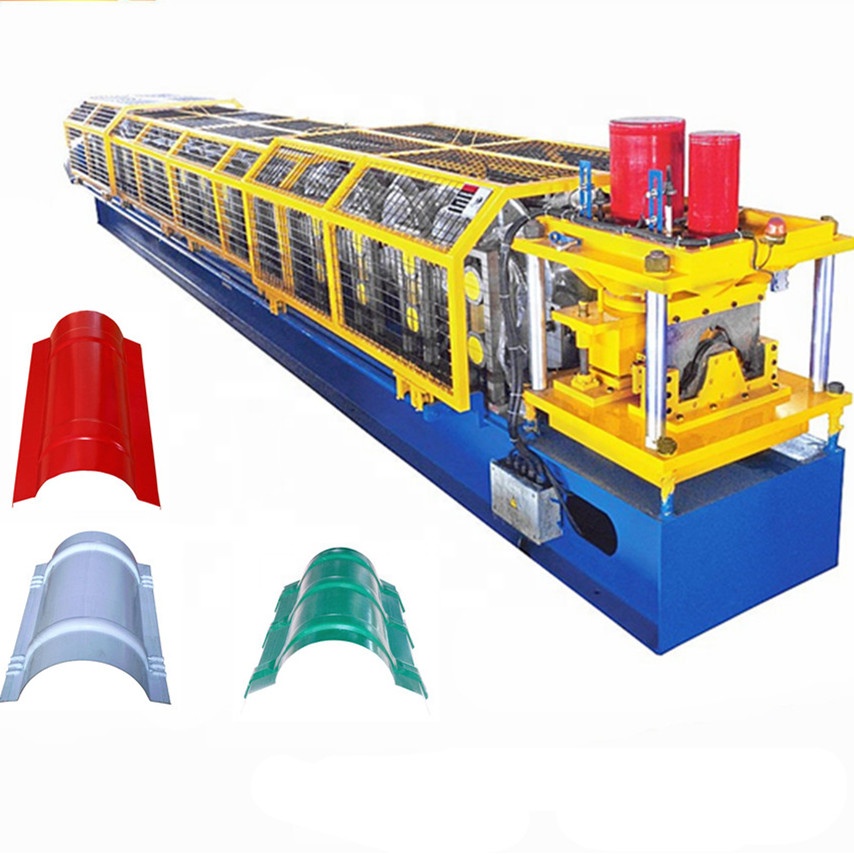

Горячая распродажа 2021, лм металлическая оцинкованная цветная стальная кастрюля, профилирующая машина для плитки

(1) The general machine parameter

Suitable roll forming material

Color steel sheet

Thickness

0.4-0.6mm

Feeding width

457mm

Frame design

Wall-plate-frame-design /Strong-stand-frame-design

Roll stages

12 stages

Material of forming roller

45# steel, CNC lathes, Hard Chrome Coated

Shafts Diameter

Φ75mm

Main motor power

5.5KWwith reducer

Max. Line speed of roll former

15m/min

Hydraulic Pressing/Cutting Device

There is one hydraulic press to make the ribs on top according to requirement and hydraulic post cut for cut off

Hydraulic group power

11KW

Material of cutting blade

Cr12, hear treatment

Electric Standard

380V /50HZ/3PH or as the customer's requirements

Machine Dimensions

7650mm×1220mm×1680mm

Major Color of Machine Painted

RAL 5015 (Blue) or as per customer’s requirements

(2)  PLC Control system

PLC

Siemens brand (ABB brand is available if required)

Touch Screen

Siemens brand (ABB brand is available if required)

Inverter

Schneider brand (ABB brand is available if required)

Encoder

 Omron brand

(3) Product rack

Description

un-powered, 3 units

(4) Option:

1. CE certificate

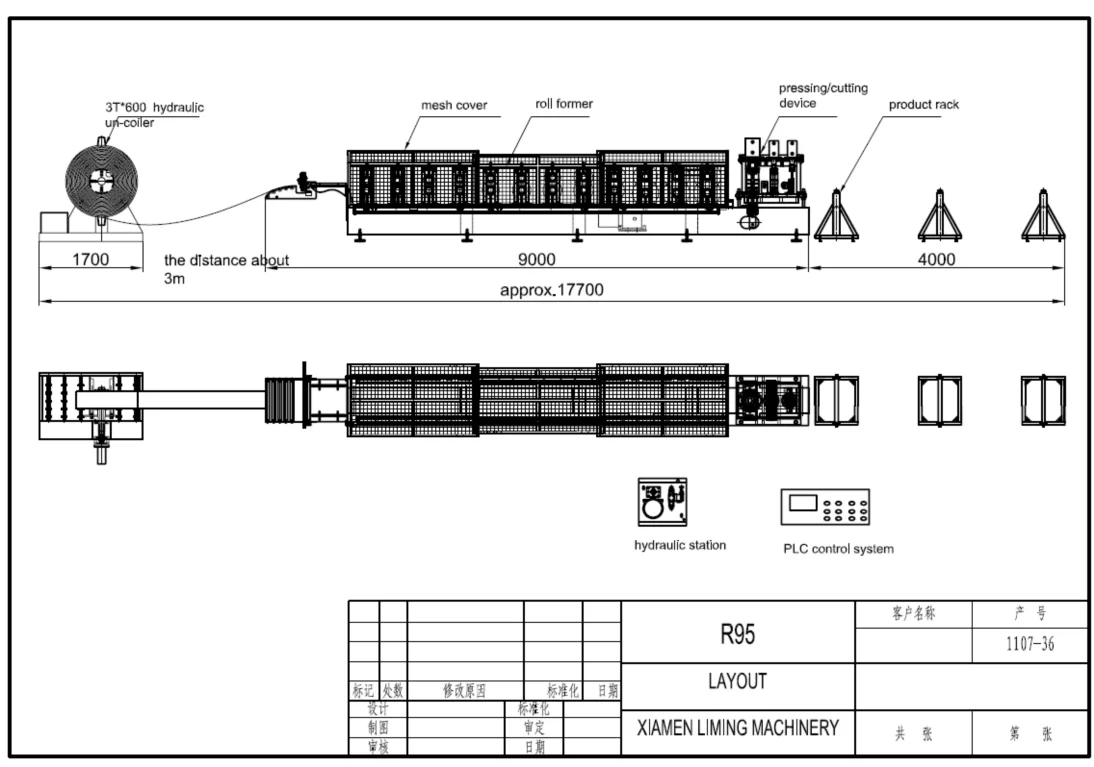

Please refer to the attached pictures for details

(5)  Service after sell

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

Installation:

(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

a) Position the machine in the buyer’s factory.

b) Prepare necessary electric wiring.

c) Prepare material of trial running.

d) Provide labors for assistance and installation during installation.

e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.
