Picture & Parameter
Product Feature

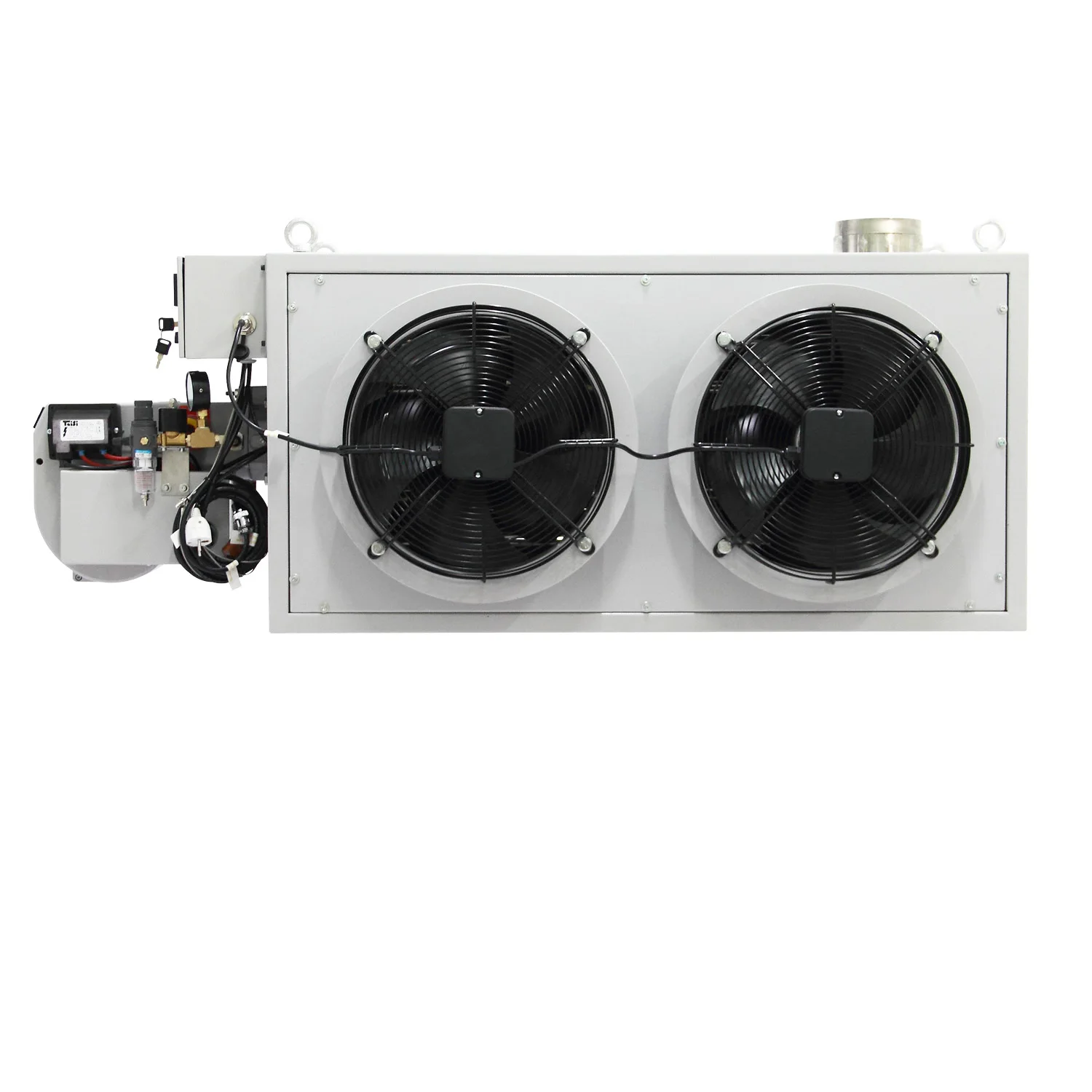

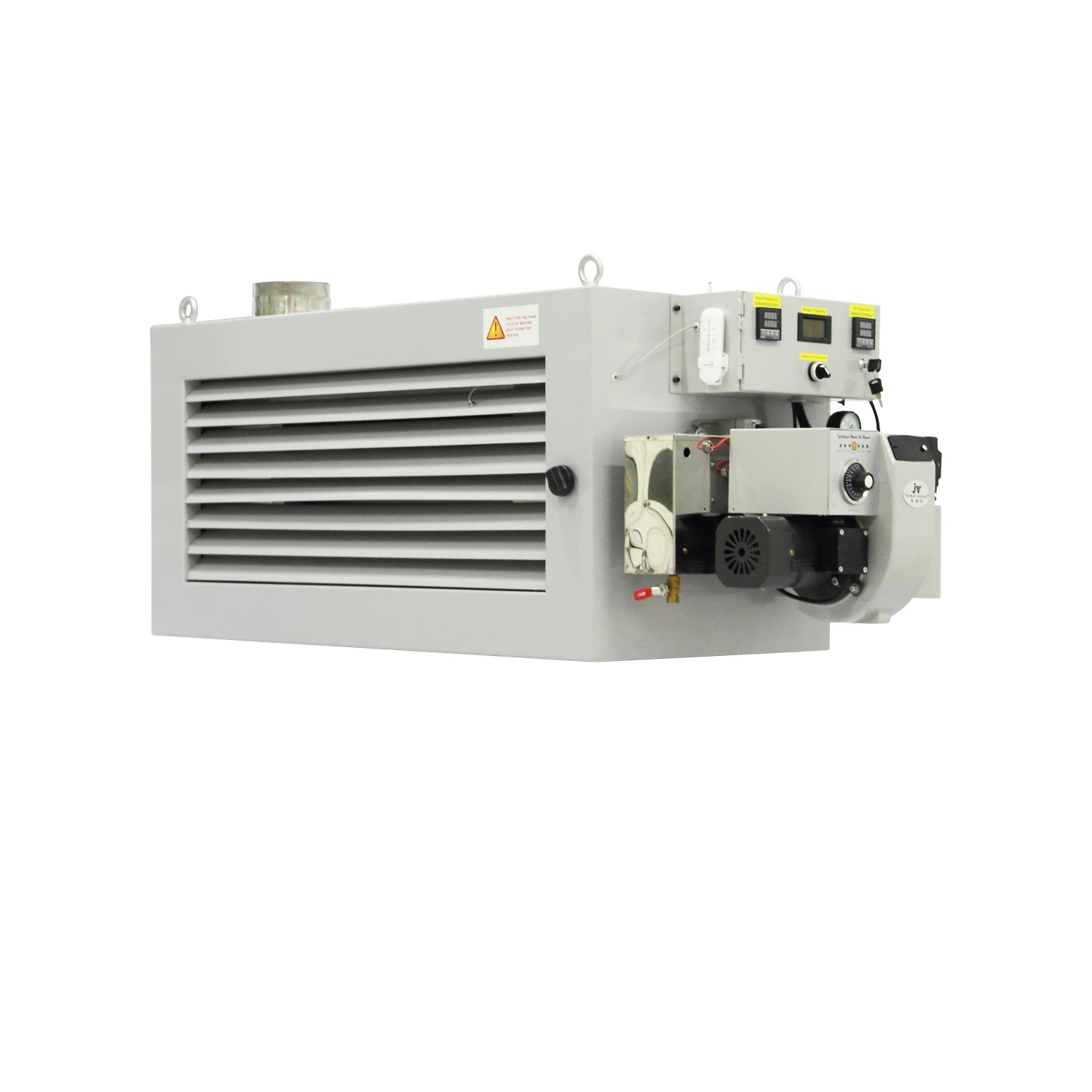

KVH1000 is one of our old fashion heaters; We manufactured the first KVH1000 unit in 2003.
It is also a loyal companion to your private garage, which is 200 000Btu, 60kw- one of our medium size heaters.
It is also a loyal companion to your private garage, which is 200 000Btu, 60kw- one of our medium size heaters.
Convenience-
2. You only need to set a room temperature; the heater will work&stop fully automatically.
2.The alarm sound comes at once if a malfunction happens.
Safe-
2.Fan keeps blowing cool air until the chamber temperature reduces to a certain number.
No smoke-
1.KVH1000 heater can run on all kinds of liquid oil/waste oil with or without impurities, such as waste car oil, soybean oil, diesel oil, etc.
2. You only need to set a room temperature; the heater will work&stop fully automatically.
Efficiency-
1.The heater releases warm air within four minutes.
2.The alarm sound comes at once if a malfunction happens.
Safe-
1.KVH1000's combustion chamber is 100% sealed, which means the burner's fire can't go outsides.
2.Fan keeps blowing cool air until the chamber temperature reduces to a certain number.
No smoke-
1.The chamber's chimney connector is 100% sealed with asbestos pads and flanges. So there is impossible to smoke leakage indoors.
2.With the correct setting, the heater can have no smoke outdoor as well.
2.With the correct setting, the heater can have no smoke outdoor as well.

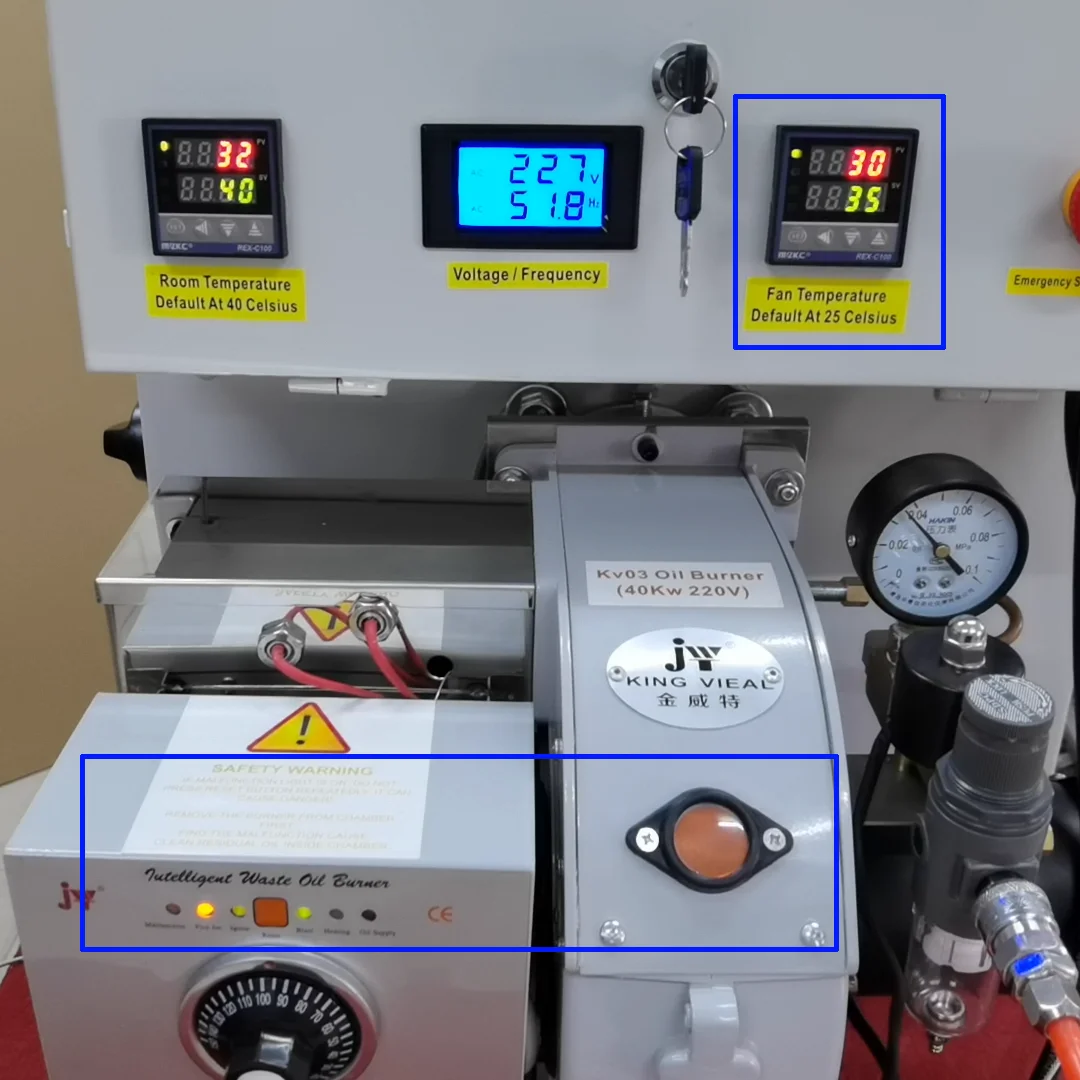

Work Stage

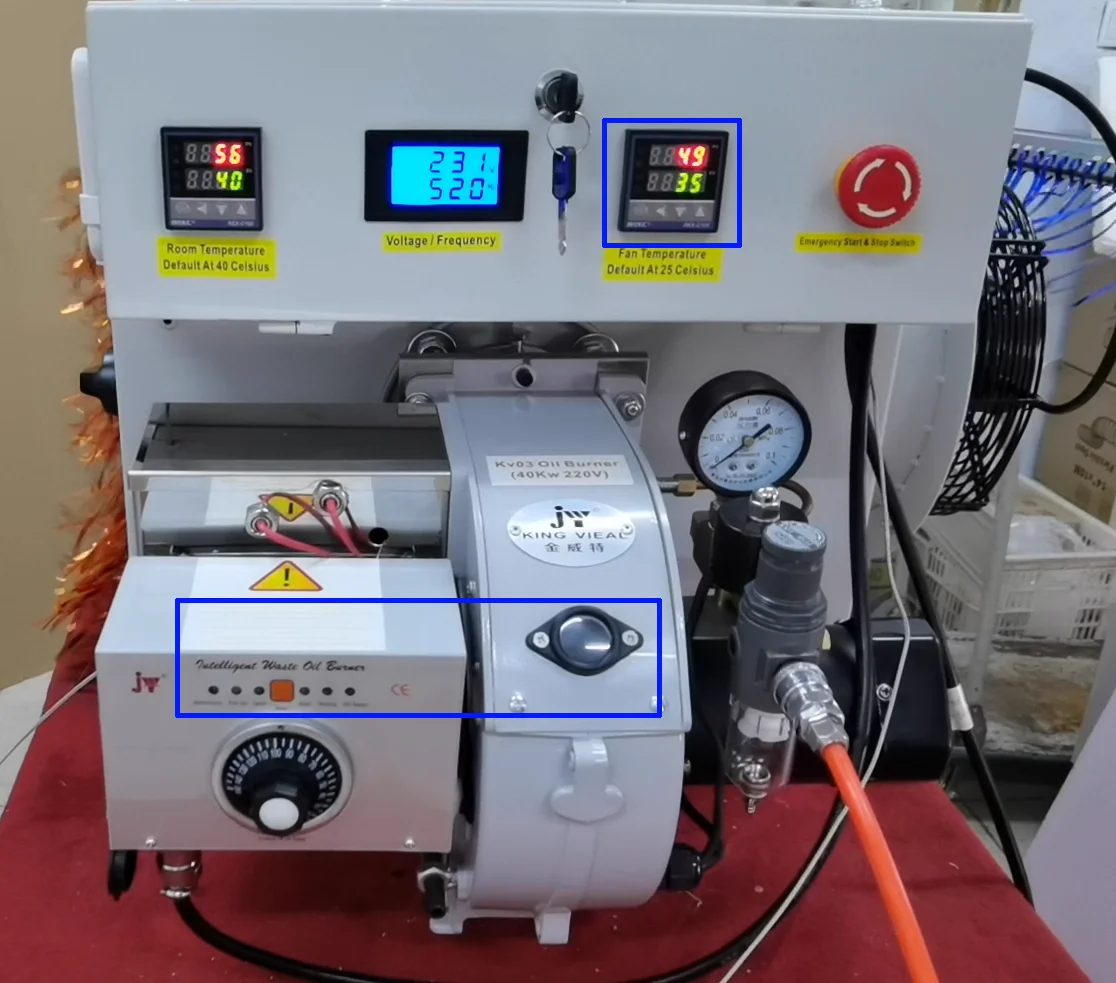

01. Burner drives fan to work

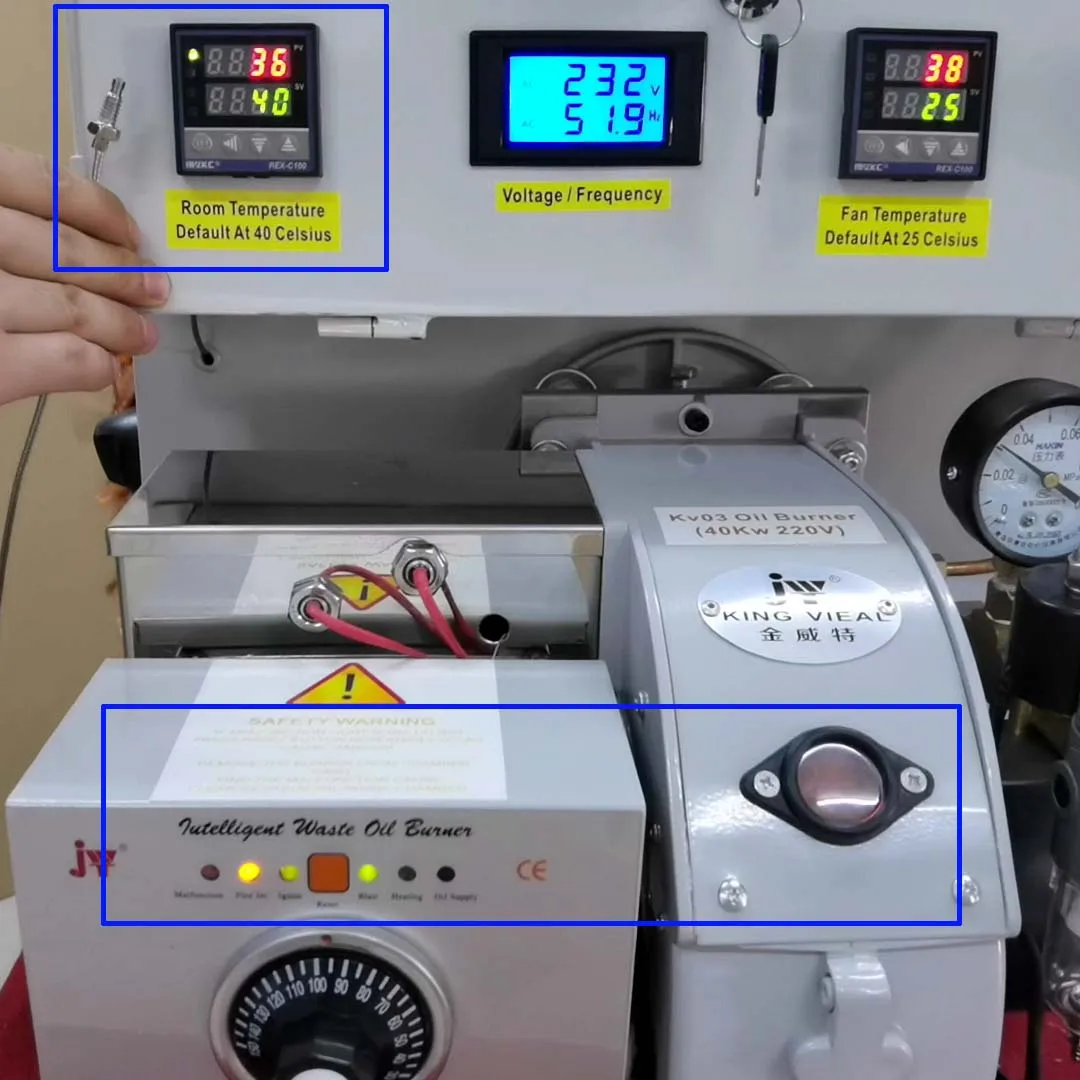

Power on, switch on the emergency start button. If the fan's temp is lower than the setting, then the burner starts to work.
Video link, https://youtu.be/qfkXlAI8gLk
Burner's working process is oil pump→heating(4 minutes)→fan→ignite→fire.
Fire keeps heating the exchanger inside, the fan's temp rises up. When reaching the set temp, the fan starts to suck in cold air, blow out warm air.
Test result, From plug until the fan starts to function, takes a total of 4 minutes 15 seconds.
Video link, https://youtu.be/qfkXlAI8gLk
02. Fan blows out hot air

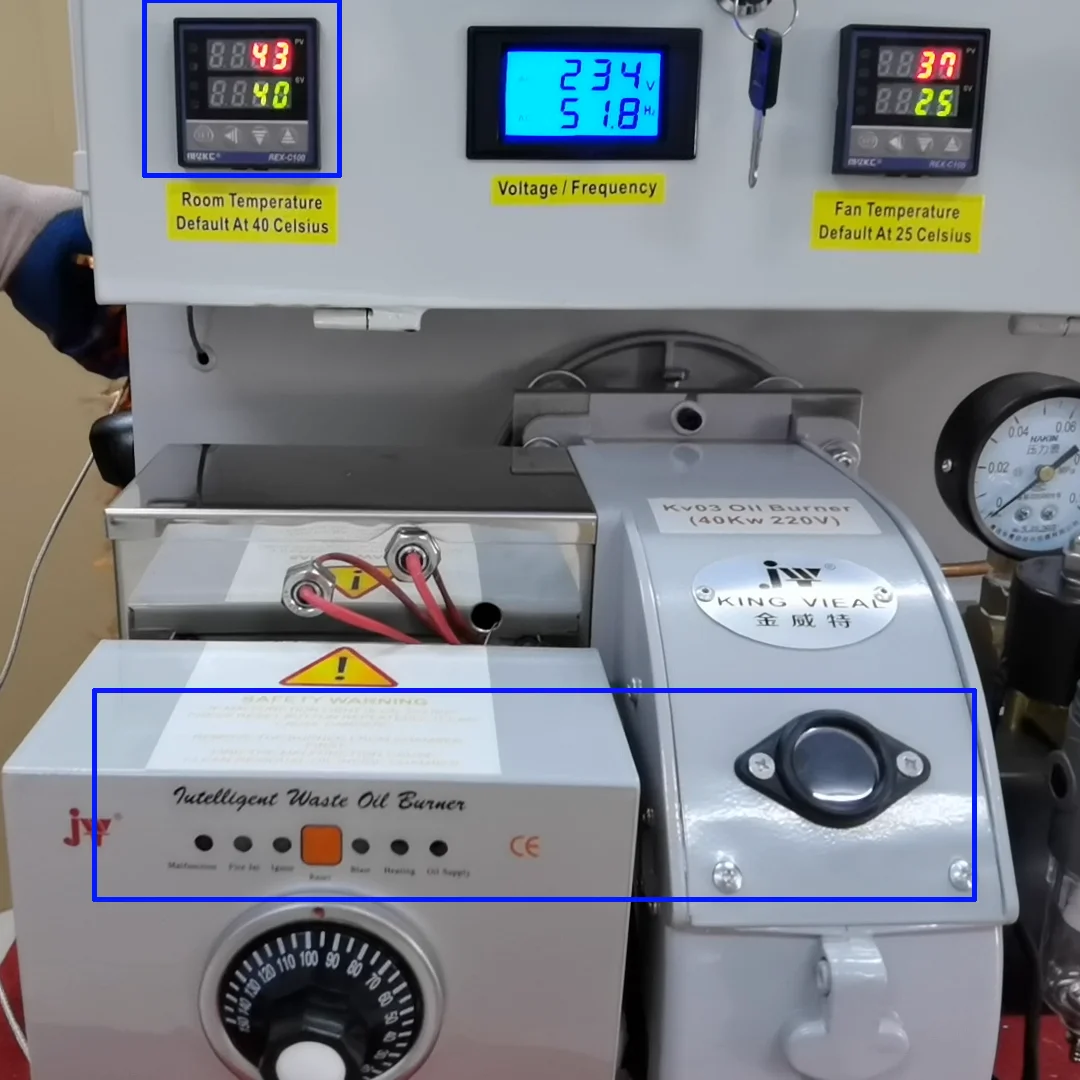

Set the room temperature. It needs to be higher than the room's current temp.
Video link, https://youtu.be/Pn-4G0FiZCQ
Burner starts to work fully automatically-inject fire to the exchanger, cold air in, circulates, hot air out from the window shades.
When the room’s temp reaches the set temp, the burner stops working automatically. When the room's temp drops to the set temp, the burner will be back to work again.
Video link, https://youtu.be/Pn-4G0FiZCQ

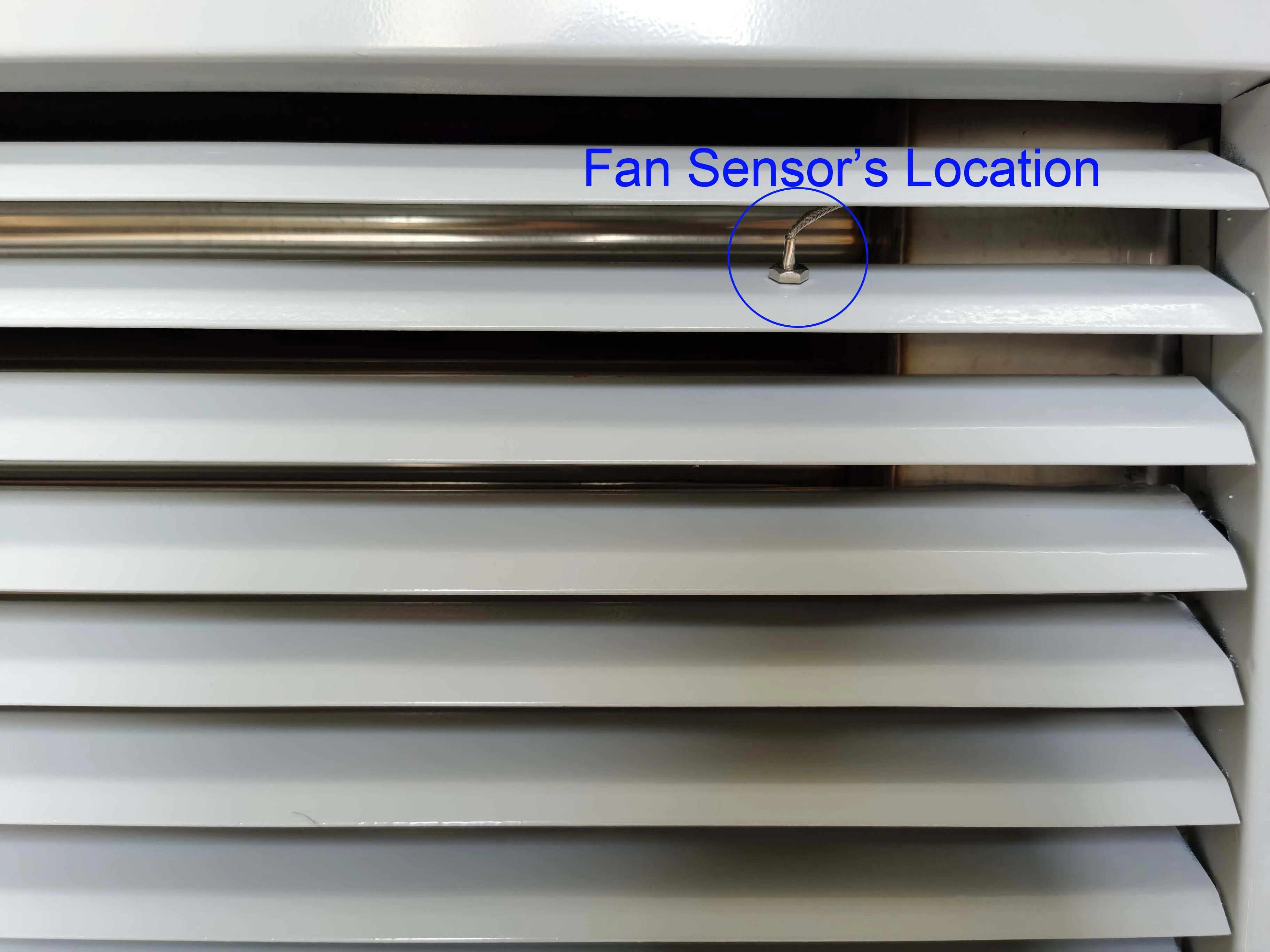

03. Fan protective system
The room's temp continues to rise. When it reaches the set temp, the burner stops working.
While the fan still works, suck in cold air to cool down the heat exchanger.
When the fan's temp drops to the set temp, the blower stops working.
04. Malfunction alarm sound
If the burner is under malfunction, there will come an alarm sound. When this happens, please power off, remove the burner from the chamber, and find the cause.
Video link, https://youtu.be/1y85CCsUj3M
Video link, https://youtu.be/1y85CCsUj3M
Smoke Instructions
Waste Oil Heater Catalog
Model | |
Size | 109*62*90mm |
Output Heat | 120 000Btu/h |
Output Power | 40Kw |
Oil Consumption | 2-3 Liter/h |
Hot Air Volume | 2700cbm/h |
Reference Heating Area | 200sq.m |
Classification (Small/ medium/ large) | Small |
Model | |
Heat Size | 80*50*50cm |
Output Heat | 120 000Btu/h |
Output Power | 40Kw |
Oil Consumption | 2-3Liter/h |
Hot Air Volume | 2660cbm/h |
Reference Heating Area | 200sq.m |
Classification (Small/ medium/ large) | Small |
Model | |
Size | 120*71*(170~195)cm |
Output Heat | 120 000Btu/h |
Output Power | 40Kw |
Oil Consumption | 2-3 Liter/h |
Hot Air Volume | 2660cbm/h |
Reference Heating Area | 200sq.m |
Classification(Small/ medium/ large) | Small |
Model | |
Heater Size | 110*55*55cm |
Output Heat | 200 000Btu/h |
Output Power | 60Kw |
Oil Consumption | 3 Liter/h |
Hot Air Volume | 12 000cbm/h |
Reference Heating Area | 200-600sq.m |
Classification (Small/ medium/ large) | medium |
Model | |
Heater Size | 95*56*174cm |
Output Heat | 400 000Btu/h |
Output Power | 120Kw |
Oil Consumption | 6-8Liter/h |
Hot Air Volume | 12 000cbm/h |
Reference Heating Area | 600-800sq.m |
Classification (small/ medium/ large) | Medium |
Model | |
Heater Size | 185*90*127cm |
Output Heat | 400 000Btu/h |
Output Power | 120Kw |
Oil Consumption | 6-8Liter/h |
Hot Air Volume | 12 000cbm/h |
Reference Heating Area | 600-800sq.m |
Classification (Small/ Medium/ Large) | Medium |
Model | |
Heater Size | 195x80x180cm |
Output Heat | 400 000Btu/h |
Output Power | 120Kw |
Oil Consumption | 6-8Liter/h |
Hot Air Volume | 120 000cbm/h |
Reference Heating Area | 800-1000sq.m |
Classification (Small/ medium/ large) | Medium |
Model | |
Heater Size | 226*94*160cm |
Output Heat | 800 000Btu |
Output Power | 230Kw |
Oil Consumption | 12-15Liter/h |
Hot Air Volume | 15 000cbm/h |
Reference Heating Area | 1000-1600sq.m |
Classification (Small/ medium/ large) | Large |
