Формовочная и штамповочная машина на заказ
US $20389-$20889
Высокая точность двойной с сервоприводом ЧПУ Профиль Бендер GW-13T-3S
- Категория товара: Профилегибочный станок >>>
- Поставщик (Оптовый магазин): Metform,(Shanghai),Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

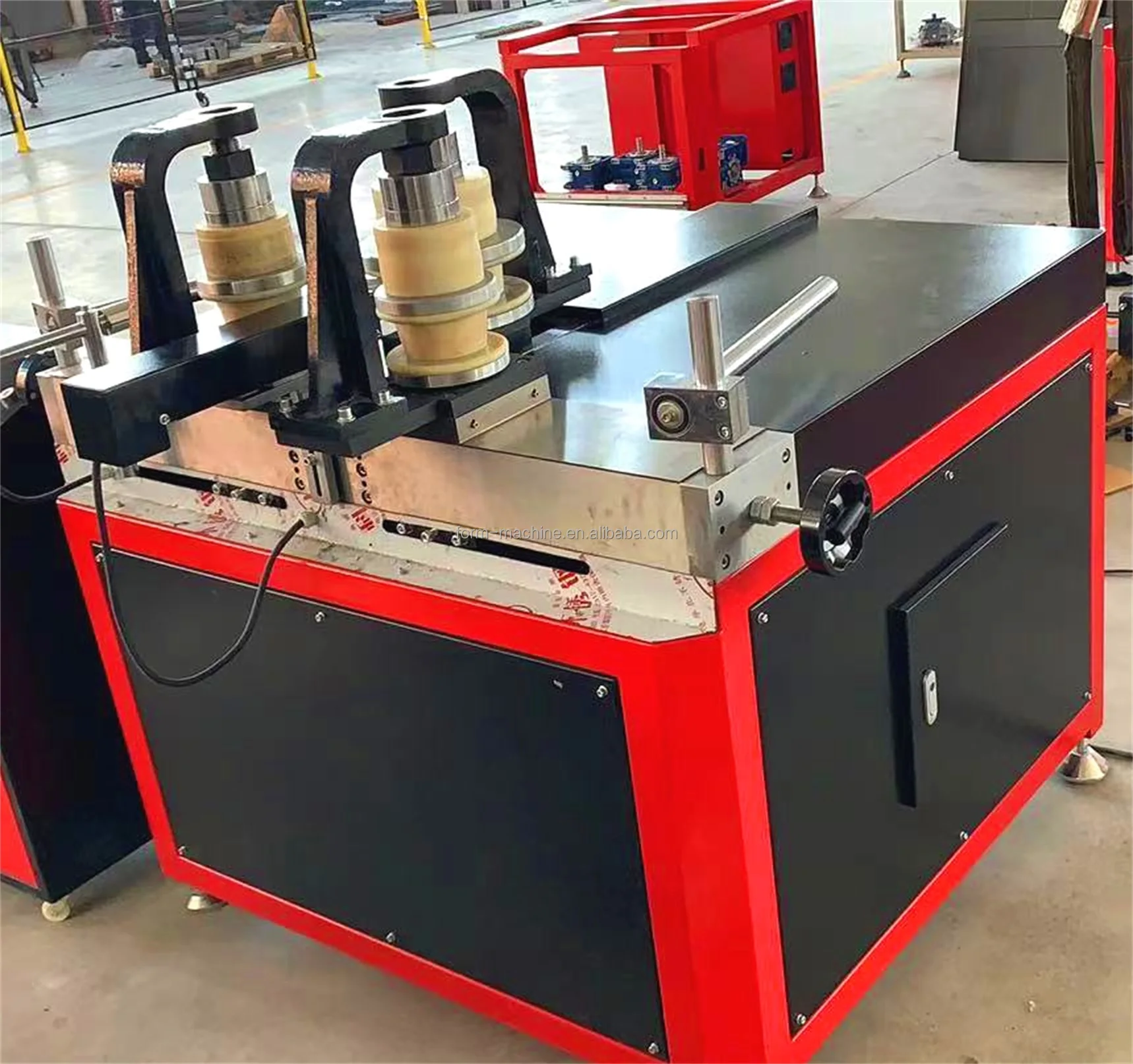

High-accuracy Dual Servo Driven CNC Profile Bender GW-13T-3S
Dual Servo Driven CNC Profile Bender GW-13T-3S is designed for bending various non-standard profile bar in arc, and it is a hing accuracy automatic universal profile bender with CNC control system.
Technical Data
Motor Power: 4.0KW (small power, large torque)
Voltage: 380V 50HZ, customization available
Roller speed: 0-15 r/min
Maximum diameter of the roller mold: 240mm
Roller Shaft diameter: 50mm (special material, heat treatment processing, never broken)
Center distance of fixed shaft: 280～600mm adjustable
Y-axis hydraulic cylinder thrust: 13 tons (maximum 20 tons)
Repeated positioning accuracy of Y-axis hydraulic cylinder: ≤0.01mm
Maximum torque of X axis: 2500 Nm
Minimum processing radius: 100mm
Motor Power: 4.0KW (small power, large torque)
Voltage: 380V 50HZ, customization available
Roller speed: 0-15 r/min
Maximum diameter of the roller mold: 240mm
Roller Shaft diameter: 50mm (special material, heat treatment processing, never broken)
Center distance of fixed shaft: 280～600mm adjustable
Y-axis hydraulic cylinder thrust: 13 tons (maximum 20 tons)
Repeated positioning accuracy of Y-axis hydraulic cylinder: ≤0.01mm
Maximum torque of X axis: 2500 Nm
Minimum processing radius: 100mm
Why Choose Us
Company Profile
Customer Photos
Product packaging
FAQ
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
