Product Overview

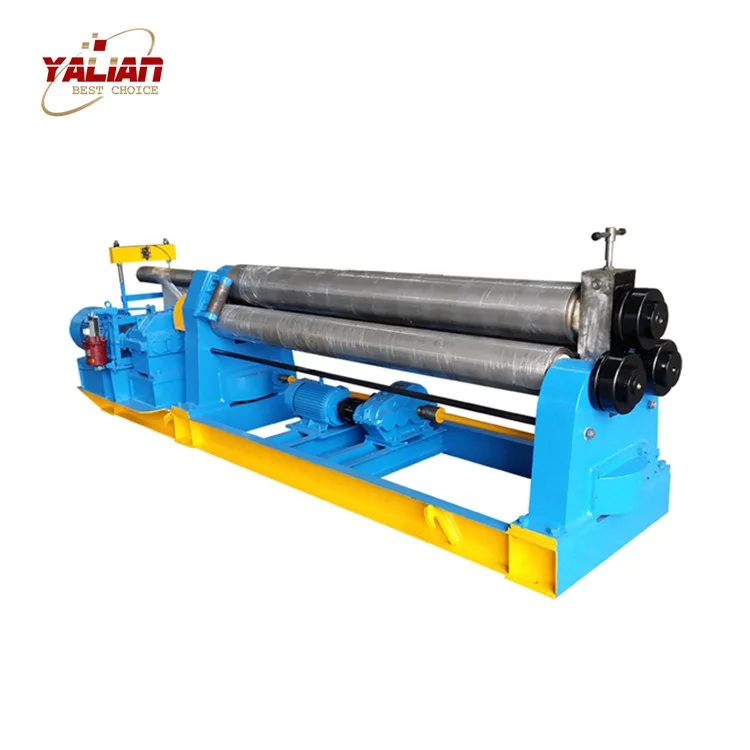

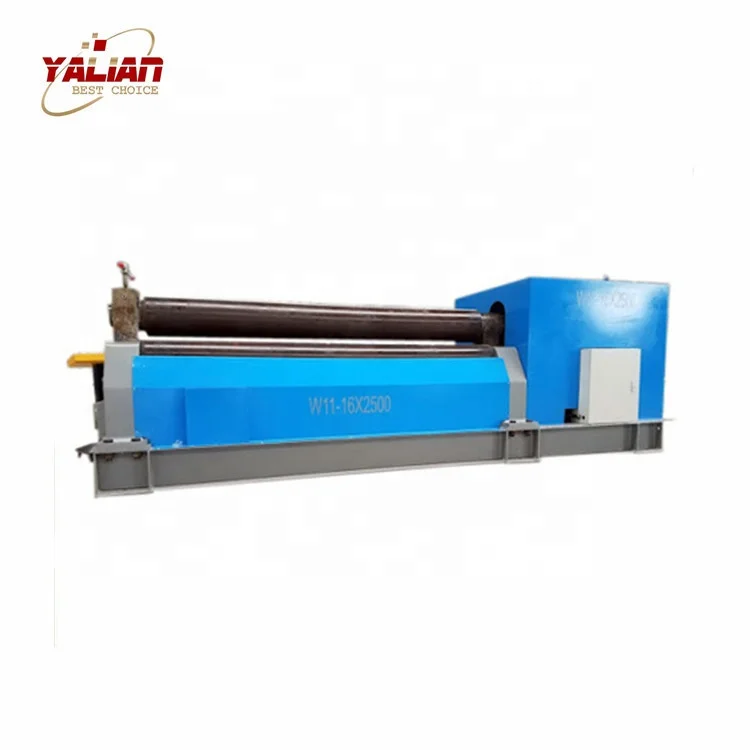

W11 MECHANICAL 3-ROLLER PLATE ROLLING MACHINE
The machine is in the form of three-roll symmetrical, the upper roller in the center of the two lower roller symmetrical position for vertical lift movement, through the screw lead the worm gear drive, the two under the roll for the rotation movement, through the reducer output gear and the next The groove is engaged to provide torque for the rolled plate. The drawback of this machine is the need to use the other equipment to achieve the top pre-bending.
FEATURES AT A GLANCE
▪The structure style of this machine is 3 roller symmetrical.And it's mechanical type.
▪They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate.
▪It's compact easy operate and maintain.
▪Extended shaft for profile bending.
▪The price of the machine has a big advantage.
▪They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate.
▪It's compact easy operate and maintain.
▪Extended shaft for profile bending.
▪The price of the machine has a big advantage.
PRODUCT SPECIFICATIONS
Model | Max. bending thickness(mm) | Max.bending width(mm) | Top roller diameter(mm) | Bottom rolling diameter(mm) | Central distance(mm) | Bottom roller diameter(mm) | Side Roller diameter (mm) | Main Motor Power (kw) |
W11-4x1500 | 4 | 1500 | 150 | 140 | 200 | 140 | 120 | 3 |
W11-6x2000 | 6 | 2000 | 170 | 160 | 220 | 170 | 150 | 4 |
W11-6x2500 | 6 | 2500 | 180 | 170 | 250 | 190 | 170 | 5.5 |
W11-8x1500 | 8 | 1500 | 170 | 160 | 220 | 210 | 190 | 7.5 |
W11-8x2000 | 8 | 2000 | 180 | 170 | 250 | 250 | 220 | 11 |
W11-8x2500 | 8 | 2500 | 240 | 180 | 280 | 270 | 220 | 11 |
W11-12x2000 | 12 | 2000 | 240 | 180 | 280 | 300 | 240 | 11 |
W11-12x2500 | 12 | 2500 | 260 | 220 | 320 | 330 | 250 | 15 |
W11-12x3000 | 12 | 3000 | 280 | 240 | 360 | 250 | 210 | 11 |
W11-16x2000 | 16 | 2000 | 260 | 220 | 320 | 270 | 220 | 11 |
W11-16x3000 | 16 | 3000 | 340 | 270 | 440 | 300 | 240 | 11 |
W11-20x2500 | 20 | 2500 | 340 | 270 | 440 | 330 | 250 | 15 |
W11-25x2000 | 25 | 2000 | 340 | 270 | 440 | 360 | 300 | 18.5 |
W11-25x2500 | 25 | 2500 | 370 | 280 | 480 | 390 | 330 | 22 |
W11-30x2500 | 30 | 2500 | 420 | 360 | 550 | 420 | 360 | 30 |
W11-30x3000 | 30 | 3000 | 450 | 390 | 600 | 330 | 250 | 15 |
W11-40x2500 | 40 | 2500 | 500 | 400 | 600 | 360 | 300 | 18.5 |
W12-25*3000 | 25 | 20 | 3100 | 245 | 430 | 390 | 330 | 22 |
W12-30*3000 | 30 | 25 | 3100 | 245 | 460 | 420 | 360 | 30 |
W12-35*3000 | 35 | 28 | 3100 | 245 | 510 | 460 | 390 | 37 |
W12-40*3000 | 40 | 32 | 3100 | 245 | 550 | 510 | 420 | 45 |
W12-50*3000 | 50 | 40 | 3100 | 245 | 610 | 560 | 480 | 55 |
W12-60*3000 | 60 | 48 | 3100 | 245 | 670 | 620 | 520 | 75 |
PRODUCT CONFIGURATION
Electric Box
Main Motor
The roller with cone device
