Brightsail Rapid Mixing Granulator High Speed Mixing Granulator
Product Description
Application
The high-efficiency wet granulator is a special equipment for wet mixing and granulation of powder, starch, and adhesive in the production of tablets in the pharmaceutical industry. It is also suitable for mixing and granulating powdered materials in food and chemical industries.
Principle

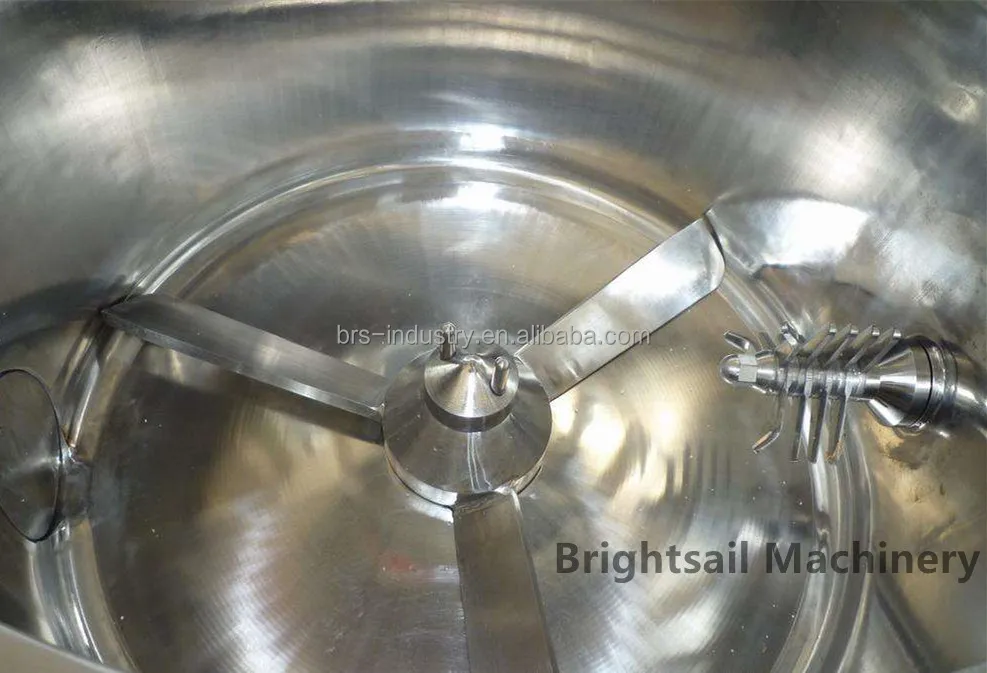

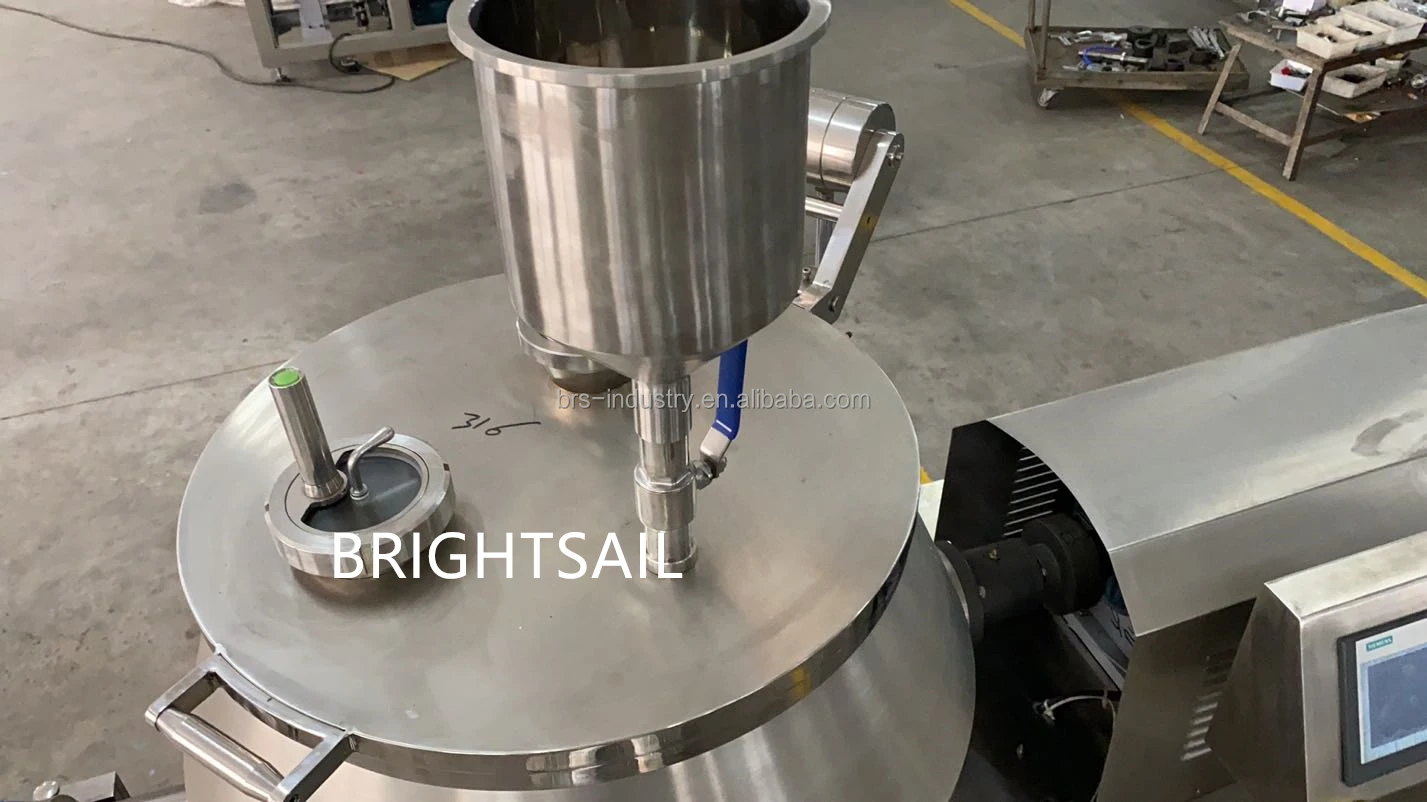

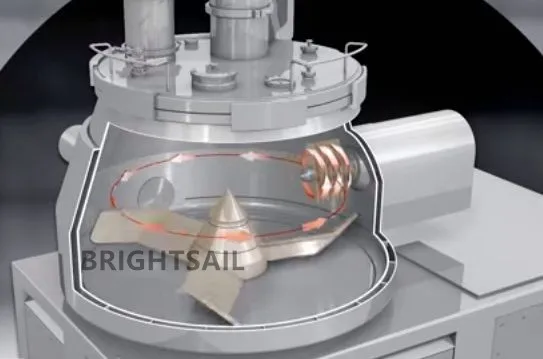

The powder is stirred by a stirring blade at a set speed, and then the binder is added by the feeding device to make it and the material tumble into a wet and shredded soft material in a short time, and then cut by a high-speed rotating cutting knife to make it Meet the requirements of the particles. Finally, open the discharge port and let it automatically discharge the jacketed pot.
Work process
Technical data
Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 | |||||
Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 | |||||
Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 | |||||
Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 | |||||
Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 | |||||
Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 | |||||
Cutting knife speed (r.p.m) | 50-3000 | ||||||||||
Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 | |||||
Note:
1. The data is subject to change without notice
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal
3. Calculation formula of feeding amount: m=pv
m: feeding amount p: powder specific gravity can be 0.5 v: working volume
4. The above quotation is the standard sus304 price
1. The data is subject to change without notice
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal
3. Calculation formula of feeding amount: m=pv
m: feeding amount p: powder specific gravity can be 0.5 v: working volume
4. The above quotation is the standard sus304 price

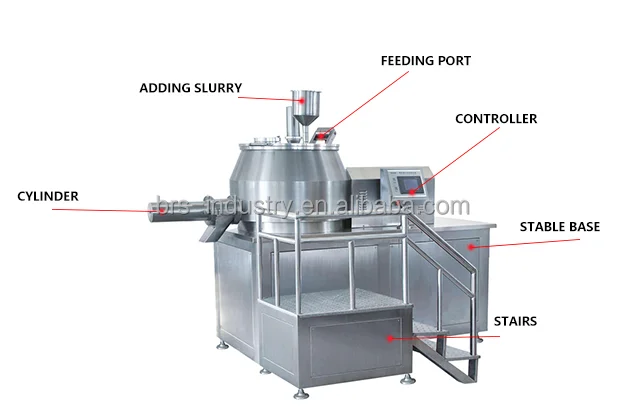

Main Features
1: The main barrel adopts a cylindrical and conical tangent structure, which is helpful for the tumbling of the material, and thegeometric angle of the stirring blade and the pelletizing knife is designed reasonably to ensure the best effect of mixing andgranulating.
2: PLC control man-machine interface, automatic adjustment control according to program, high degree of automation, easy operation
3: Both the stirring blade and the cutting knife adopt frequency conversion speed regulation, and the speed can be adjusted
arbitrarily, which can meet the granulation requirements of different varieties.
4: The whole process completes dry mixing and wet mixing granulation in the same closed container. Compared with the traditional process, the binder is reduced by 25%, and the drying time is shortened.

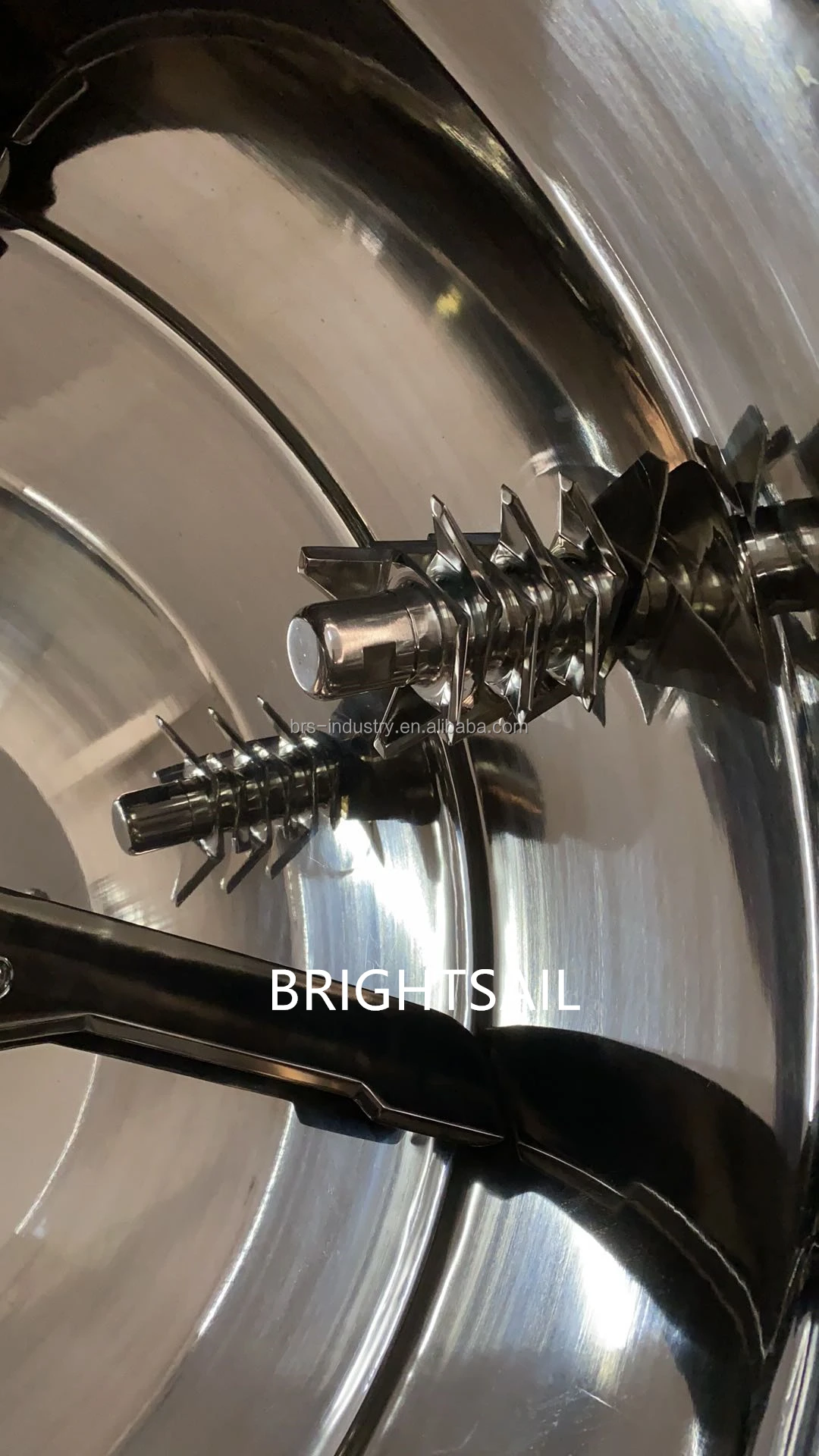

5: V-shaped pelletizing knife, there is no dead angle between the knife and the knife, which can improve the granulation rate and the rate of pellets.
2: PLC control man-machine interface, automatic adjustment control according to program, high degree of automation, easy operation
3: Both the stirring blade and the cutting knife adopt frequency conversion speed regulation, and the speed can be adjusted
arbitrarily, which can meet the granulation requirements of different varieties.
4: The whole process completes dry mixing and wet mixing granulation in the same closed container. Compared with the traditional process, the binder is reduced by 25%, and the drying time is shortened.
5: V-shaped pelletizing knife, there is no dead angle between the knife and the knife, which can improve the granulation rate and the rate of pellets.
Marketing Campaign
Packing & Delivery

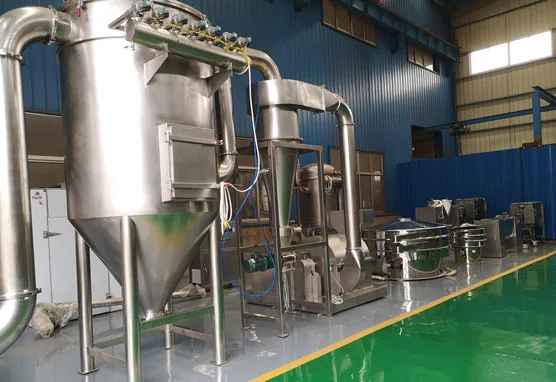

Company Profile

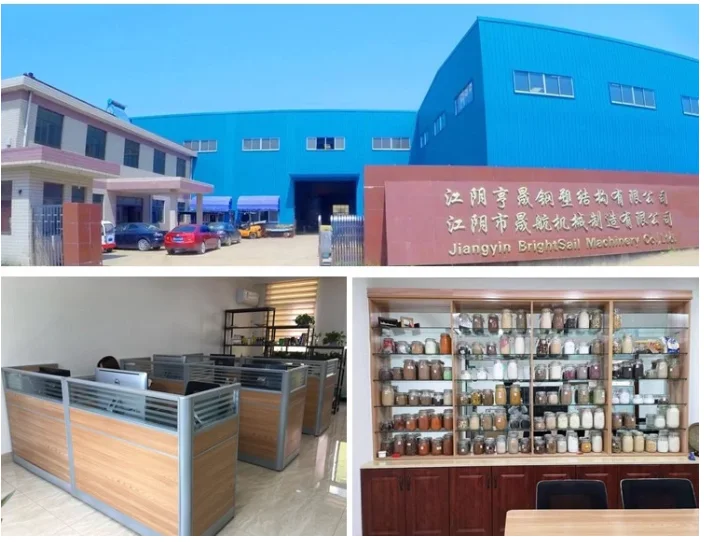

Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002. We provide professional powder processing overall solution,chemical powder,welding service and welding machines...
We have exported to more than 40 countries around the world.
We have exported to more than 40 countries around the world.
