Китай лидер продаж JC60 многофункциональный гидравлический мини-погрузчик с бортовым поворотом по хорошей
- Категория товара: Loaders >>>
- Поставщик (Оптовый магазин): China,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
china best JC60 multipurpose hydraulic skid steer loader price
Product Description
JC series skid steer loader :
Strong and Efficient Power Transmission System The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.

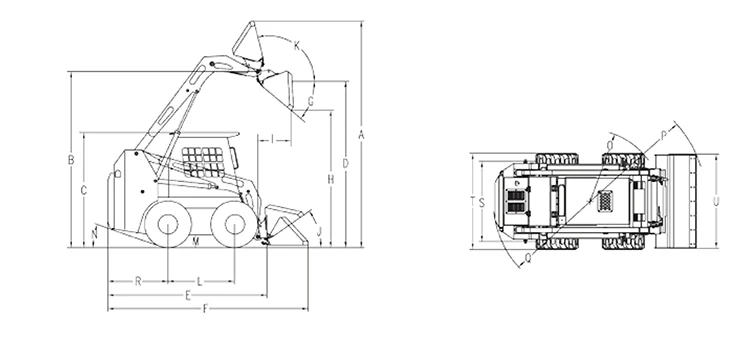

Model | JC45 | JC60 | |
A | Overall operating height (mm) | 3980 | 4000 |
B | Height to bucket hinge pin (mm) | 3080 | 3100 |
C | height to top of cab (mm) | 2140 | 2160 |
D | Height to bottom of level bucket(mm) | 2913 | 2933 |
E | Overall length without bucket(mm) | 2640 | 2750 |
F | Overall length with bucket(mm) | 3420 | 3490 |
G | Dumping angle at maximum height(° ) | 40 | 40 |
H | Dumping height(mm) | 2380 | 2400 |
I | Dumping reach(mm) | 700 | 750 |
J | Rollback o bucket on ground(° ) | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 |
L | Wheelbase(mm) | 991 | 991 |
M | Ground clearance(mm) | 185 | 205 |
N | Angleof departure(° ) | 20 | 20 |
O | Front turning radins without bucket(mm) | 1168 | 1198 |
P | Front tuning radius(mm) | 1958 | 1958 |
Q | Rear tuning radius(mm) | 1630 | 1728 |
R | Rear axle to bumper (mm) | 1108 | 1208 |
S | Tread width,enterline to centerline (mm) | 1450 | 1500 |
T | Width (mm) | 1720 | 1880 |
U | Bucket width (mm) | 1740 | 1880 |
