Машина для волоконной лазерной резки 1000 Вт с воздушным кондиционированием
- Категория товара: Industry Laser Equipment >>>
- Поставщик (Оптовый магазин): Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
BS3015D :1000W 2000W 3000W 4000W 6000W
1.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

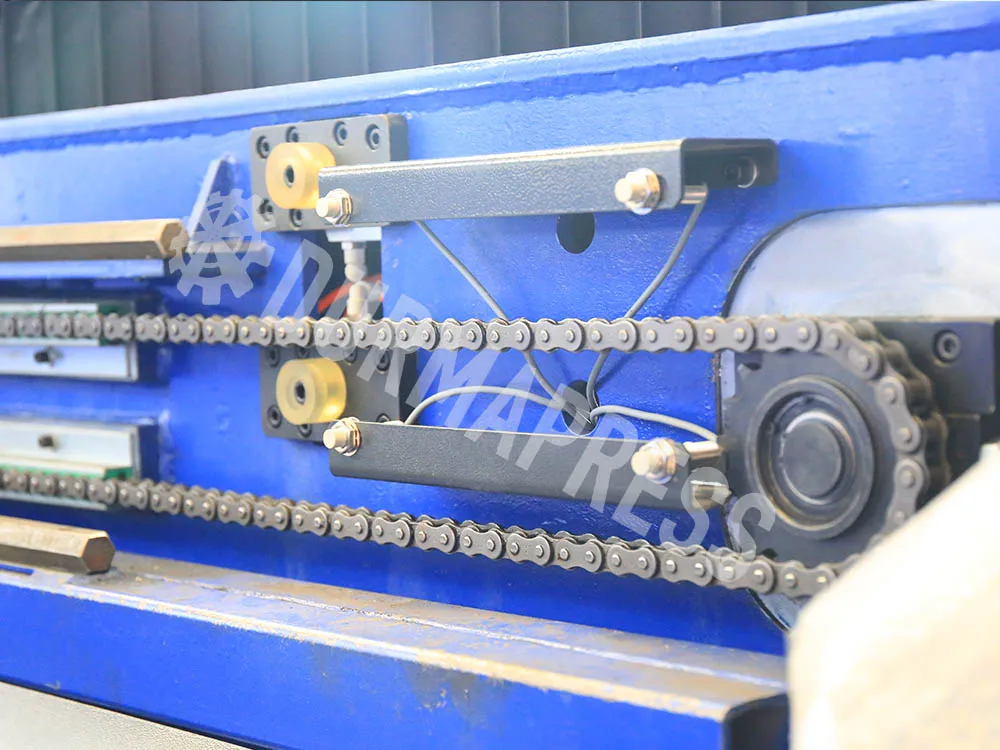

2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
1.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
3015 series 1500X3000 | ||||||||
Max.cutting speed | 140m/min | |||||||
Max.acceleration | 1.5G | |||||||
X/Y Positioning Accuracy | +-0.02mm/m | |||||||
X/Y Repeated Positioning Accuracy | +-0.02mm | |||||||
Operating Voltage | 380v/50hz | |||||||
Laser power | 1000W | |||||||
Number of Phases | 3 | |||||||
Maximum load of workbench | 1000KG | |||||||
Machining area (Length*width) | 3000*1500mm | |||||||
Dimension (Length*width*height) | 4500*2350*2000 | |||||||
Detailed Images

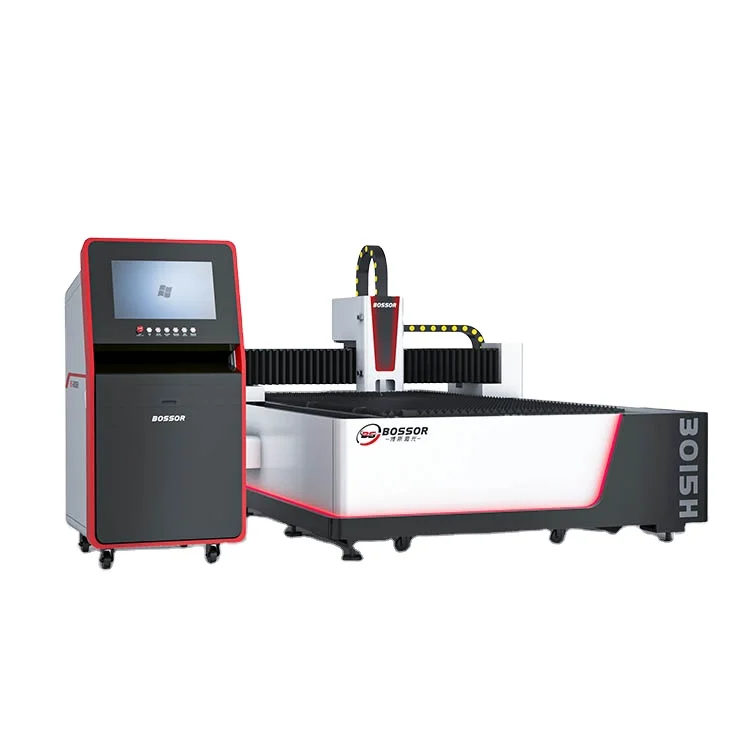

CNC Fiber Laser Cutting Machine
BS3015D is a perfect standard plane fiber laser cutting machine, which is popular in the industry. It has the highest speed among
those with the same level and may cut 400 small circles per minute. With the maximum speed of 140m and the maximum acceleration of
1.2G, it has the highest accuracy among those with the same level and may cut the bicycle with the size of 1/5 of coin.
those with the same level and may cut 400 small circles per minute. With the maximum speed of 140m and the maximum acceleration of
1.2G, it has the highest accuracy among those with the same level and may cut the bicycle with the size of 1/5 of coin.
Beam
The heavy-duty steel mold pressure casting is used.
1. The mold cost is high and its service life is long.
2. The liquid aluminum has good mobility, uniform density and high strength.
3. Such casting defect as sand hole is eliminated.
4. The surface roughness is good and it is unnecessary to machine the non-mounting surface.

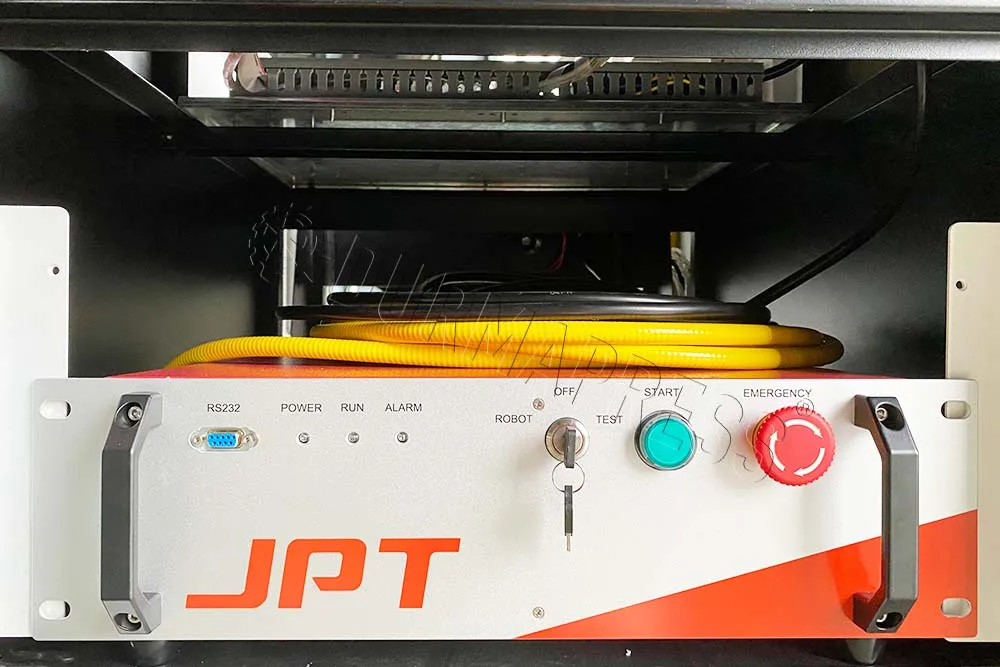

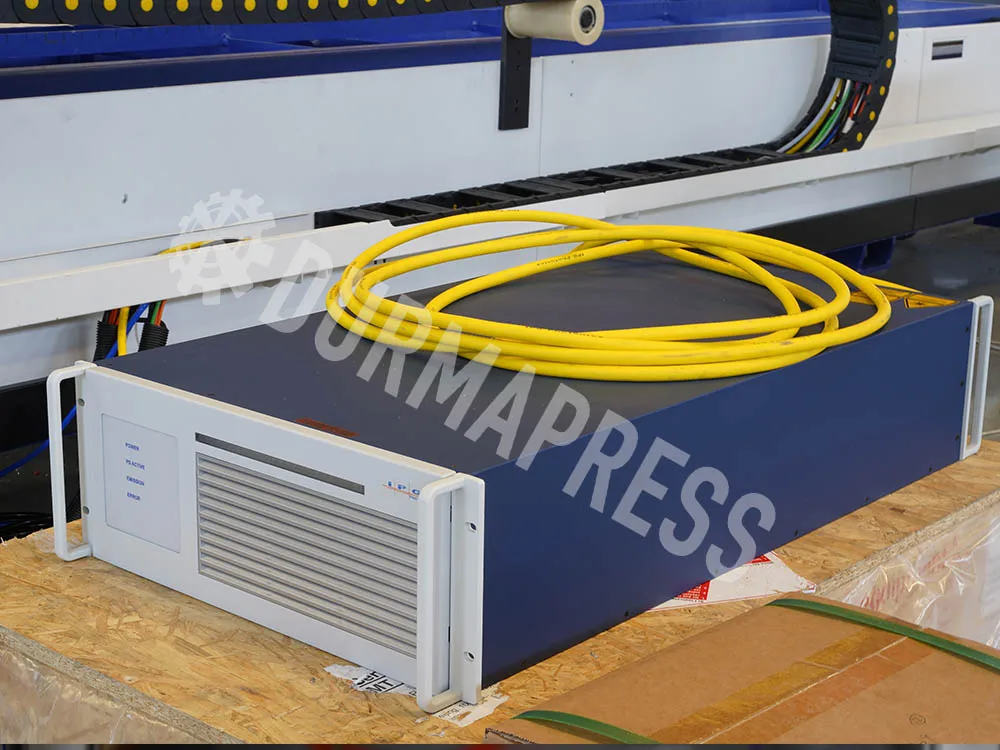

Laser Source
JPT single mode fiber laser (500W-2000W) is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses water-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, etc.
Water Chiller
S&A Industrial water chiller, which is made cooling equipment forlaser cutting machine. Dual temperature control mode,suitable for different occasions, with a variety of Settings and fault display functions, equipped with ion adsorption filter and detection,compressor delay protection, compressor overcurrent protection, water flow alarm, ultra-high/low temperature alarm.

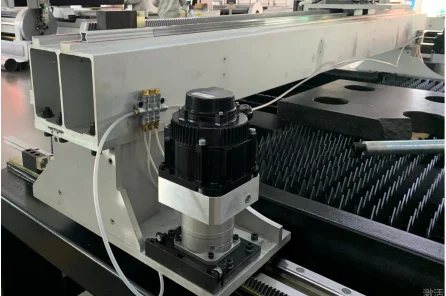

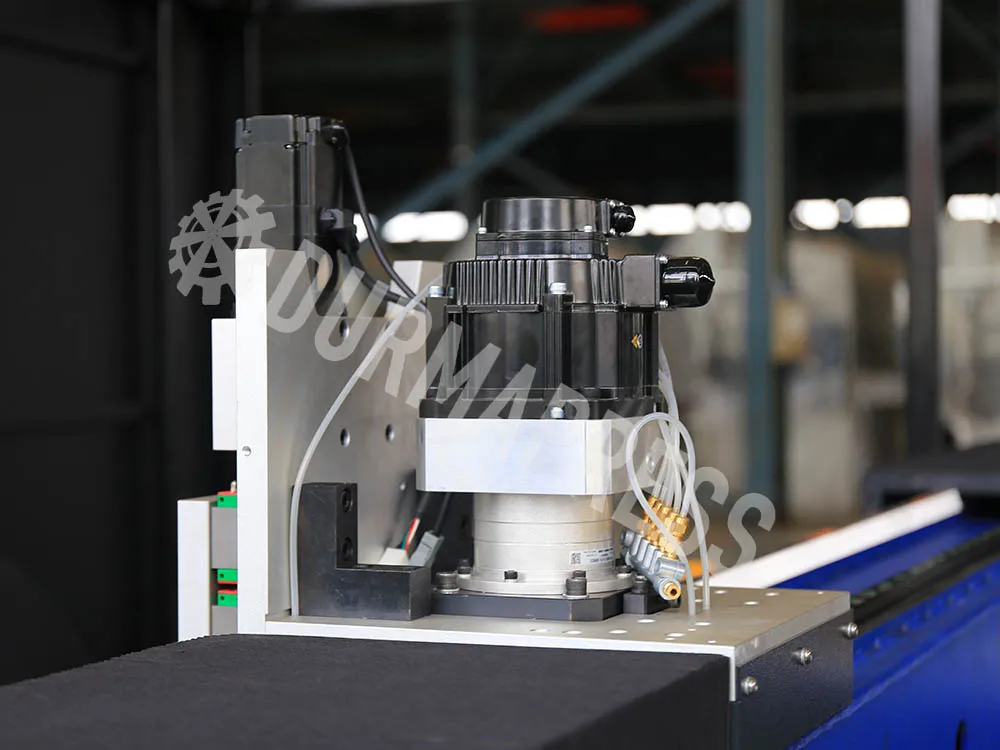

Cutting Head
German technology, which is reliable and stable.
Completely sealed internal structure of laser head can avoid optical part being polluted by dust.
Two points centering adjustment of laser head, auto-focusing function made of imported motor driving, efficiency is greatly enhanced in piercing.
Automatic Lubrication System
Schnelder Electrical
YYC Gear

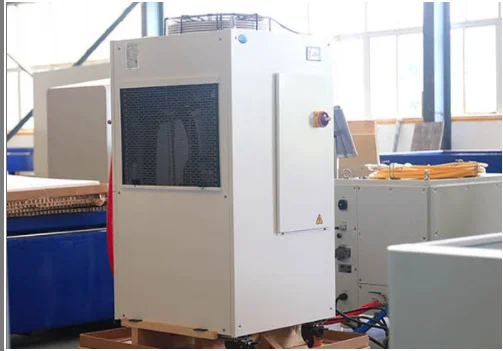

Air Conditional

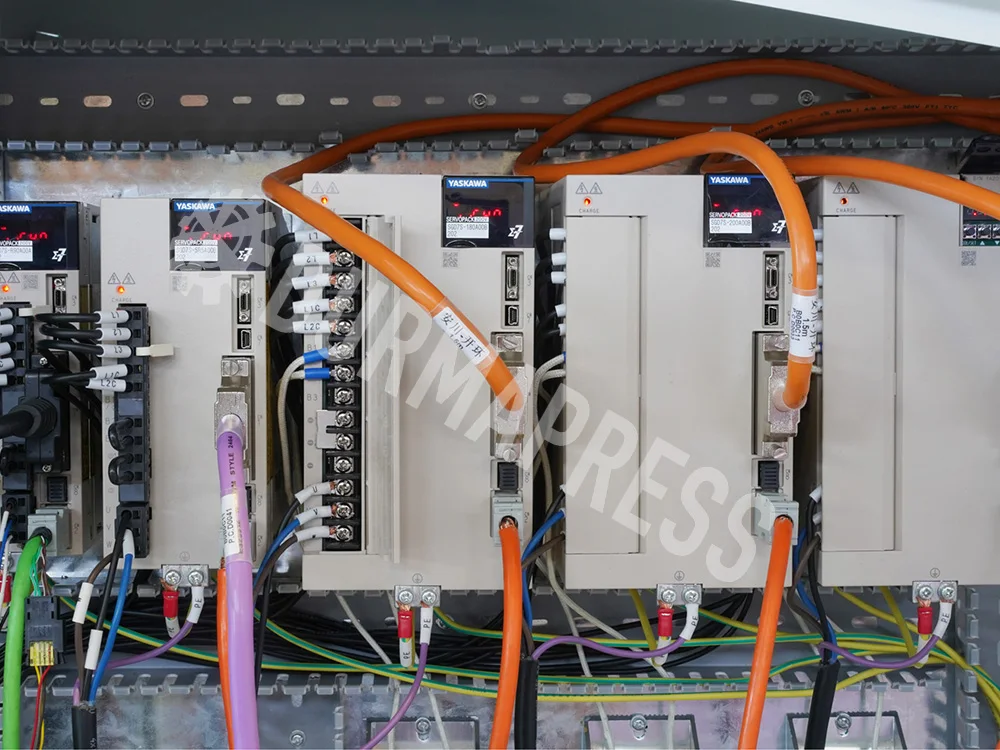

Yaskawa
Water Chiller
Topsinn Filter System
Wireless Controller
Certifications

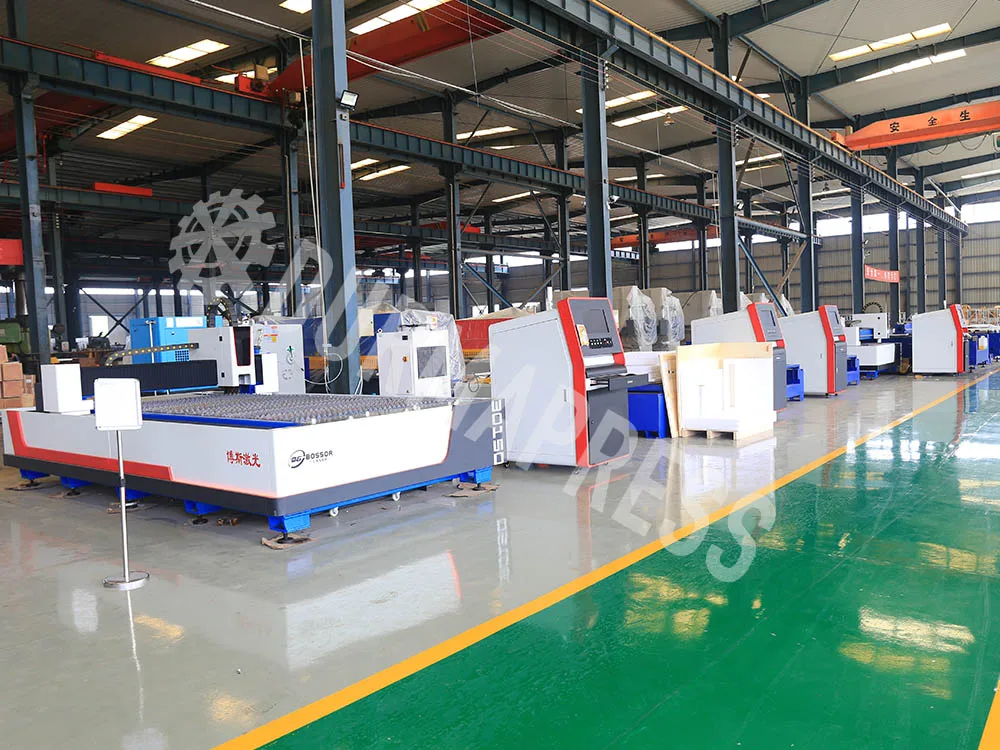

Our company
Our service
Packing & Delivery
FAQ
1.How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 3~7 days. Customade machine need 12~14 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
8.How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give you the link to orde.
