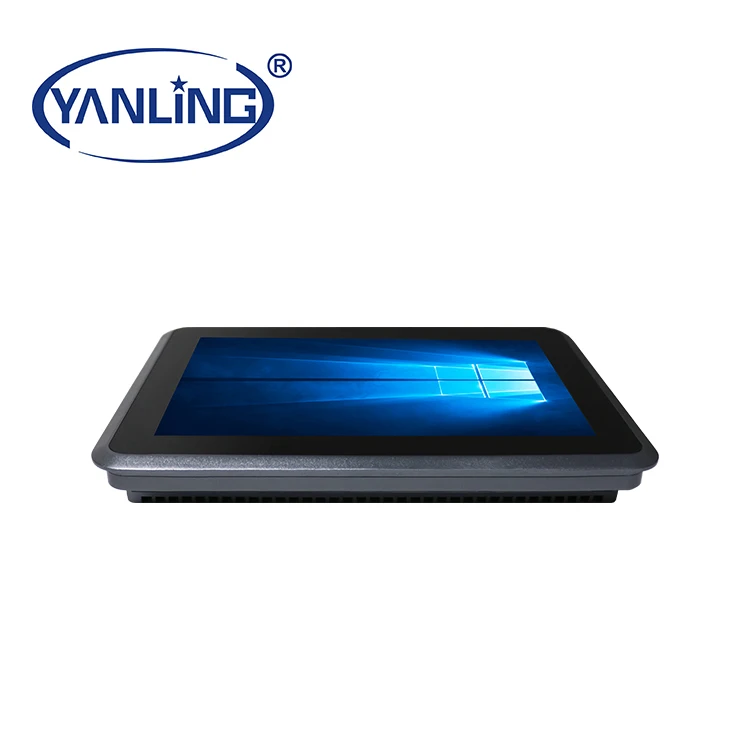

Класс IP65, водонепроницаемая безвентиляторная промышленная панель, ПК i5, четырехъядерный процессор, многосенсорный емкостный сенсорный экран, промышленный компьютер
- Категория товара: >>>
- Поставщик (Оптовый магазин): Yanling,Industrial,Control,Computer,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Notice: This link's price is barebone system price, doesn't include ram and hard disk, if you need the ram and hard disk, please contact us, we will give you the best price
IP65 grade waterproof fanless industrial panel pc i5 i7 quad core CPU multi-touch capacitive touch screen industrial computer
Product Description
| 8-inch Rugged Tablet PC configuration list | |
| Notice: black font is standard configuration, red font is optional | |

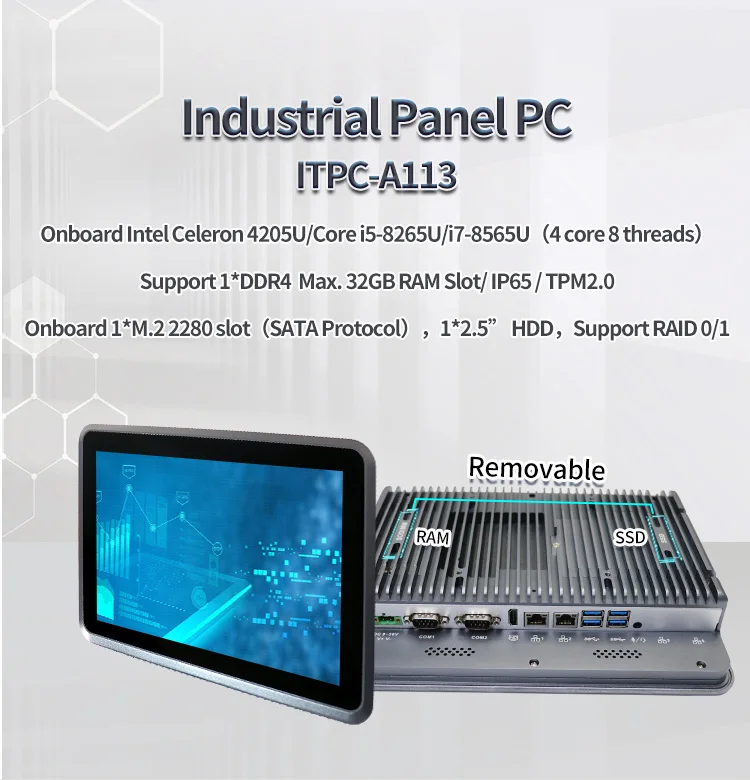

Model | ITPC-A113 |
| Color | Titanium gray (Color can be customized) |
| Material | Aluminum alloy chassis |
| Processor | Intel Celeron 4205U(Dual core dual threads,1.8Ghz,2MB Cache) |
| RAM | Support 1*DDR4 Max. Support 32GB Memory Slot, |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel UHD Graphics |
| Display Port | 1*HDMI,1*LVDS(Support synchronous and asynchronous dual display) |
| Storage | 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD,Support RAID 0/1 |
| Expansion Slot | 1*Mini PCIE slot(Support WIFI/BT/3G/4G Optional,embedded SIM slot) |
| Expansion Function | GPIO(8 Input 8 Output),2*LAN,4*COM,2*USB2.0 (Standard version doesn’t include these ports) |

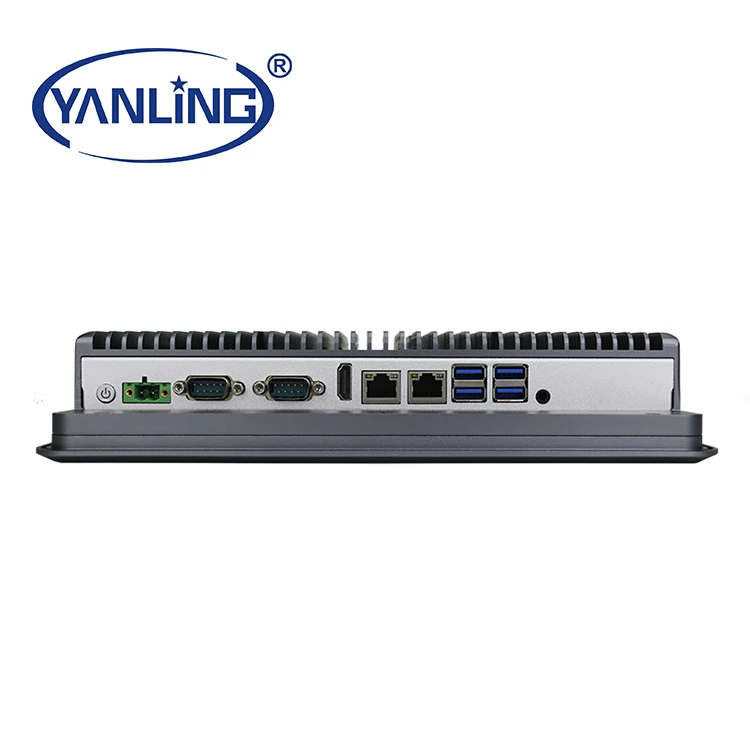

| I/O | 1*HDMI,2*COM(COM1,COM2 RS232/RS422/RS485 Optional,6*COM Optional),1*Power Switch |
| 1*2Pin power supply phoenix connector,1*Audio (Support Mic and Speaker at the same time),4*USB3.0,2*Intel 1000M LAN(4*LAN Optional)3 *4PIN 1.25 pitch U port, 1*4PIN 1.25 pitch 5V power supply TTL interface, 1 *power supply 3.3 communication level TTL interface, 1 *SPI, 1* I2C, 1* GPIO, 1* RJ45, 1* RS232 | |
| Other Function | TPM2.0 security encryption,Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level)(Standard version doesn’t set these function) |

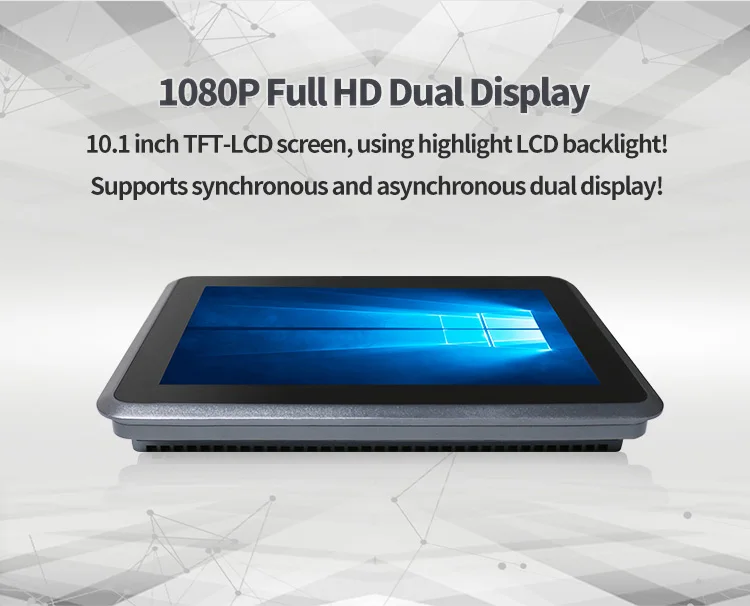

| LCD | Size:10.1 inch TFT-LCD |
| Brightness:350 cd/m2; | |
| Ratio:16:9; | |
| Resolution:1280 * 800; | |

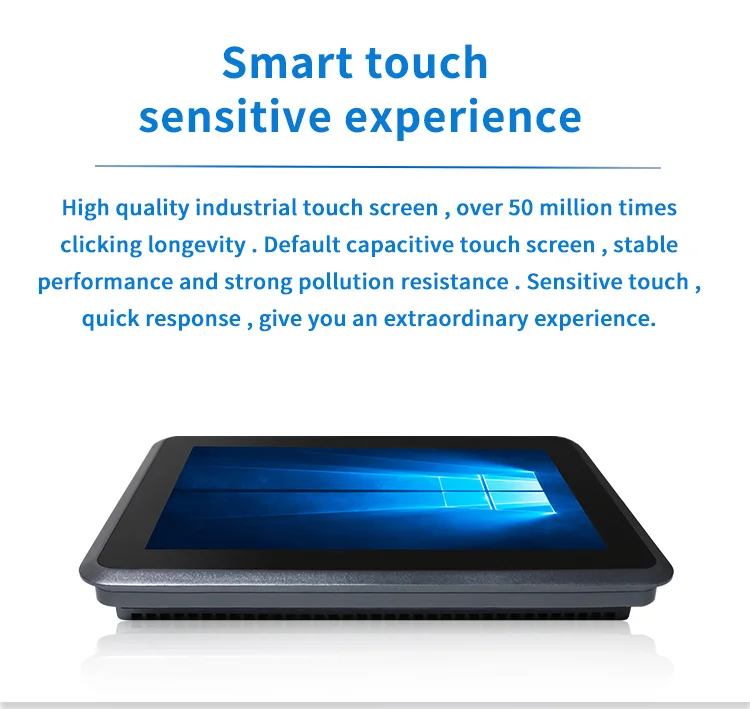

| Touch Screen | Industrial grade multi-touch capacitive touch screen,Life Time: more than 50000 Thousand Times; |
| Speaker | Two 8-ohm 2-watt speaker |
| Input Voltage | DC 9V ~ 36V wide voltage Input,support positive pole and negative electrode connect reversely protection; |
| Work Temp | 0℃ ~ +50℃(Commercial),-20℃ ~ +60℃(Industrial SSD),Surface air flow |
| Work Humidity | 5% ~ 95% non-condensing |

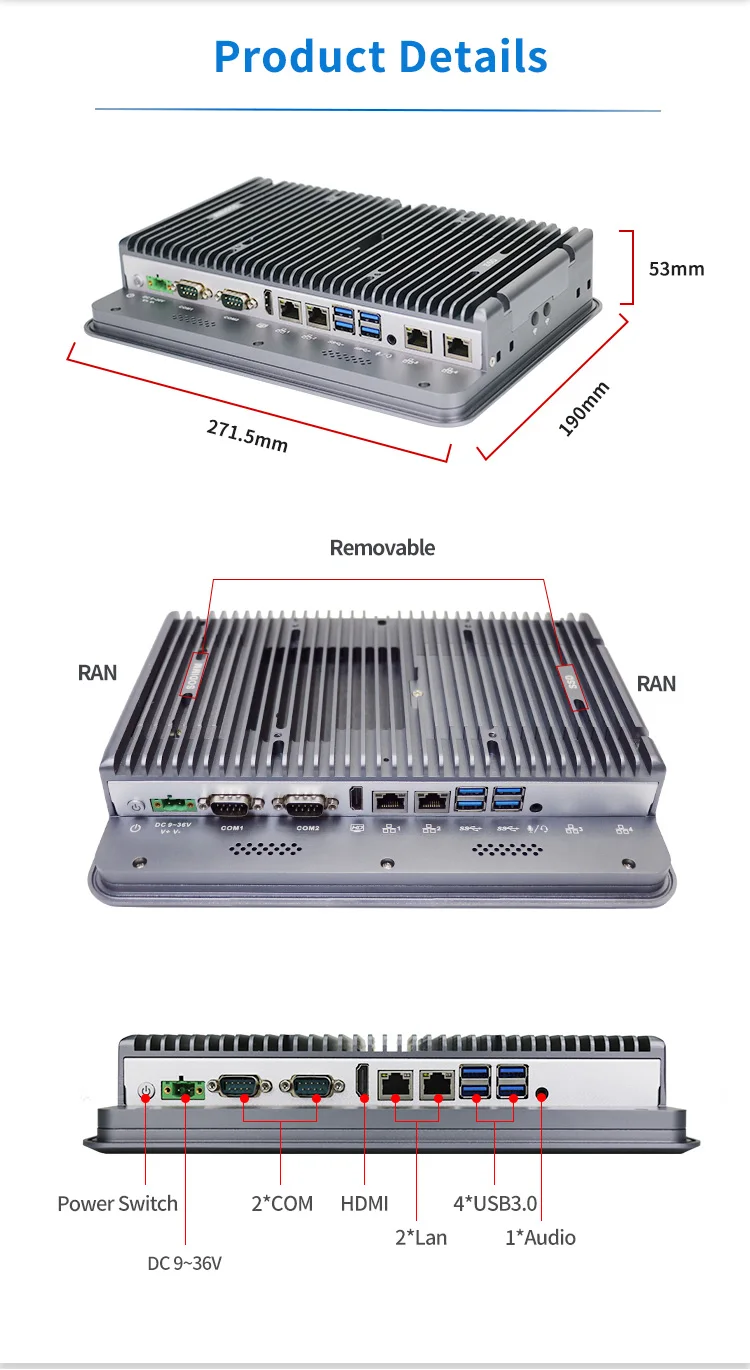

| Dimension | 271.5 * 190 * 53mm |
| Embedded Installation | 262 * 180mm |
| Weight | 2.0kg |

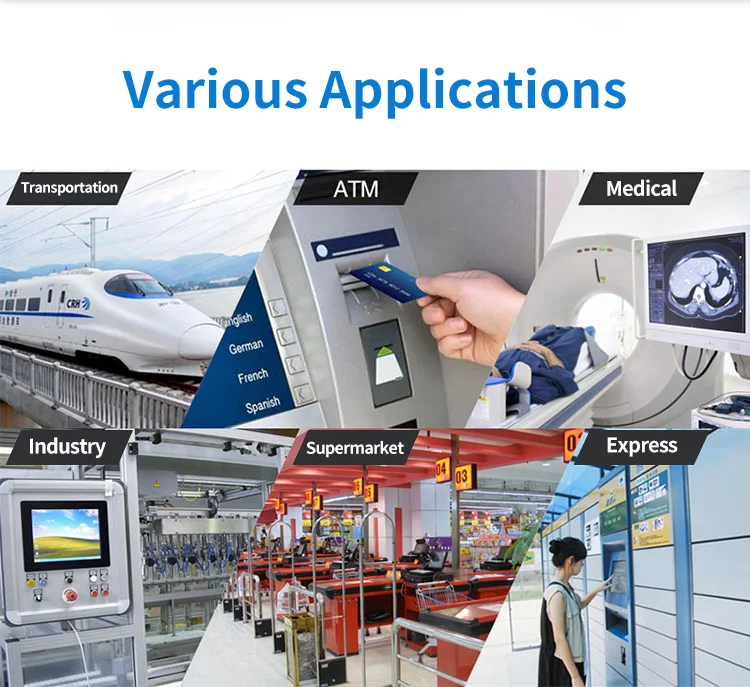

| Application | Industrial Automation,Medical,Logistics Transportation, Warehousing, Machine Vision, etc. |
Product Overviews
Packaging & Shipping
Company Information
Yanling Industrial Computer Technology (ShenZhen) CO.,Ltd.
established in 2000, is an officially registered and approved,large-scale resource-based enterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover Industrial Touch Panel pc, All in One PC, Rugged Tablet, Portable PDA.
Yanling Industrial Computer Technology (ShenZhen) CO.,Ltd.
controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
Yanling Industrial Computer Technology (ShenZhen) CO.,Ltd.
has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement.
1:provide your specific requirement.
2:our design engineer draw the design draft.
3:you confirm the design draft.
3:you confirm the design draft.
4:we start produce it.
Question: How much do I need to pay for your OEM servise?
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
