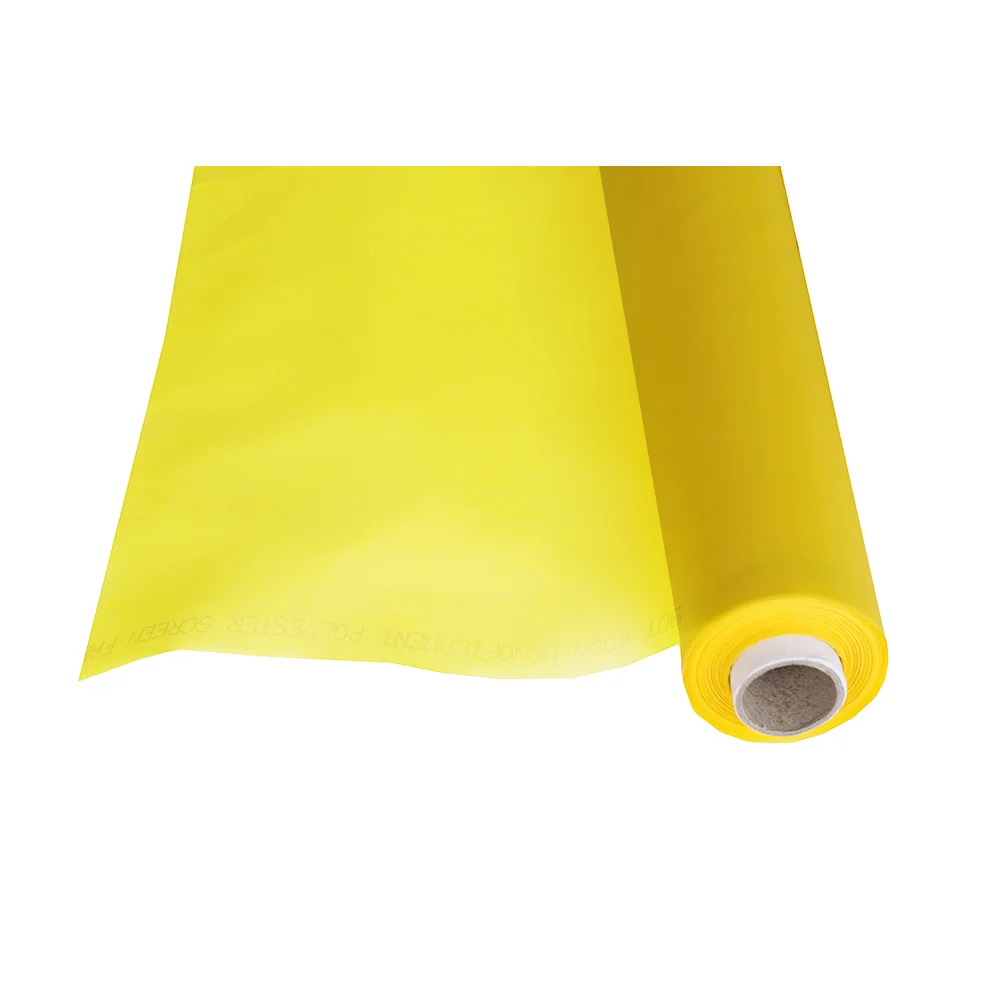

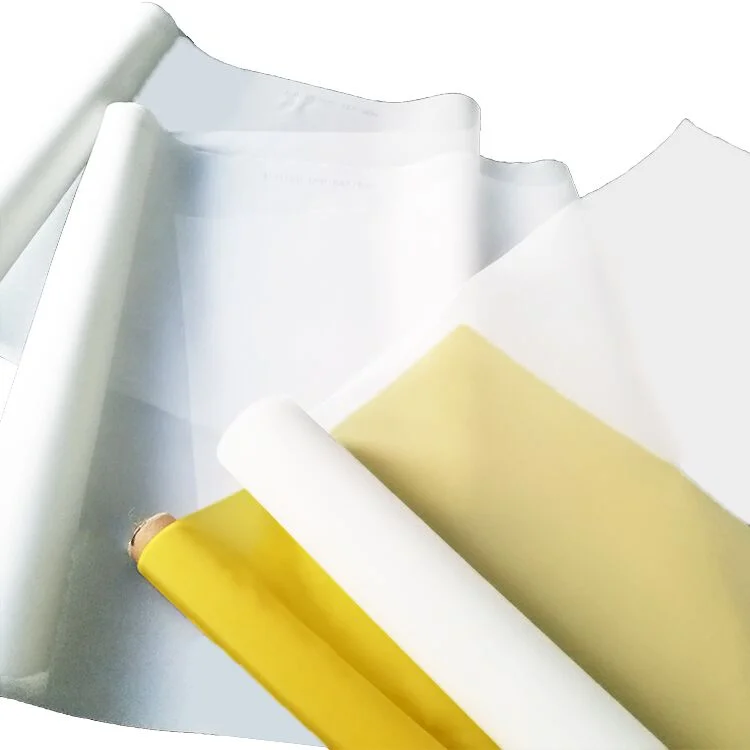

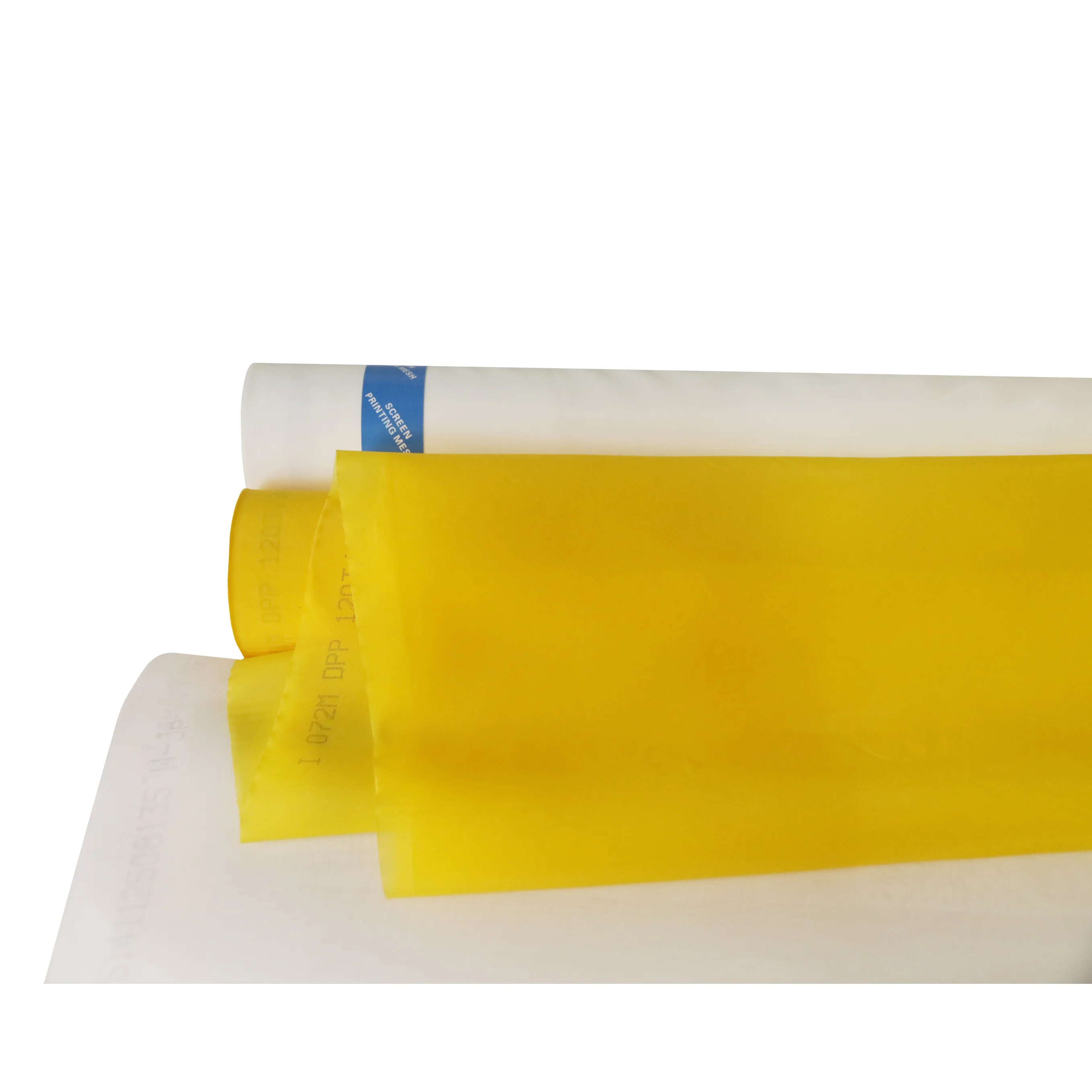

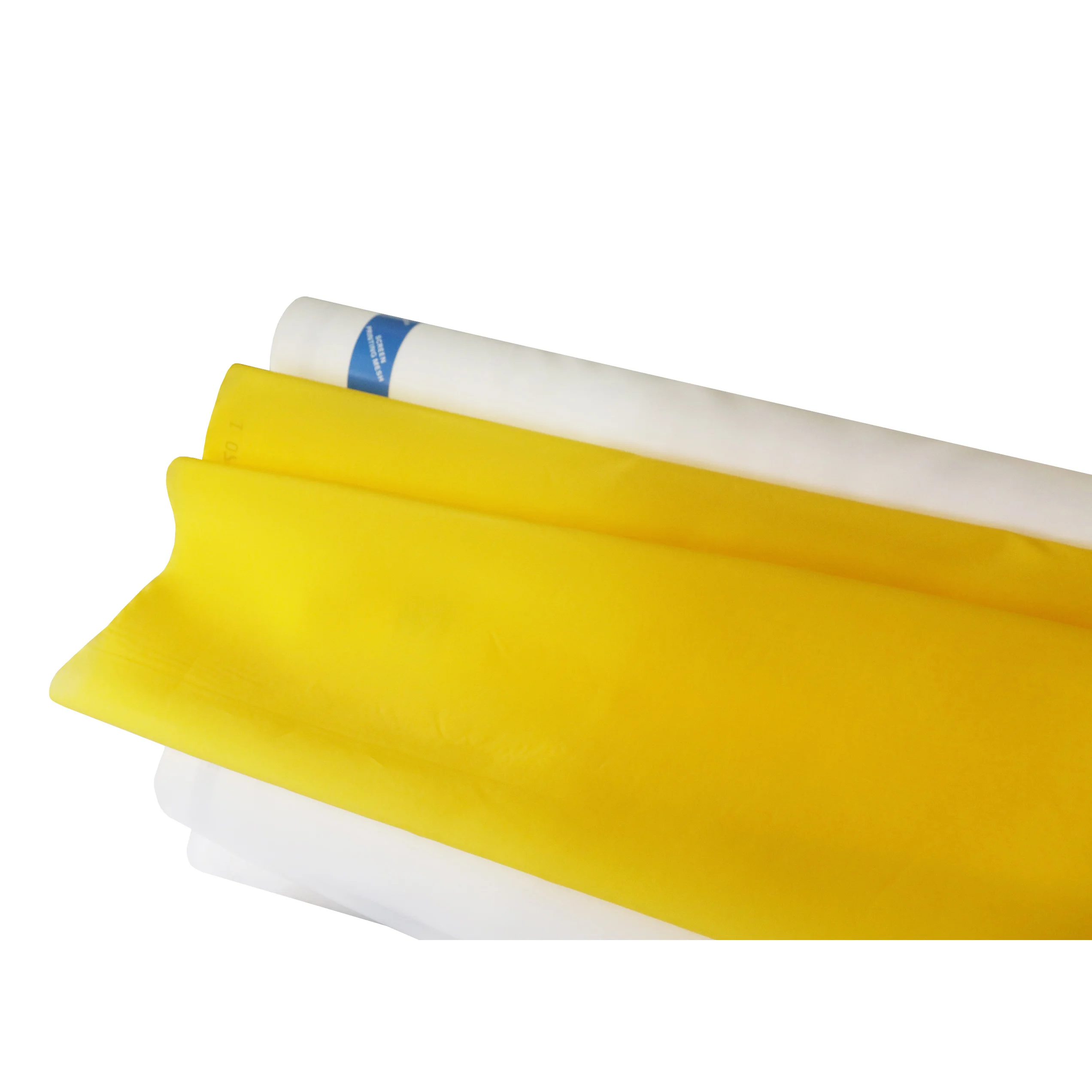

20 сетчатая 420 Сетчатая футболка из полиэстера трафаретная печать сетчатая ткань фильтр сетка шелковая белая желтая черная трафаретная печать сетка
- Категория товара: Printing Mesh >>>
- Поставщик (Оптовый магазин): Hebei,Zhaotong,Wire,Mesh,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
polyester printing screen
Features:
Low-Elongation Monofilament Polyester Screen filter mesh is what we are producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester

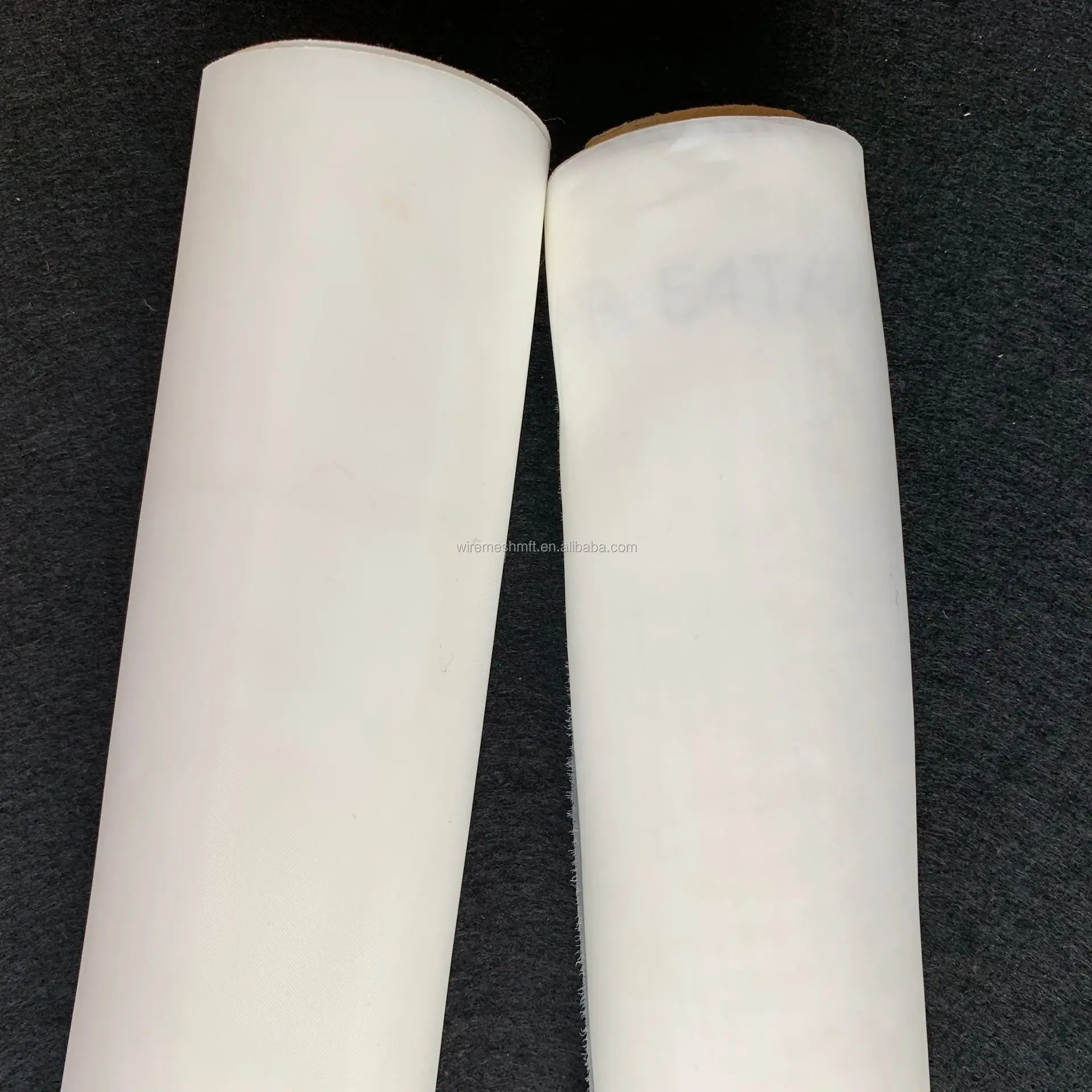

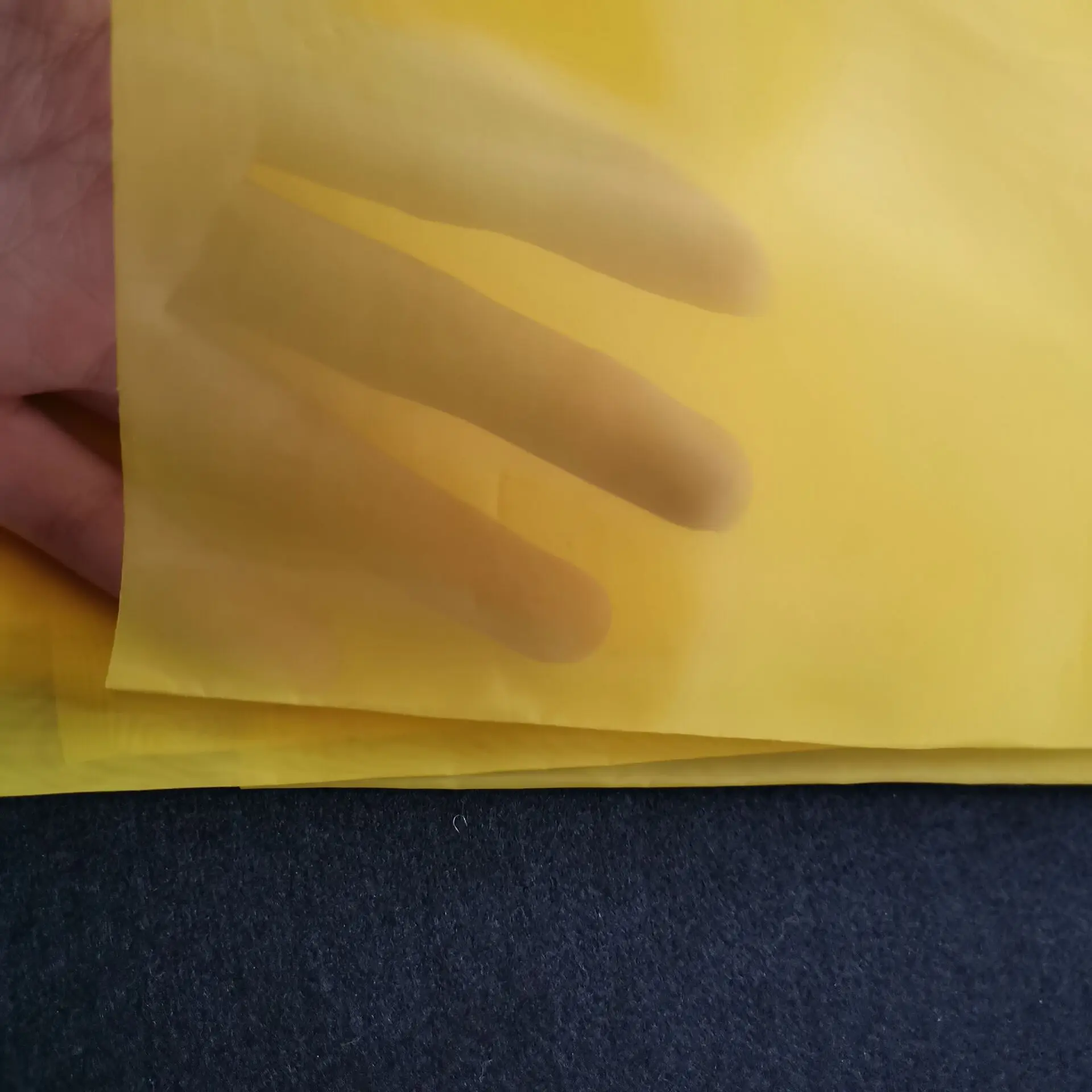

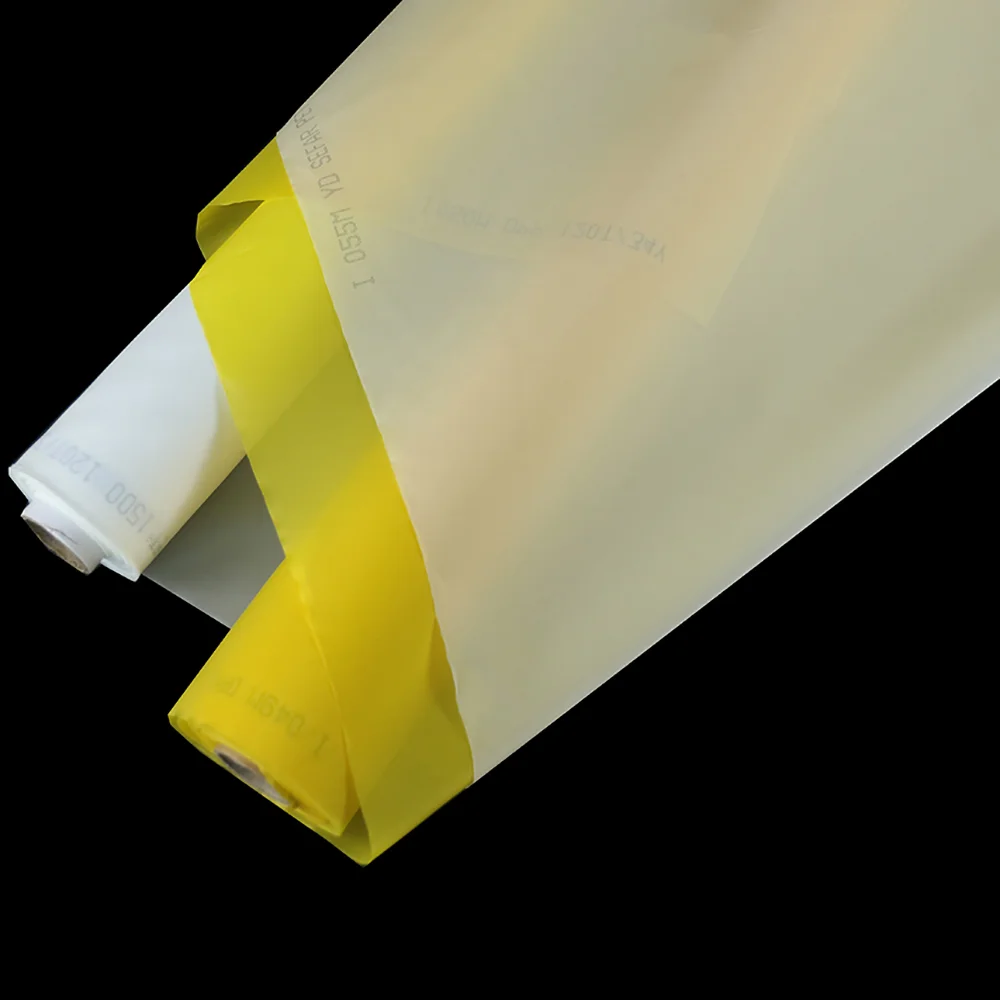

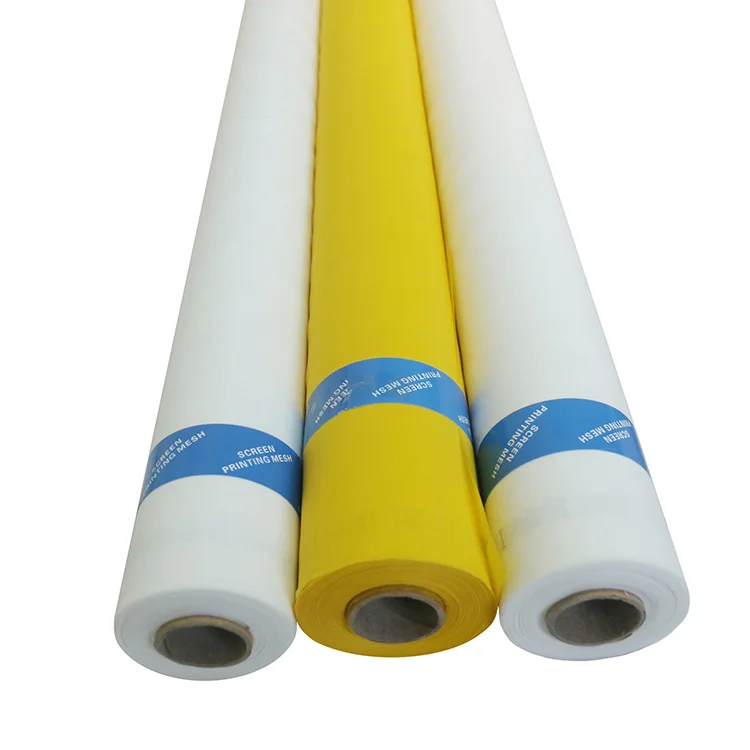

Color: main in white and yellow,black also available
Width: 100 cm, 127 cm 165 cm, 230 cm as normal ,max width can reach 370 cm or other customized size
Mesh Count: 33-420 meshes/inch(13T-180T per cm)
Production description:
Polyester filter Mesh Fabric is one of the most advanced high-tech mesh fabric products in 1990s for screen printing and filter.
With high quality material,we produces super quality polyester and polyamide bolting cloth for filtering. We also have the most
advanced testing instruments and technicians well trained to guarantee a reliable quality.
Polyester filter Mesh Fabric is one of the most advanced high-tech mesh fabric products in 1990s for screen printing and filter.
With high quality material,we produces super quality polyester and polyamide bolting cloth for filtering. We also have the most
advanced testing instruments and technicians well trained to guarantee a reliable quality.
Features
High strength, good comprehensive effect, low initial resistance, strong dust proof performance, can be cleaned and reused many times, safe and convenient replacement, user can operate by himself, simple and convenient
High strength, good comprehensive effect, low initial resistance, strong dust proof performance, can be cleaned and reused many times, safe and convenient replacement, user can operate by himself, simple and convenient
Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | |||||||||
13-150PW(SL) | 33 | 1:01 | 619 | 150 | 64 | 300 | 14 | 128 | 60 | |||||||||
21-80PW(S) | 55 | 1:01 | 296 | 80 | 69 | 120 | 9 | 79 | 35 | |||||||||
21-150PW(SL) | 55 | 1:01 | 326 | 150 | 46 | 260 | 14 | 118 | 121 | |||||||||
24-100PW(T) | 60 | 1:01 | 316 | 100 | 57 | 136 | 11 | 65 | 81 | |||||||||
28-140PW(SL) | 70 | 1:01 | 217 | 140 | 40 | 195 | 13 | 76 | 125 | |||||||||
32-55PW(S) | 81 | 1:01 | 257 | 55 | 67 | 103 | 6 | 67 | 28 | |||||||||
32-64PW(S) | 81 | 1:01 | 248 | 64 | 63 | 95 | 6 | 56 | 32 | |||||||||
32-100PW(T) | 81 | 1:01 | 212 | 100 | 45 | 165 | 8 | 73 | 75 | |||||||||
36-90PW(T) | 92 | 1:01 | 183 | 90 | 44 | 150 | 8 | 65 | 68 | |||||||||
39-55PW(S) | 100 | 1:01 | 177 | 55 | 56 | 88 | 6 | 55 | 30 | |||||||||
40-80PW(T) | 103 | 1:01 | 166 | 80 | 44 | 133 | 7 | 59 | 60 | |||||||||
43-80PW(T) | 110 | 1:01 | 149 | 80 | 41 | 130 | 7 | 53 | 64 | |||||||||
47-45PW(S) | 120 | 2:02 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 | |||||||||
47-55PW(S) | 120 | 1:01 | 152 | 55 | 51 | 88 | 6 | 48 | 34 | |||||||||
48-70PW(T) | 122 | 1:01 | 133 | 70 | 41 | 115 | 6 | 47 | 55 | |||||||||
53-45PW(S) | 135 | 2:02 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 | |||||||||
53-55PW(S) | 135 | 1:01 | 133 | 55 | 50 | 86 | 6 | 42 | 40 | |||||||||
54-64PW(T) | 137 | 1:01 | 115 | 64 | 39 | 100 | 5 | 39 | 51 | |||||||||
54-70PW(HD) | 137 | 1:01 | 109 | 70 | 35 | 116 | 6 | 40 | 62 | |||||||||
61-64PW(T) | 155 | 1:01 | 90 | 64 | 31 | 101 | 5 | 30 | 58 | |||||||||
64-55PW(S) | 160 | 1:01 | 98 | 55 | 38 | 98 | 5 | 36 | 48 | |||||||||
64-64PW(T) | 160 | 1:01 | 85 | 64 | 30 | 115 | 6 | 34 | 61 | |||||||||
68-55PW(S) | 175 | 1:01 | 85 | 55 | 34 | 85 | 4 | 28 | 48 | |||||||||
68-64PW(T) | 175 | 1:01 | 78 | 64 | 28 | 105 | 5 | 30 | 65 | |||||||||
72-48PW(S) | 182 | 1:01 | 90 | 48 | 36 | 78 | 5 | 33 | 39 | |||||||||
72-55PW(T) | 182 | 1:01 | 85 | 55 | 30 | 90 | 5 | 27 | 51 | |||||||||
77-48PW(S) | 195 | 1:01 | 77 | 48 | 35 | 80 | 4 | 28 | 42 | |||||||||
77-55PW(T) | 195 | 1:01 | 67 | 55 | 27 | 88 | 4 | 24 | 55 | |||||||||
80-48PW(T) | 200 | 1:01 | 72 | 48 | 33 | 74 | 4 | 25 | 56 | |||||||||
90-48PW(T) | 230 | 1:01 | 56 | 48 | 25 | 78 | 4 | 19 | 50 | |||||||||
100-40PW(T) | 255 | 1:01 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | |||||||||
110-40PW(HD) | 280 | 1:01 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | |||||||||
120-31PW(S) | 305 | 1:01 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | |||||||||
120-34PW(T) | 305 | 1:01 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | |||||||||
120-40PW(HD) | 305 | 1:01 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | |||||||||
130-34PW(T) | 330 | 1:01 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | |||||||||
140-31PW(S) | 355 | 1:01 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | |||||||||
140-34PW(T) | 355 | 1:01 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | |||||||||
140-34TW(T) | 355 | 2:01 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | |||||||||
150-31PW(S) | 380 | 1:01 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | |||||||||
150-34PW(T) | 380 | 1:01 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | |||||||||
165-31PW(S) | 420 | 1:01 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | |||||||||
PW:(Plain Weave);TW:(Twill Weave); S T HD:(thickness of Mesh) | ||||||||||||||||||
