Ручной насос для испытания давления воды/масла RP50, испытание гидростатического давления Pipework
- Категория товара: Other Pressure Measuring Instruments >>>
- Поставщик (Оптовый магазин): Qingdao,Donrex,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
- RP50 test pump in light wight and compact design. Easy to carry. Will be your good tool to test in confined spaces.

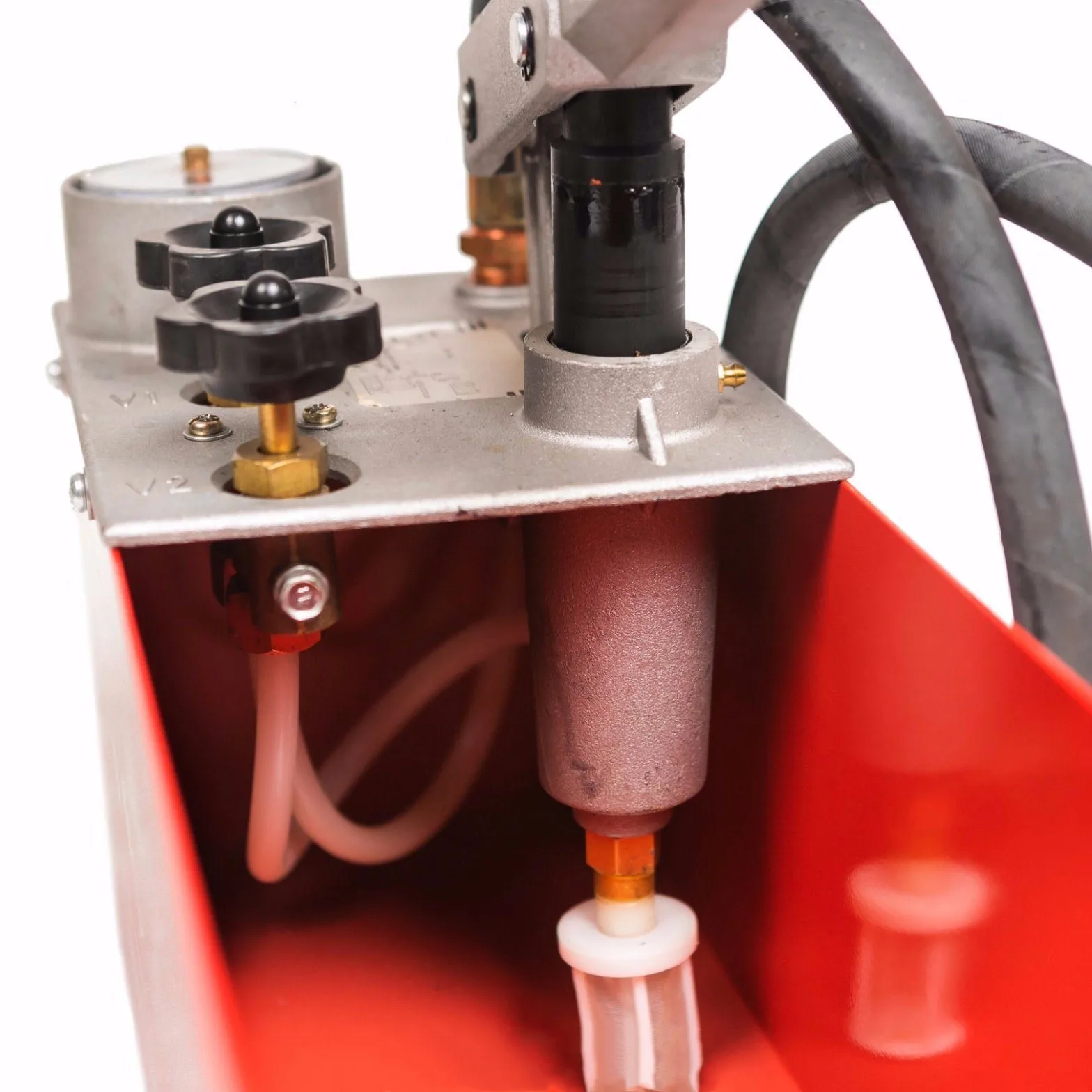

- Reliable and precise measurement results: Test pump with double valve system (twin valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure.
- Test Pump with steel mesh hose. No measuring errors which will be caused by expansion of the hose.
- Robust precision testing pump for pressure testing of water lines and containers up to 60 bar.

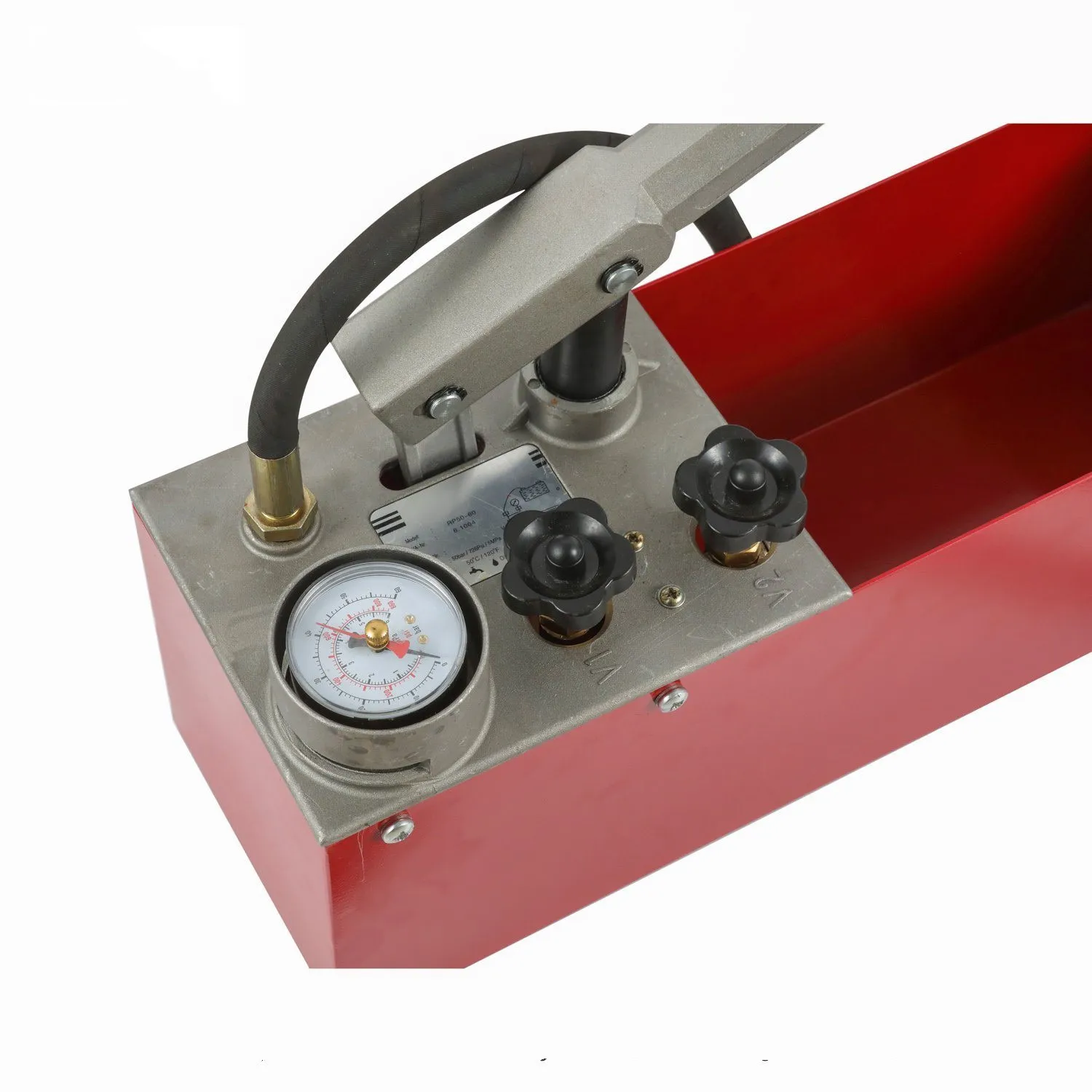

- A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.
- Tank with Cold-resistant coating ensure an extremely long service life.
- Finely scaled (scaling 0.1 bar) pressure gauge is optional.
- We are the supplier of ROTHERNBERGER and Super-Ego.
Specification
| Technical Specifications | |||
| Model: | RP50 | Testing range: | 0-60 bar( 860 psi,6 MPa ) |
| Tank capacity: | 12 L | Volume/stroke: | ≈45 ml |
| Connections: | 1/2" BSPP | Pump material: | brass |
| Water tank: | steel | Temp Max. | 50ºC/120°F |
| Testing Medium | Water/Oil | Weight | 8.2 kg |
| lift of pump | 3m | Meas. | 52*18*31cm |
