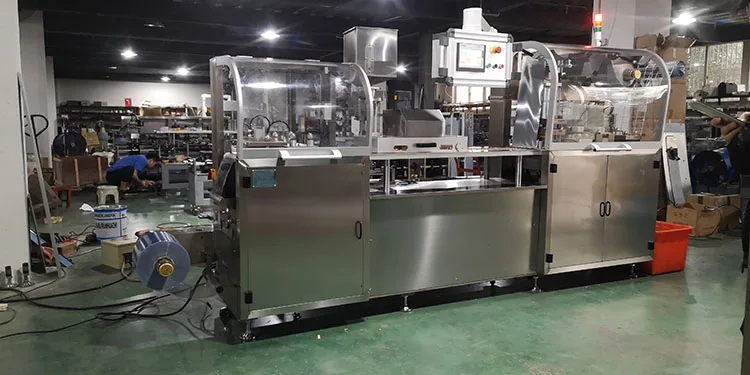

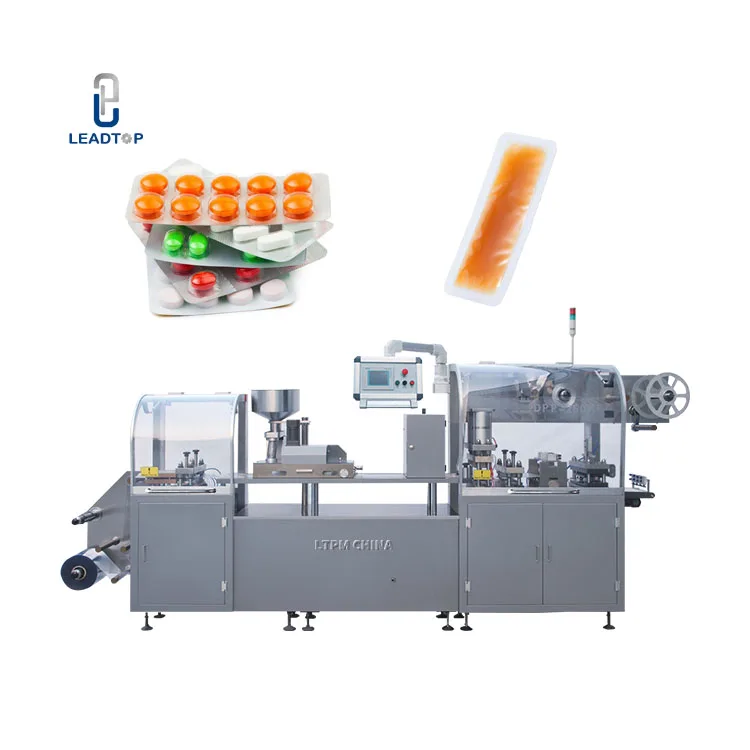

Automatic multifunction Aluminum plastic blister packing machine for tablet and honey
- Категория товара: Blister Packaging Machines >>>
- Поставщик (Оптовый магазин): ZHEJIANG,LEADTOP,PHARMACEUTICAL,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product introduction
DPP-250 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
Packaging range:
Western medicine, Chinese medicine pills, herbal medicine pills, veterinary medicine, sugar coated tablets, vegetarian tablets, all kinds of candy, food, electronic component and so on
Data
Technical parameter | 20-40 times/min |
function | Frequency conversion stepless speed regulation |
power source specification | power source specification |
Total power | 7.5kW |
Compressed air pressure | 0.5-0.7MPa |
Compressed air consumption | ≥ 0.22 |
noise | 75dB |
dimension | 4200×650×1640mm |
weight | 1500kg |
Motor frequency modulation capability | 20-50Hz |
Product Details
1.
Push-plate device
Push-plate device
2.
Using encoder instead of proximity switch, using the angle control principle, the operation of each station is more accurate, debugging is more convenient and fast
Using encoder instead of proximity switch, using the angle control principle, the operation of each station is more accurate, debugging is more convenient and fast
3.
All Work, Cam Lubrication are immersed in the oil tank, the Shell and sealed with stainless steel
All Work, Cam Lubrication are immersed in the oil tank, the Shell and sealed with stainless steel
4.
The coaxial transmission between each station eliminates the operation error and noise of the gear.
The coaxial transmission between each station eliminates the operation error and noise of the gear.
5.
1.Using Siemens touch screen, stable performance, lower failure rate, more stable production
2.The safety emergency stop switch is suitable for emergency braking in production or debugging accident to protect the safety of
people and machines
2.The safety emergency stop switch is suitable for emergency braking in production or debugging accident to protect the safety of
people and machines
6.
Handle rocker adjustment, convenient and fast. It can also be adjusted during boot
7.
The adjusting rod is equipped with position display, which can record parameters for switching between different varieties. The
accuracy coefficient reaches 0.1mm
accuracy coefficient reaches 0.1mm
Features
1.PVC, duralumin composite membrane bearing material shaft, can let a worker complete reloading work in 2 minutes.
2.Photoelectric control hard aluminum composite film, aluminum foil to receive and release.
3.The installation of the supercharged cylinder can reduce the wear of the transmission part and increase the life of the machine.
4.During shutdown, the heat seal cylinder is lifted to prevent the medicine from being damaged during shutdown.
5.The heat sealing die is fixed by the bolt of the pressing plate, which can be easily and quickly replaced by the horizontal drawing.
6.According to customer needs with a variety of coding tools, standard layout hard coding, font clear, more convenient and
economical replacement. The batch number mould is fixed by pressing plate bolt, which can be easily and quickly removed and replaced transversely.
7.The use of servo motor traction, adjustment of travel, as long as the touch screen to enter a number can make it more accurate, time-saving. And can be connected with PLC to achieve cursor version, SERVO system brand for Germany Siemens.
2.Photoelectric control hard aluminum composite film, aluminum foil to receive and release.
3.The installation of the supercharged cylinder can reduce the wear of the transmission part and increase the life of the machine.
4.During shutdown, the heat seal cylinder is lifted to prevent the medicine from being damaged during shutdown.
5.The heat sealing die is fixed by the bolt of the pressing plate, which can be easily and quickly replaced by the horizontal drawing.
6.According to customer needs with a variety of coding tools, standard layout hard coding, font clear, more convenient and
economical replacement. The batch number mould is fixed by pressing plate bolt, which can be easily and quickly removed and replaced transversely.
7.The use of servo motor traction, adjustment of travel, as long as the touch screen to enter a number can make it more accurate, time-saving. And can be connected with PLC to achieve cursor version, SERVO system brand for Germany Siemens.
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Warm hint
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
1 -- Because the exchange rate is changing, the specific price of the machine may also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
Q6: What is the warranty period for your machine?
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
2. Production size or bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag type.
Q2: Are you a real factory/manufacturer?
A:Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
A:Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
A:Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
A:We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
Q6: What is the warranty period for your machine?
A: 5 years free warranty.
Q7: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q8: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q9: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q10: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
