120S +/-192V(384V)63a литиевый ИБП высокого напряжения BMS lifepo4 bms центральный кран реле контактора выключателя бесперебойного источника питания
- Категория товара: >>>
- Поставщик (Оптовый магазин): Hunan,GCE,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

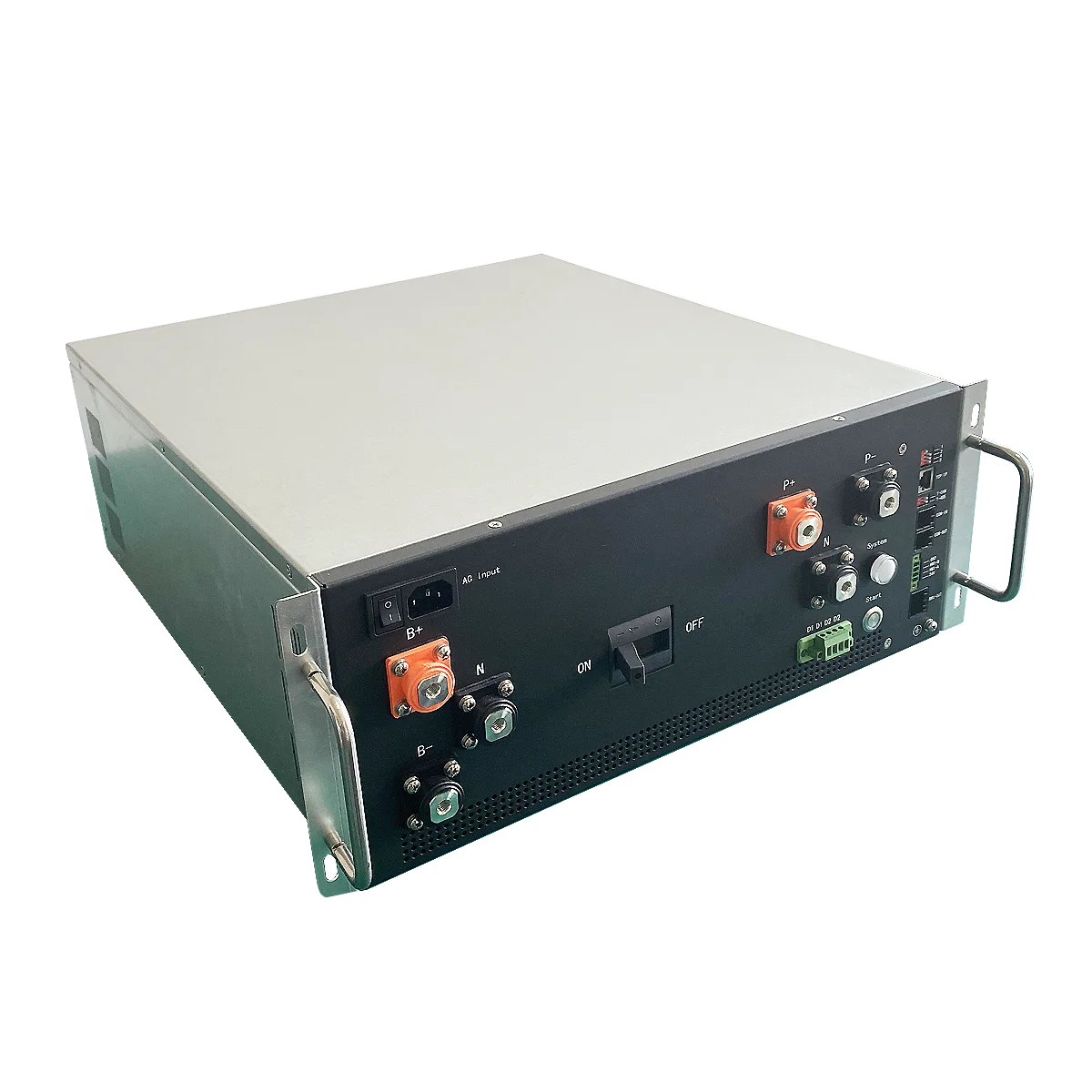

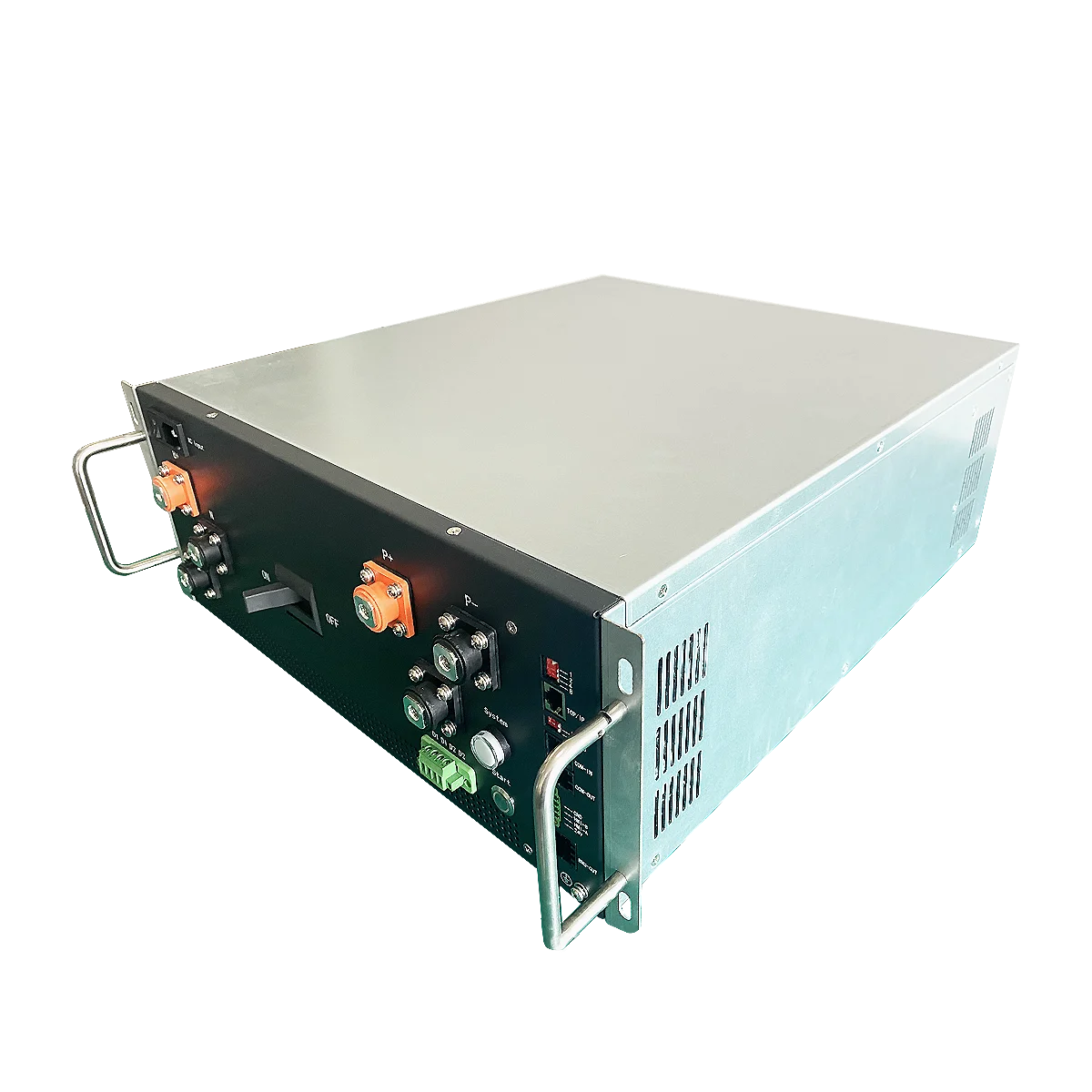

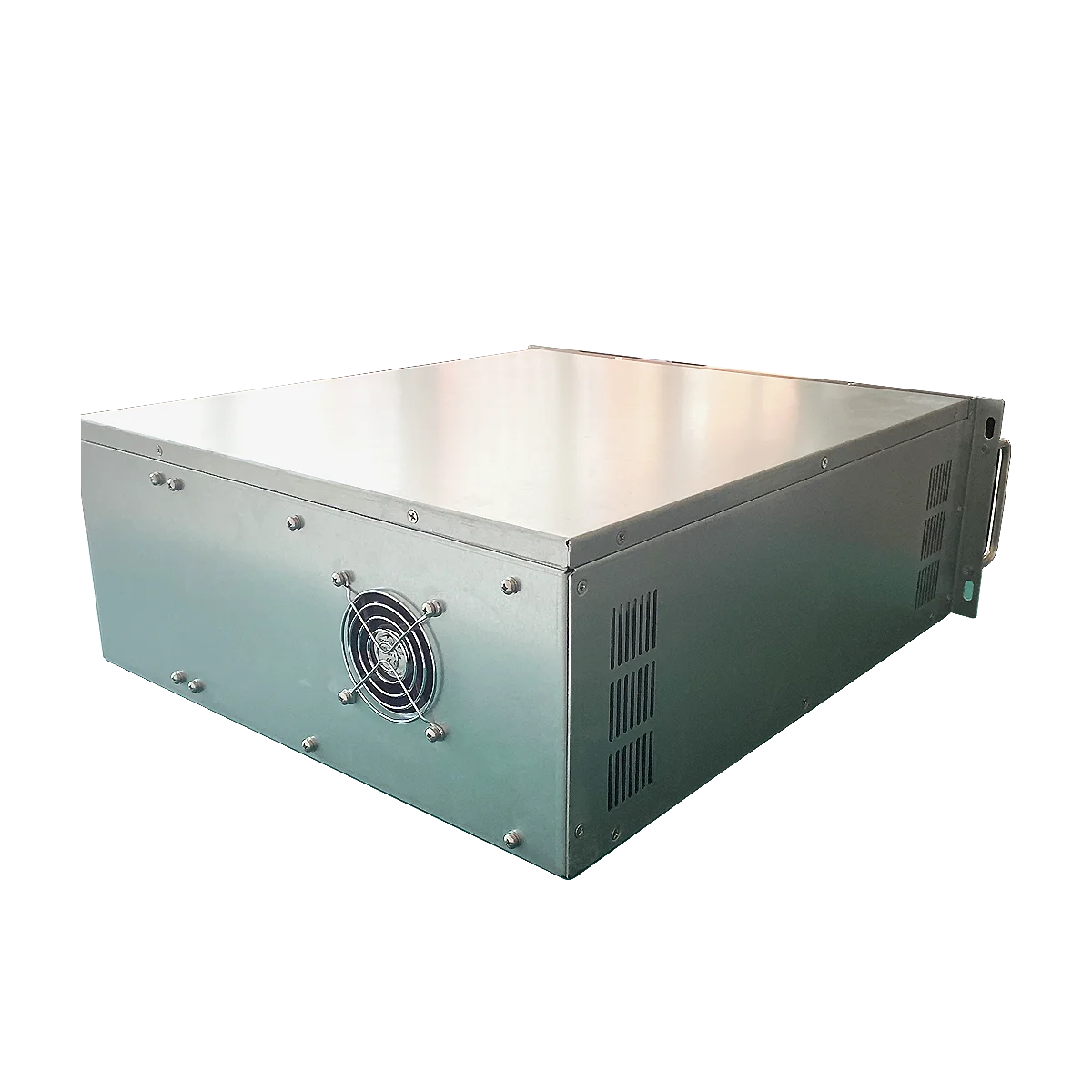

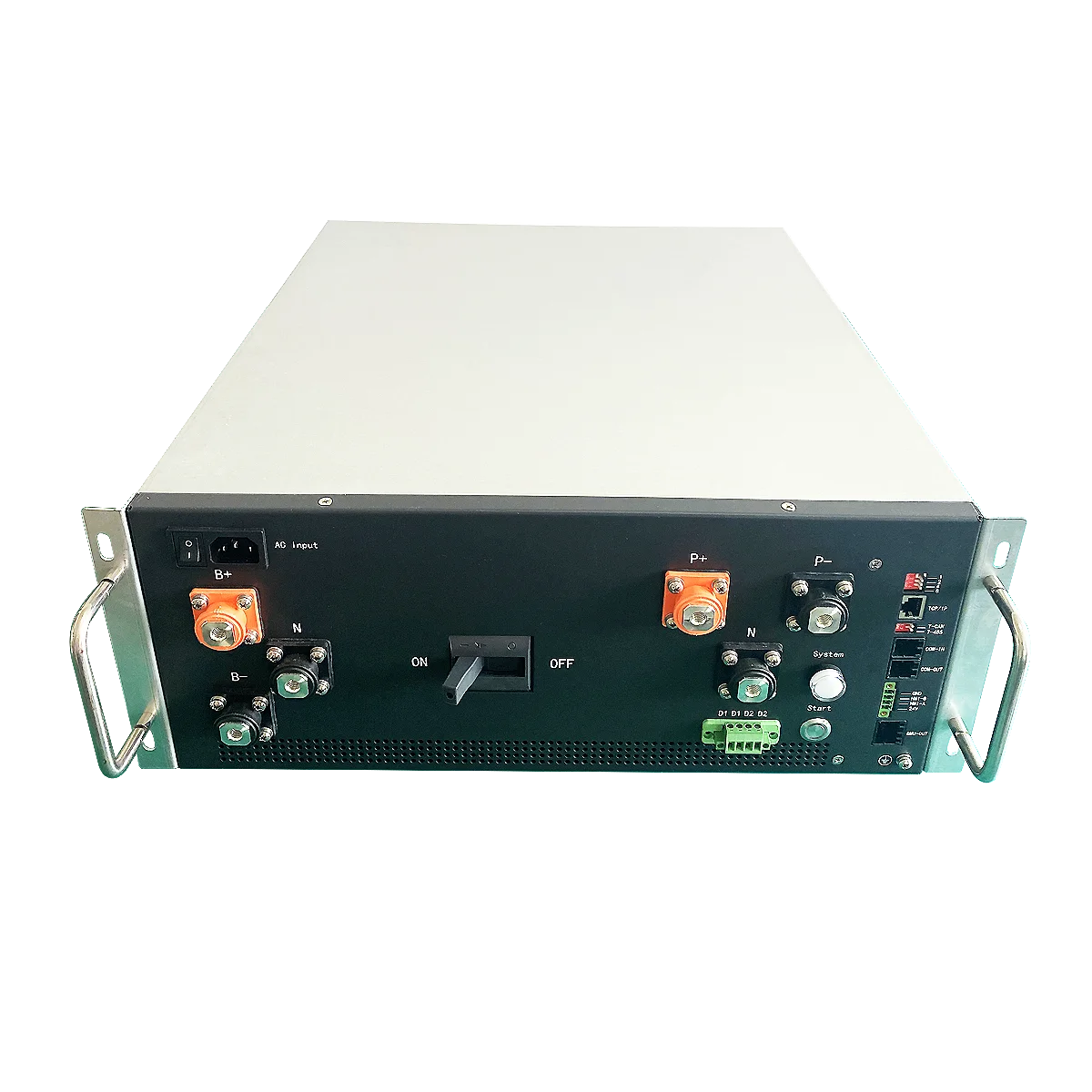

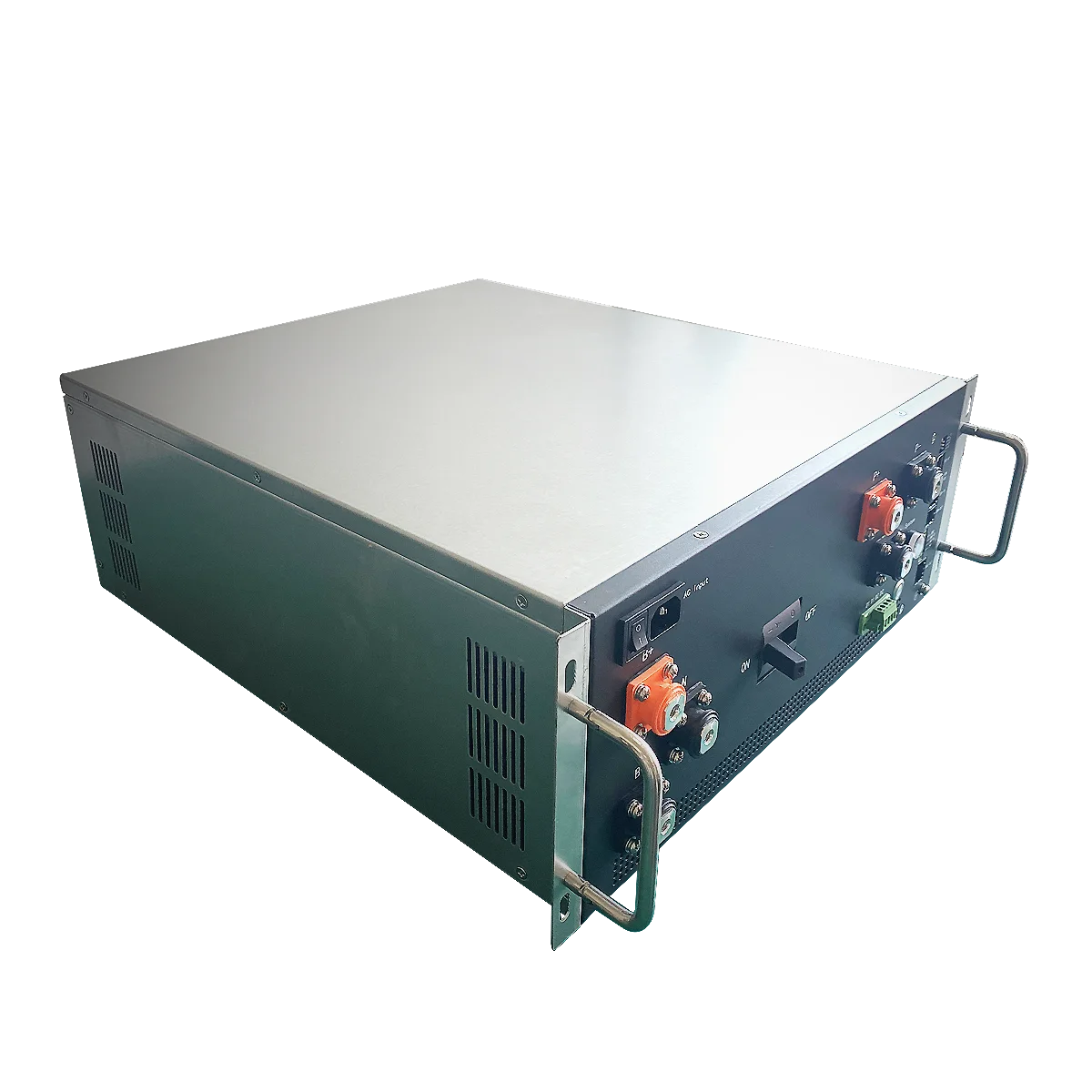

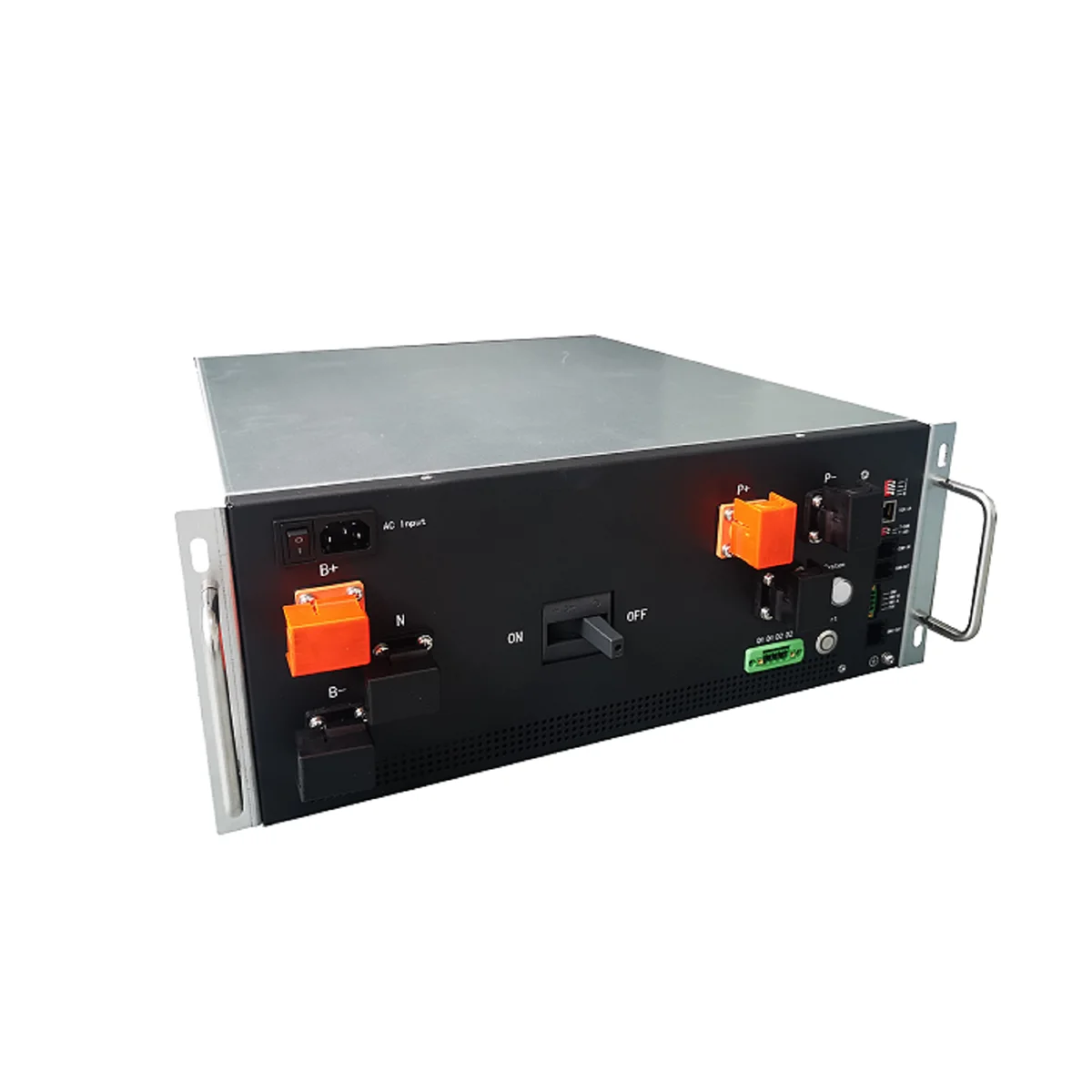

- ±192V63Amp
Center Tap BMS
* RS485, CAN, LAN, Dry contact
* 4U standard 19inch case * Efficient, stable and reliable * size:W440*D500*H178mm
Accessories
12S-24S BMU（Slave）
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
supply,consumption less 20mA, CAN2.0 B communication
Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
Fan wire: 600mm
Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
Specification
Product Name | BMS |
Model no. | RBMS07S3-0-63A384V |
protecting method | MCCB+Contactor |
Rated Current range | -63A~63A |
Voltage Range | 96V-384V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with BMU | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with BMU | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | No(Optional plug in) |
Insulation detection | Yes（Optional） |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | No |
Maximum qty of BMUs | 20 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*178*600） |
Way out | Front |
Tap center | Support(Optional) |
Net weight | 23kg |
Product Feature
1. Support 150 series single 3.2 LiFePO4 batteries in series
2. Support the mid-line structure, support positive and negative battery charge and discharge
respectively
3. Shunt circuit breakers support B +, B- at the same time closing and disconnecting
4. charge and discharge with the same mouth design
5. CBMS + BMU two-tier architecture
6. Intelligent balanced management, supporting intra-module balance and inter-module balance
7. SOC estimation error ≤5%
8. LCD display real-time display battery and BMS status (optional, 3.5-inch inside,7.0-inch outside)
9. Support and UPS protocol communication, RS485 and CAN2.0 communication, support for
multi-channel dry contact communication
10. Support PC to view the battery data and BMS status of each device through Ethernet
11. Support machine room management system or other higher level management equipment
protocol communication
12.Support for distributed thermal management (48v battery module independent cooling) or centralized thermal management (the entire cabinet unified cooling)
13.Support UPS DC start function (option)
2. Support the mid-line structure, support positive and negative battery charge and discharge
respectively
3. Shunt circuit breakers support B +, B- at the same time closing and disconnecting
4. charge and discharge with the same mouth design
5. CBMS + BMU two-tier architecture
6. Intelligent balanced management, supporting intra-module balance and inter-module balance
7. SOC estimation error ≤5%
8. LCD display real-time display battery and BMS status (optional, 3.5-inch inside,7.0-inch outside)
9. Support and UPS protocol communication, RS485 and CAN2.0 communication, support for
multi-channel dry contact communication
10. Support PC to view the battery data and BMS status of each device through Ethernet
11. Support machine room management system or other higher level management equipment
protocol communication
12.Support for distributed thermal management (48v battery module independent cooling) or centralized thermal management (the entire cabinet unified cooling)
13.Support UPS DC start function (option)
BMS System Structure

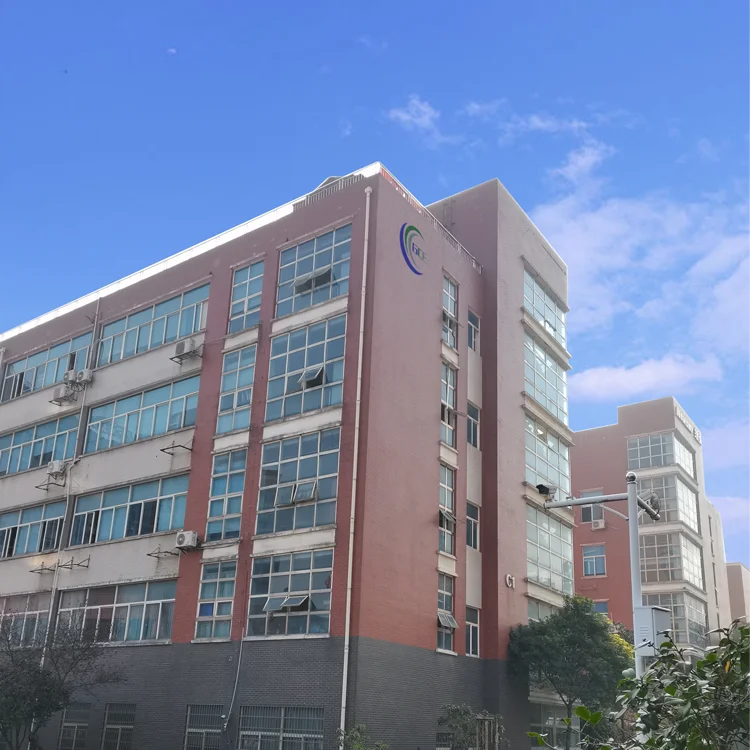

Company Profile
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
