Product Description
Edge Power Series Product Description
Edgeware Edge Power series are Outdoor UPS specially designed for Edge Network deployment by Edgeware. It can be deployed outdoors for long-term maintenance-free operation. The Edge Power series Outdoor UPS has the following different series based on different usage scenarios and Capacity: Edge Power E300, Edge Power E500, Edge Power E1000, Edge Power E2000, Edge Power E3000.
Edge Power E300 Outdoor UPS 300w Optimized for Video Surveillance
The Edge Power E300 series incorporates the design of Edgeware All in One, and includes Smart Breaker to support remote system switching and system overvoltage, undervoltage, overcurrent, short circuit, and lightning protection. E300 contains a small 300W DCUPS. The power is just suitable for some small and medium deployment scenarios. For example, video surveillance, WIFI outdoor deployment, 4G Small Cell and other scenarios where the power is not particularly large. E300 contains 48V4.8AH lithium battery, and the lithium battery can support BMS. The entire E300 system can be remotely monitored through the superior management system.
The E300 integral cast aluminum parts are manufactured as a whole, and the protection level reaches IP65 and IK08. It is very suitable for deployment in various complex outdoor environments. For example, rainforests with high heat and humidity, sea sides with high salinity and humidity, and desert areas with many sandstorms. The integrated closed design guarantees the stable operation of the system in complex environments. At the same time, the E300’s overall aluminum material design guarantee system can naturally dissipate heat through the aluminum casing itself, eliminating the traditional way of cooling the chassis fan, making the system maintenance-free for a long time.
The E300 integral cast aluminum parts are manufactured as a whole, and the protection level reaches IP65 and IK08. It is very suitable for deployment in various complex outdoor environments. For example, rainforests with high heat and humidity, sea sides with high salinity and humidity, and desert areas with many sandstorms. The integrated closed design guarantees the stable operation of the system in complex environments. At the same time, the E300’s overall aluminum material design guarantee system can naturally dissipate heat through the aluminum casing itself, eliminating the traditional way of cooling the chassis fan, making the system maintenance-free for a long time.

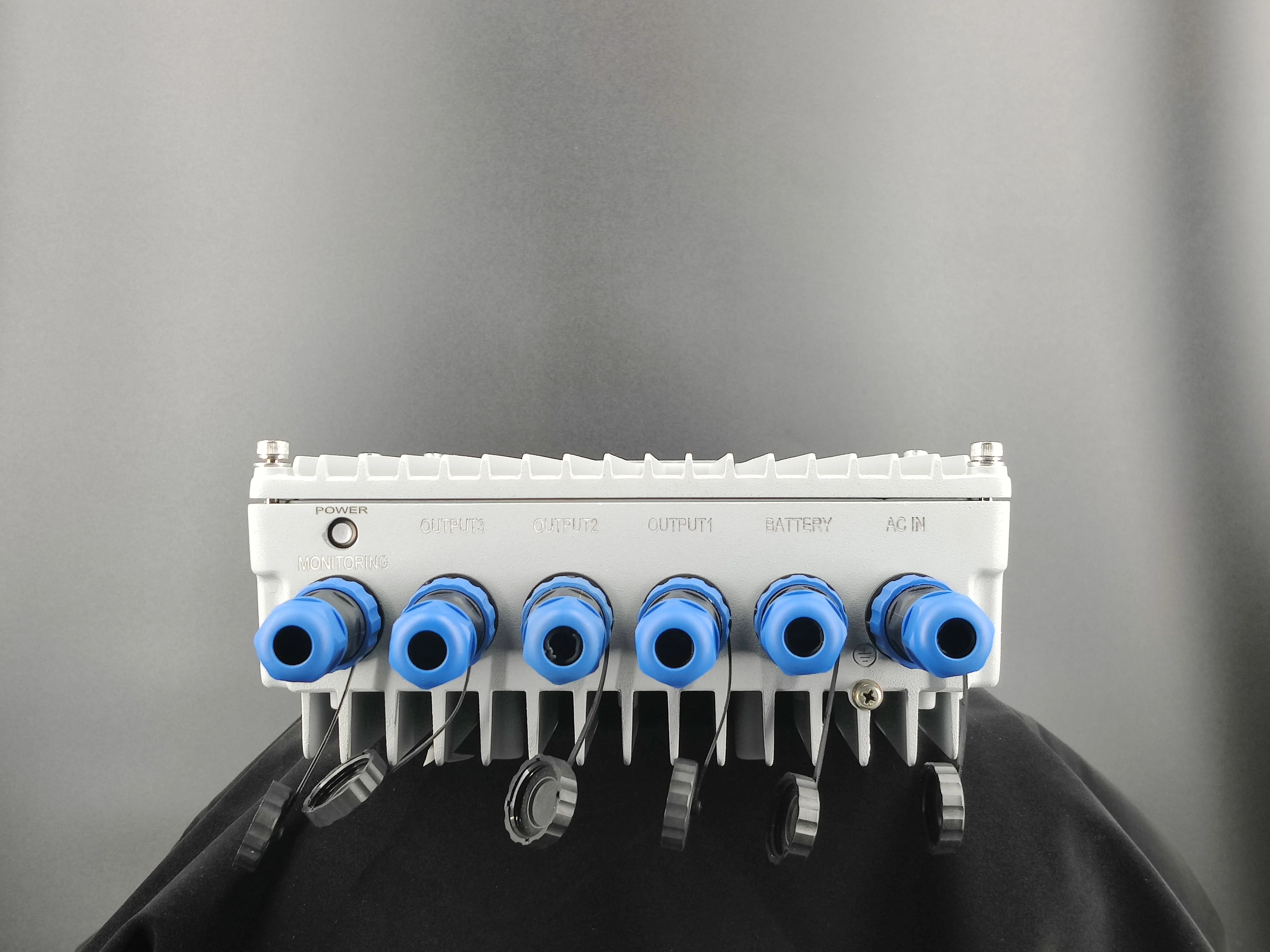

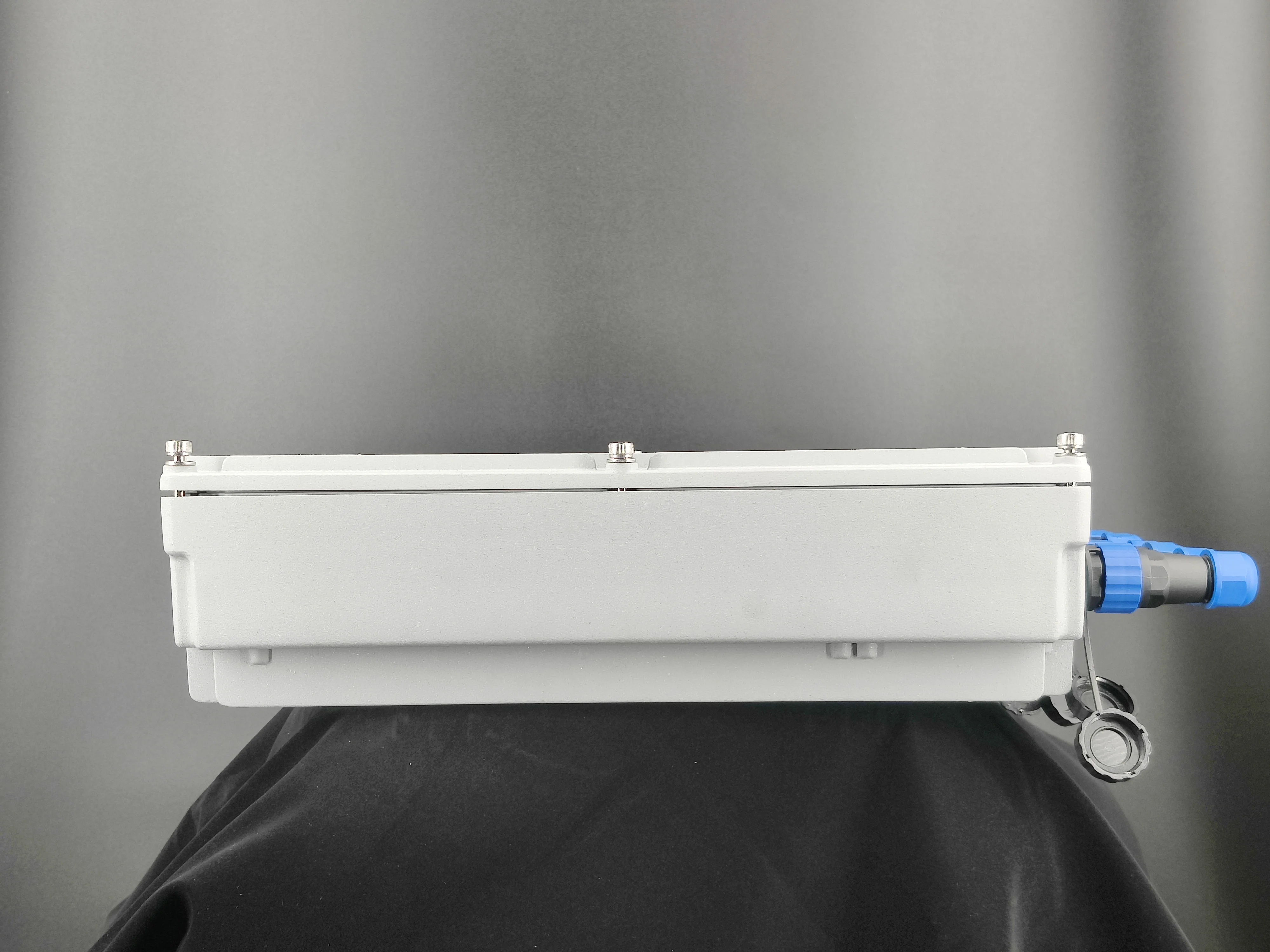

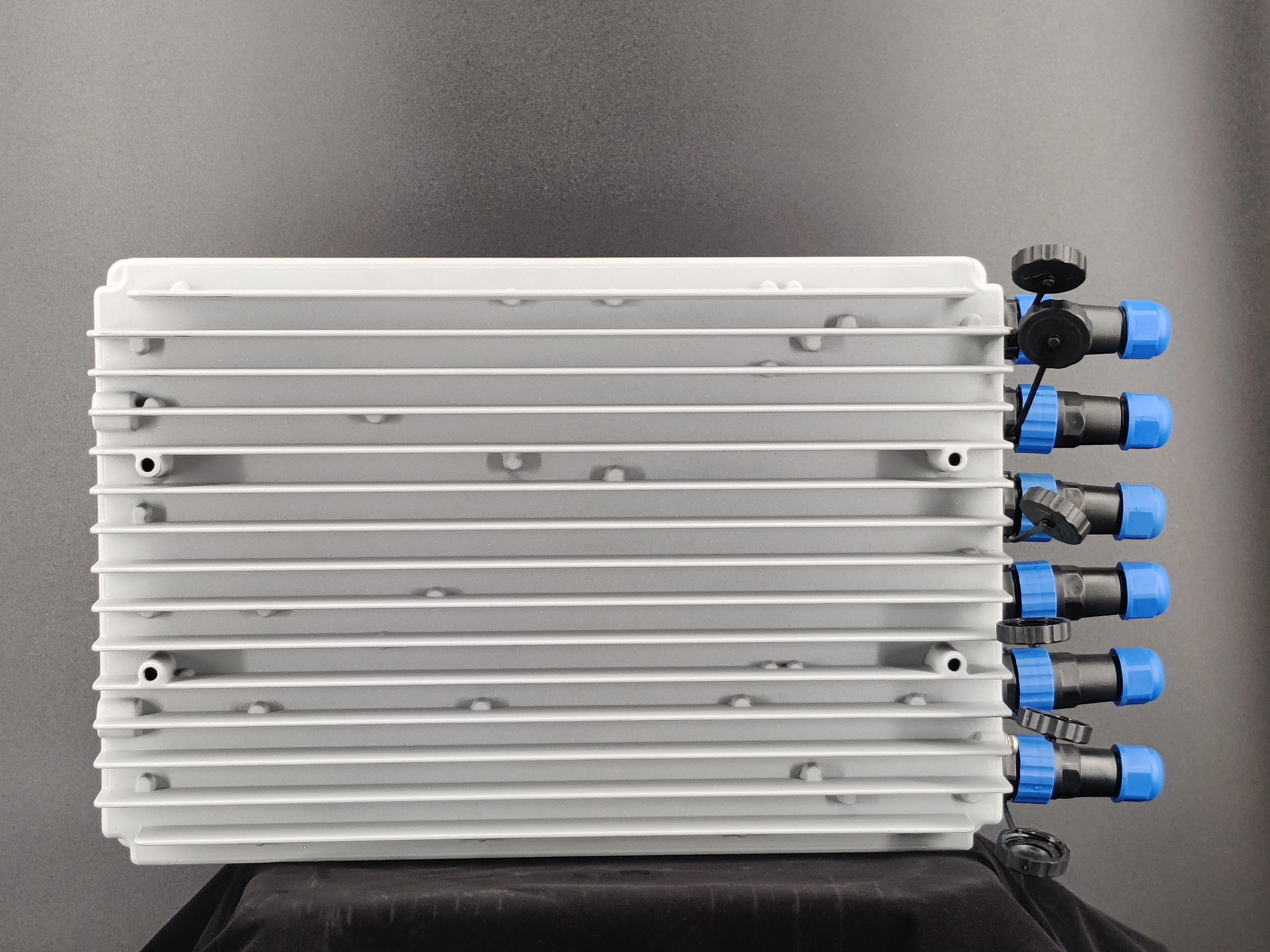

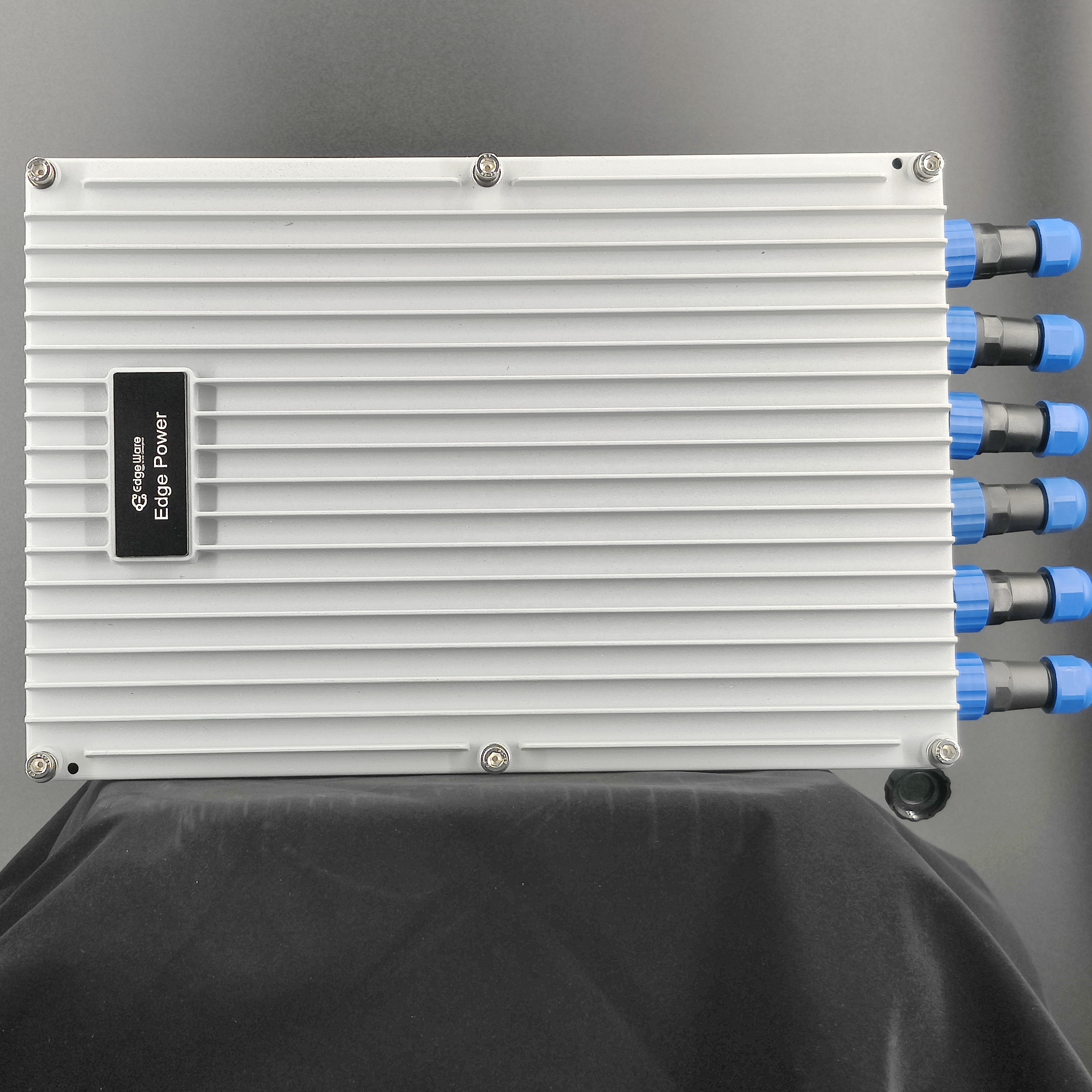

Edgeware Edge Power E300-BS Outdoor UPS System Specifications
Dimension | W*H*D 242mm*365mm*100mm | ||||||
Weight | 6.5kg(with all system） | ||||||
Material | Aluminum | ||||||
Ingress Protection | IP65 | ||||||
Heat Dissipation | No fan design, natural heat dissipation | ||||||
System Operating Temperature | -20~+75°C, 5%~90% RH Non condensing | ||||||
DC-UPS | Rated Power 300W Input 110V/220V 50/60Hz Output 42.00-58.00VDC | ||||||
Battery | 48V4.8AH | ||||||
Network and System Surge Suppression | 20KVA | ||||||
Smart Breaker | Remote control power on and off from Edgeware convergence platform 10A 110v/220v Leakage Protection Overvoltage Protection Under Voltage Protection Overcurrent Protection Short circuit Protection Lightning Protection | ||||||
Edge Power E500/E1000/E2000/E3000 Outdoor UPS Optimized for 4G/5G Site Power Backup
Edge Power E500/E1000/E2000/E3000 is mainly designed for high power scenarios, such as 4G base station RRU backup power, 5G base station backup power, outdoor high-power communication equipment backup power. Support power is 500KVA, 1000KVA, 2000KVA and 3000KVA respectively. The system contains Smart Breaker to support remote system switching and over-voltage, under-voltage, over-current, short-circuit, and lightning protection for the system. The system can be remotely monitored through the superior management system.
Edgeware Edge Power E500/E1000/E2000/E3000 Outdoor UPS System
Dimension | W*H*D 242mm*365mm*100mm | ||||||
Weight | 5.5kg(E500) 6.5KG(E1000) 7kg(E2000) 8kg(E3000) | ||||||
Material | Aluminum | ||||||
Ingress Protection | IP65 | ||||||
Heat Dissipation | No fan design, natural heat dissipation | ||||||
System Operating Temperature | -20~+75°C, 5%~90% RH Non condensing | ||||||
DC-UPS | Input 110V/220V 50/60Hz Output 42.00-58.00VDC E500:Rated Power 500kva E1000: Rated Power 1000kva E2000: Rated Power 2000kva E3000: Rated Power 3000kva | ||||||
Battery | External Battery | ||||||
Network and System Surge Suppression | 20KVA | ||||||
Smart Breaker | Remote control power on and off from Edgeware convergence platform 10A 110v/220v Leakage Protection Overvoltage Protection Under Voltage Protection Overcurrent Protection Short circuit Protection Lightning Protection | ||||||
