Products Description

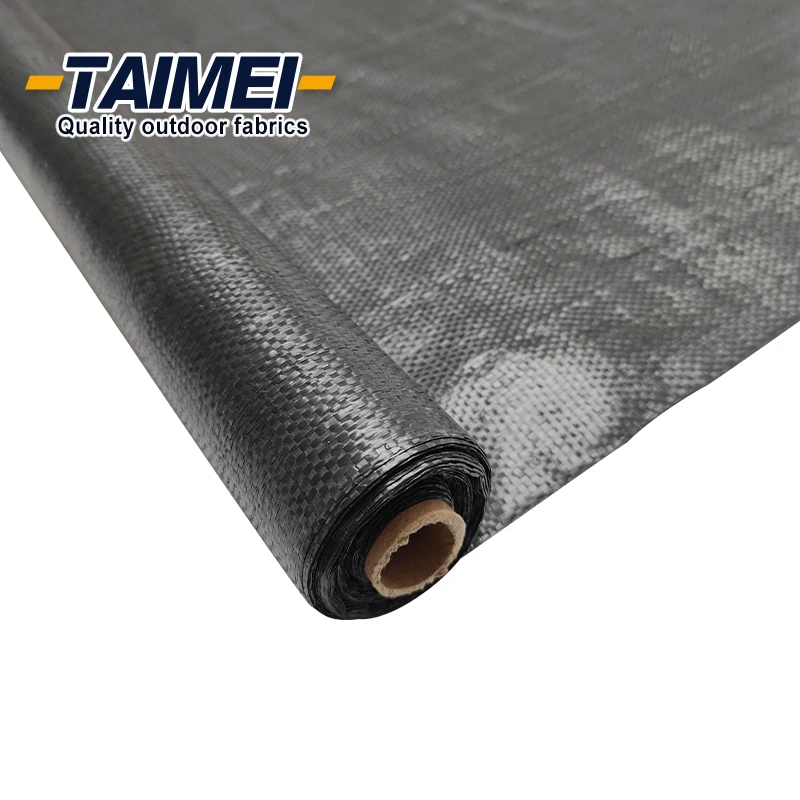

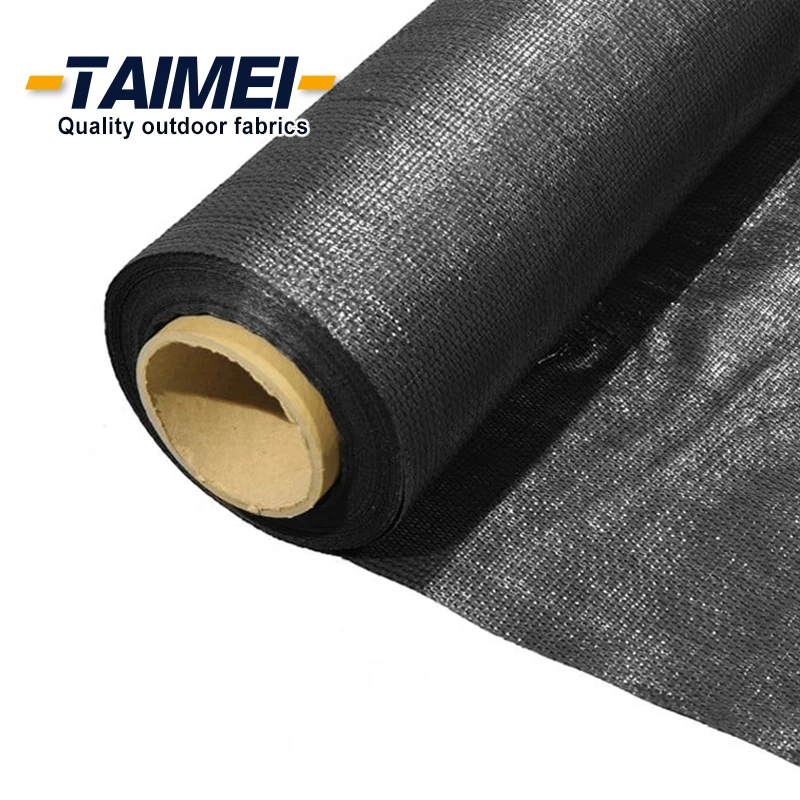

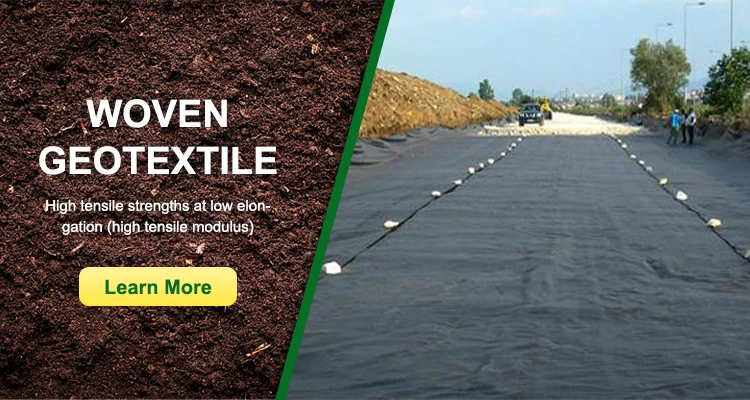

Polypropylene Woven Geotextile Fabric
TERATUF Woven Geotextiles are woven from durable, high-modulus polypropylene yarns into competent, robust, dimensionally stable geotextiles. These geotextiles are available in varying tensile strengths and hydraulic properties to suit particular project demands.

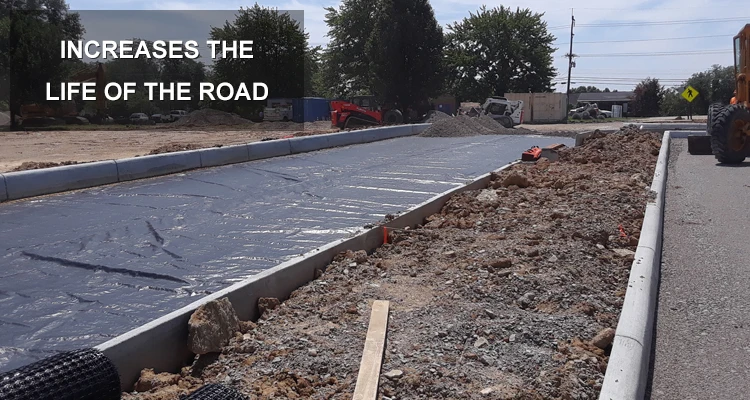

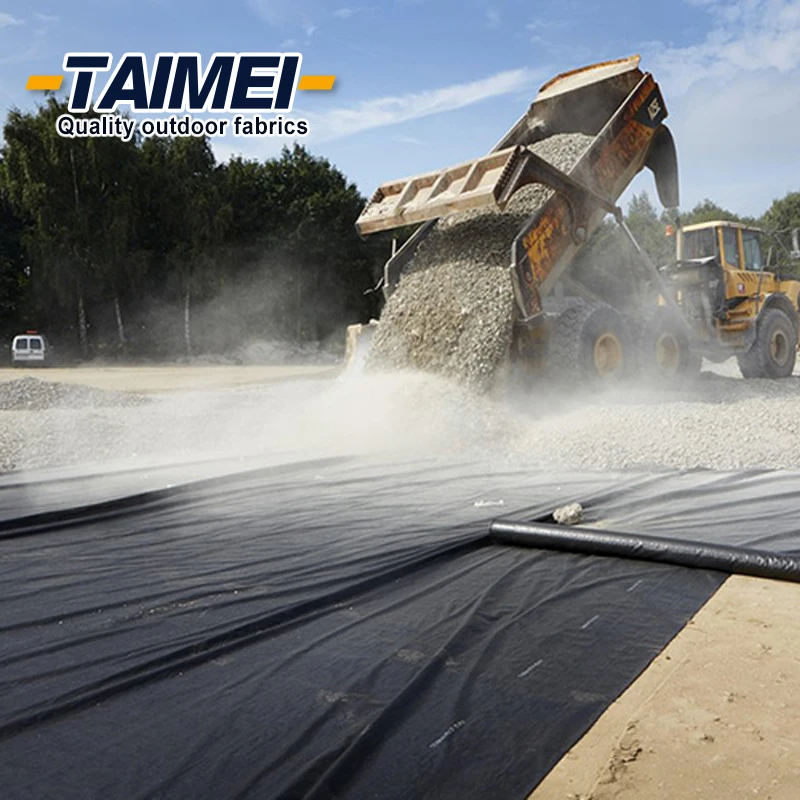

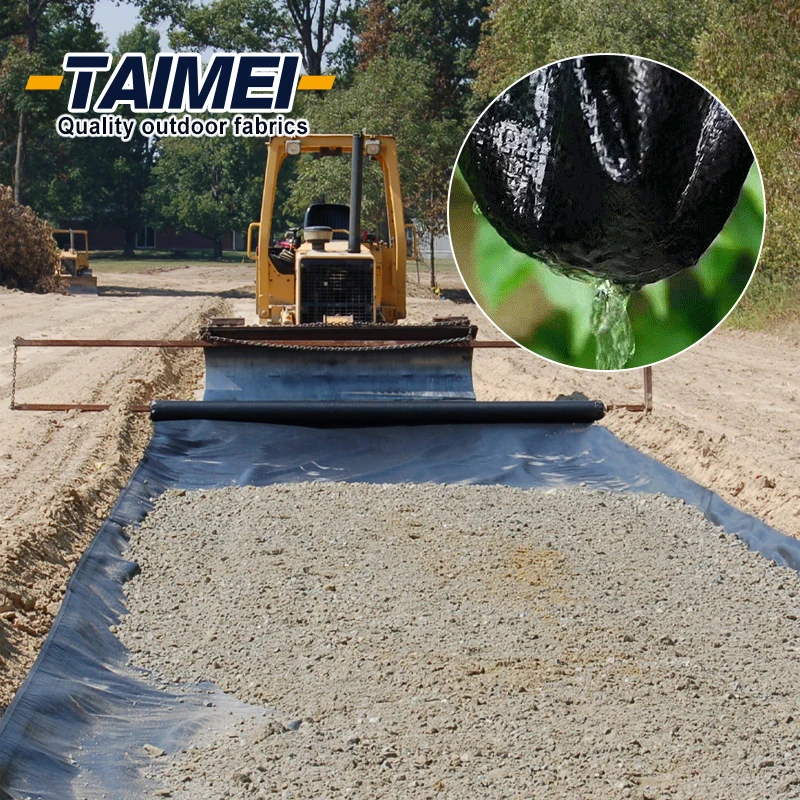

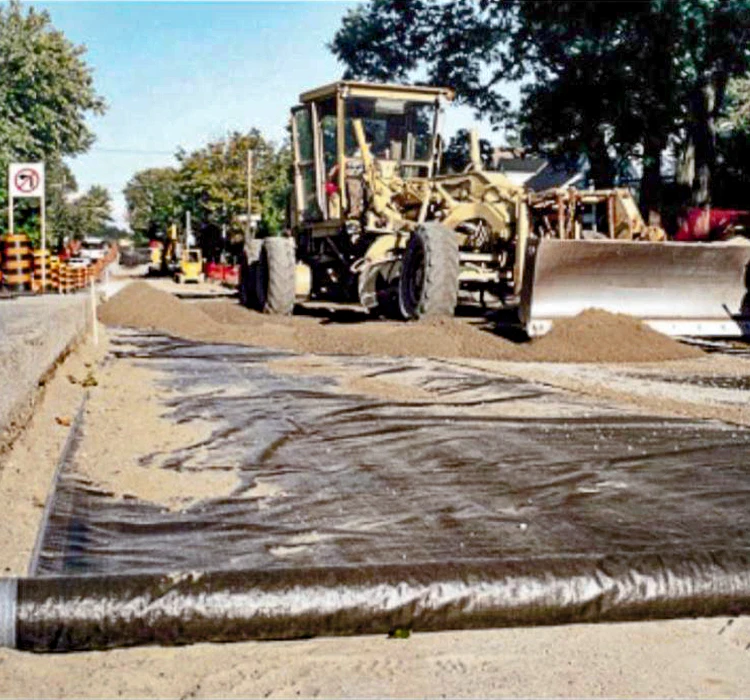

TERATUF Woven Geotextiles are often used for separation and stabilization in the construction of roads. The woven geotextile’s separation action prevents the mixing of dissimilar soils allowing each soil layer in the road structure to function as intended.This is done by imparting stability through the tension membrane effect into the road section reducing rutting and extending roadway life.

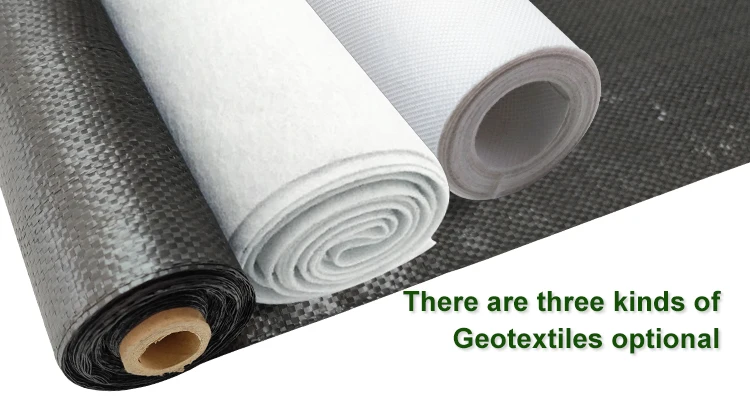

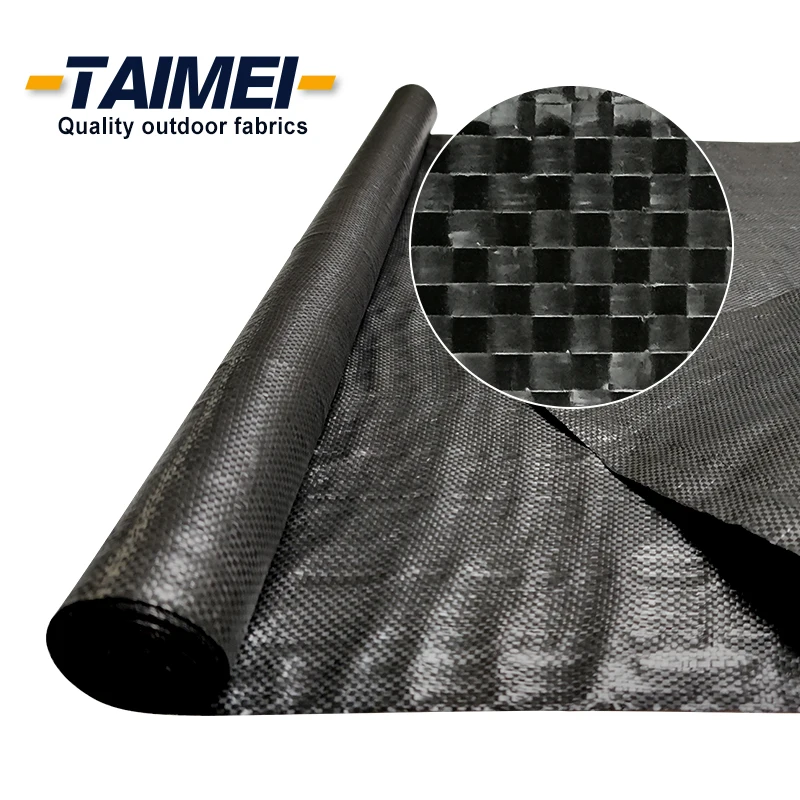

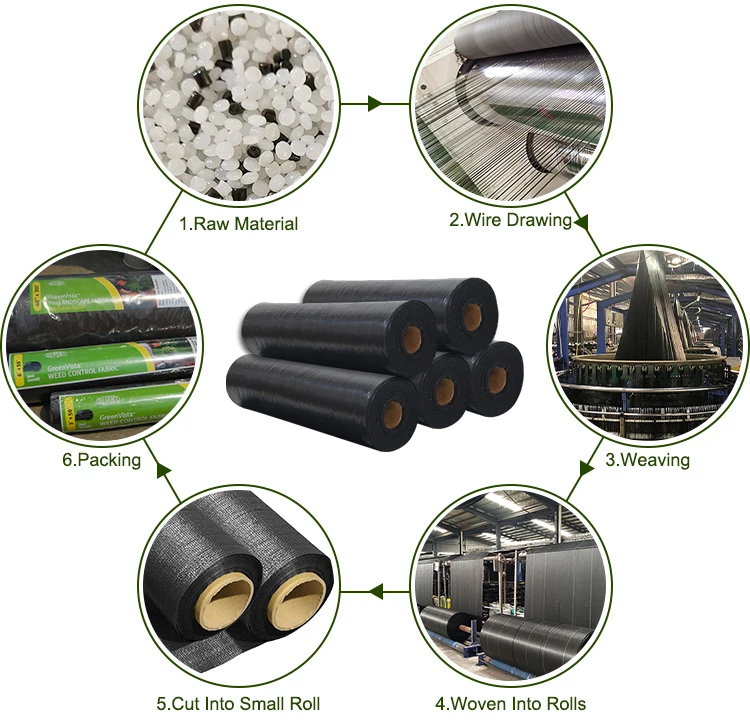

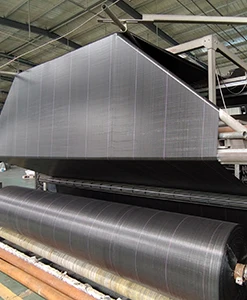

Woven geotextiles are made from polypropylene as well, but the manufacturing process, product characteristics, and applications differ dramatically from those of nonwovens. Narrow strands of polypropylene tape are woven together during manufacturing, producing a sturdy fabric, but one with much less permeability than nonwovens.
Details Images
Advantage of Woven Geotextile
- High tensile strength and low elongation provides dimensional stability
- Requires less aggregate, reducing the overall thickness of the road
- Increases performance life of the road

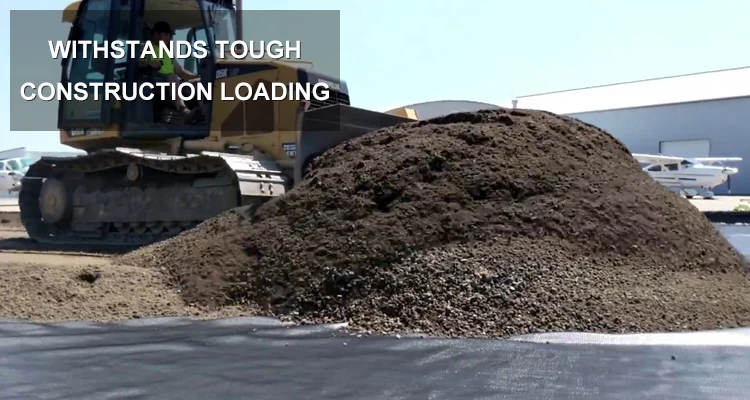

- Withstands loading
- Resistant to ultraviolet degradation
- Resistant to biological clogging, making it ideal for leachate collection systems and filtration beneath hard armor system
- Ease of installation reduces time and labor costs
- Requires less aggregate, reducing the overall thickness of the road
- Increases performance life of the road
- Withstands loading
- Resistant to ultraviolet degradation
- Resistant to biological clogging, making it ideal for leachate collection systems and filtration beneath hard armor system
- Ease of installation reduces time and labor costs
Product Specifications
TMG200 / TMG315 engineered geotextile is stabilized to resist degradation due to ultraviolet exposure. It is resistant to commonly encountered soil chemicals, mildew and insects, and is non-biodegradable.
PROPERTY | TEST METHOD | MARV English | ||||
GrabTensile | ASTM D-4632 | 200 lbs | 250 lbs | 315 lbs | ||
Grab Elongation | ASTM D-4632 | 15% | 15% | 15% | ||
Mullen Burst | ASTM-D-3786 | 400 psi | 450 psi | 600 psi | ||
CBR Puncture Strength | ASTM D-6241 | 700 lbs | 750 lbs | 900 lbs | ||
Trapezoidal Tear | ASTM-D-4533 | 75 lbs | 90 lbs | 125 lbs | ||
UV Resistance(500hrs) | ASTM D-4355 | 70% | 70% | 70% | ||
Permittivity | ASTM D-4491 | 0.05 sec ˉ¹ | 0.05 sec ˉ¹ | 0.05 sec ˉ¹ | ||
AOS | ASTM-D-4751 | 0.425 mm | 0.425 mm | 0.425 mm | ||
Flow Rate | ASTM D-4491 | 5 Gal/min/sq ft | 4 Gal/min/sq ft | 4 Gal/min/sq ft | ||
Note:
1. At the time of manufacturing, handing may change these properties.
2. This information relates only to the specific material designated and may not be valid for such material used in combination with any other materials or in any process, such information is to the best of our knowledge and belief, accurate and reliable as the date complied. However no representation, warranty or guarantee is made as to its accuracy, reliability or completeness. It is the user’s responsibilty to satisify himself as to the suitability and completeness of such information for his own particular use. we do not accept liability for any loss or damage that may occur from the use of this information nor do we offer any warranty against patent infringement .
2. This information relates only to the specific material designated and may not be valid for such material used in combination with any other materials or in any process, such information is to the best of our knowledge and belief, accurate and reliable as the date complied. However no representation, warranty or guarantee is made as to its accuracy, reliability or completeness. It is the user’s responsibilty to satisify himself as to the suitability and completeness of such information for his own particular use. we do not accept liability for any loss or damage that may occur from the use of this information nor do we offer any warranty against patent infringement .

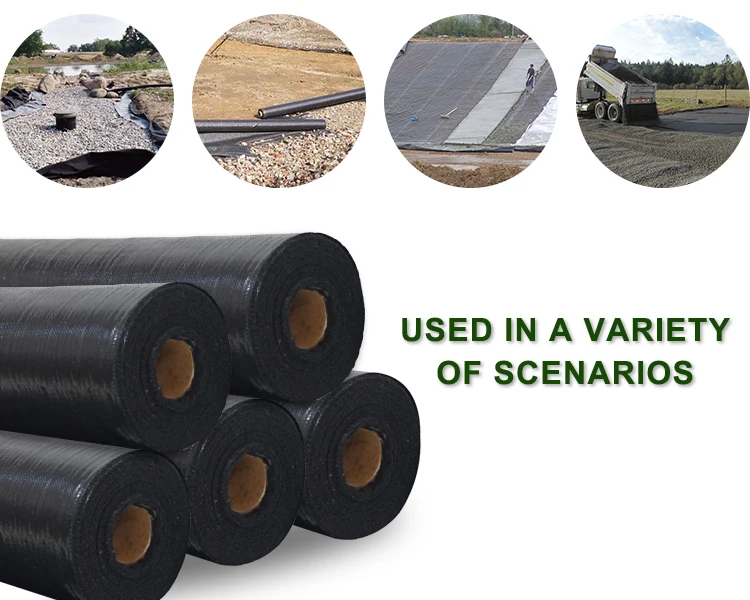

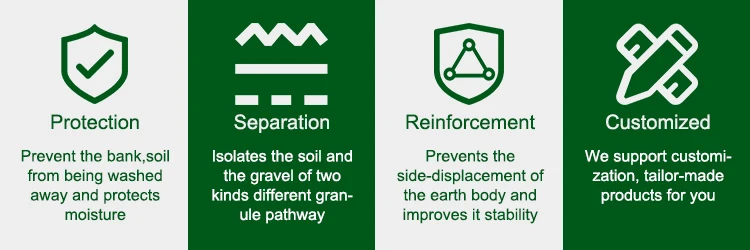

Applications
What Geotextile can use for?
• Requires less aggregate, reducing the overall thickness of the road
• Increases performance life of the road
• Resistant to biological clogging, making it ideal for leachate collection systems and filtration beneath armor system
• Increases performance life of the road
• Resistant to biological clogging, making it ideal for leachate collection systems and filtration beneath armor system
Why Choose Us

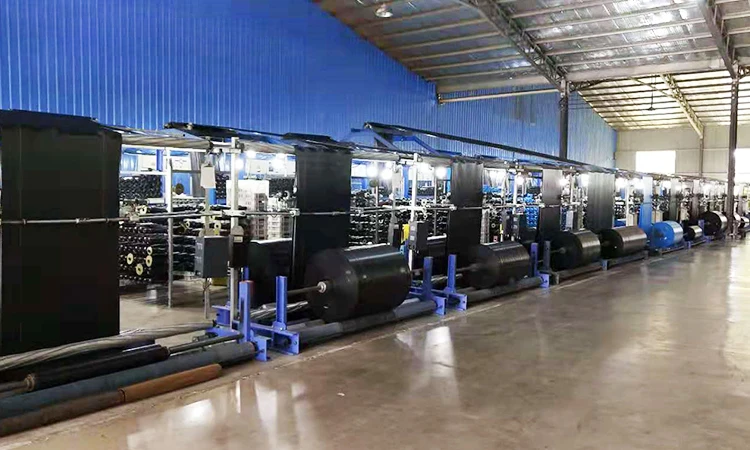

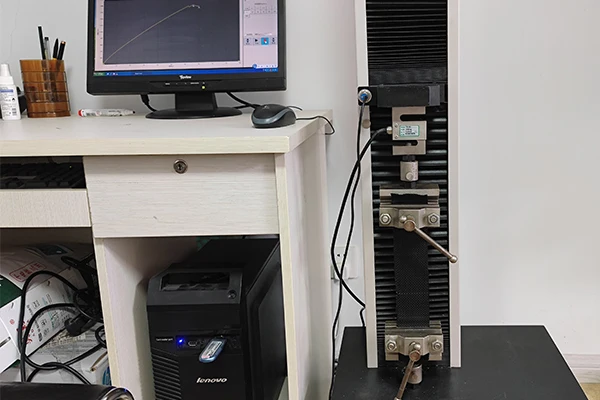

Strictly Control Quality
We strictly control quality during producing and doing fully quality check before products leave the factory.
Company Profile
Professional OEM of Industrial Textile for 15 years.

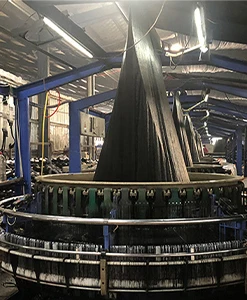

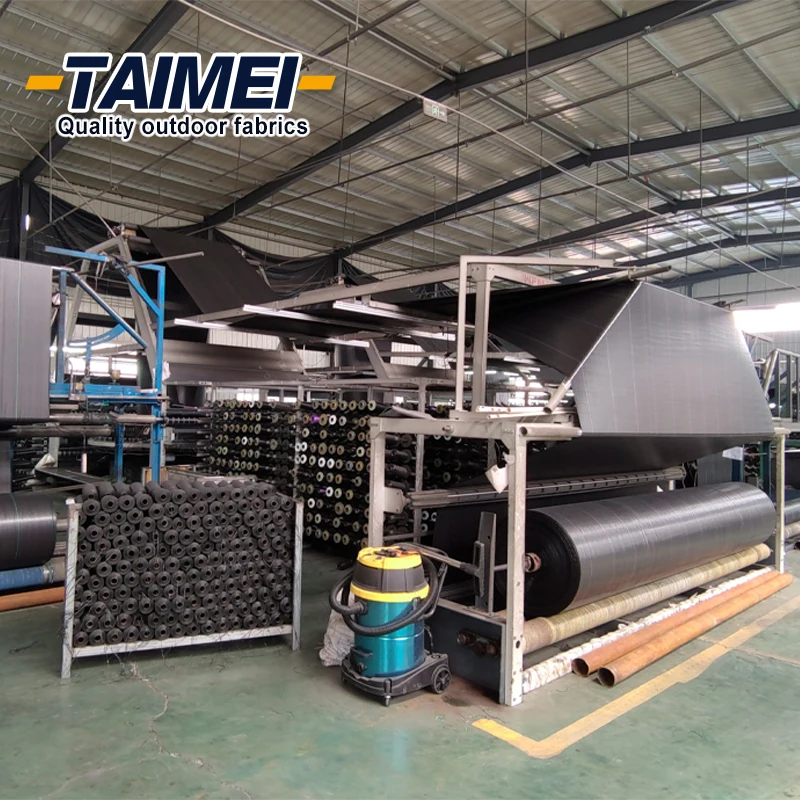

TAIMEI Group is a ISO9001 certificated supplier of coated and un-coated woven textile, extruded films and sun shade covers. We headquartered in Qingdao, is responsible for marketing and R&D, while manufacturers in Weihai, Qingdao, Binzhou and Tai'An cities, handling production. With 15+ years of group experience in manufacturing, our production teams have 20+ years of experience in the production of a different kind of fabric, 380+ customers in 60+ countries worldwide, and for a variety of markets, applications and end-users.
In order to provide more professional fabric and finished products to our clients, we split our business to 4 divisions: Woven Division, Geosynthesis Division, Shade Fabric Division, and Tarpaulin Division. To provide many different fabric for different application.
In order to provide more professional fabric and finished products to our clients, we split our business to 4 divisions: Woven Division, Geosynthesis Division, Shade Fabric Division, and Tarpaulin Division. To provide many different fabric for different application.
