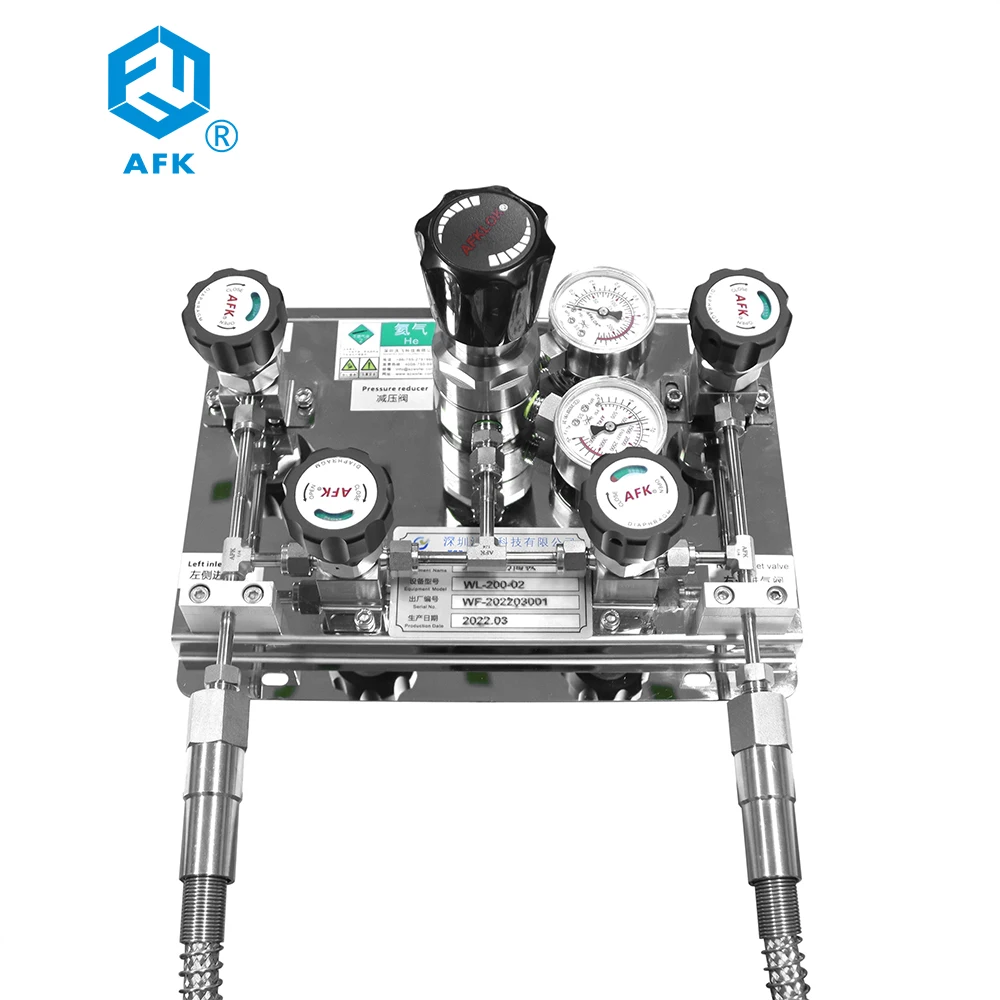

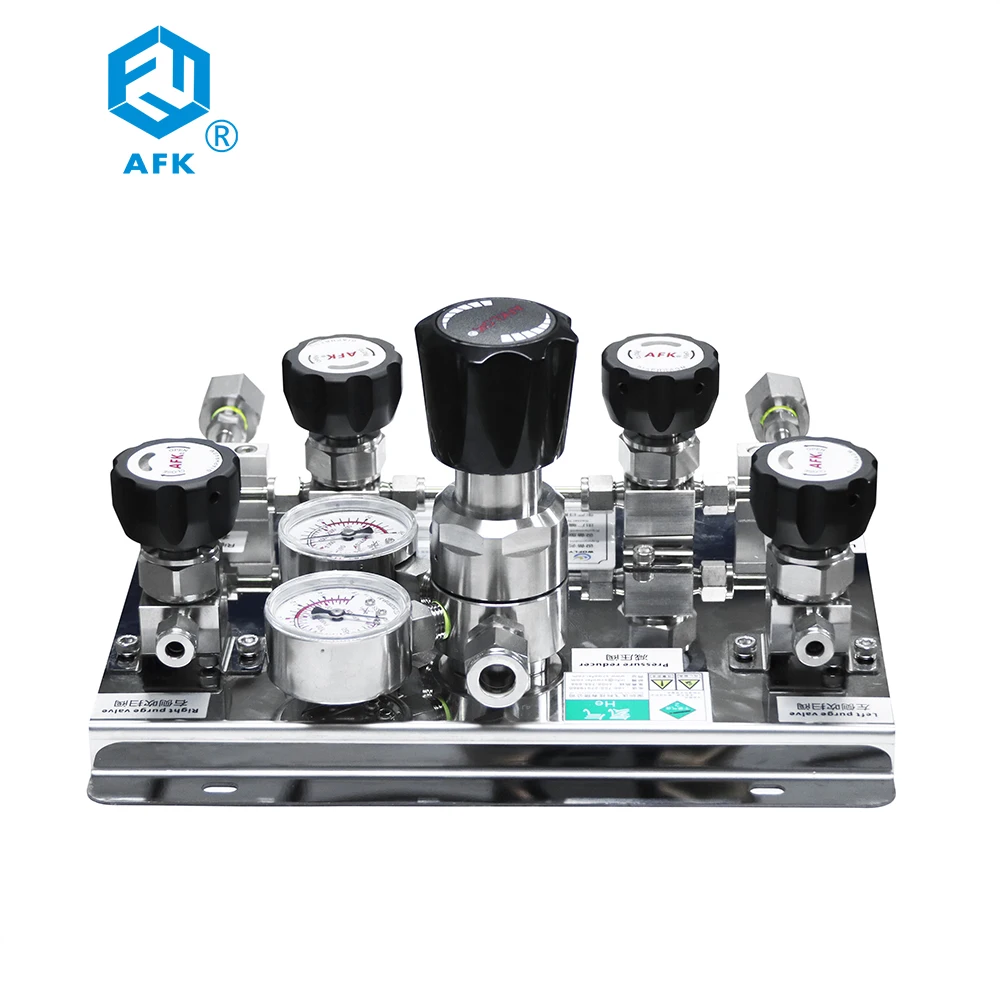

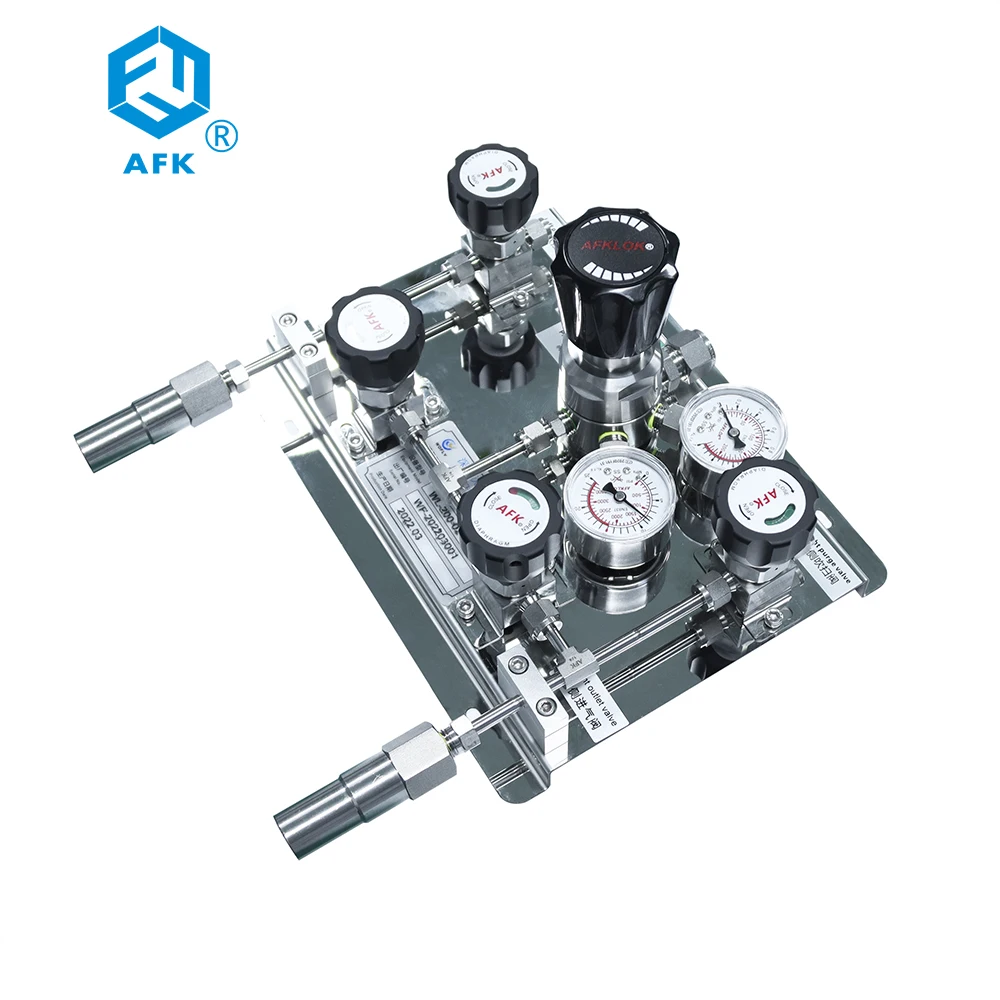

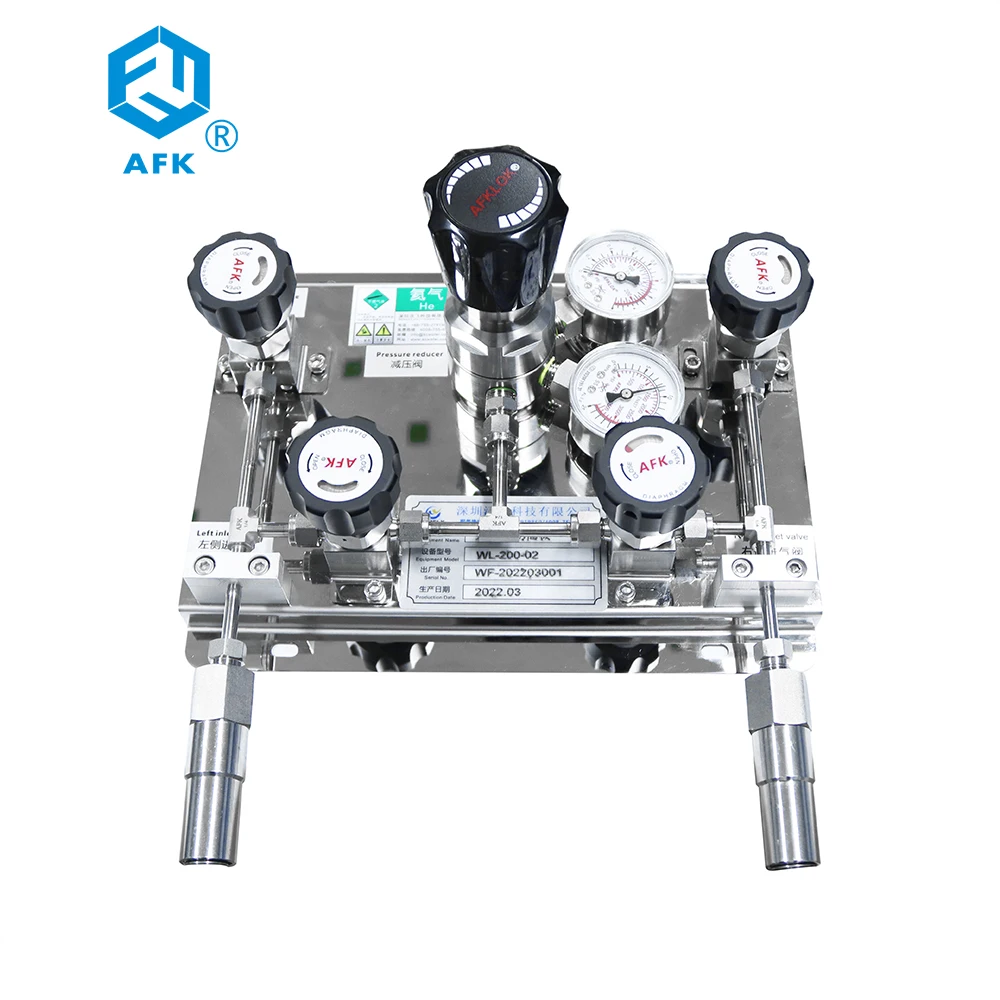

AFK WL200 нержавеющая сталь азот/гелий/Кислород/аргон/CO2/H2/NO2 газовый регулятор давления ручная двойная бутылка системы подачи воздуха
- Категория товара: Testing Instrument & Equipment >>>
- Поставщик (Оптовый магазин): Shenzhen,Wofly,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply.It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7mpa（3000psi），corrosion resistance，clean shop assembly test，gas analysis such as high purity gas.
Specification
Features of Manual Double Bottle Air Supply System | ||
1 | pressure regulator for special gas | |
2 | equipped relief pressure valve | |
3 | pressure regulator and pipe through clearly the pressure test and leakage test | |
4 | 2"stainless steel pressure gauge，reading clearly | |
5 | the knob of diaphragm valves with on/off logo | |
Materials of Construction | ||||
1 | body | stainless steel | ||
2 | seat | PU,PTFE,PCTFE | ||
3 | inlet connection | 1/4"tube fitting,1/4"FSR,1/2"FSR | ||
4 | outlet connection | 1/4"tube fitting，1/4"FSR | ||
5 | body of diaphragm valve | stainless steel | ||
Specfications of Manual Double Bottle Air Supply System | ||||
1 | max.inlet pressure | 3000,2200psi | ||
2 | max.outlet pressure | 25,50,100,150,250psi | ||
3 | working temperature | -40℃~74℃（-40℉~165℉） | ||

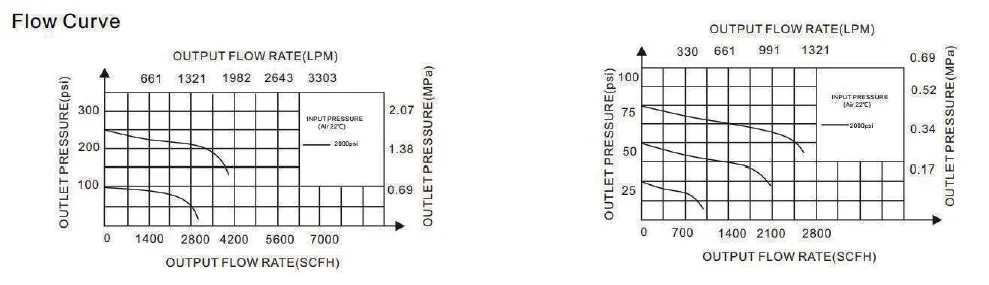

4 | flow rate | see flow curve chart | ||
5 | pressure regulator leakage rate | 2x10-8 atm.cc/sec He | ||
6 | CV | 0.14 | ||
Ordering Information of Manual Double Bottle Air Supply System | ||||||||||||||||
WL3 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 | ||||||||
Series | Function Options | Outlet Connection | Inlet Connection | Body Material | Input Pressure | Outlet Pressure | Gauge | Gas Option | ||||||||
WL300 Double gas supply high pressure regulator device | 1.With emptying, purging distribution function | 1:1/4”NPT(F) | 1:1/4″Weldmg | S:stainless steel | H:3000psi | 1:25psi | 1:MPa | Blank: None | ||||||||
2.Wrthout Emptying, purging distribution function | 2:1/4”Tube fitting | 2:1/4”NPT(M) | M:2200psi | 2:50psi | 2:Bar/psi | N2:nitrogen | ||||||||||
3.Emptying. purging distnbution+pressure sensor | 3:3/8”NPT(F) | 3:3/8”Melding | C:nickel plated brass | L:1000psi | 3:100psi | 3:psi/KPa | O2:oxygen | |||||||||
4.With pressure sensor | 4:3/8”Tube fitting | 4:3/8”NPT(M) | 4：150psi | H2:hydrogen | ||||||||||||
5:1/2”NPT(F) | 5:1/2″Weldmg | 5：250psi | C2H2:acetylene | |||||||||||||
6:1/2”Tube fitting | 6:1/2”NPT(M) | CH4:methane | ||||||||||||||
7:1/4”Tube fitting | Ar:argon | |||||||||||||||
8:3/8”Tube fitting | He：helium | |||||||||||||||
9:1/2”Tube fitting | Air：air | |||||||||||||||
Packing & Delivery
inner box packing +white box packing+ export carton
Company Profile
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipements, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
