Product Description
Chigo air conditioners evaporative air cooler ducted barn swamp cooler greenhouse air conditioner
Main features of Chigo air conditioners evaporative air cooler ducted barn swamp cooler greenhouse air conditioner
1-The frame material is high quality engineering plastic PP,corrosion resistance,with long service life, beautiful appearance.
2- cooling pad can be 7090 or 5090 model.
3- blades are high quality plastic material PP with steel bracket/ stainless steel blade/aluminum alloy blade, promise long
service life, steel or aluminum blade bracket motor support can be choosen.
4- the motor power can be 1.1Kw(1.5HP) and 1.5Kw(2.0HP),2.2Kw, 3Kw,4kw .
5- shutters can be wind automatic type or electric type, air windows can be 1/2/4/8 sides.
6- side, down or top air discharge.
7- Voltage can be customized with 380 /415/220v.
Characteristics and parameters of Chigo air conditioners evaporative air cooler ducted barn swamp cooler greenhouse air conditioner
2-Reduce temperature,purify air with no noise.
3-Positive pressure air supply without all the premises closed,specially used for factories,work shop,canteens,cafes,clothing textiles,greenhouse etc farming or industrial large hall for cooling and wetting.
4- Environment friendly and high efficiency.
5- Package: Plastic file and then in paper carton to prevent from damage.
6- Assembled and unassembled( CKD, SKD) both can be supplied.
Power (kw) | szie (mm) | Air flow (m3/h) | using area (m2) | fan type | voltage/frequency(v) | Noise(db) | water consumption （L/H) | Outlet size (mm) | cooling pad |
1.1 | 1100*1100*950 | 18000 | 120-150 | axial | 380/220/50hz/60 | ≤65 | 10-15 | 670*670 | 7090/ 5090 |
1.5 | 1100*1100*950 | 22000 | 120-160 | axial | 380/220/50hz/60 | ≤65 | 10-15 | 670*670 | 7090/ 5090 |
2.2 | 1150*1150*1150 | 25000 | 160-260 | axial | 380/220/50hz/60 | ≤70 | 10-15 | 670*670 | 7090/ 5090 |
3 | 1250*1250*1250 | 30000 | 200-300 | axial | 380/220/50/60hz | ≤70 | 40 | 800*800 | 7090/ 5090 |
4 | 1430*1430*1380 | 40000 | 260-400 | axial | 380/50 | ≤70 | 40-50 | 900*900 | 7090/5090 |

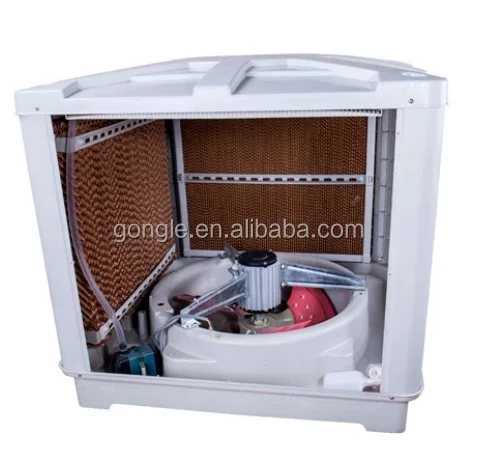

Detailed Images
1 | Dust Filter | Prevent dust and flies into the cooling pad |
2 | Cooling Pad | 7090/5090 Obvious cooling effect in top quality |
3 | Water Pump | protection design, keep product last longer |
4 | Sealed Aluminum Motor | Super quality pure copper motor with efficient heat exchange |
5 | Draw-off Valve | Timing drain circulating water by manual or automatic |
6 | Water Level Probe | Water control system to protect your water air condition |
7 | Water distributor | Water flows uniform smoothly & no-blocking with water distributor |
8 | PP Plastic Shell | Anti-UV, anti-corrosion, anti-aging, anti-deformation |
9 | Electric Board | Prevent moisture and safe in use |
10 | Auto Water Inlet Valve | Auto water to keep the appropriate water level |
11 | Fan blade | To clean air in using time |
12 | Speed controller | 12 speed or normal type |
Part 1. Motor
High-performance motor, high-quality copper wire, good heat dissipation and safer. Motor protection rating: IP55. Supports voltage and frequency customized .
Part 2. Fan Blade
A variety of fan blade are available, low noise, high air volume,stable operation.
Full plastic and with iron blades are supplied
Part 3. Cooling Pad
Strong water absorption, good evaporation effect, fan outlet temperature is reduced by 6-8℃.
model 7090 and 5090 can be choosed
Part 4. Water Pump
Low noise, energy saving.
Round shape and rectangle shape can be supplied.
Part 5. Inlet Float
When the water level reach a floating level, it stops the water supply.
1.The discharge can be up, down or side
2.The discharge quantity can be one ,two ,four or six
Application
Widely application of Chigo air conditioners evaporative air cooler ducted barn swamp cooler greenhouse air conditioner
1)Any Industrial (Texitle, Garment, Plastic, Ceramic etc).
2)Commercial (shopping mall, restaurant, parties etc).
3)House, villas, office ect.
4)Coporation countries: South Africa ,Algeria ,Philippines ,Thailand, Australia, Brazil ,Romania, Cyprus, Africa, Middle East ,etc .
Packing & Delivery
Package: in carton and packing belt.
Delivery: FCL or LCL by sea.
Assembled and unassembled both can be supplied.
