Product Description

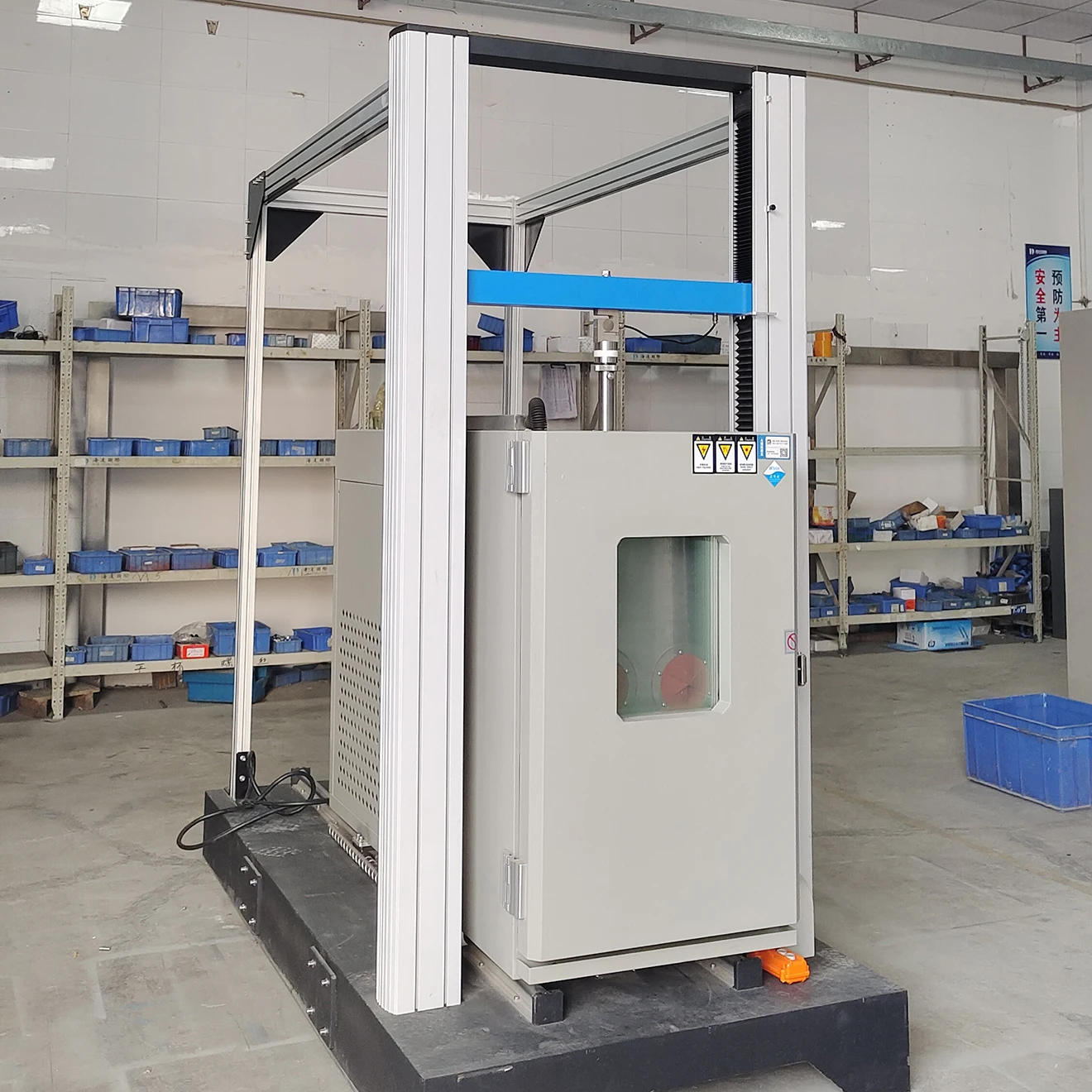

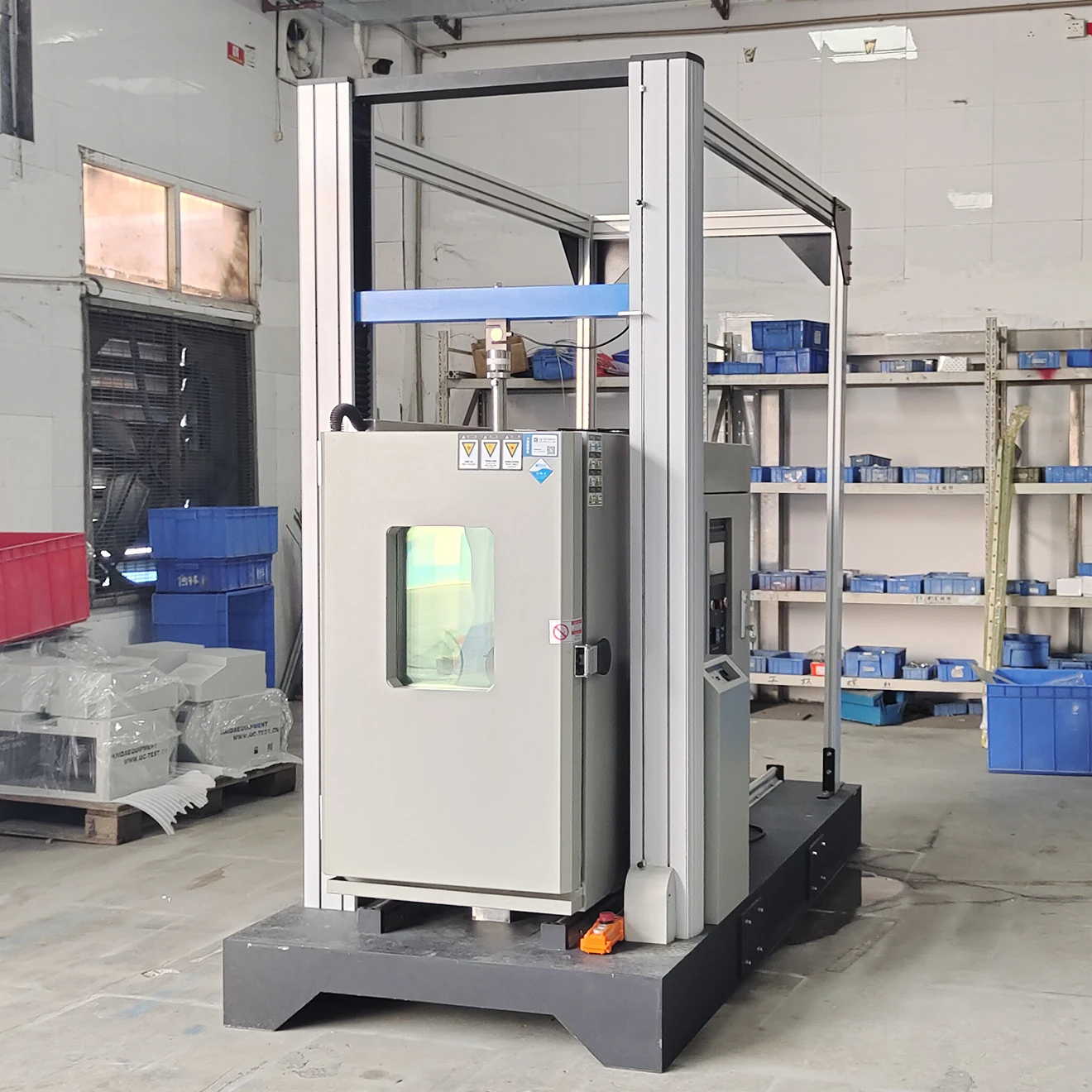

High Low Temperature Tensile Test Machine is used to meet customer specified test requirements, which it can do tensile, tear test under specified temperature. This machine includes two parts: high & low temperature chamber and tensile tester.
Specification
Tensile Tester | ||
Frame capacity | 2000kg | |

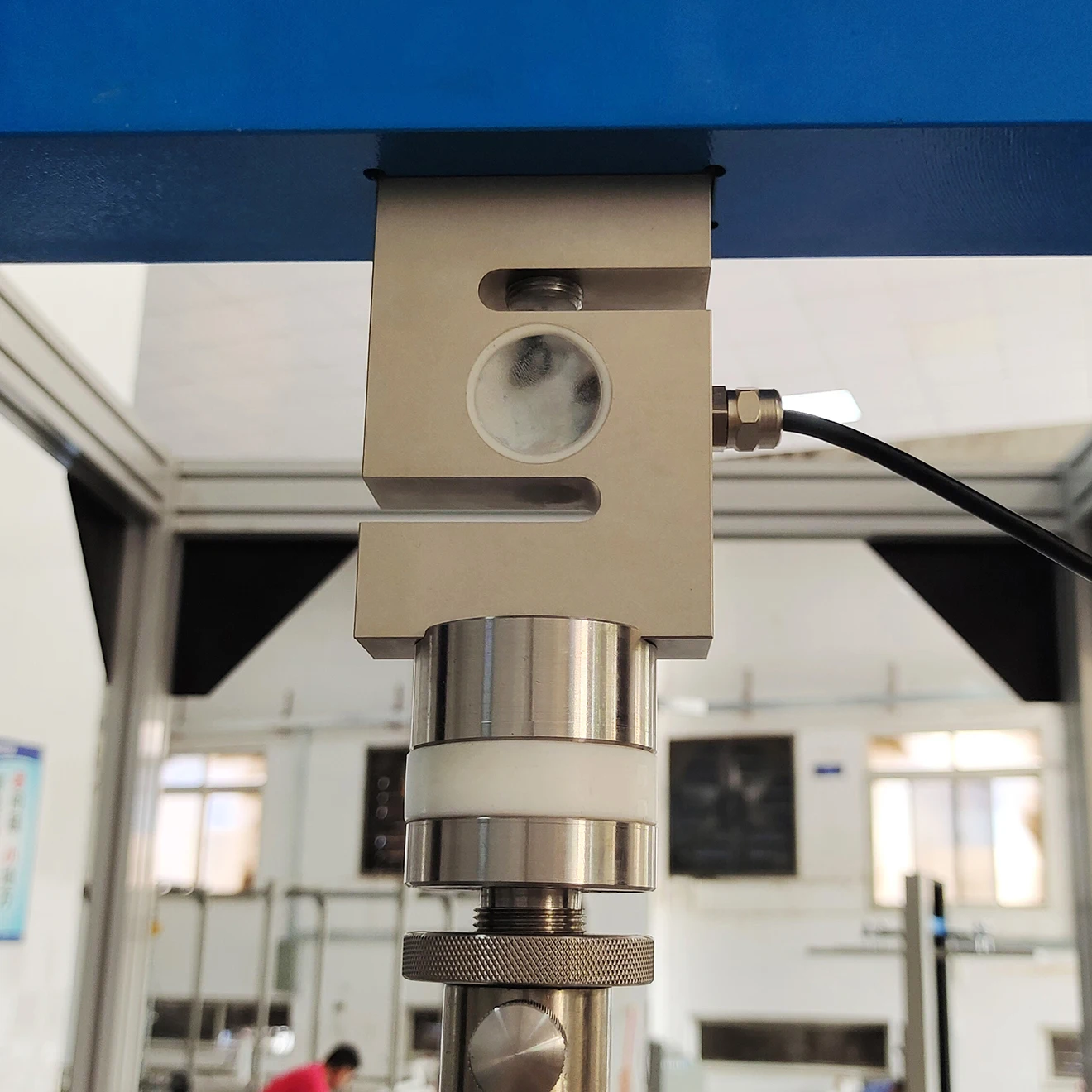

Load cell brand | Germany brand load cell for high accuracy | |
Load accuracy | 0.5% F.S | |
Control system | PC with windows 7 system | |
Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod | |
Force reading | kgf, Ibf, N, KN, T etc | |
Vertical test space | 1200mm including fixture | |
Test speed | 0.1~300mm/min (adjustable) | |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain | |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… | |
Internal dimension(W*D*H) | 400*500*500mm | |
High & Low Temperature Chamber | ||
Temperature range | -40~+150℃ | |
Temperature Accuracy | ±1℃ | |
Cooling speed | 1℃/min in average (without loading) | |
Heating speed | 3℃/min in average (without loading) | |
Internal chamber material | SUS#304 stainless steel, mirror finished | |
External chamber material | Stainless steel with paint spray | |
Cooling method | Air cooling | |

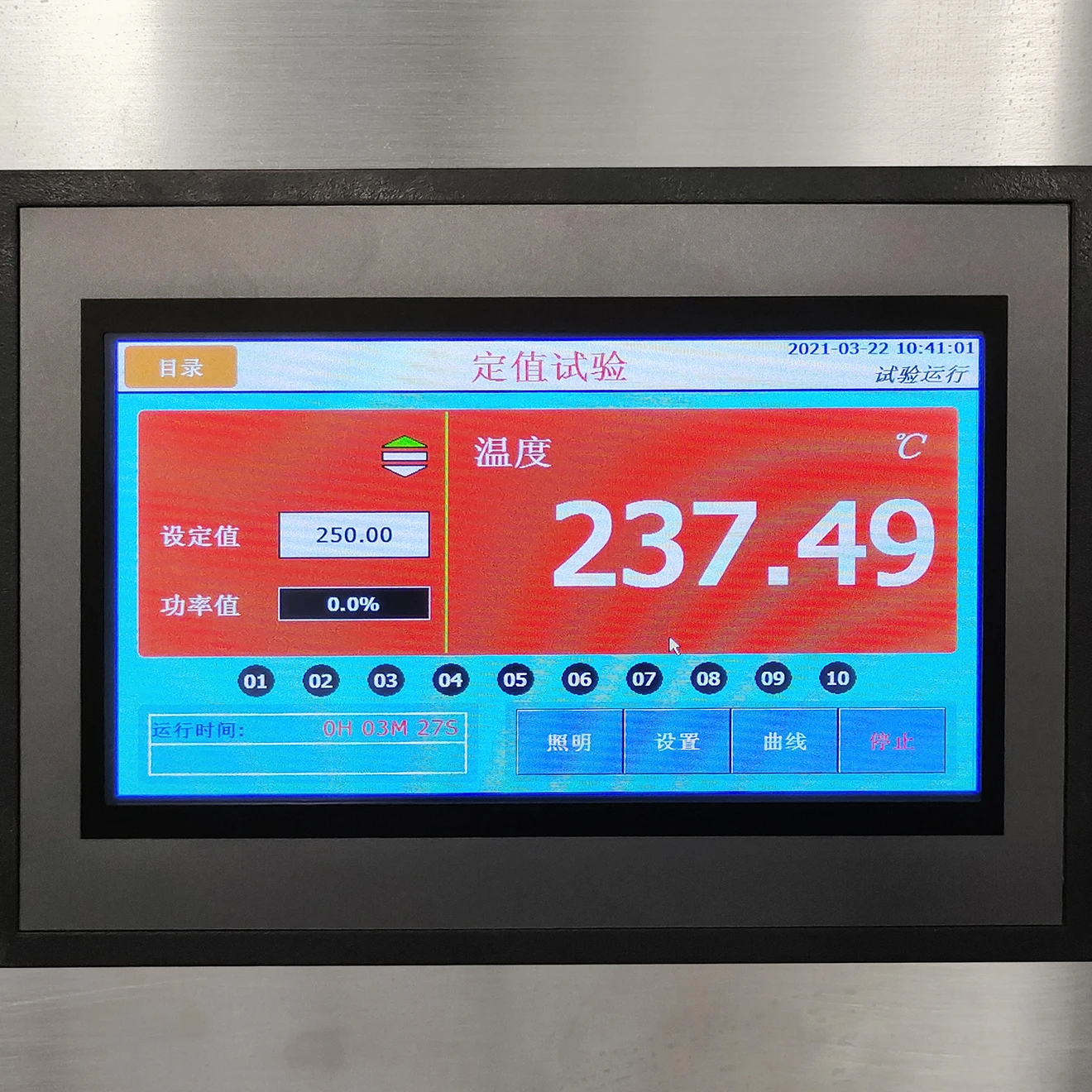

Controller | LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test | |
Insulation material | 50mm high density rigid Polyurethane foam | |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater | |
Compressor | France Tecumseh compressor | |
Lighting | Heat resistance | |
Temperature sensor | PT-100 dry and wet bulb sensor | |
Observation window | Tempered glass | |
Testing hole | Diameter 50mm, for cable routing | |
Sample tray | SUS#304 stainless steel, 2pcs | |
Tensile Testing Machine
