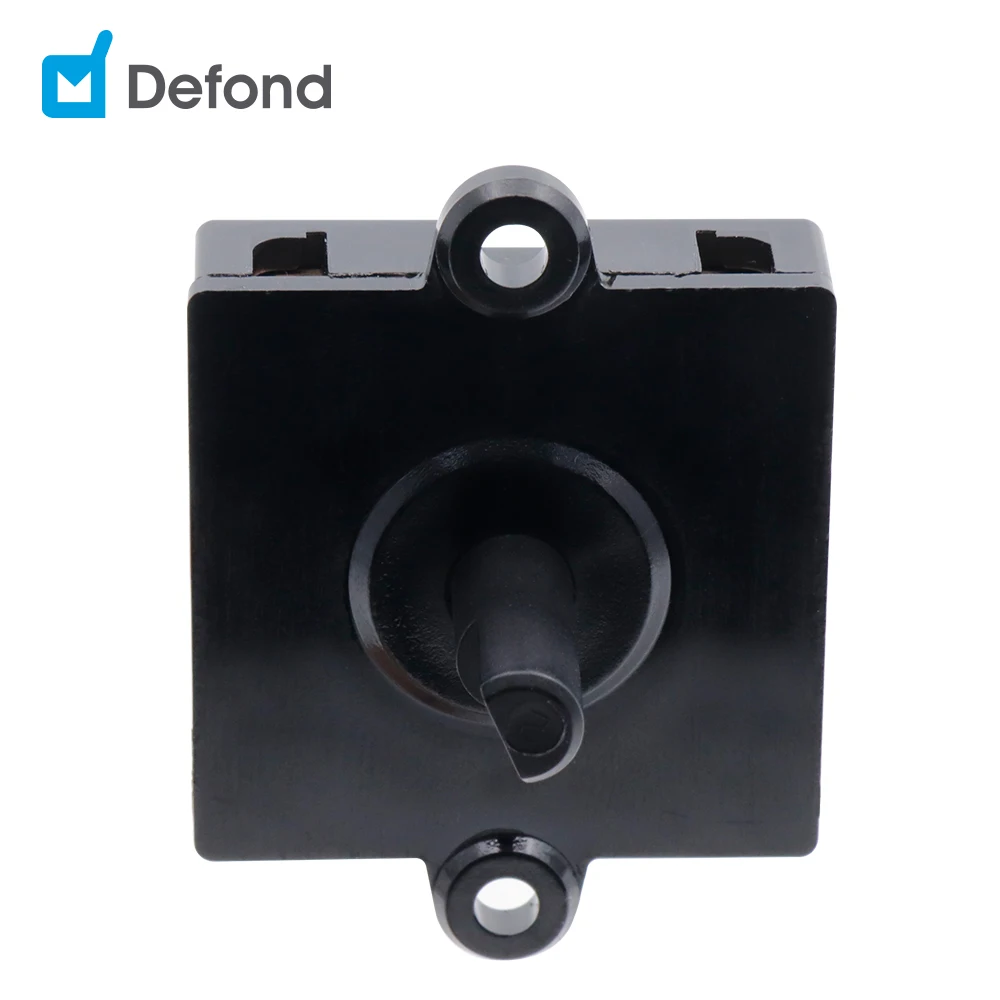

Defond 6A 120VAC 4 Позиции поворотный переключатель диапазонов CYK-1406-1-AAA31-01R 3A 240VAC SP4T поворотный переключатель для вентилятора

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики





Product Description





Defond 6A 120VAC 4 positions rotary band switch CYK-1406-1-AAA31-01R 3A 240VAC SP4T rotary switch for fan




Defond rotary switches feature with several knob options, shaft lengths and positions, by rotating the switch spindle in either clockwise or anticlockwise direction to control different circuit functions.








Features




-Quick switching speed
-Long lifespan; high reliability
-Multi-circuits rotary switch
-Multi-positions and rotation angles
-Plug in rotary switch











Applications




-Home Cleaning: Electric fan
-Kitchen Appliances: Oven Blender

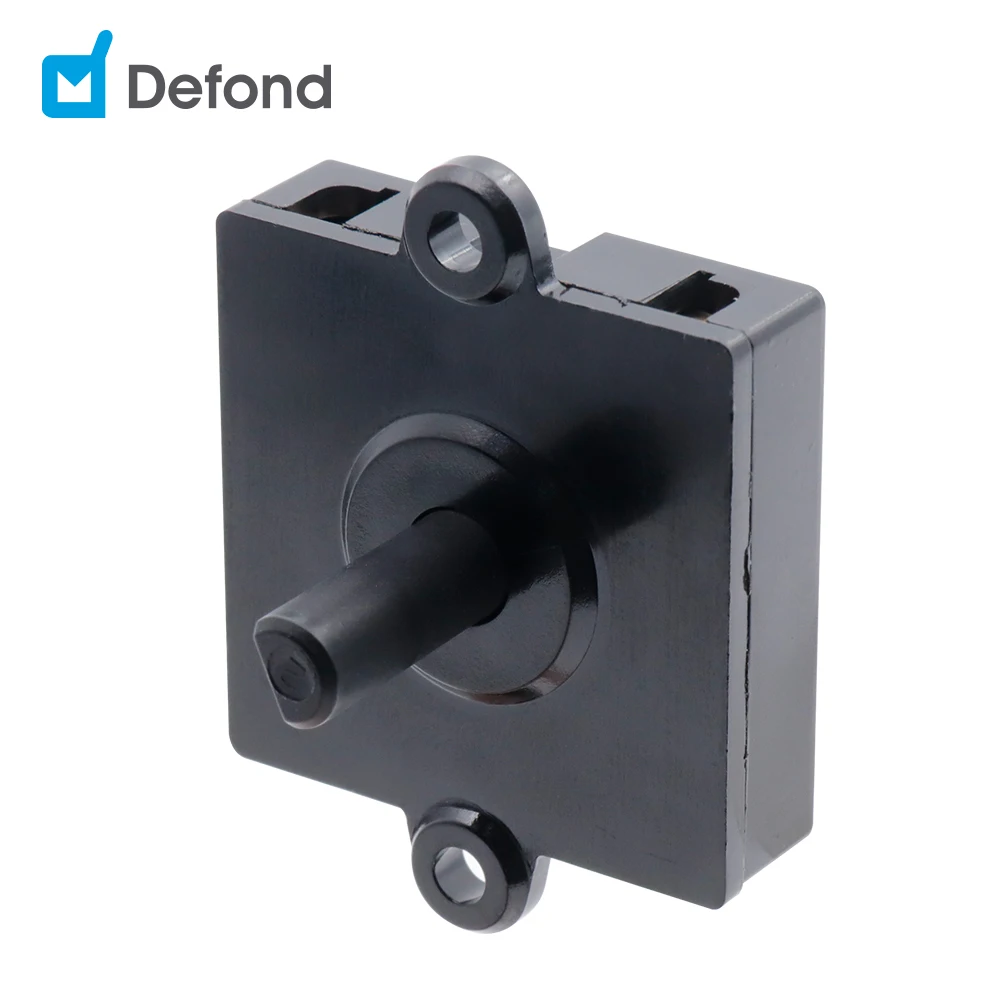

CYK-1406-1-AAA31-01R-2



























































































item


value


Certification


UL1054, ENEC


Whether the smart


NO


Place of Origin


China


Guangdong


Brand Name


Defond


Model Number


CYK-1406-1-AAA31-01R


Max. Current


6(3)A,6A,3A


Max. Voltage


120VAC, 240VAC,250VAC


Mechanical Life


UL1054: 6000 ENEC: 10000


Protection Level


IP30


LED


no


Environmental Temperature


UL1054: 0~55°C ENEC: 0~85°C


Conductive Material


Silver alloy


Size


36.1mmx31.8mmx14.9mm


Operating Force (range)


0.3 ~ 1.3 kgf.cm (3 POS.)
1.0 ~ 2.5 kgf.cm (MOMENTARY)


Insulation Resistance


50M ohm Min.


Contact Resistance


50m Ohm Max.


Pole


1


Throw


4

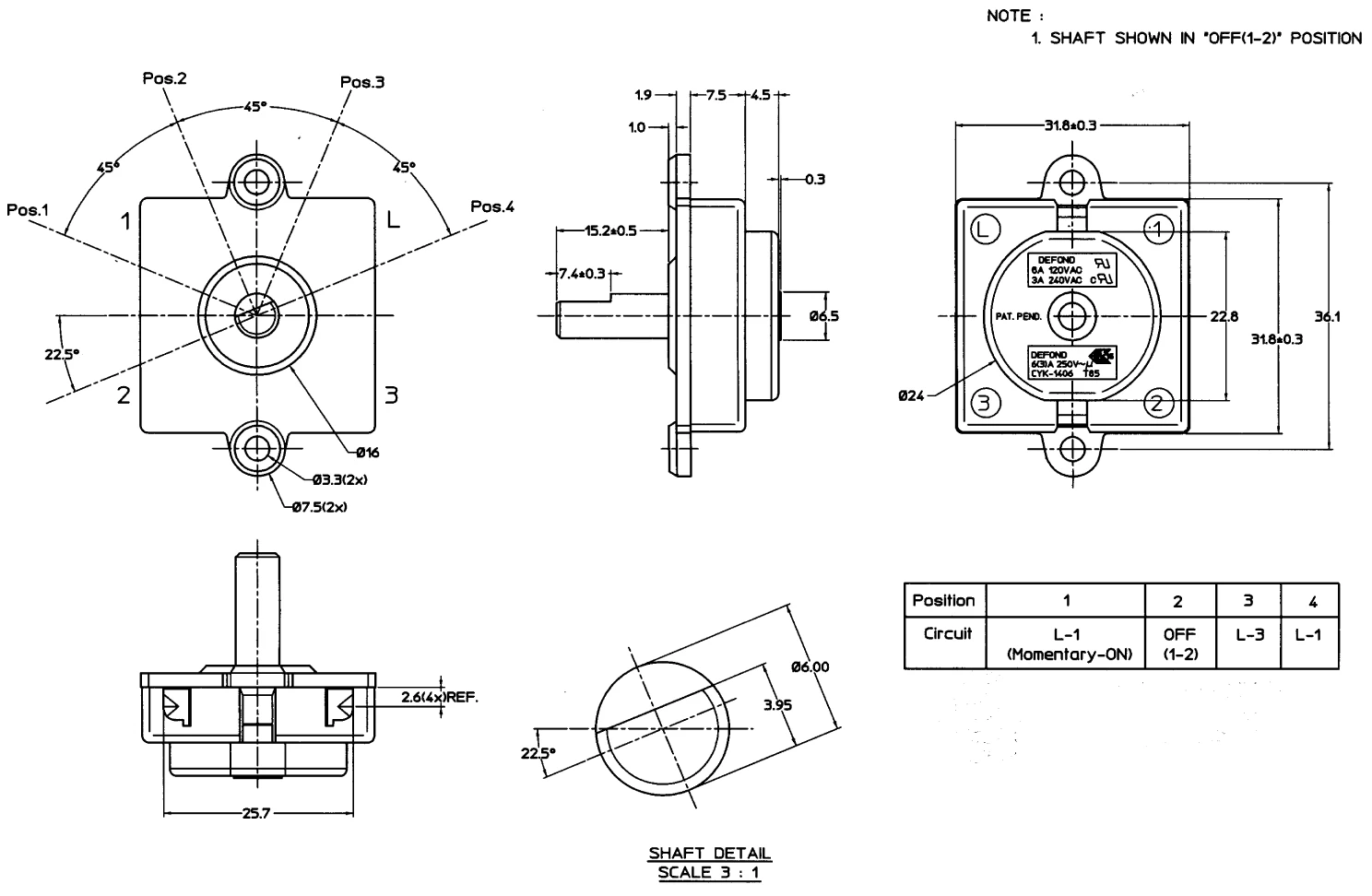

1023.CYK-1406-1-AAA31-01R

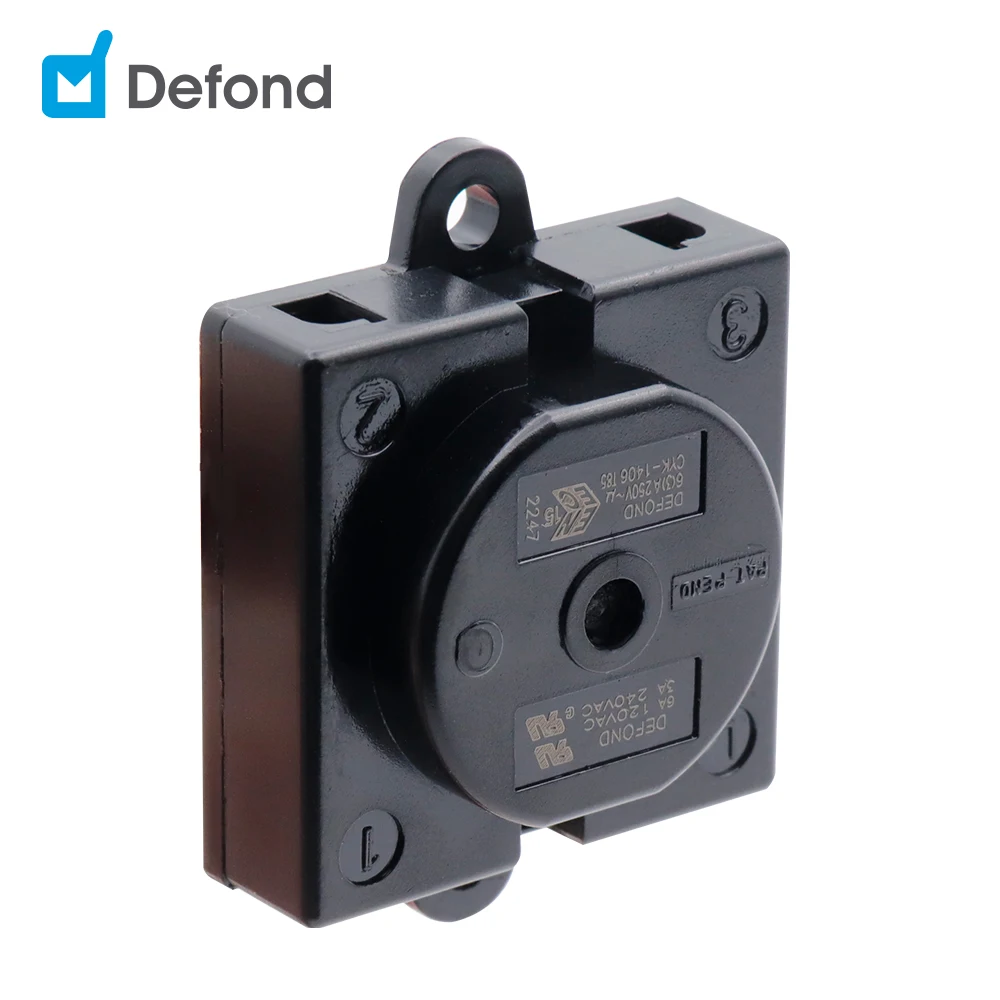

CYK-1406-1-AAA31-01R-4

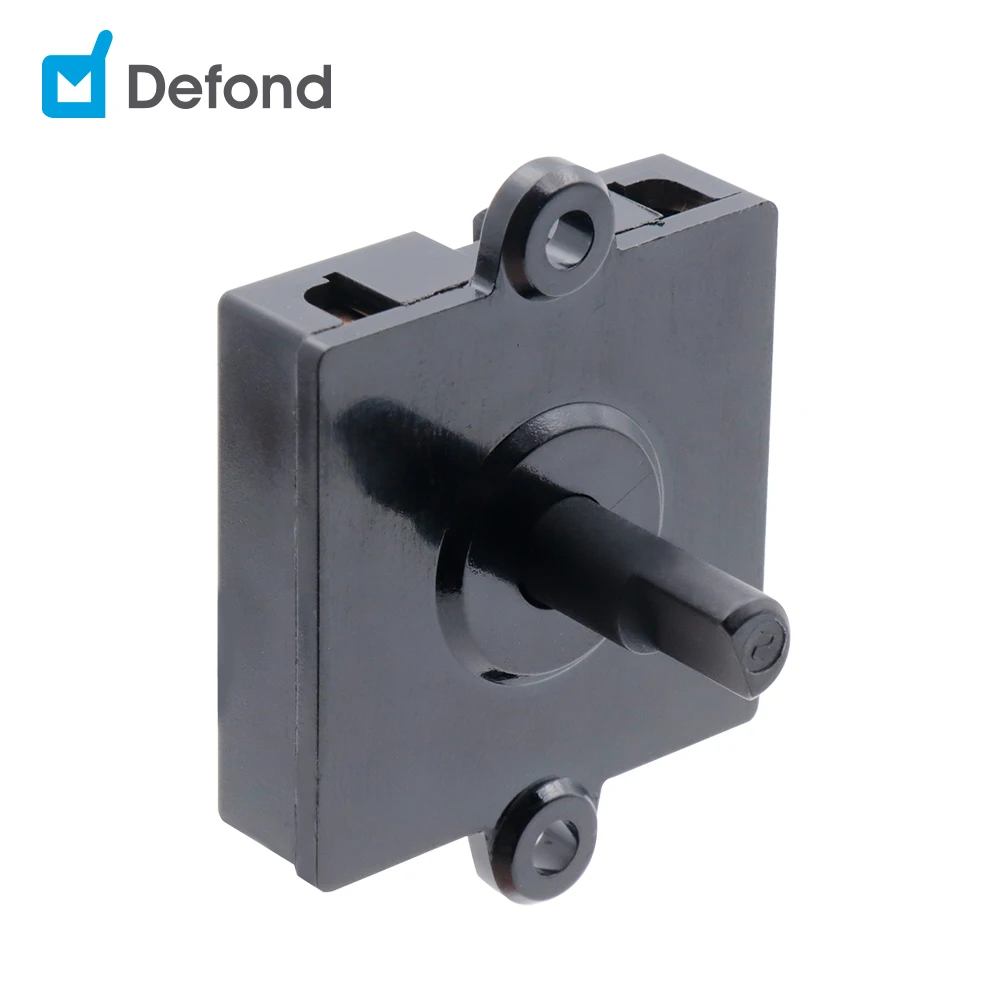

CYK-1406-1-AAA31-01R-1

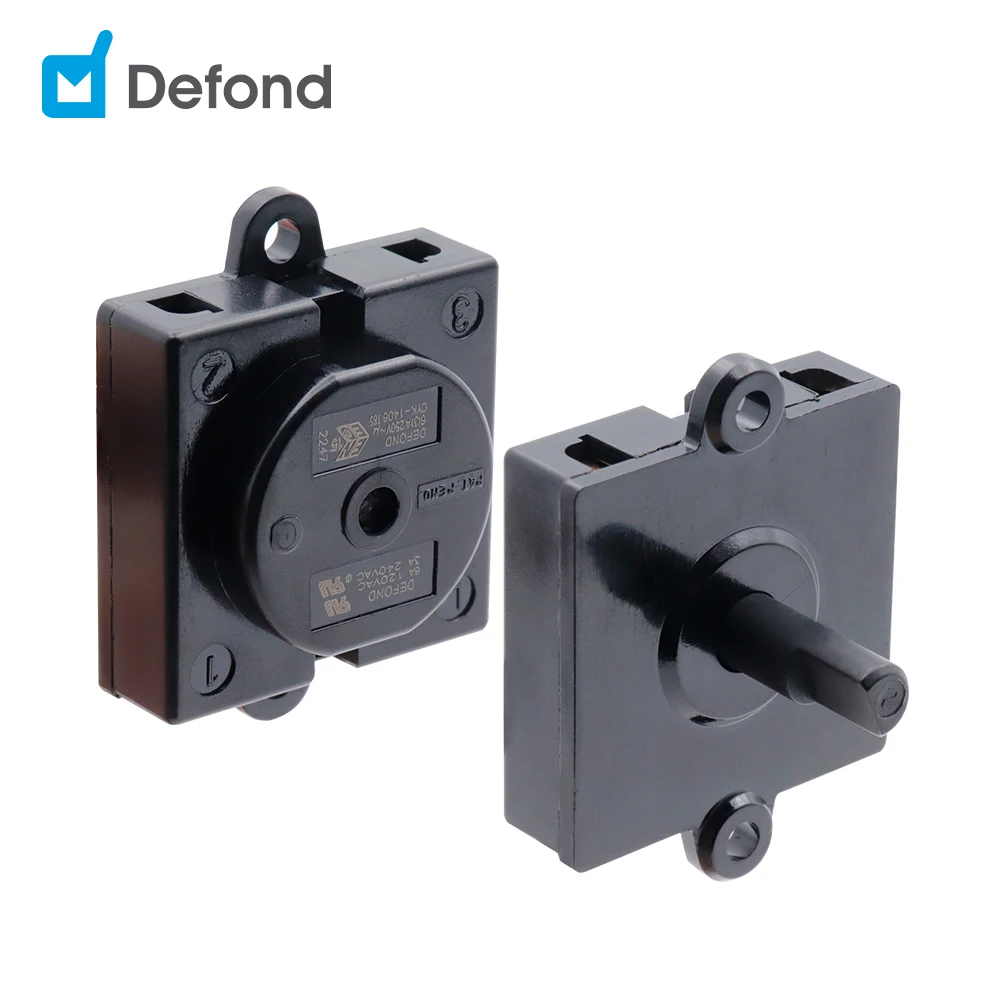

CYK-1406-1-AAA31-01R-5




Company Profile
















Founded in 1978



Our parent company was founded in 1978 as a switch manufacturer in Hong Kong, the Defond brand has achieved global recognition in various sectors.
Over four decades later, we continue to facilitate our customers’ innovation and production across the world with a wide range of integration solutions, enabling our customers to keep ahead of the competition.









What we do



Engineering expertise, flexible approach and solid financial position.
Provide customers with total solution from initial design to manufacturing. We offer original design, co-development and manufacturing services of specialized switch and sensor based components and modules with top-notch engineering support, rapid prototyping and efficient manufacturing with superior quality and much more.
