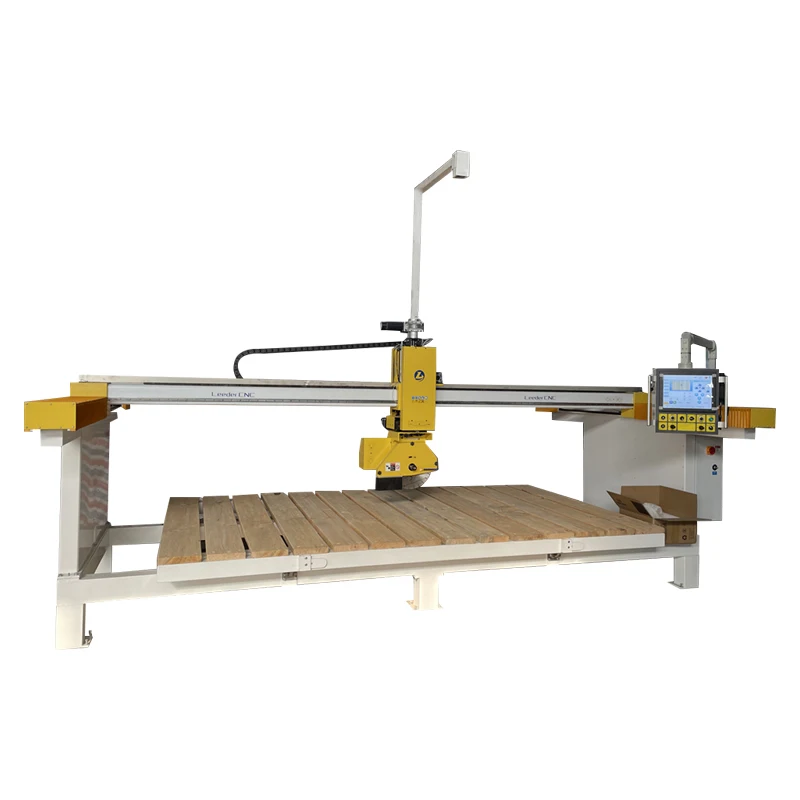

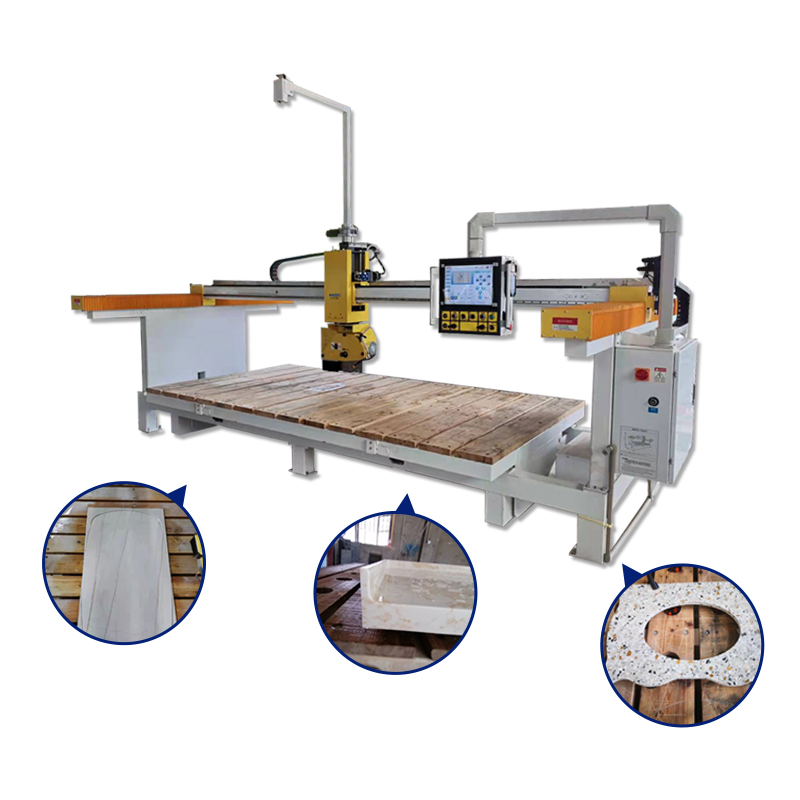

Оборудование для работы с камнем автоматический многофункциональный 5 Axis Cnc фрезерный станок пила для резки камня машина для резки мраморного камня с фрезерный станок
- Категория товара: Stone Machinery >>>
- Поставщик (Оптовый магазин): Jinan,Leeder,CNC,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Machine Features
# Cutting head: The head can rotation 360 degree, realize multi-angle cutting.
# Control system: We adopt the touch screen design, the system is upgraded and the operation is simpler, zero distance control system interface.
# Camera: We add the Camera on the machine, it's connected to the computer system, the position of the stone plates on the table can be viewed directly on the computer, which is conducive to typesetting.
# Cutting: It's can cut straight and 45 degree. (planes and bevels cutting).
# Polishing: The machine can polish various edges automatically.
# Grinding/drilling: It can grind irregular cutting surfaces and always reach a smooth effect.

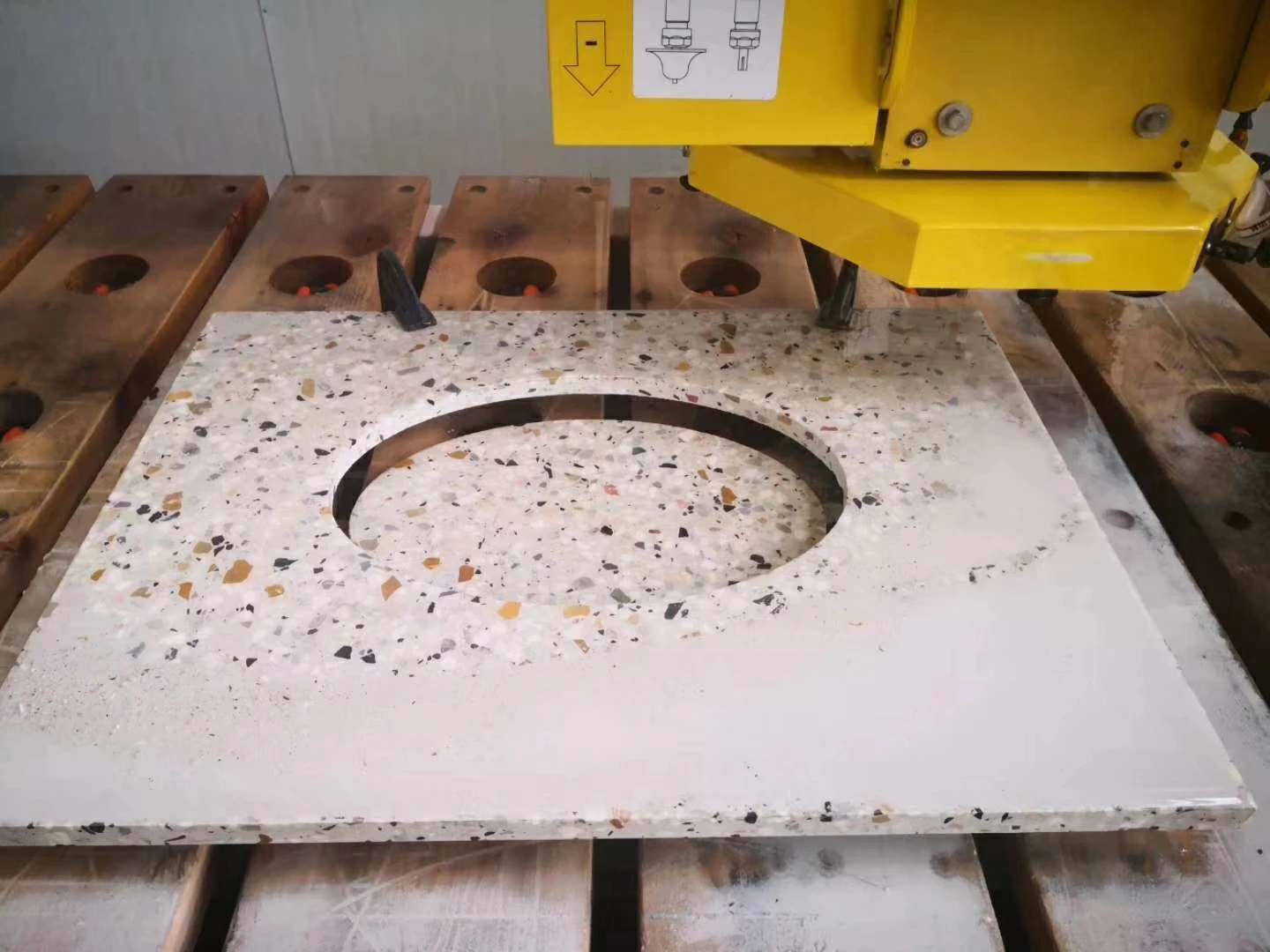

# Make Hole: The machine can make small or big hole, especially making hole for water-tap in the wash basin.

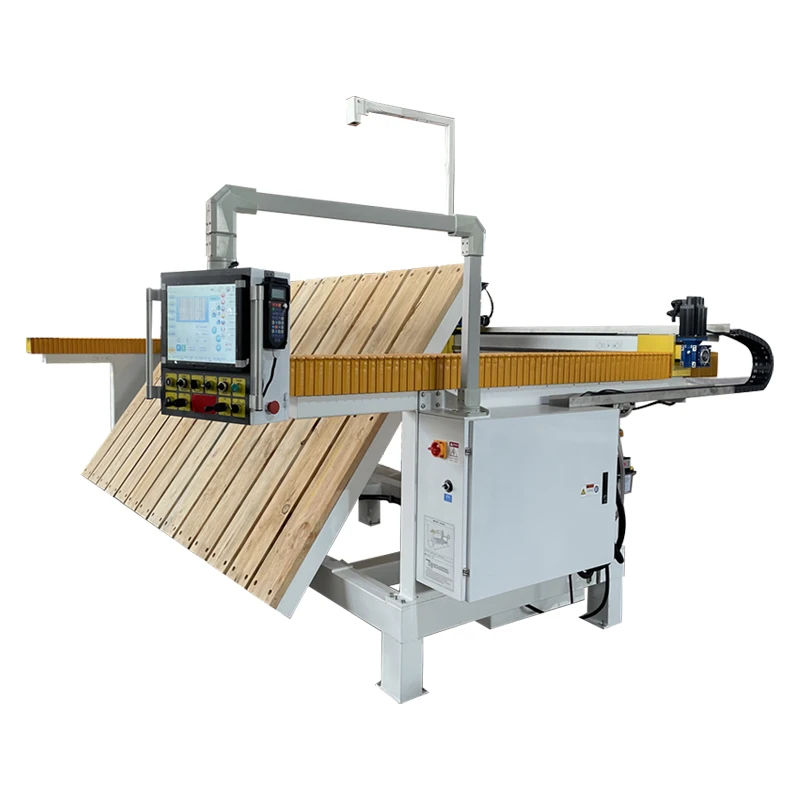

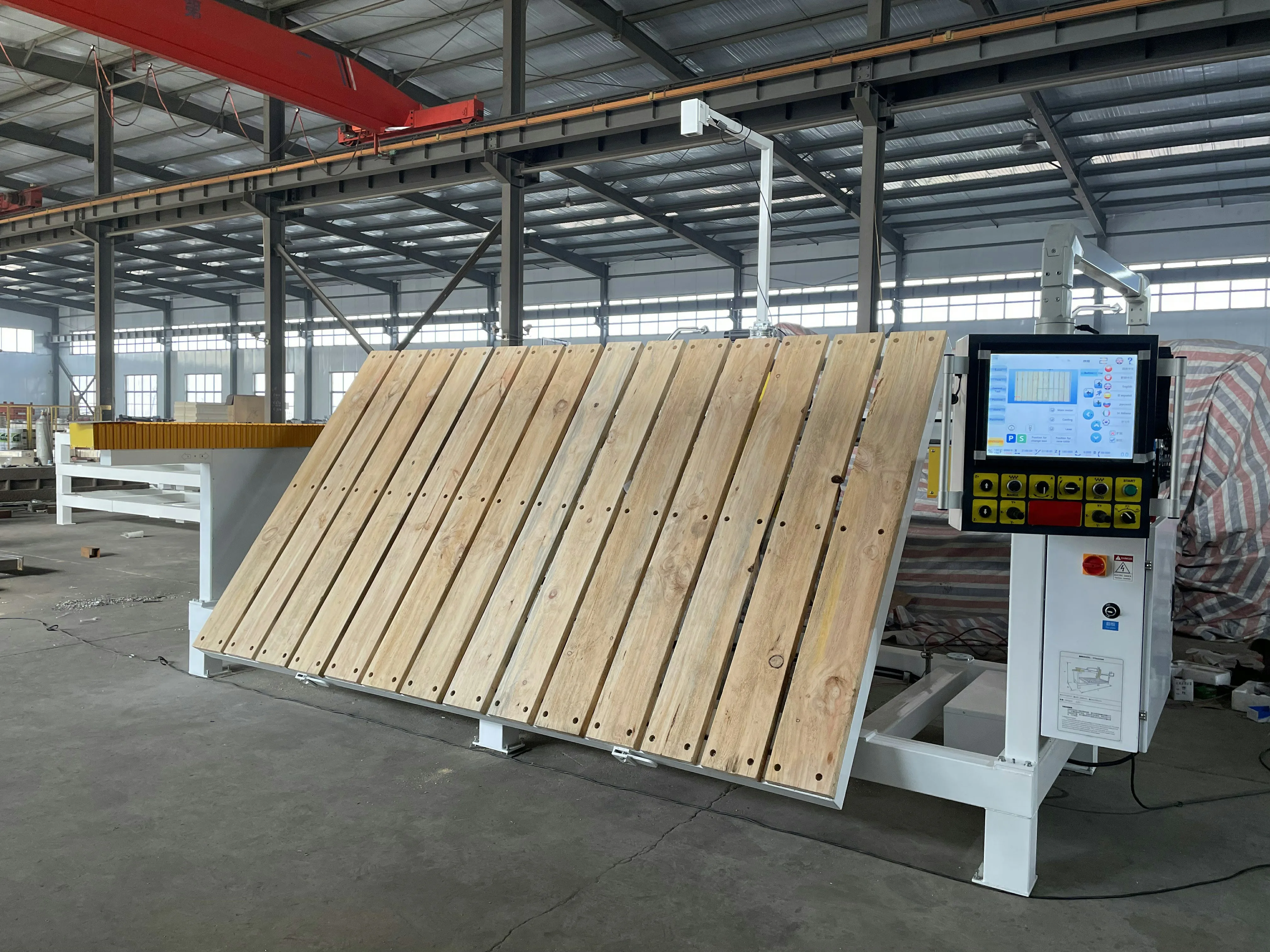

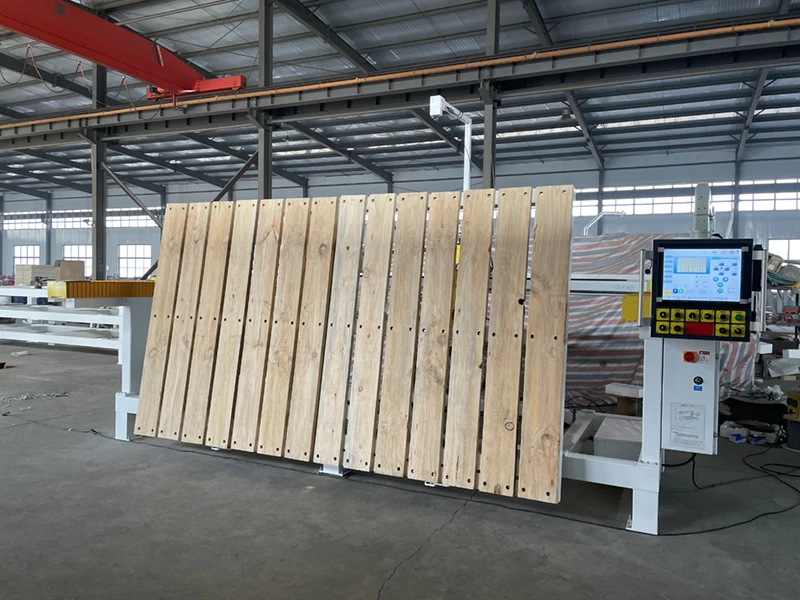

# The tilting table: The table can be turned 87 degree, It's easy to loading the materials.
# Operate wheel: The operate wheel is like the remote, you can operate the machine at any time when you are far away from the machine.

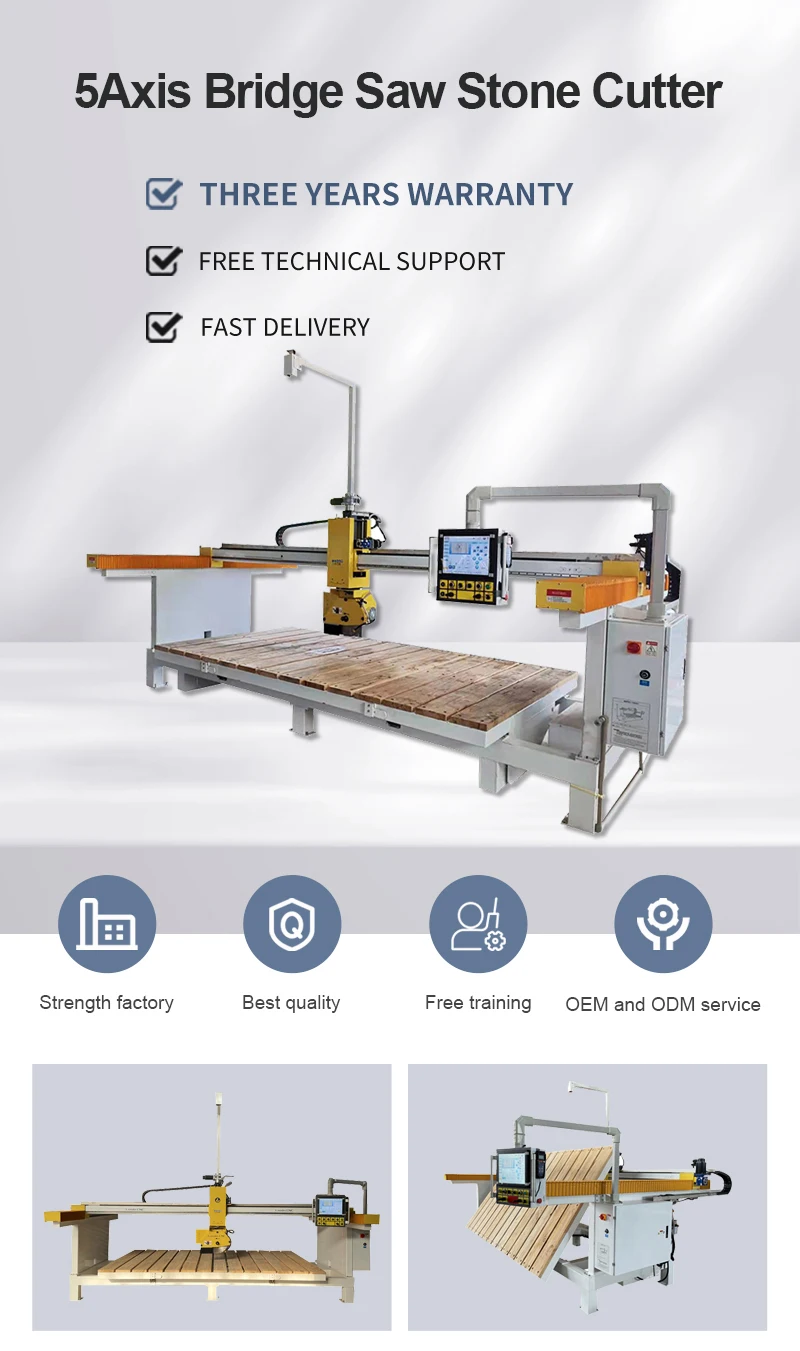

Multi-functions: Cutting straight and 45 degree, Polishing, Edging, Grinding, Making hole.With Camera, tilting table.
# Control system: We adopt the touch screen design, the system is upgraded and the operation is simpler, zero distance control system interface.
# Camera: We add the Camera on the machine, it's connected to the computer system, the position of the stone plates on the table can be viewed directly on the computer, which is conducive to typesetting.
# Cutting: It's can cut straight and 45 degree. (planes and bevels cutting).
# Polishing: The machine can polish various edges automatically.
# Grinding/drilling: It can grind irregular cutting surfaces and always reach a smooth effect.
# Make Hole: The machine can make small or big hole, especially making hole for water-tap in the wash basin.
# The tilting table: The table can be turned 87 degree, It's easy to loading the materials.
# Operate wheel: The operate wheel is like the remote, you can operate the machine at any time when you are far away from the machine.
Multi-functions: Cutting straight and 45 degree, Polishing, Edging, Grinding, Making hole.With Camera, tilting table.

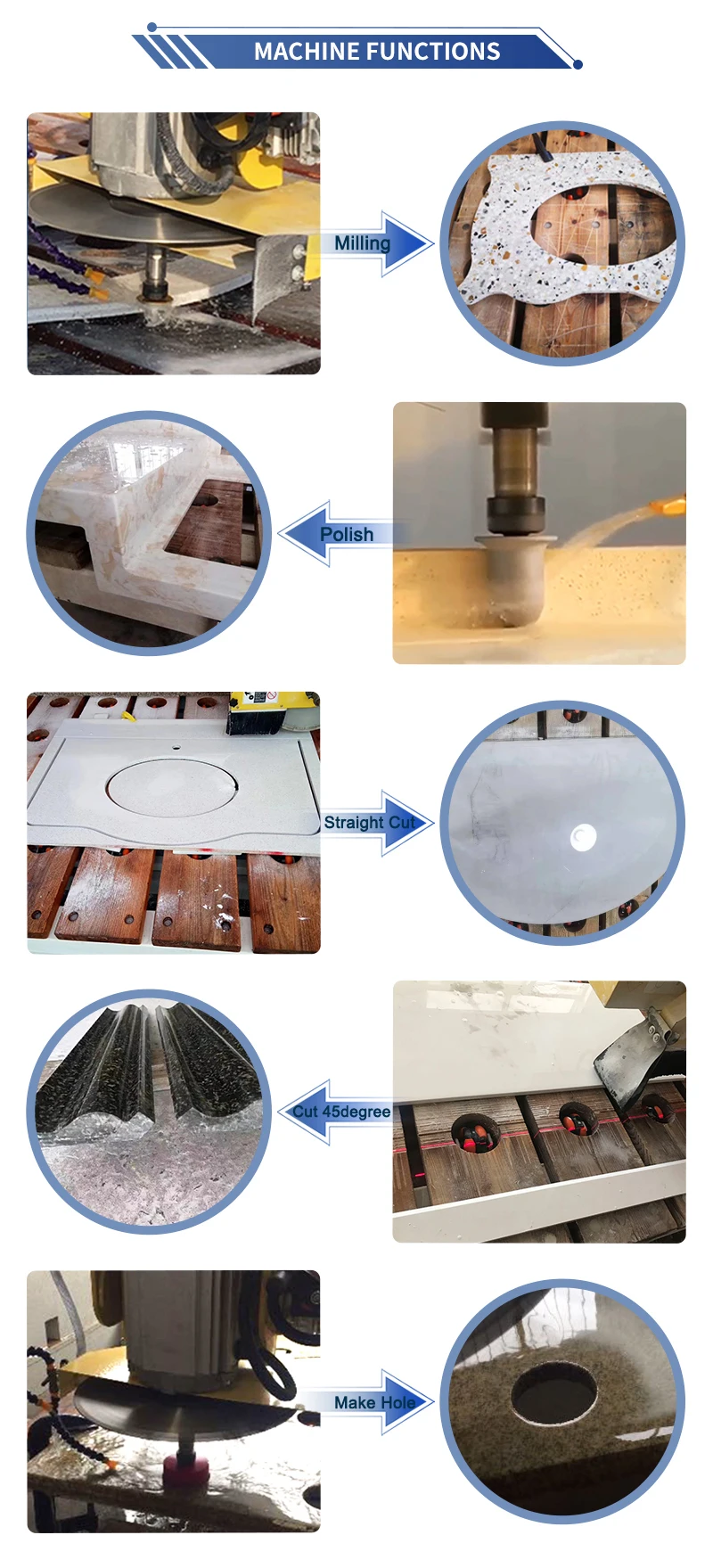

Machine Functions
Specification
Description | Parameters |
Working area | 3000*2000*350mm |
Table size | 3700*2200*1800mm |
Control method | 5 axis touch cnc control |
Programming method | CAD & Manual |
Spindle power | 4.5KW |
Blade size | 350-500mm |
Cutting thickness | 150mm |
X axis working stroke | 3000mm |
Y axis working stroke | 2000mm |
Z axis working stroke | 260mm |
A axis working stroke | 360 degree free rotation |
Driving motor | Servo motor |
Voltage | AC380/50HZ |
Tilting table | 0-87 degree |
Weight | 2300KG |
Details Images

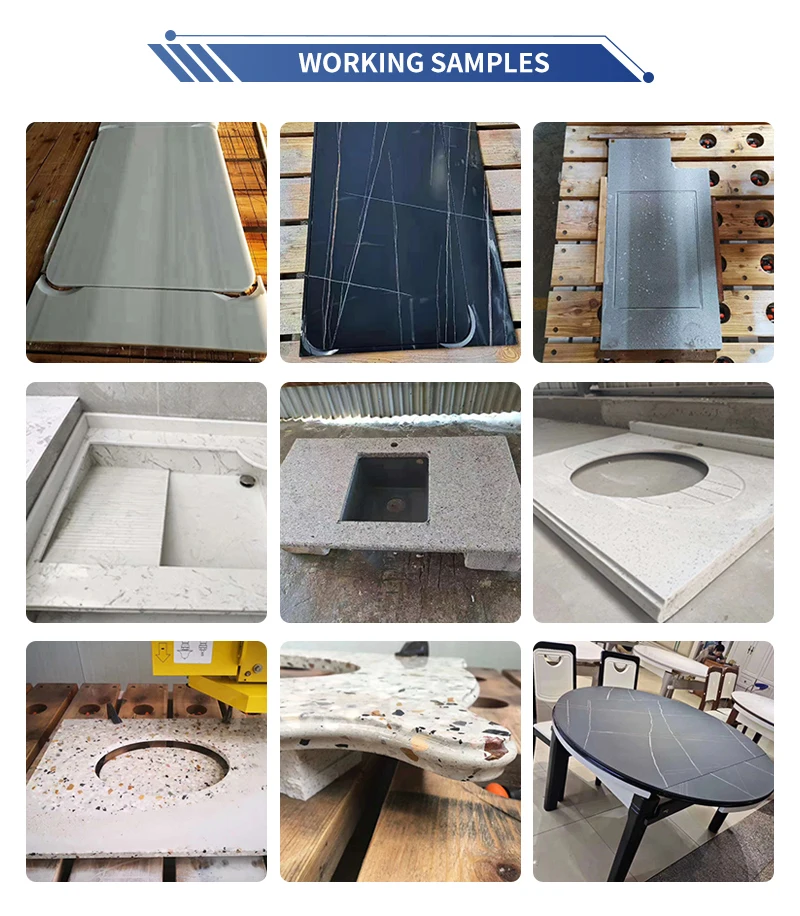

Working Sample
Professional for making kitchen countertop, It can cut, drill, slot, dig round, mill, profile edge, open basin hole, stove hole,slash cutting and other multi-functional integration, with high-quality motor, high precision and fast speed. It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.
Packing & Delivery
Payment:
We accept: Trade assurance on alibaba, T/T, Western Union , Paypel , MoneyGram.
First you pay 30% deposit, then we will arrange production to you, after finished machine, we will take machine picture and test video to you until you fell satisfied, then you arrange balanced money before delivery.
Most customers choose Trade assdurance,becs it is maximize the protection of the interests of buyers.
Package & Delivery:
The is packaged by protective fimes ,customized for every size machine.
The Machine will be shipped by 20ft container.
We accept: Trade assurance on alibaba, T/T, Western Union , Paypel , MoneyGram.
First you pay 30% deposit, then we will arrange production to you, after finished machine, we will take machine picture and test video to you until you fell satisfied, then you arrange balanced money before delivery.
Most customers choose Trade assdurance,becs it is maximize the protection of the interests of buyers.
Package & Delivery:
The is packaged by protective fimes ,customized for every size machine.
The Machine will be shipped by 20ft container.

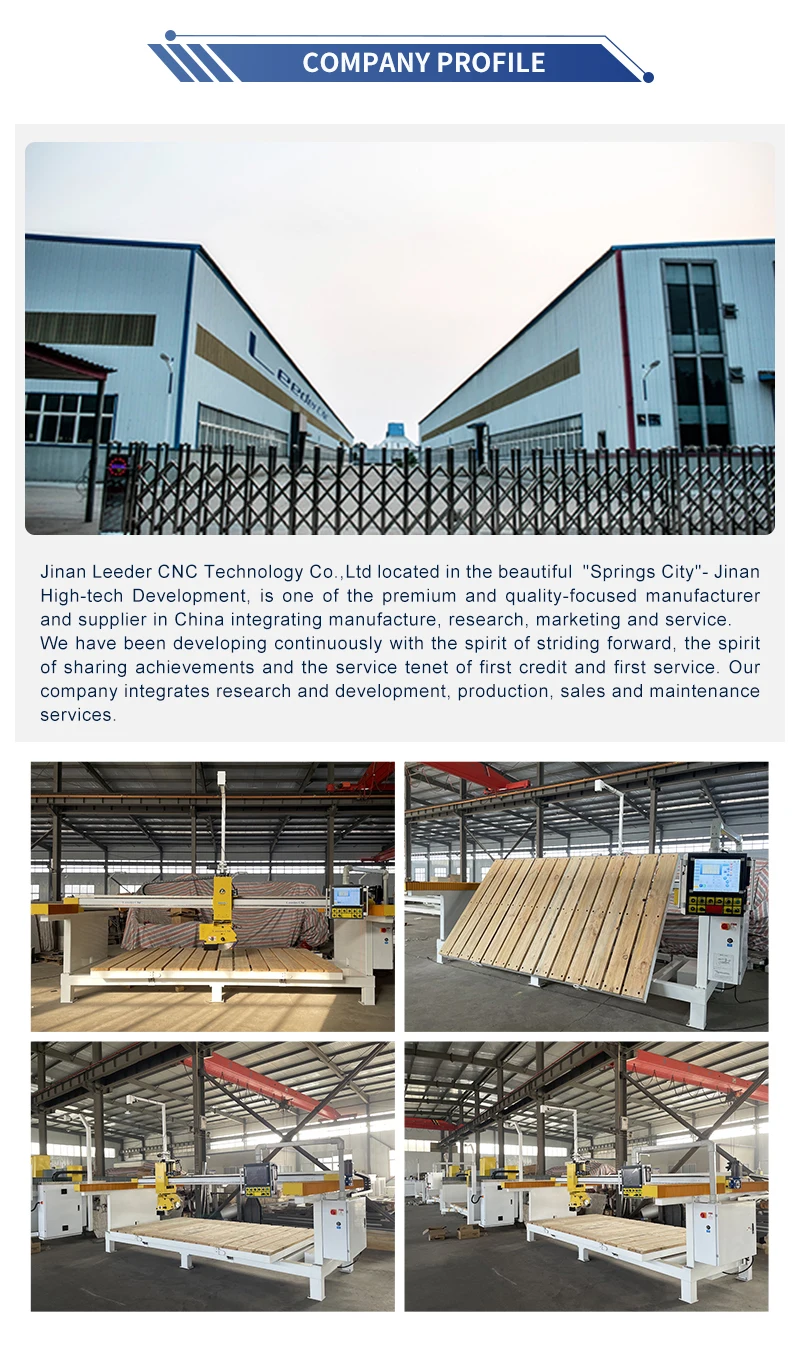

Company Profile
