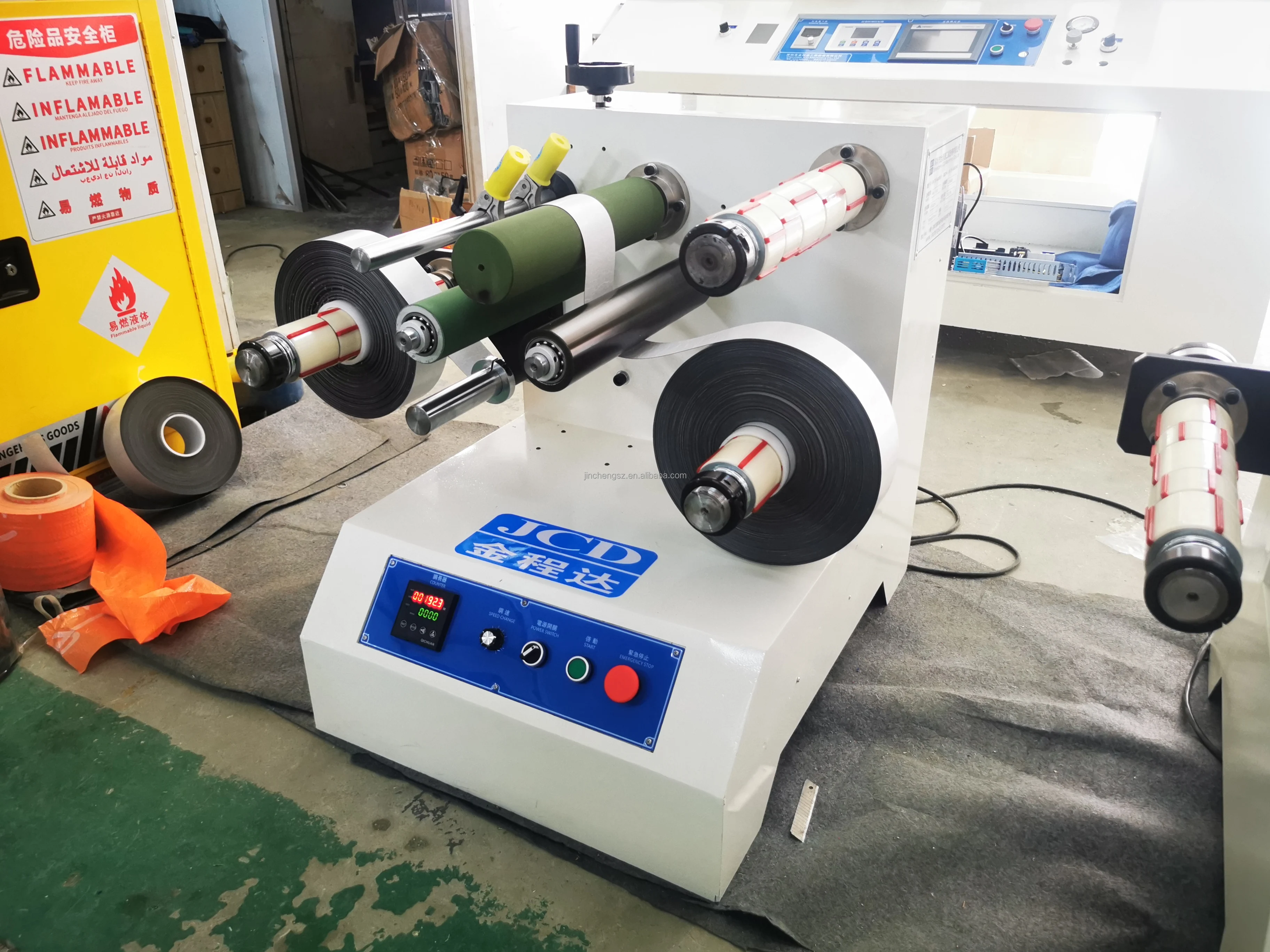

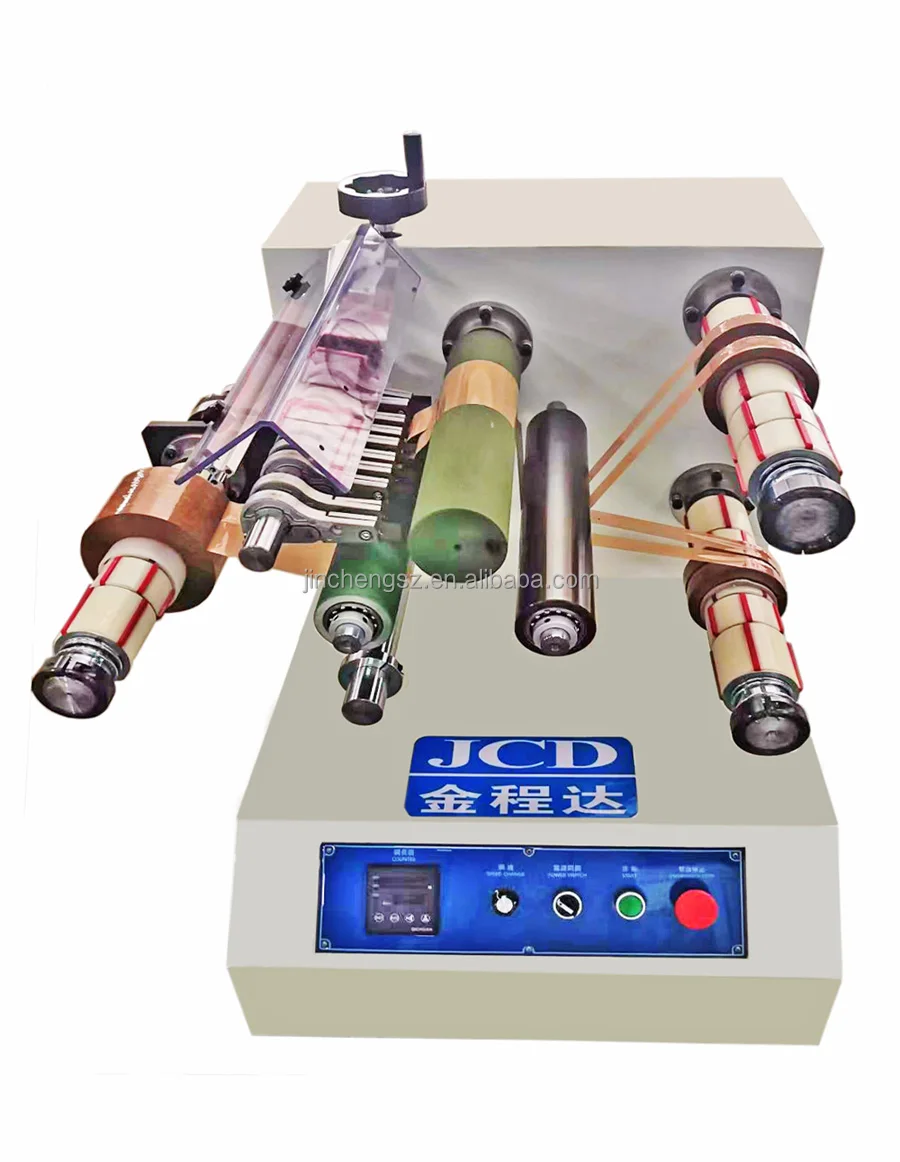

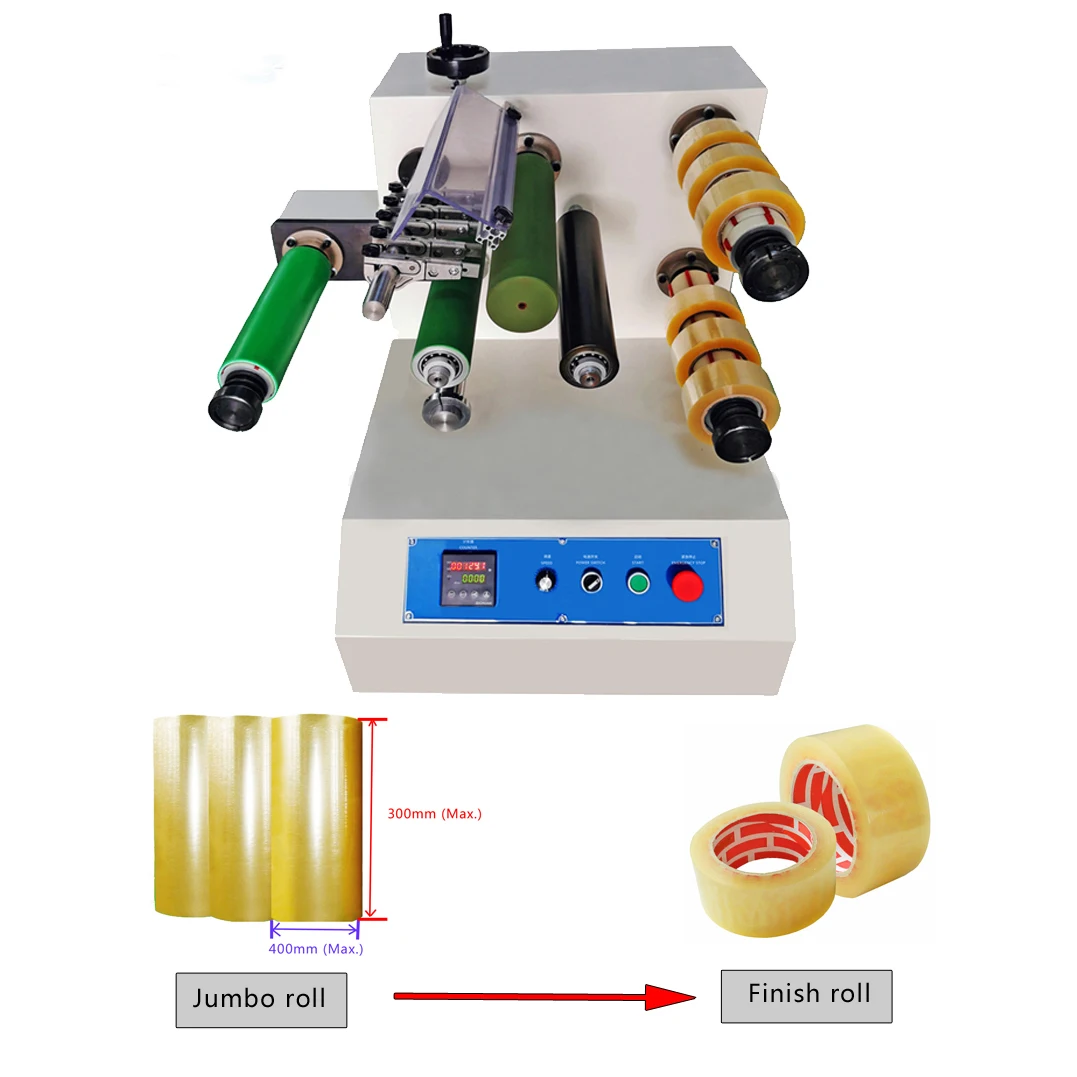

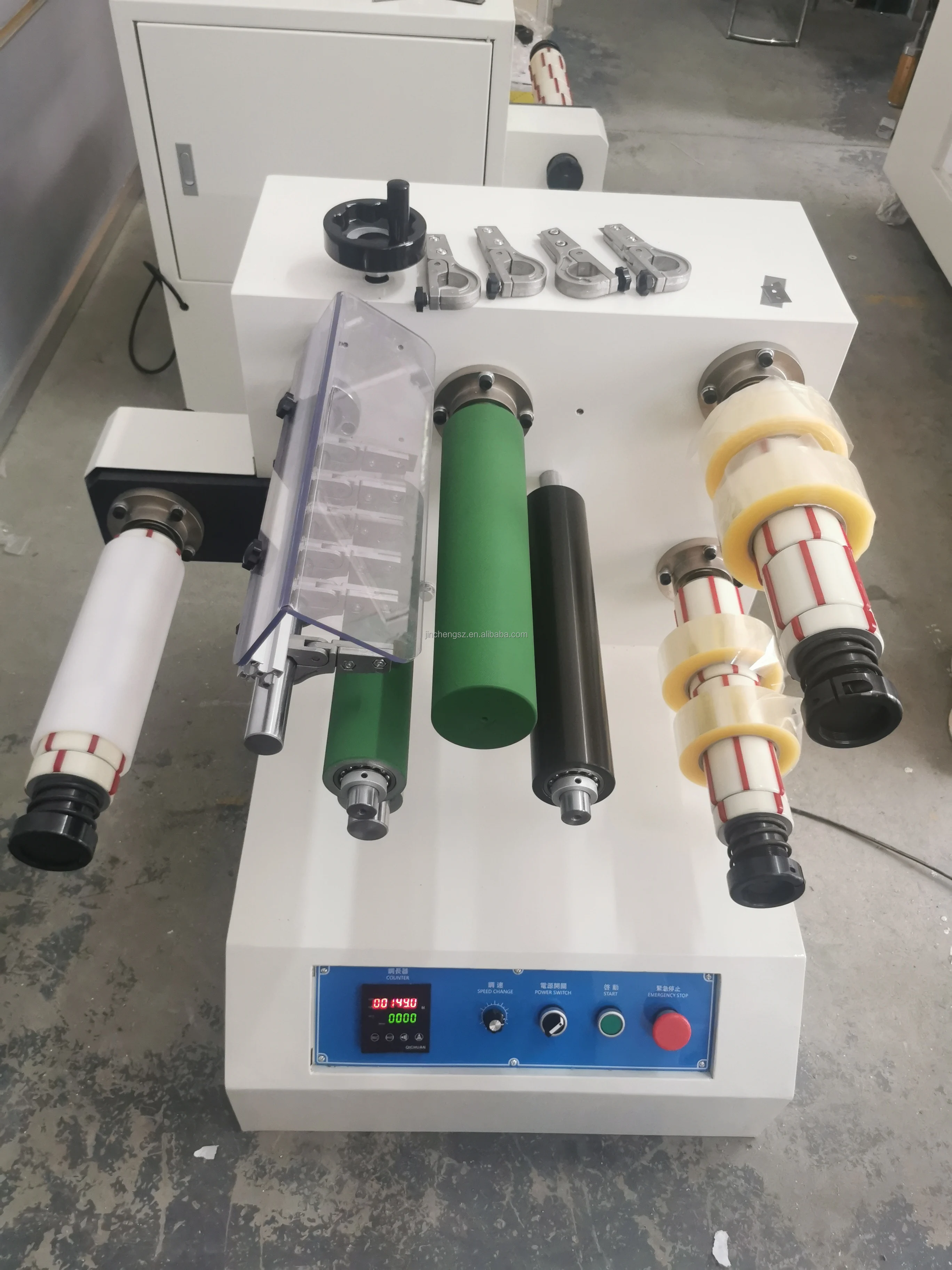

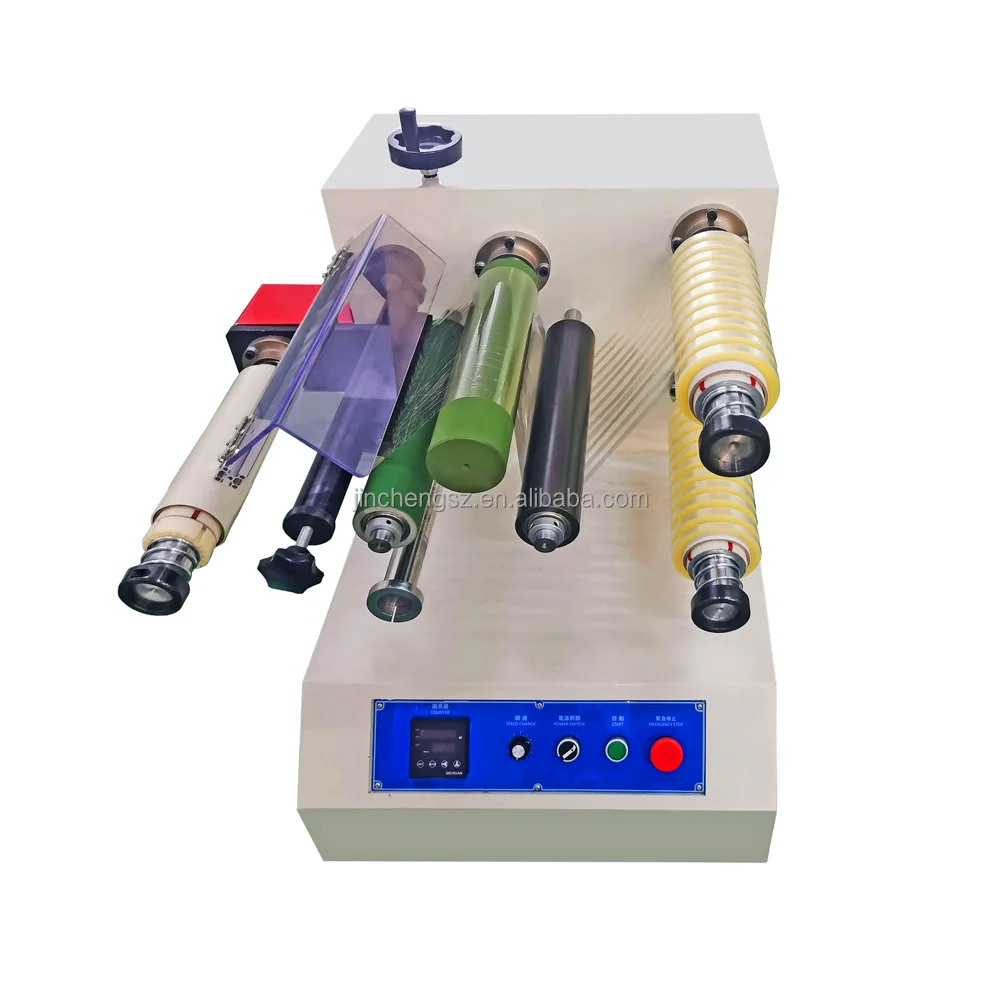

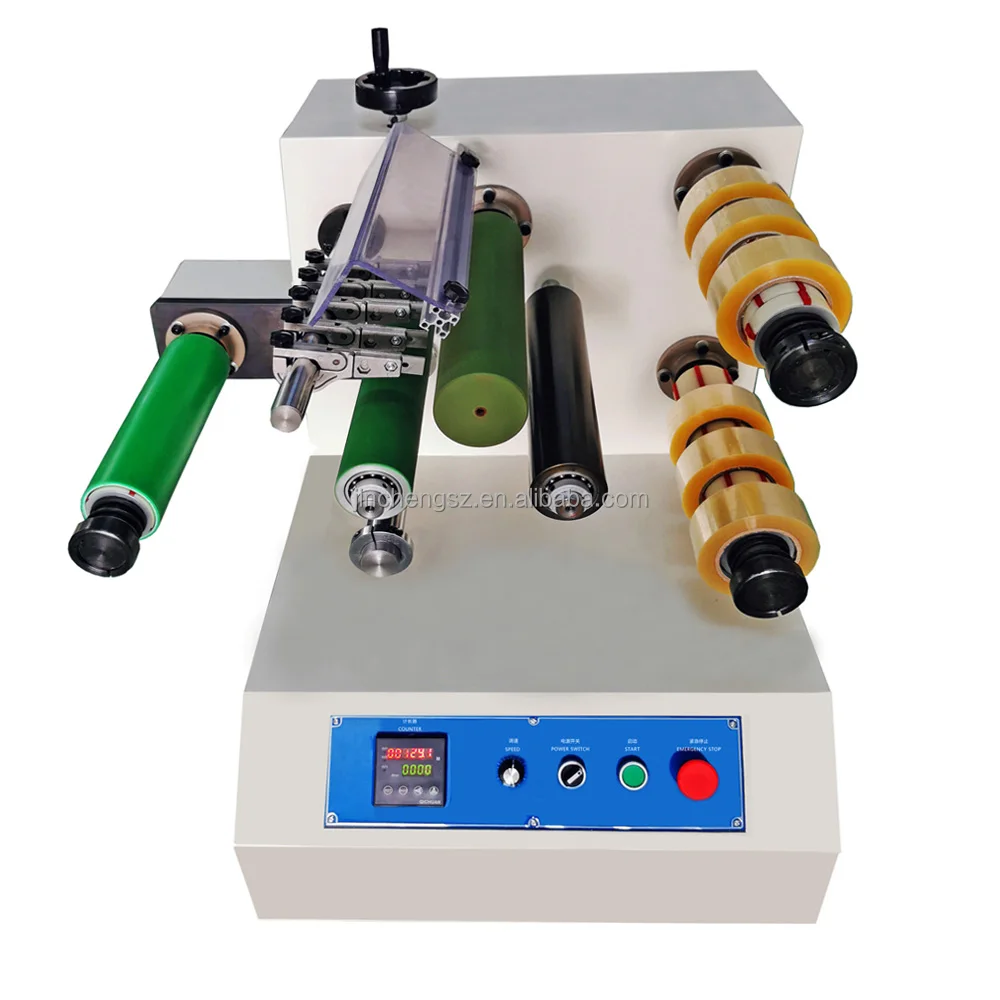

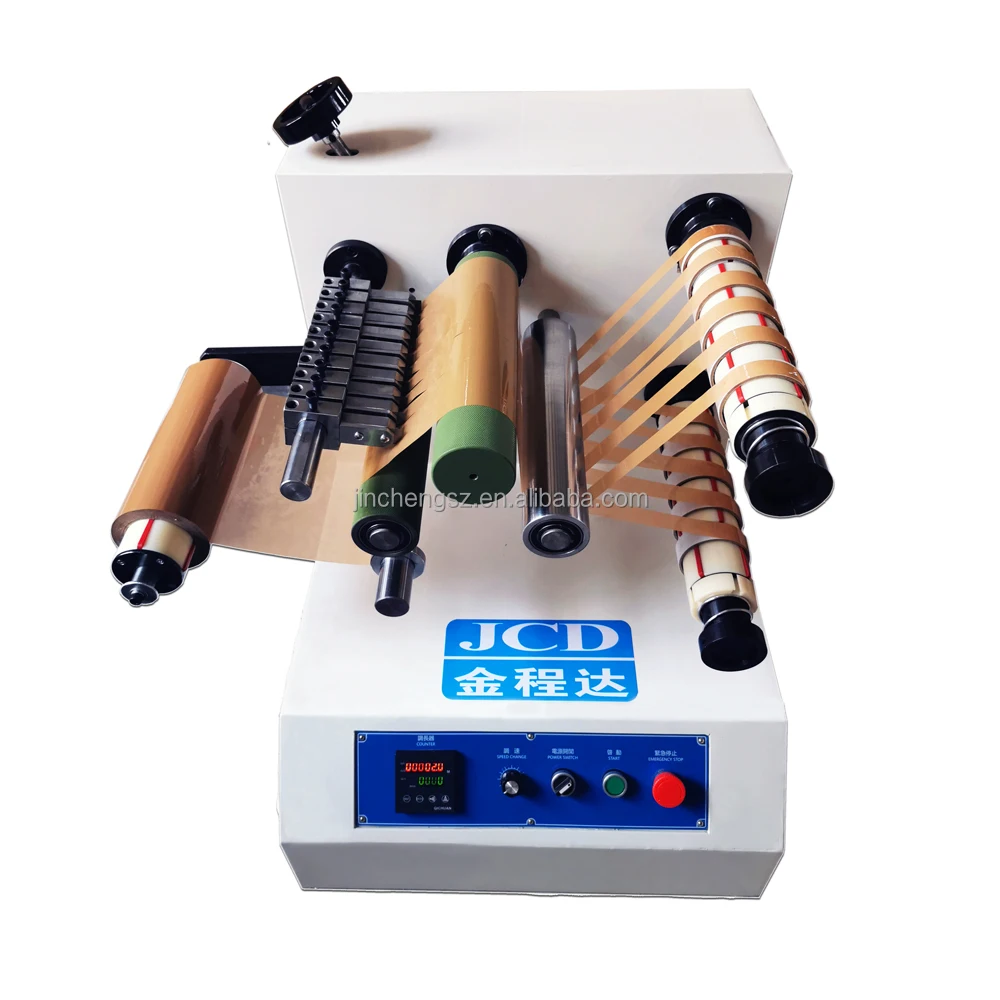

Automatic Carton Sealer tape cutter and rewinder machine
MACHINE FUNCTION:
This Automatic Carton Sealer tape cutter and rewinder machine is specialized for cutting and rewinding the small rolls of adhesive tape or fabric, film.

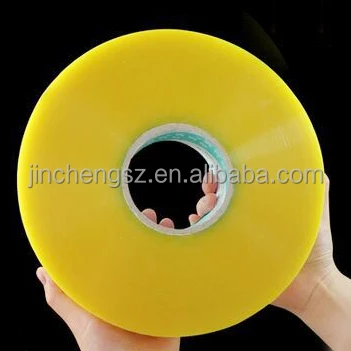

Such as BOPP Tape, masking tape, double sides tape, PET film, fabric, woven etc.
It is meet with the small factory or small quantity production.
MACHINE FEATURES:
1. DC Motor 1HP to control the running. Machine working steady and easy operating.
2. Unwind control by the brake and the working speed can be adjusted.

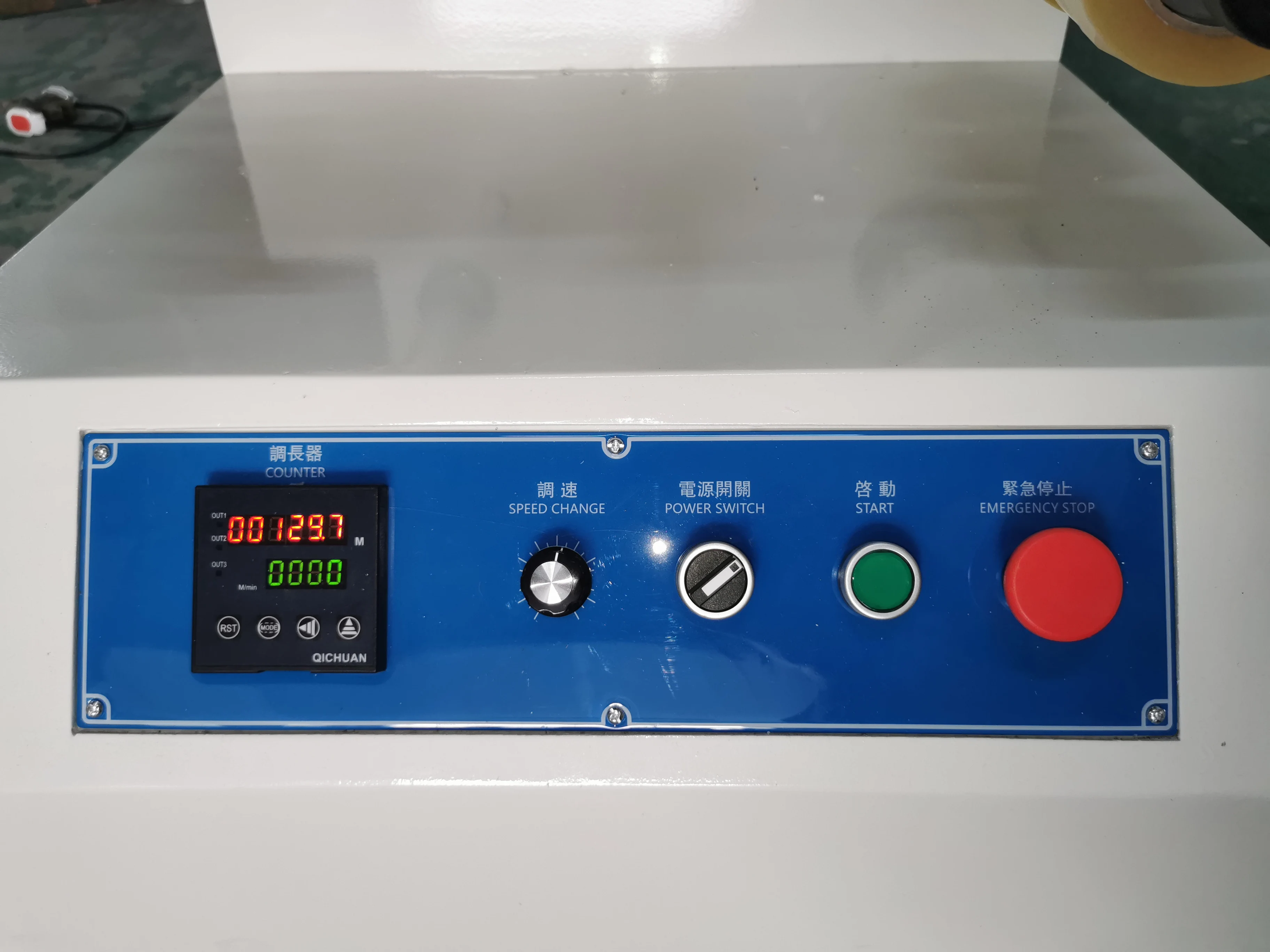

3. Automatic length counter. You can set up request length from the operation panel.
2. Unwind control by the brake and the working speed can be adjusted.
3. Automatic length counter. You can set up request length from the operation panel.
Make the rewinding length accurately.
4. Simple type machine, convenient operation and saving cost.

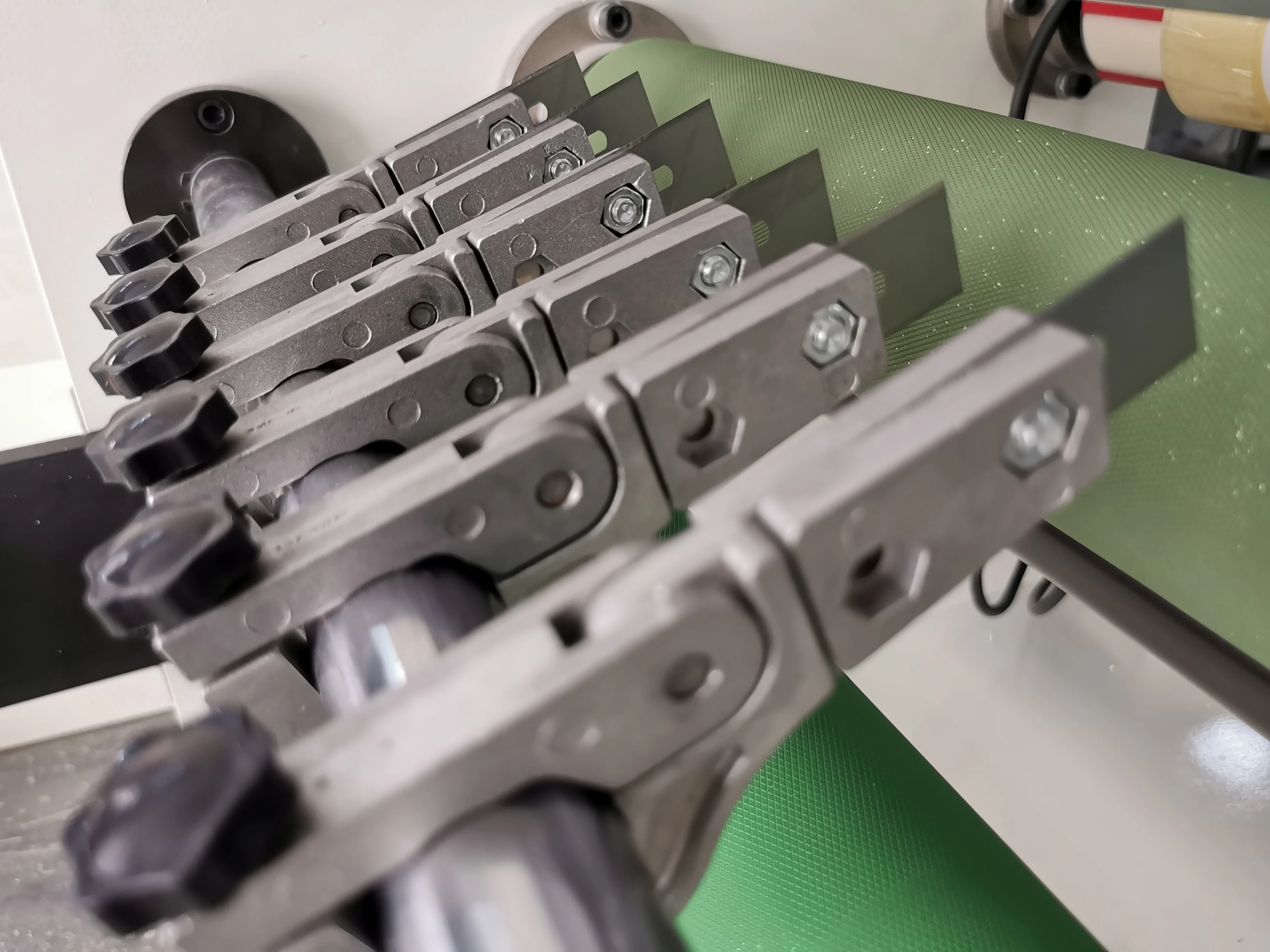

5. Slitting by razor knife, you can adjust the cutting width according to required size.
4. Simple type machine, convenient operation and saving cost.
5. Slitting by razor knife, you can adjust the cutting width according to required size.
MACHINE PARAMETERS:
Max.unwind width | 300mm |
Max.unwind diameter | 400mm |
Max.rewind diameter | 250mm |
Slitting knife | razor knife |
I.D of paper core | 76.2mm |
Min. slitting width | 12 mm |
Rewind speed | 0-150 M/min |
Voltage | Single phase 220V |
Power | 1 HP |
Machine size | 800x800x880 mm |
G.W | 200KG |

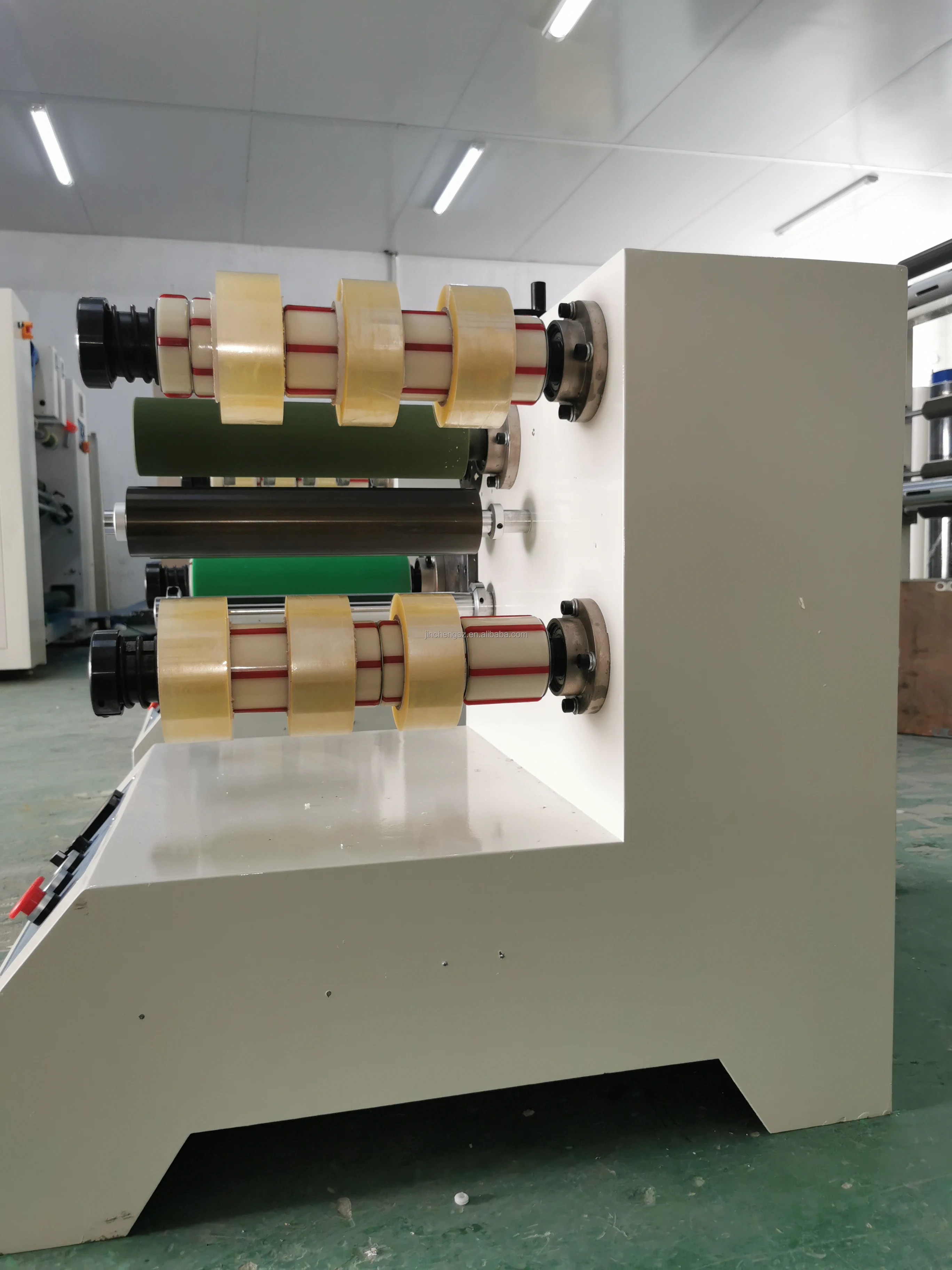

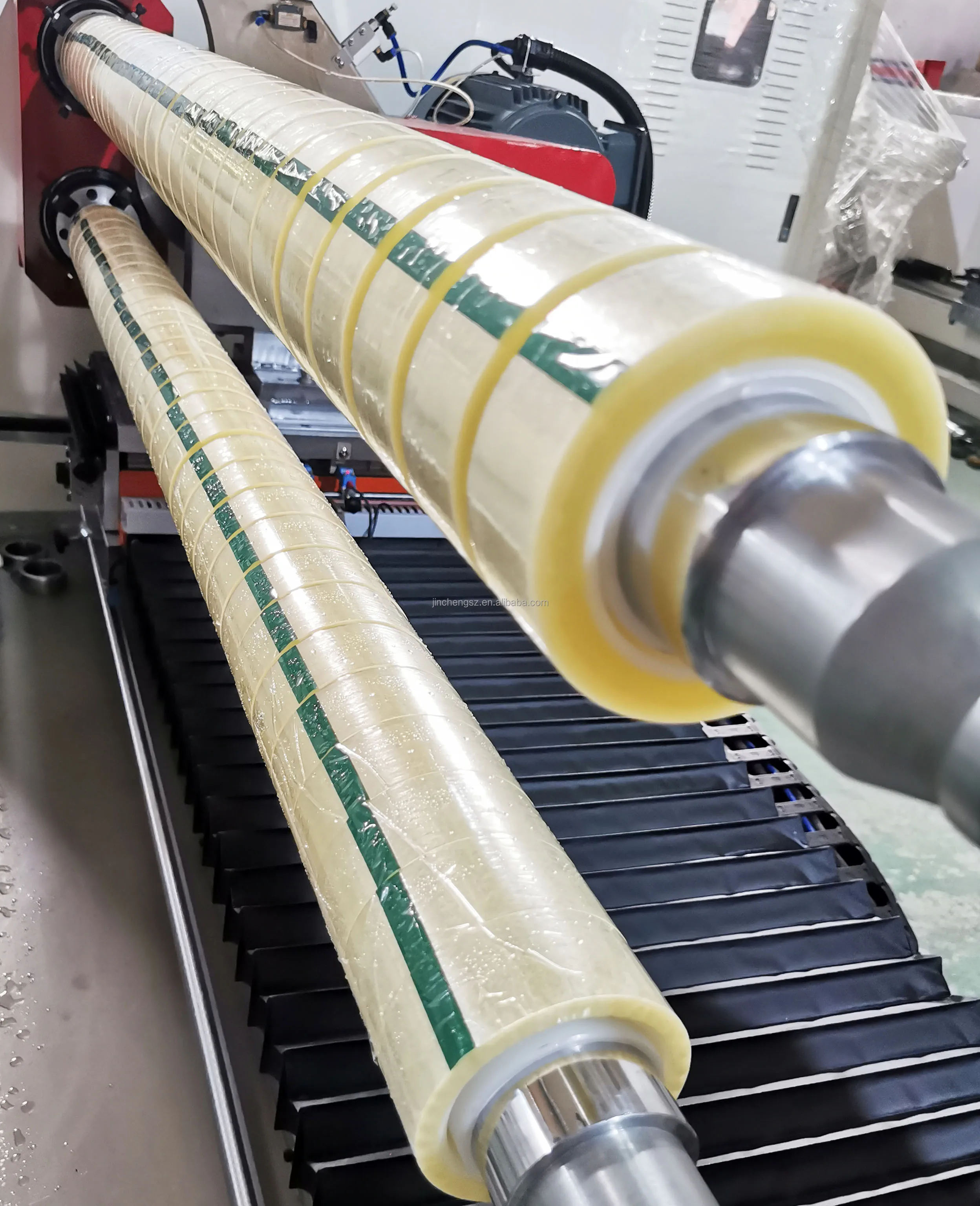

Machine detailed parts:

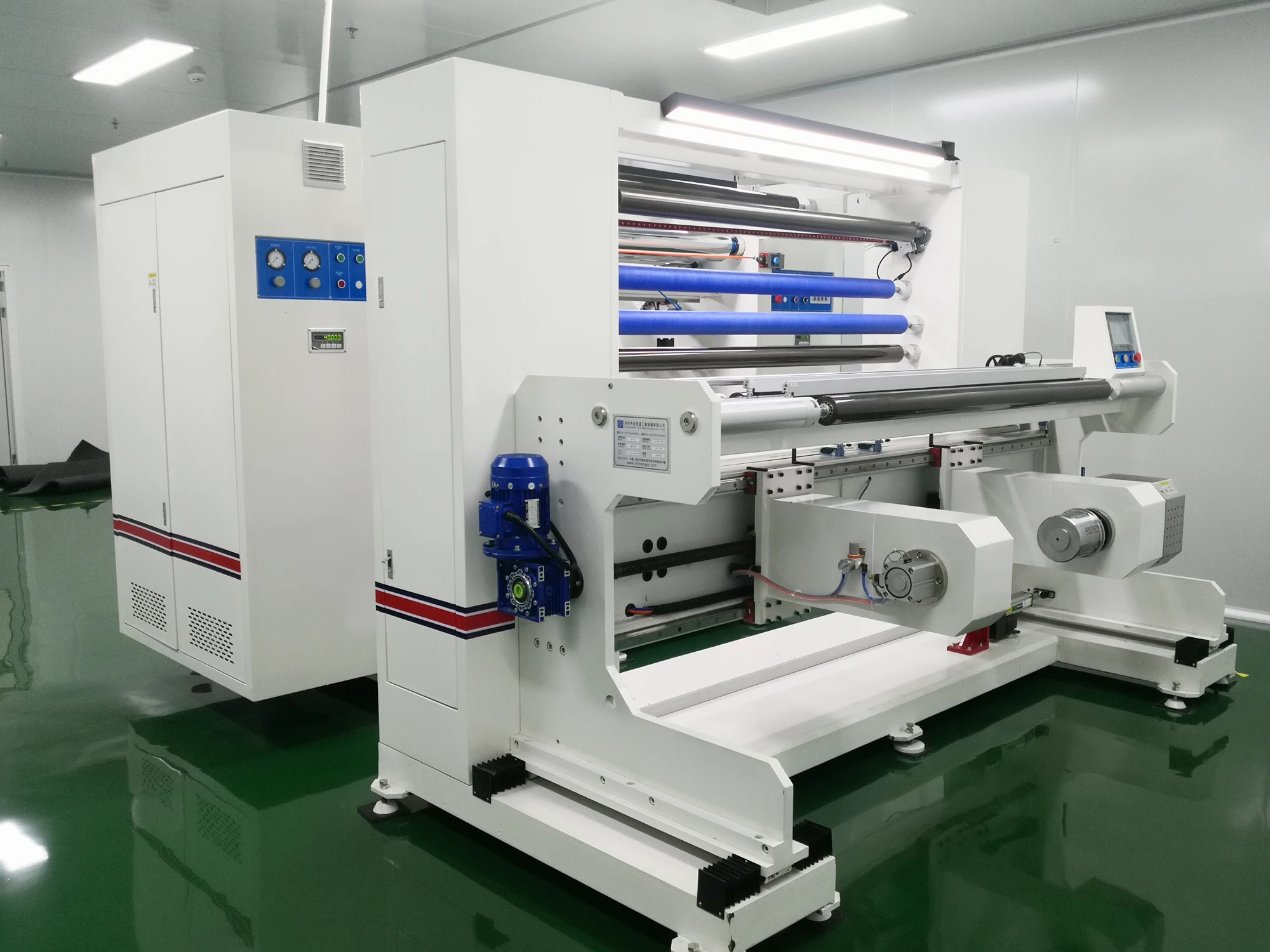

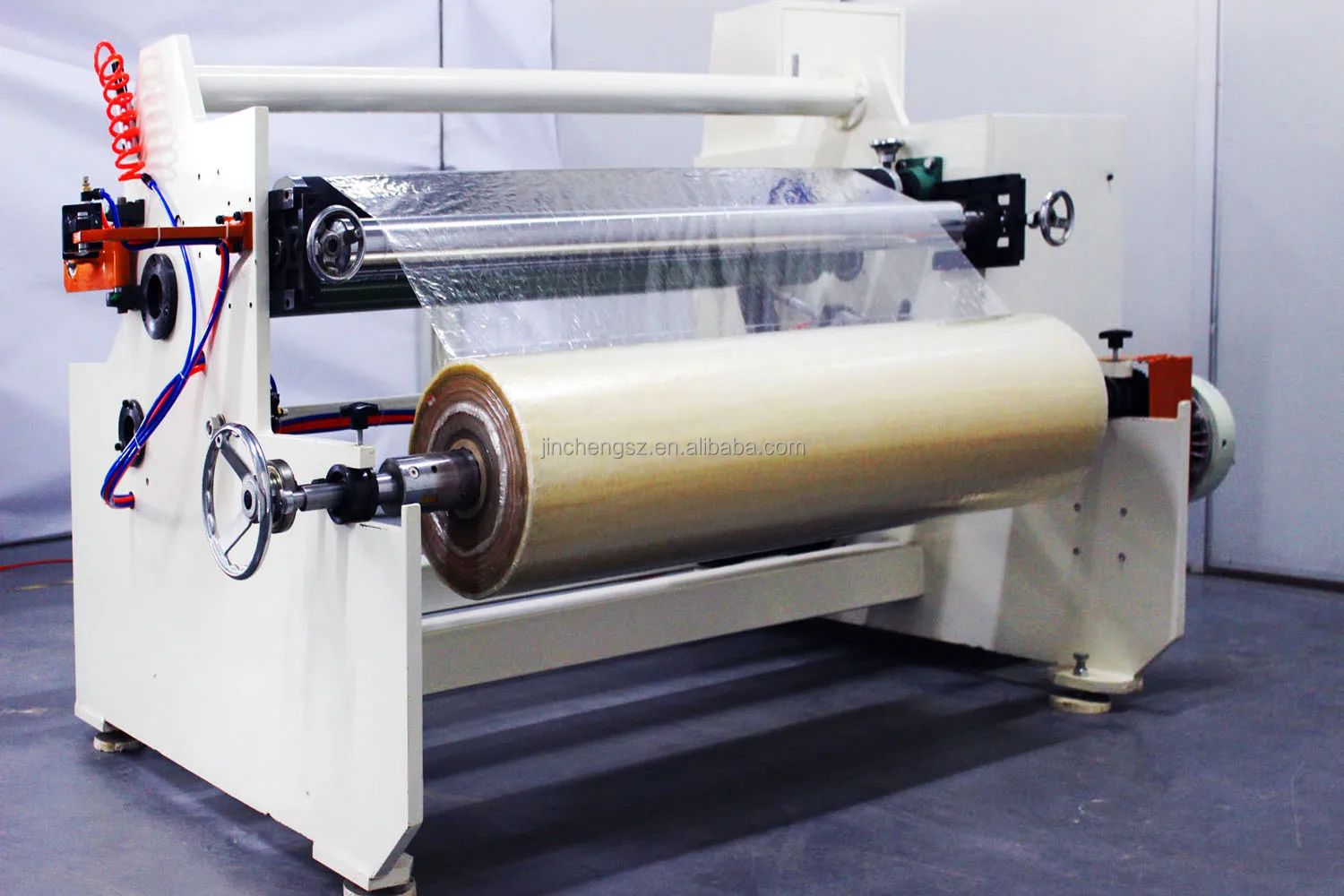

OTHER SIMILAR MACHINE MODELS
Model: JC-210
This is a standard slitting machine.
It usually works with follow machines:
1. Paper core loader
( Model : JC-105)
2. Paper core cutter
( Model: JC-203)
3. Doctor rewinder
( Model: JC-200)
Model: JC-210A
This is a HIGHER class slitting machine.
It usually works with follow machines:
1. Paper core loader
( Model : JC-105)
https://jinchengsz.en.alibaba.com/product/60776118607-200642092/Paper_Core_Loading_and_Unloading_Machine_for_BOPP_tape_Slitting_Line.html
2. Paper core cutter
( Model: JC-203)
https://jinchengsz.en.alibaba.com/product/1600088715170-200642092/Semi_auto_bopp_tape_paper_core_cutting_machine.html
3. Doctor rewinder
( Model: JC-200)
https://jinchengsz.en.alibaba.com/product/816840191-200642092/Mini_rewinder_for_BOPP_Tape_rolls.html
1. Paper core loader
( Model : JC-105)
https://jinchengsz.en.alibaba.com/product/60776118607-200642092/Paper_Core_Loading_and_Unloading_Machine_for_BOPP_tape_Slitting_Line.html
2. Paper core cutter
( Model: JC-203)
https://jinchengsz.en.alibaba.com/product/1600088715170-200642092/Semi_auto_bopp_tape_paper_core_cutting_machine.html
3. Doctor rewinder
( Model: JC-200)
https://jinchengsz.en.alibaba.com/product/816840191-200642092/Mini_rewinder_for_BOPP_Tape_rolls.html

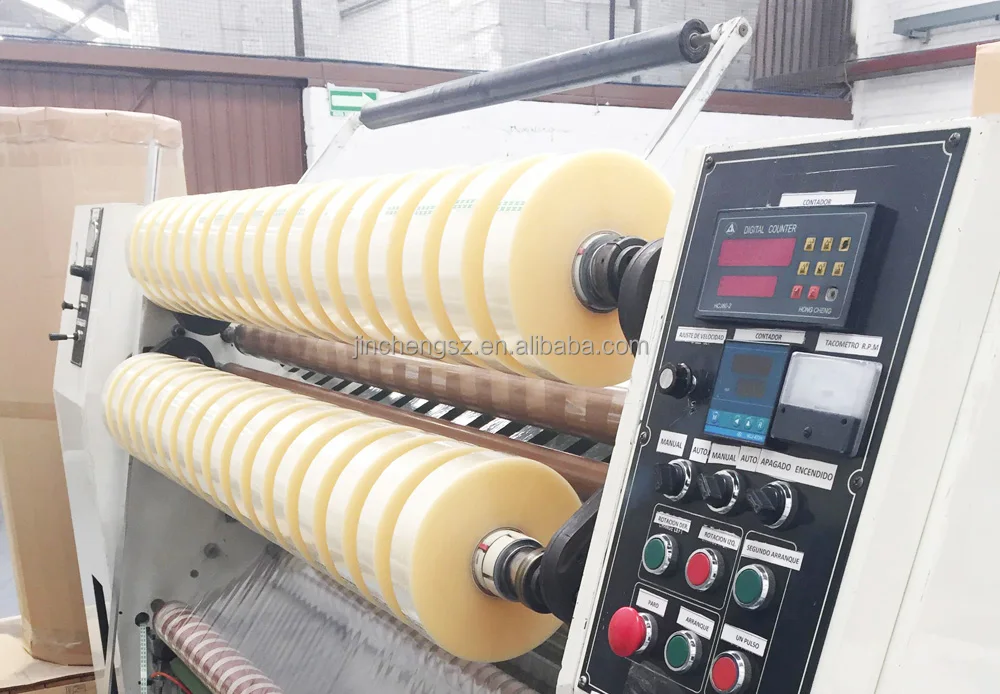

Model: JC-S03T
This is a double shafts rewinder machine.
You can choose razor blade or air blade for cutting.
Special for big yard bopp tape production.
The max.rewind diameter is up to 500mm.
Model: JC-R01
This is a single shaft rewinding machine.
With auto inflation air shafts.

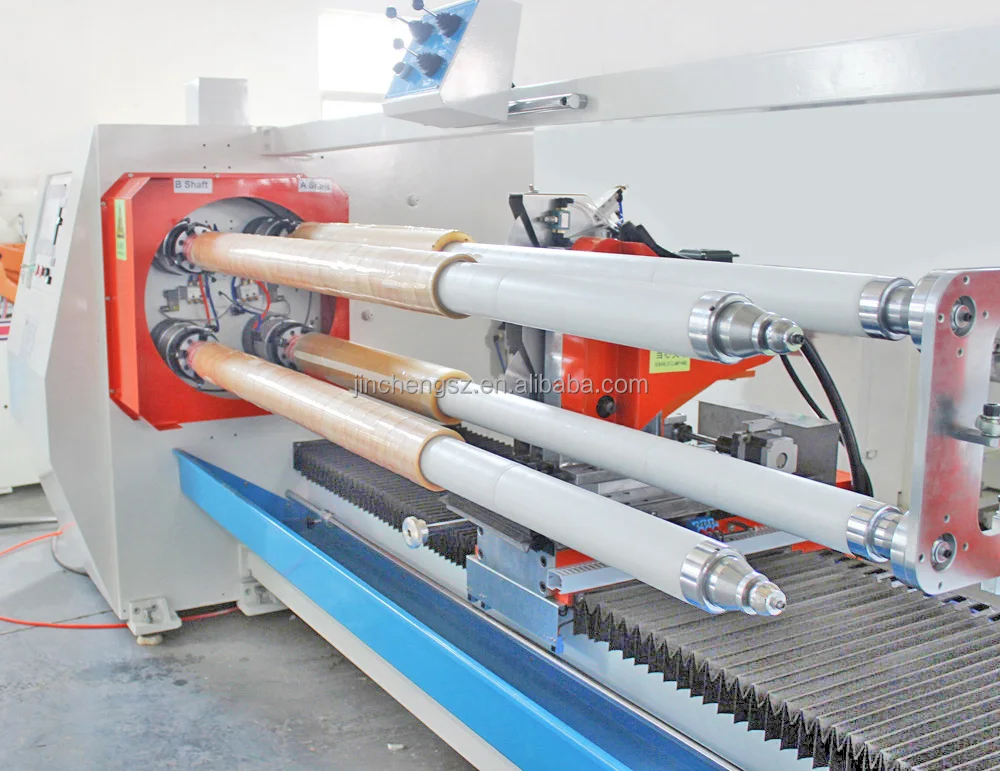

Model: JC-C02
This is a double shafts cutting machine.
The output is doubled than the single shaft cutting machine.
Model: JC-C04
This is a four shafts cutting machine.
You can cut 2 rolls every time.
The output is doubled than the double shafts cutting machine.
Model: JC-215
This is a slitting machine with air blade for stationery tape.
PACKING & DELIVERY:

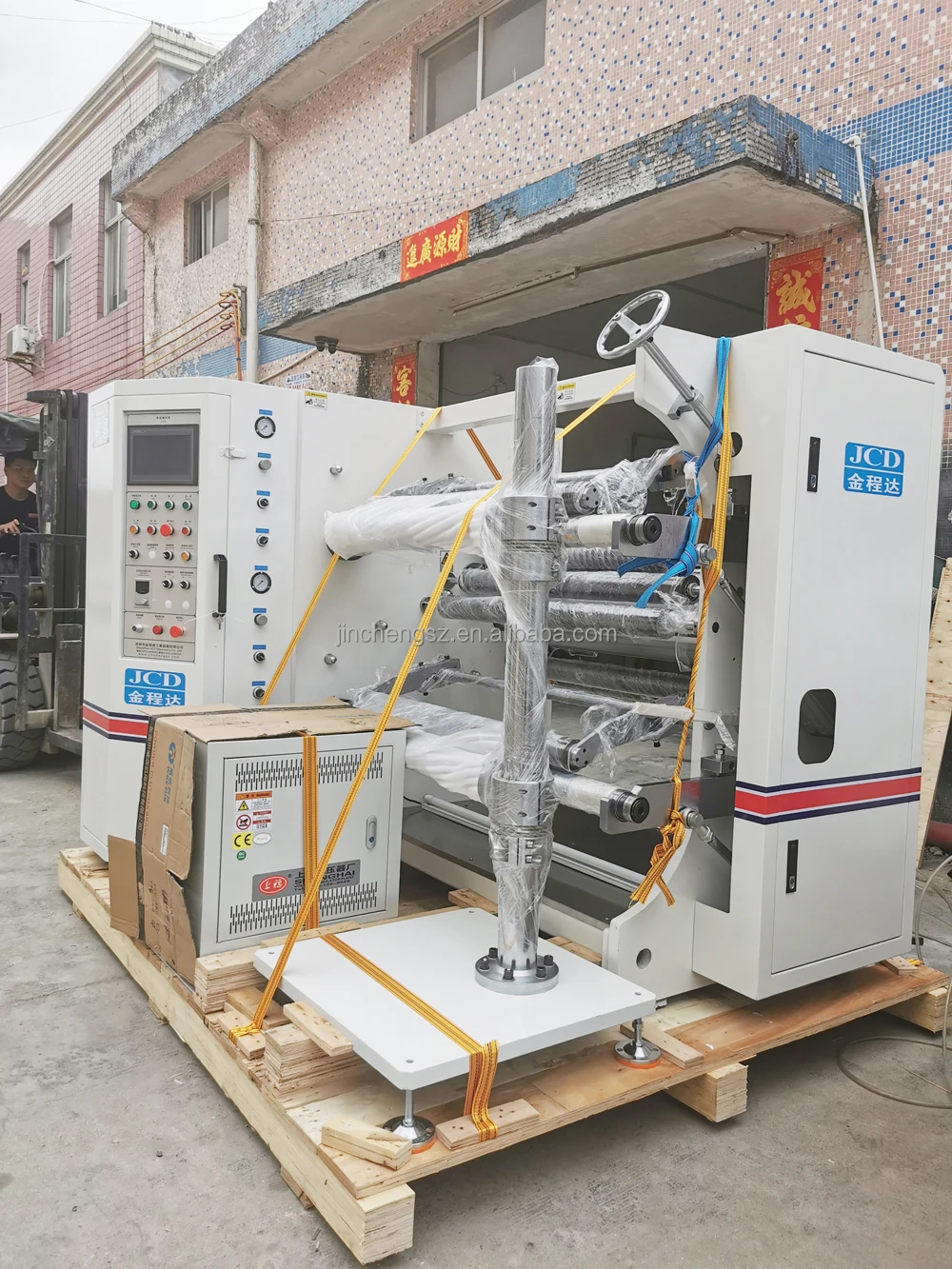

Packaging: WOODEN CASE | ||
Packaging Details | A seaworthy wooden case for packing the whole machine. No need do fumigation bcs it is a kind of plywood. Convenient for the forklift operation during loading & unload in container. | |

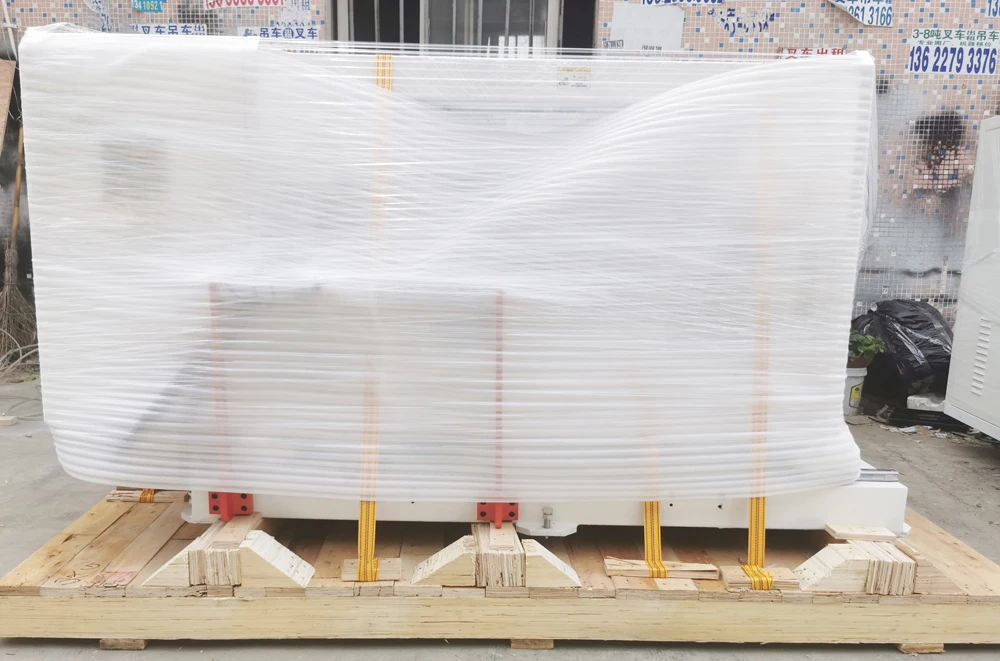

Packaging: VACUUM PACKING | ||
Packaging Details | We also provide vacuum packing for machine according to customers special request. Avoid the electrical parts appliances during long distance transportation on the sea. | |

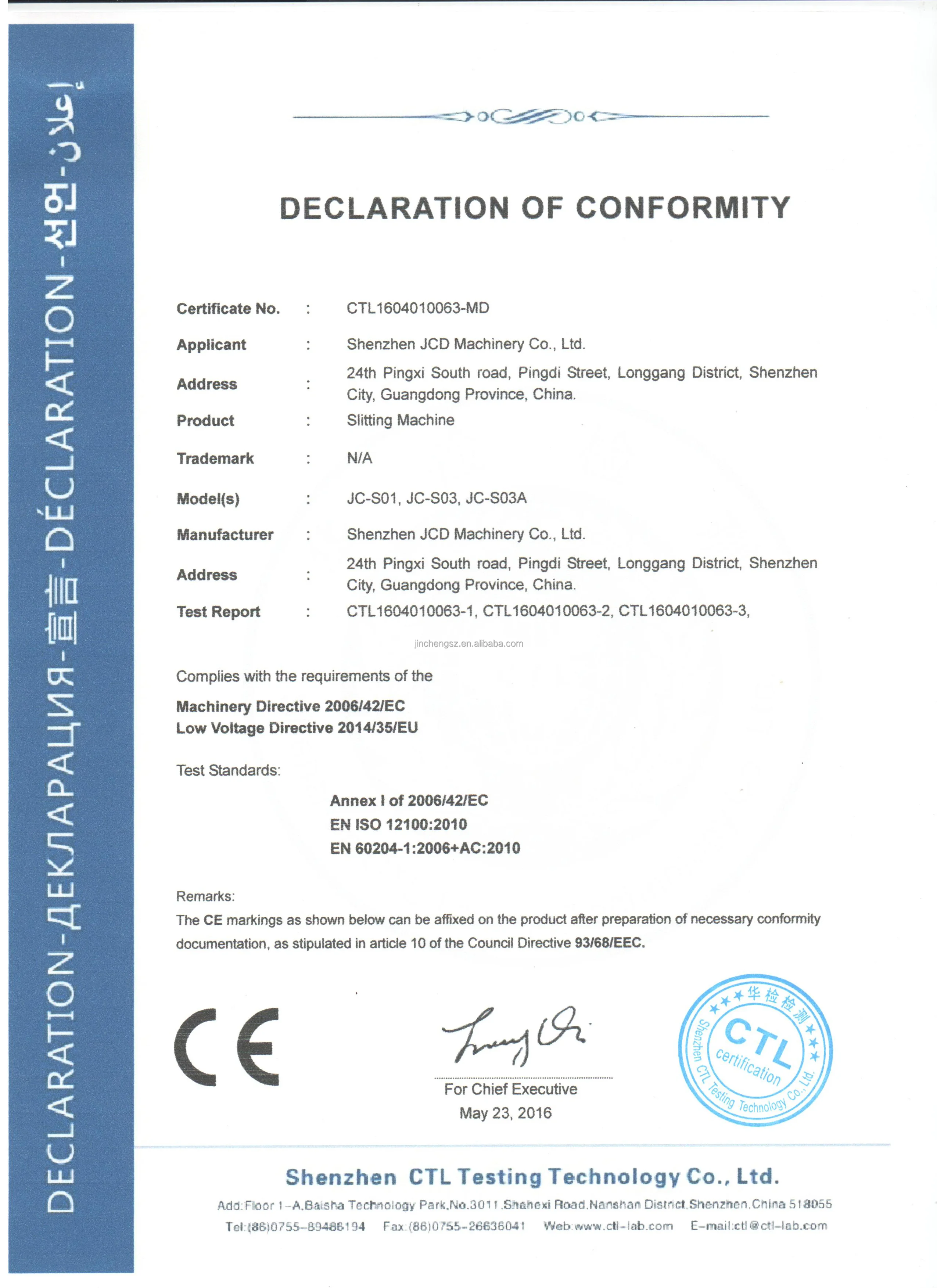

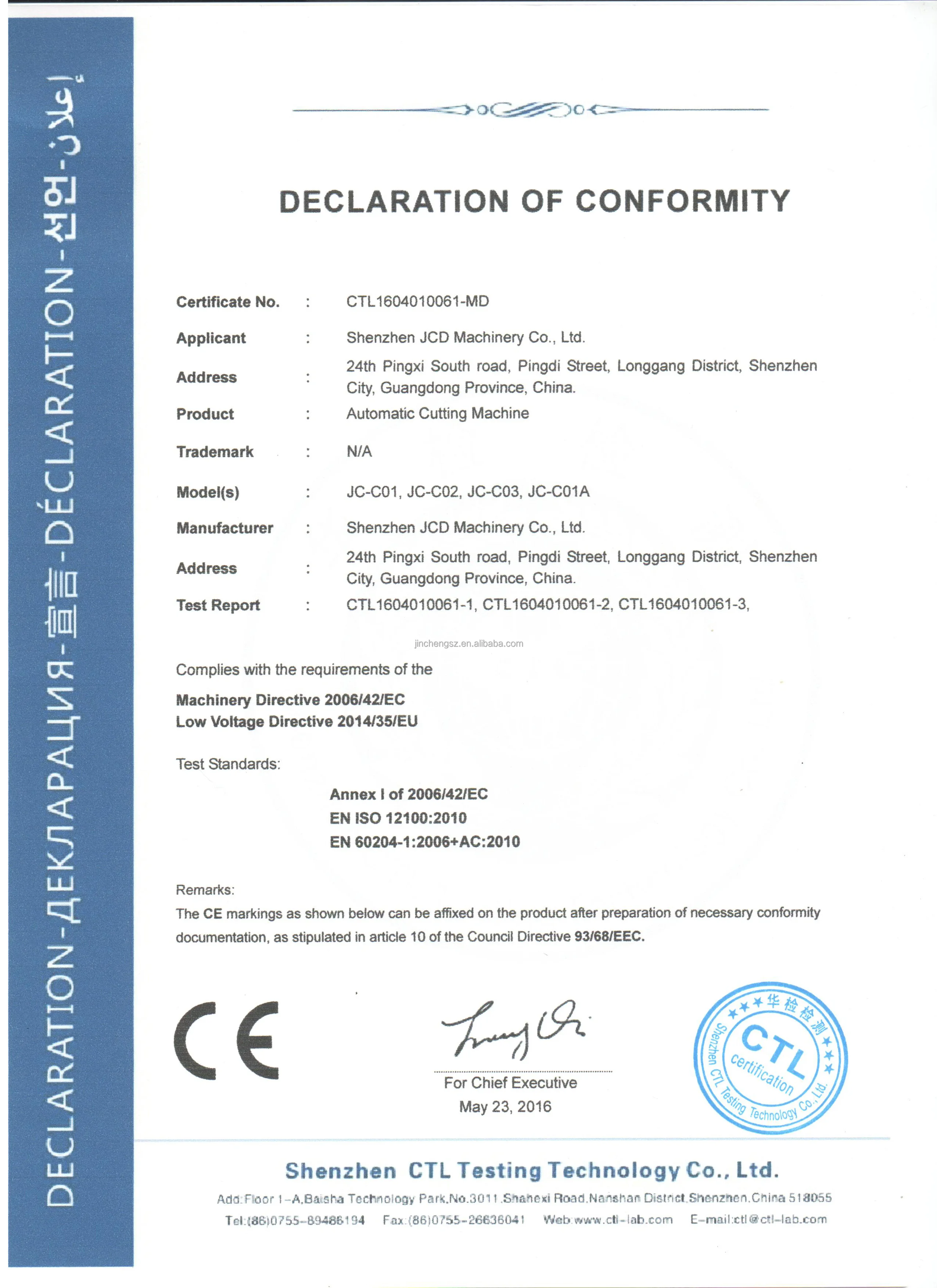

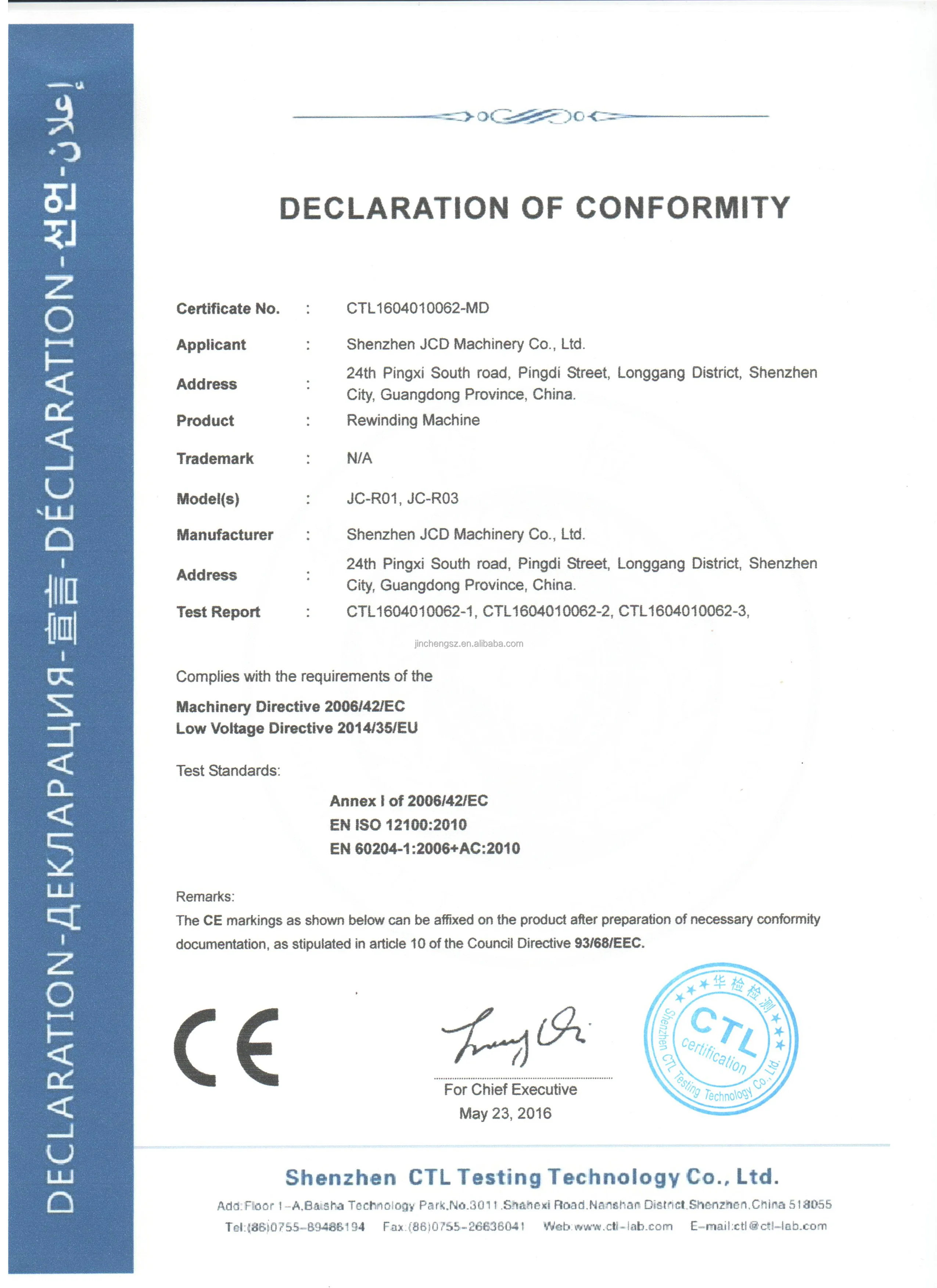

CE CERTIFICATION:

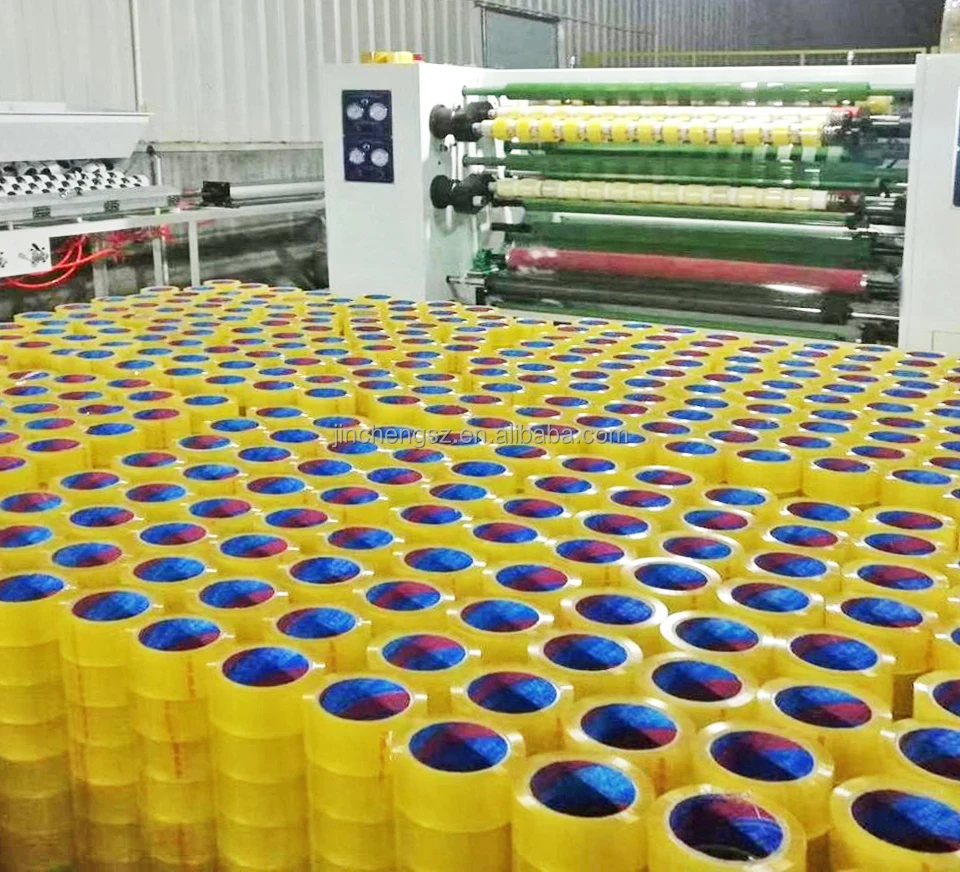

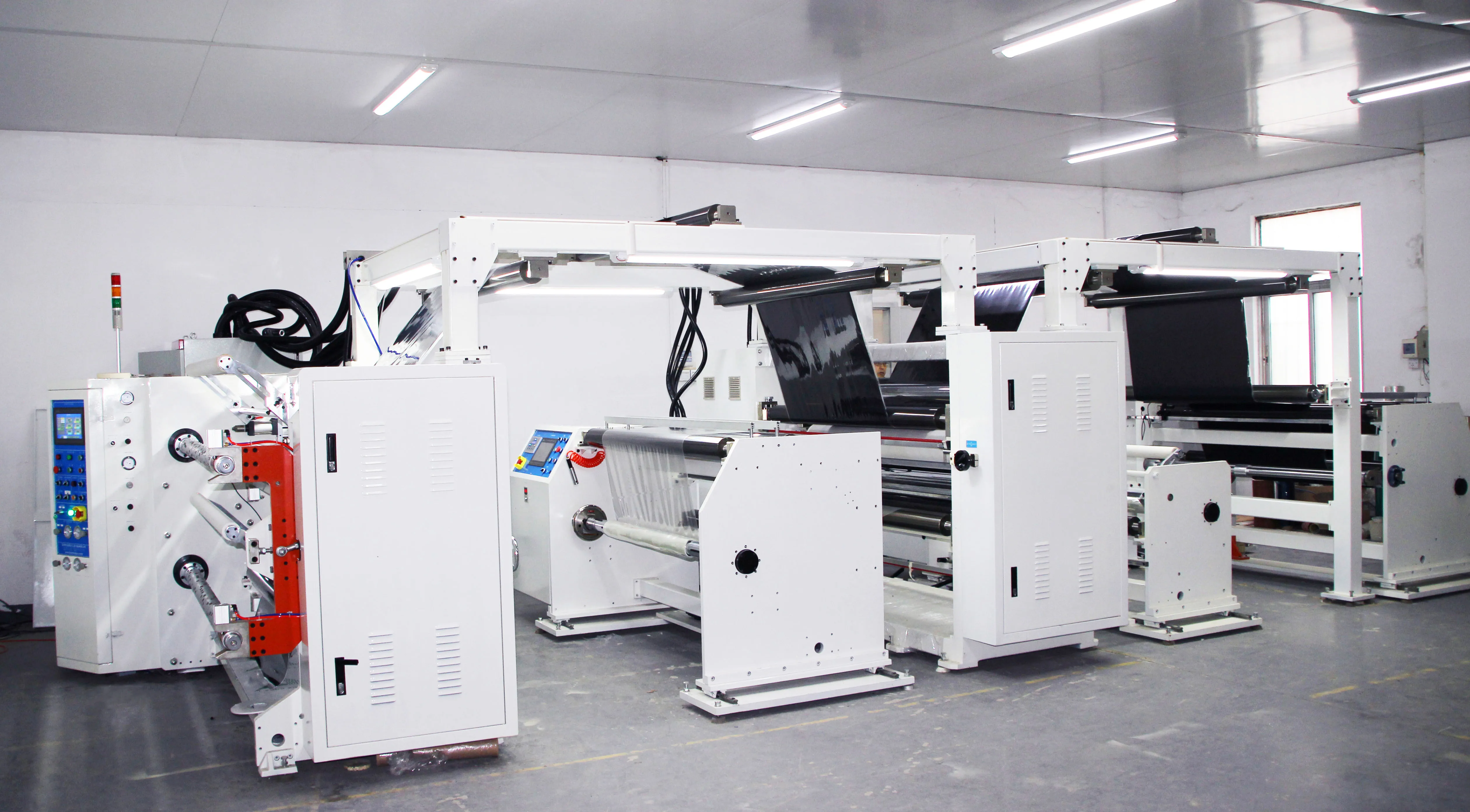

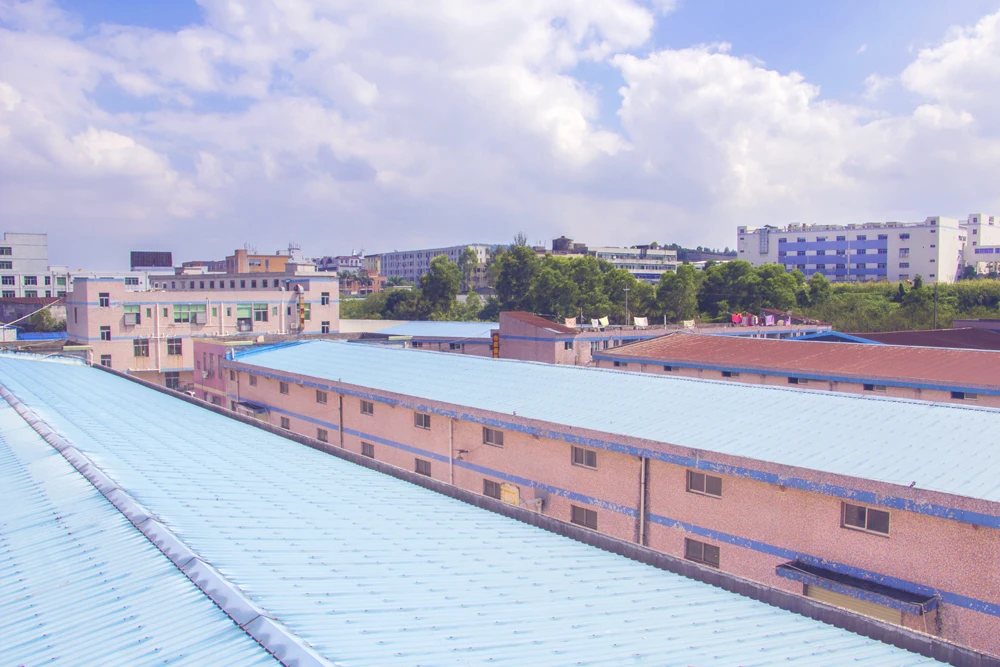

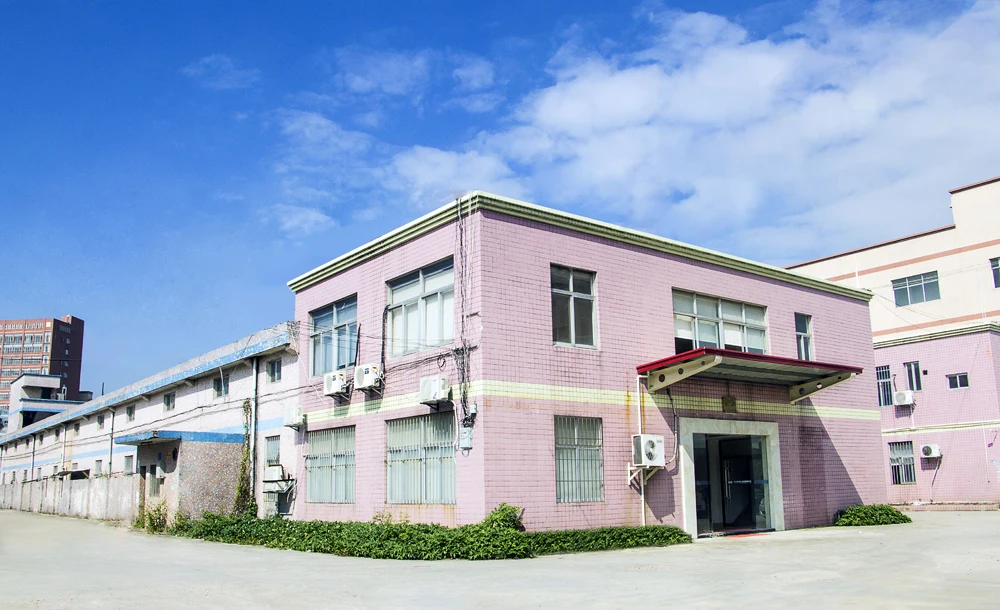

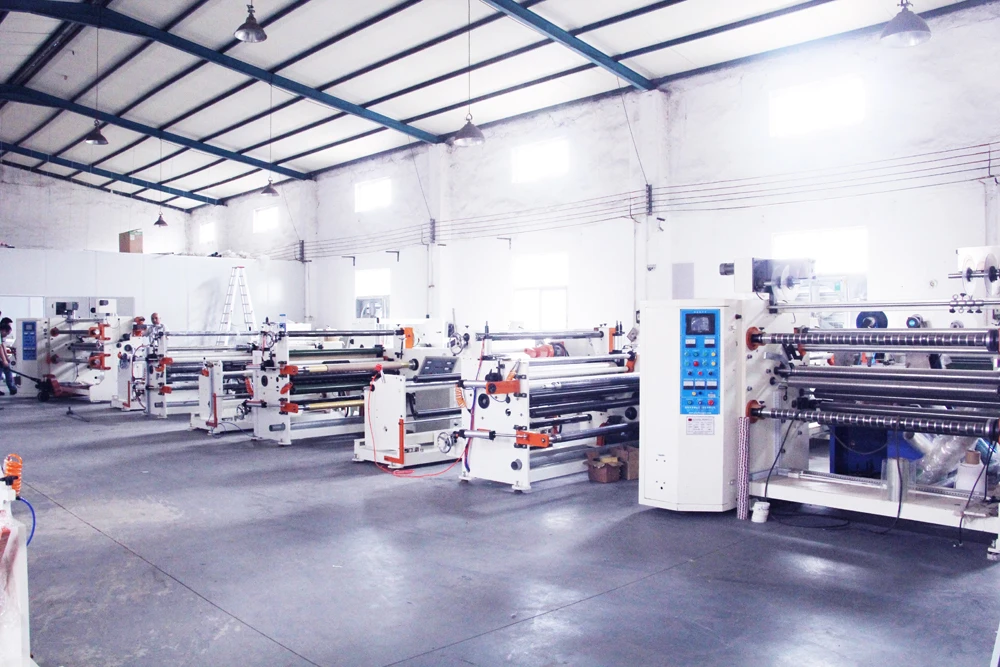

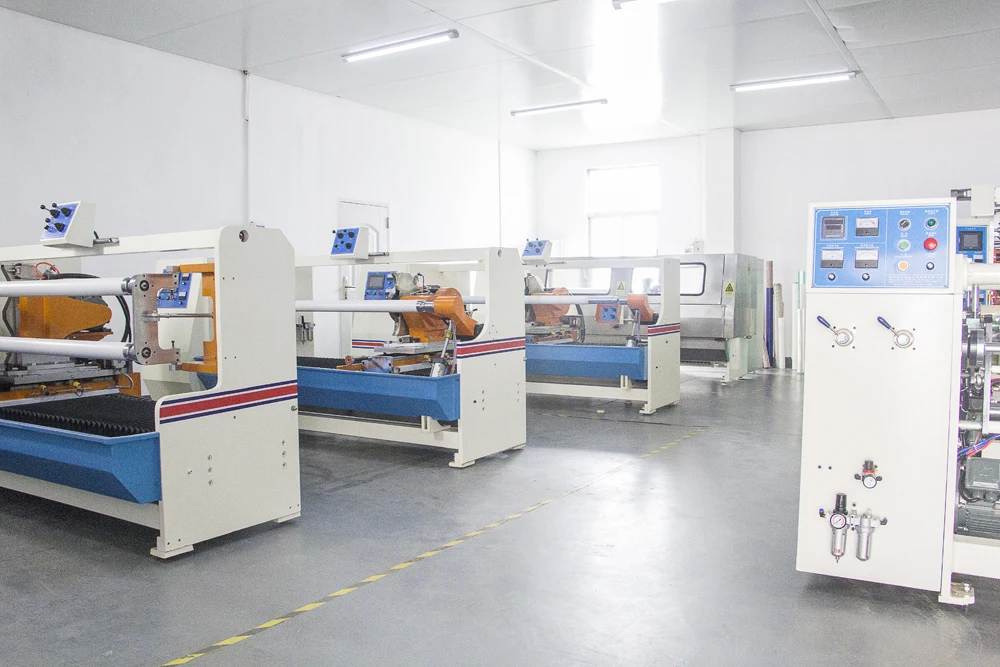

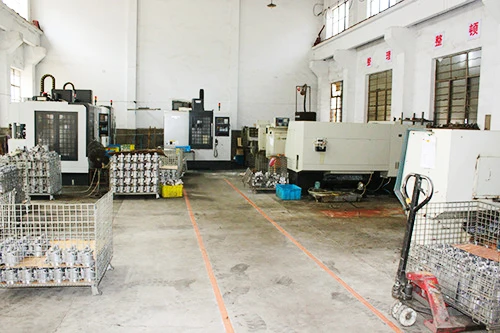

OUR FACTORY:

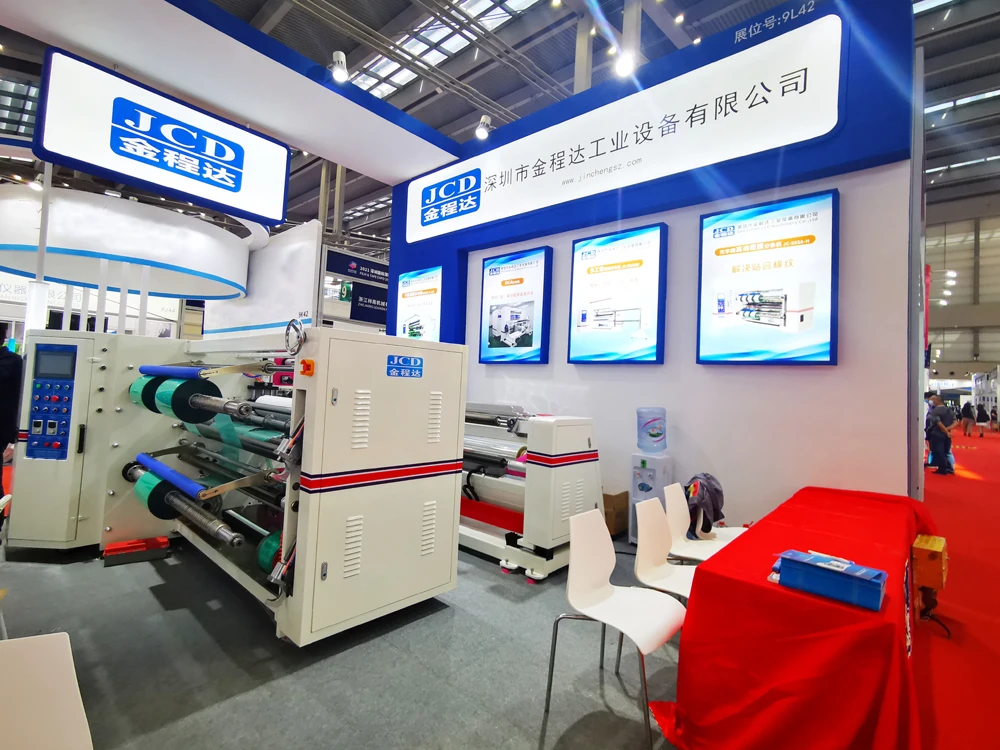

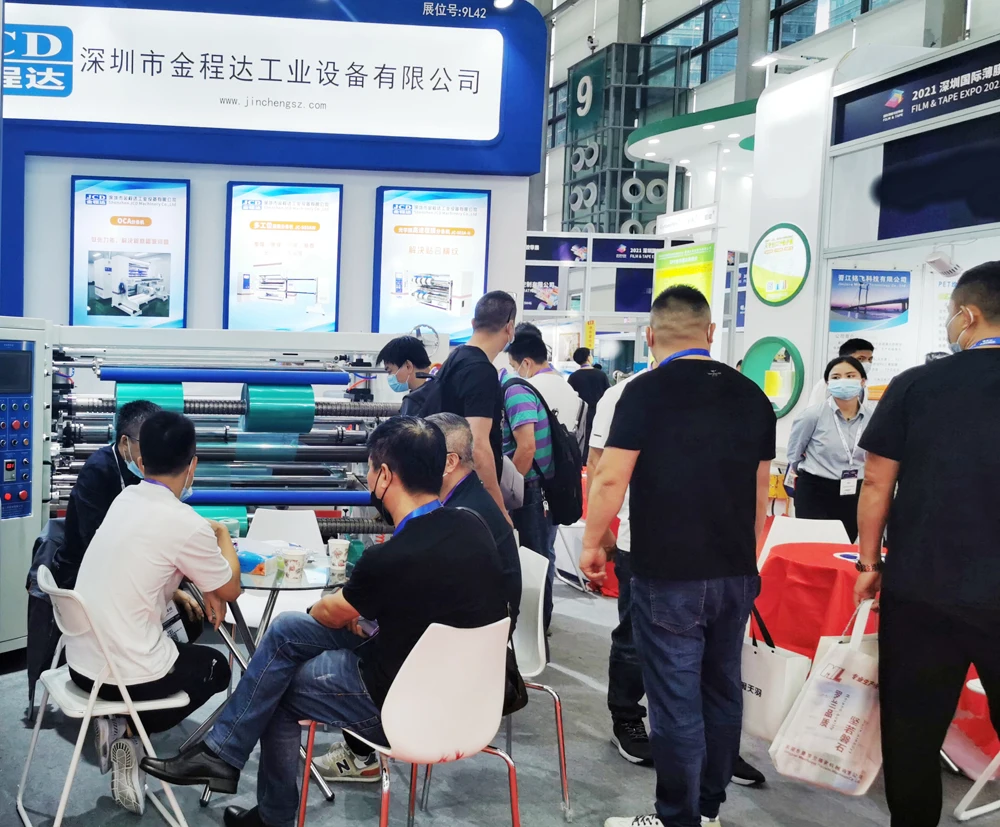

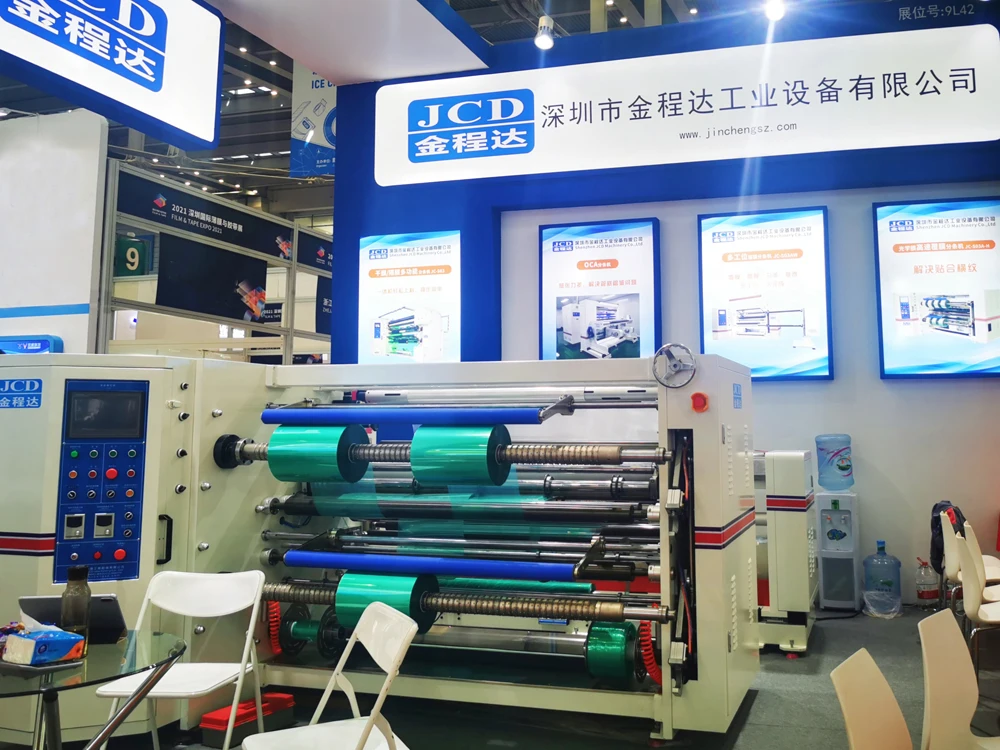

OUR EXHIBITION:
