Product Description

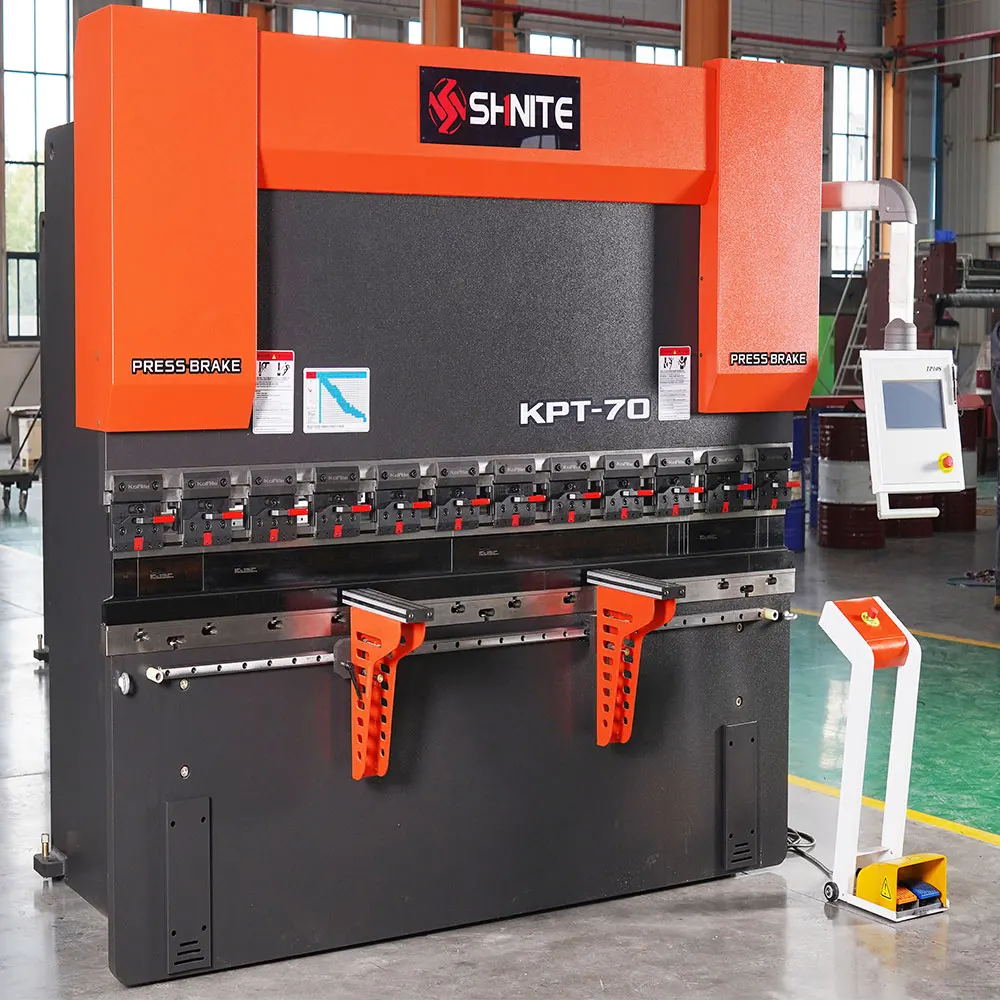

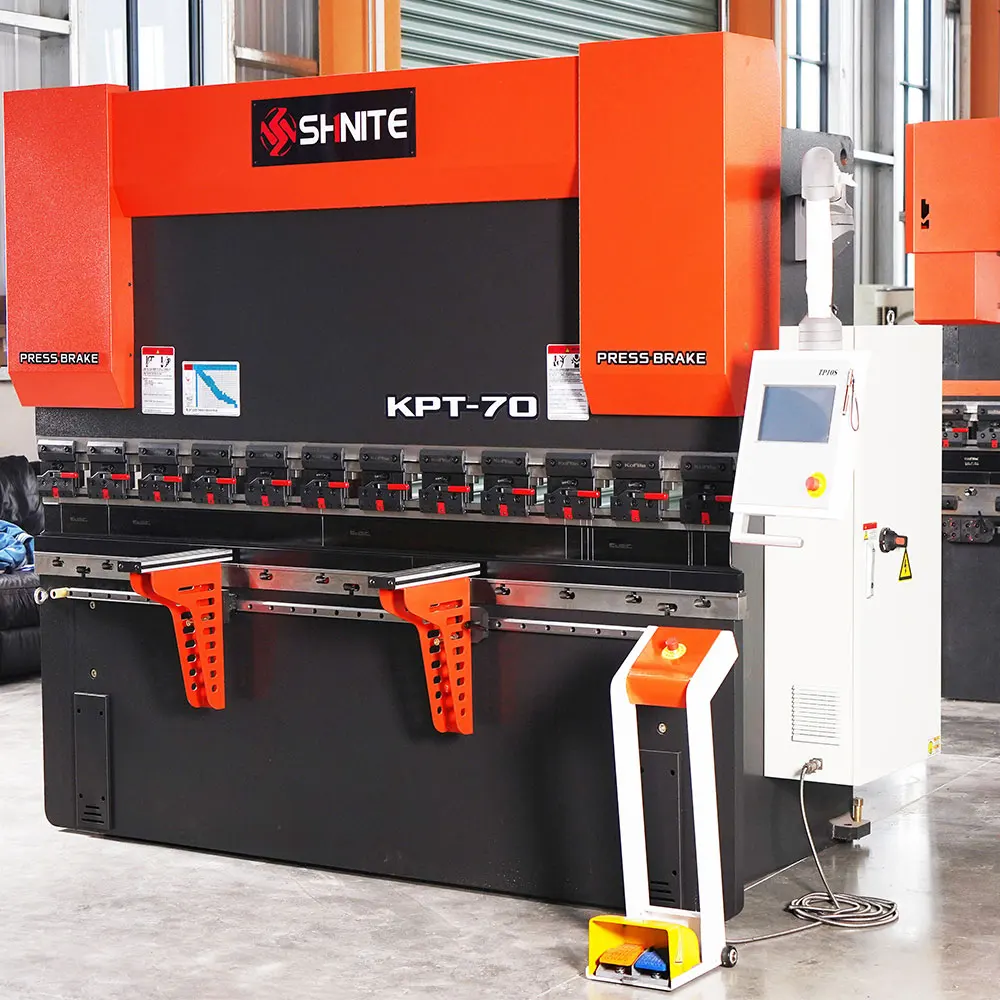

The CNC press brake uses the mold( general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet
metal processing. It is widely used in sheet metal bending,such as automobile air craft manufacturing light industry shipbuilding,container, elevatorrailway vehicles and other industries.
Details Images

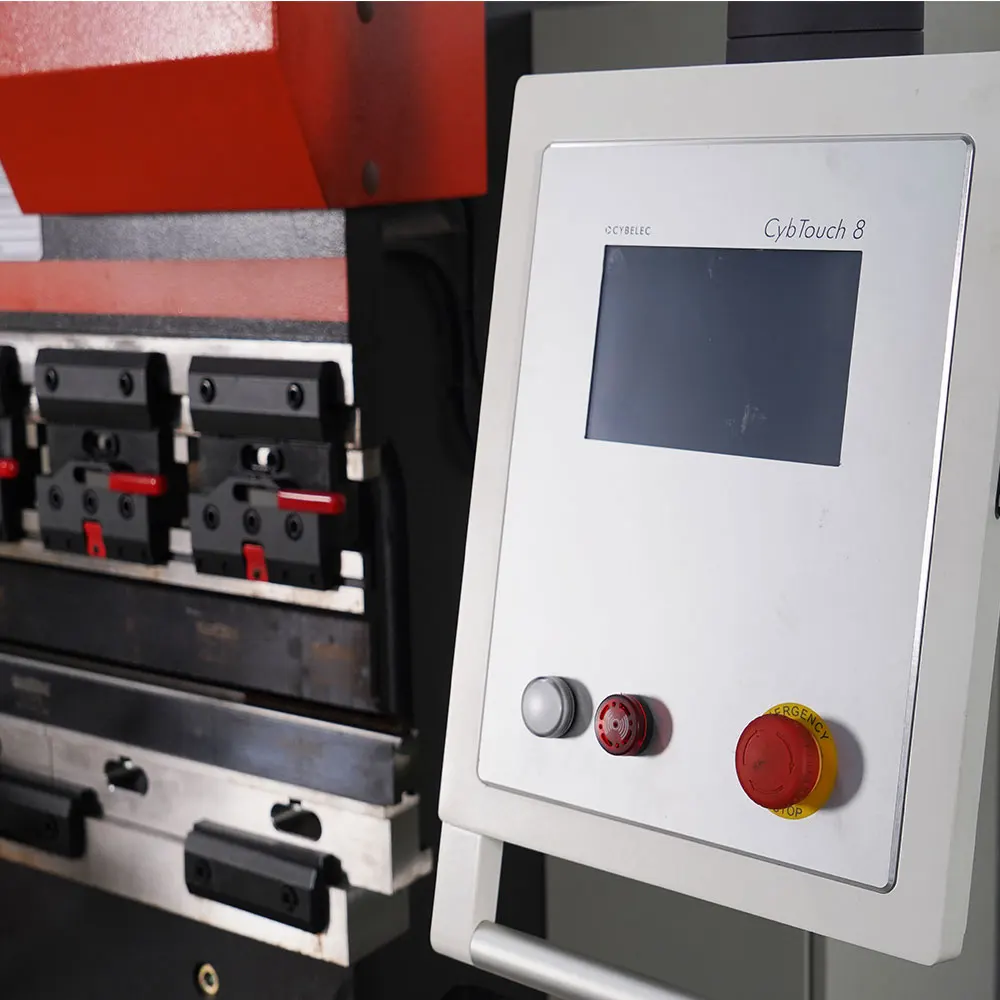

CYBELEC CT8 NC System Features
• 3D visualisation in simulation and production
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the controllers multitasking environment
• Sensor bending & correction interface
• Profile-TL offline software
Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic system
can effectively alleviate problems caused by leakag of hydraulic fluid.

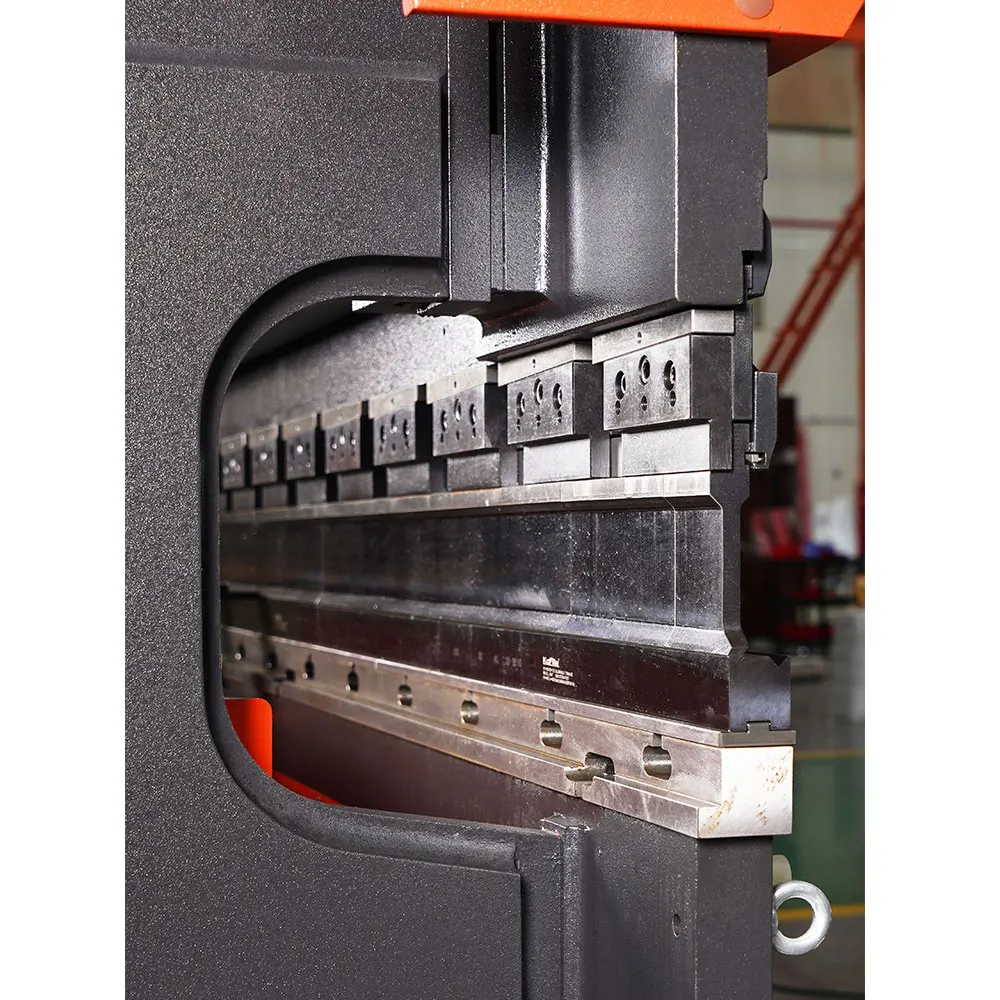

• Can be used without modifying Europe type punches
• Red Button- Release the Punch Toolings easily
• Front clamp - vertical tool change
• Rear clamp - horizontal tool change
The Express Crowning system helps control deflection or "the canoe effet" in press brake applications over 4 ft
longwith quick, repeatable crowning that is precisely adjusted by a basic hand crank and digital readout or an electric motor driven by the CNC machine control.Specification
Type | Nominal Force | Worktable Length | Poles Distance | Throat Depth | Cylinder Stroke | Opening Height | Power | Dimension | ||||||||
(KN) | （mm) | （mm) | （mm) | （mm) | （mm) | (KW) | L*W*H(mm) | |||||||||
30T/1600 | 300 | 1600 | 1295 | 200 | 80 | 370 | 3 | 1650*1100*1900 | ||||||||
50T-1600 | 500 | 1600 | 1295 | 260 | 100 | 380 | 5.5 | 1650*1150*1950 | ||||||||
50T/2000 | 500 | 2000 | 1680 | 260 | 100 | 380 | 5.5 | 2100*1200*2200 | ||||||||
63T/2500 | 630 | 2500 | 2000 | 280 | 120 | 380 | 5.5 | 2600*1350*2300 | ||||||||
63T/3200 | 630 | 3200 | 2600 | 280 | 120 | 390 | 5.5 | 3300*1350*2300 | ||||||||
80T/2500 | 800 | 2500 | 2000 | 280 | 120 | 390 | 7.5 | 2600*1400*2350 | ||||||||
80T/3200 | 800 | 3200 | 2600 | 280 | 120 | 390 | 7.5 | 3300*1400*2350 | ||||||||
100T/2500 | 1000 | 2500 | 2000 | 320 | 140 | 410 | 7.5 | 2600*1450*2450 | ||||||||
100T/3200 | 1000 | 3200 | 2600 | 320 | 140 | 410 | 7.5 | 3300*1450*2450 | ||||||||
100T/4000 | 1000 | 4000 | 3200 | 320 | 140 | 410 | 7.5 | 4100*1450*2450 | ||||||||
100T/5000 | 1000 | 5000 | 3900 | 320 | 140 | 410 | 7.5 | 5100*1450*2450 | ||||||||
125T/3200 | 1250 | 3200 | 2600 | 320 | 140 | 410 | 11 | 3300*1450*2450 | ||||||||
125T/4000 | 1250 | 4000 | 3200 | 320 | 140 | 410 | 11 | 4100*1450*2450 | ||||||||
160T/3200 | 1600 | 3200 | 2600 | 380 | 200 | 460 | 15 | 3300*1650*2850 | ||||||||
160T/4000 | 1600 | 4000 | 3200 | 380 | 200 | 460 | 15 | 3300*1650*2850 | ||||||||
160T/4500 | 1600 | 4500 | 3400 | 380 | 200 | 460 | 15 | 4600*1650*2850 | ||||||||
200T/3200 | 2000 | 3200 | 2600 | 380 | 200 | 460 | 15 | 3300*1750*3200 | ||||||||
200T/4000 | 2000 | 4000 | 3200 | 380 | 200 | 460 | 15 | 4100*1750*3200 | ||||||||
250T/3200 | 2500 | 3200 | 2600 | 440 | 200 | 460 | 20 | 3300*1900*3200 | ||||||||
250T/4000 | 2500 | 4000 | 3200 | 400 | 200 | 460 | 20 | 4100*1900*3200 | ||||||||
250T/5000 | 2500 | 5000 | 3900 | 400 | 200 | 460 | 20 | 5100*1900*3200 | ||||||||
300T/3200 | 3000 | 3200 | 2600 | 420 | 250 | 480 | 19 | 3300*2200*3300 | ||||||||
300T/4000 | 3000 | 4000 | 3200 | 420 | 250 | 480 | 23 | 4100*2200*3300 | ||||||||
300T/5000 | 3000 | 5000 | 3900 | 420 | 250 | 480 | 26 | 5100*22000*3300 | ||||||||
300T/6000 | 3000 | 6000 | 4900 | 420 | 250 | 480 | 30 | 6100*2200*3300 | ||||||||
400T/4000 | 4000 | 4000 | 3200 | 420 | 300 | 500 | 26 | 4100*2600*3500 | ||||||||
400T/5000 | 4000 | 5000 | 3900 | 420 | 300 | 500 | 30 | 5100*2600*3500 | ||||||||
400T/6000 | 4000 | 6000 | 4900 | 420 | 300 | 500 | 36 | 6100*2700*3600 | ||||||||
500T/4000 | 5000 | 4000 | 3200 | 450 | 350 | 550 | 37 | 4100*2800*3800 | ||||||||
500T/5000 | 5000 | 5000 | 3900 | 450 | 350 | 550 | 46 | 5100*2800*3800 | ||||||||
500T/6000 | 5000 | 6000 | 4900 | 450 | 350 | 550 | 55 | 6100*2800*3800 | ||||||||
600T/6000 | 6000 | 6000 | 4900 | 500 | 350 | 550 | 60 | 6100*2800*3800 | ||||||||
More types press brake, please contact us, will give you best solution | ||||||||||||||||
Control System
*Control function, support X,Y,R axis servo axis control, C axis hydraulic/mechanical compensation two modes optional
* Built-in machine control logic, hydraulic valve group free logic configuration, I/O port free configuration function, simplifies the programming calculation of external line* Accurate Angle function, built- .in mold base and material list, improved the calculating precision of
* Standard USB interface, which can realize parameter program a key
* Online backup and system software up grade Standard EDS/Pro Net servo series, superior performance, stable quality
* Safety protection, collision detection and collision avoidance R axis positioning function
* Built-in parameters a key to backup and restore function, reduce service costs
* Micro switch according to the keypad, stable and reliable, long life

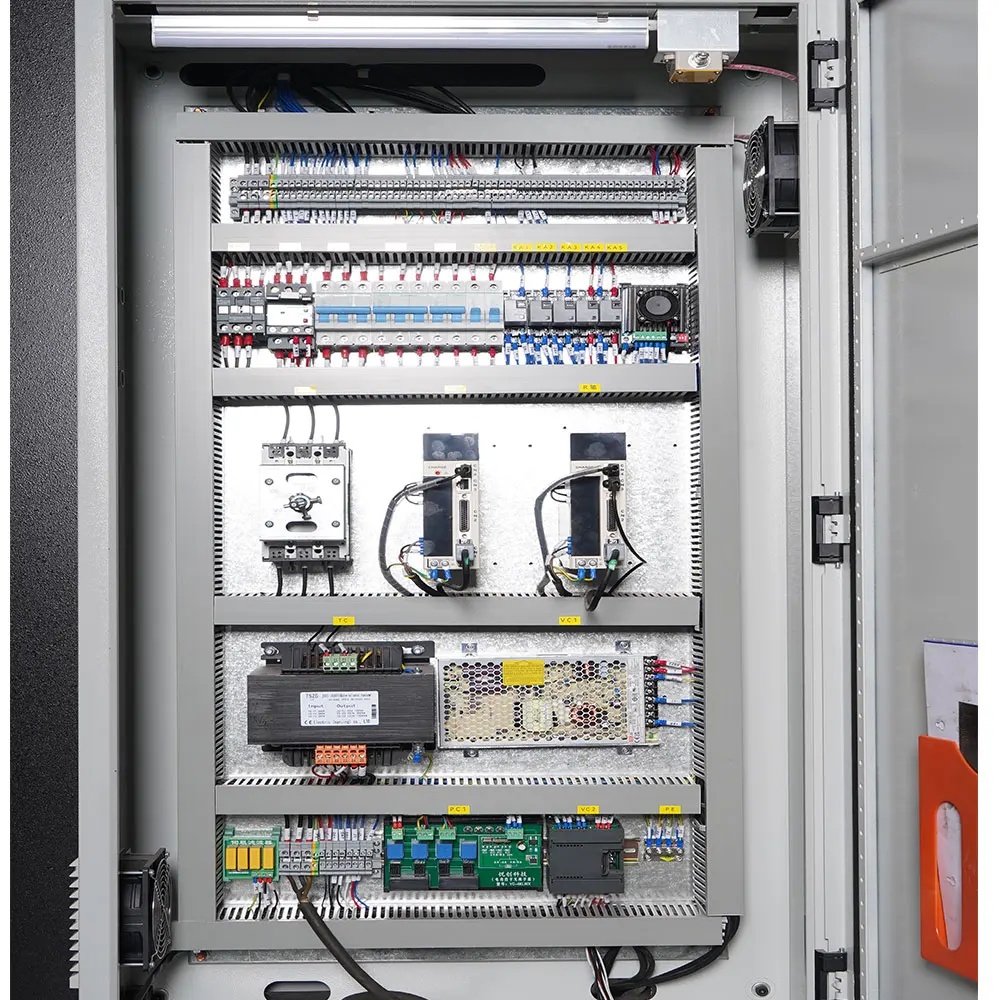

Schneider Electronics
Back Gauge
Company Profile
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with
postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
Our Service1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician
to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We
sign the agreement with detailed technical data. Machine warranty is 5 years.
