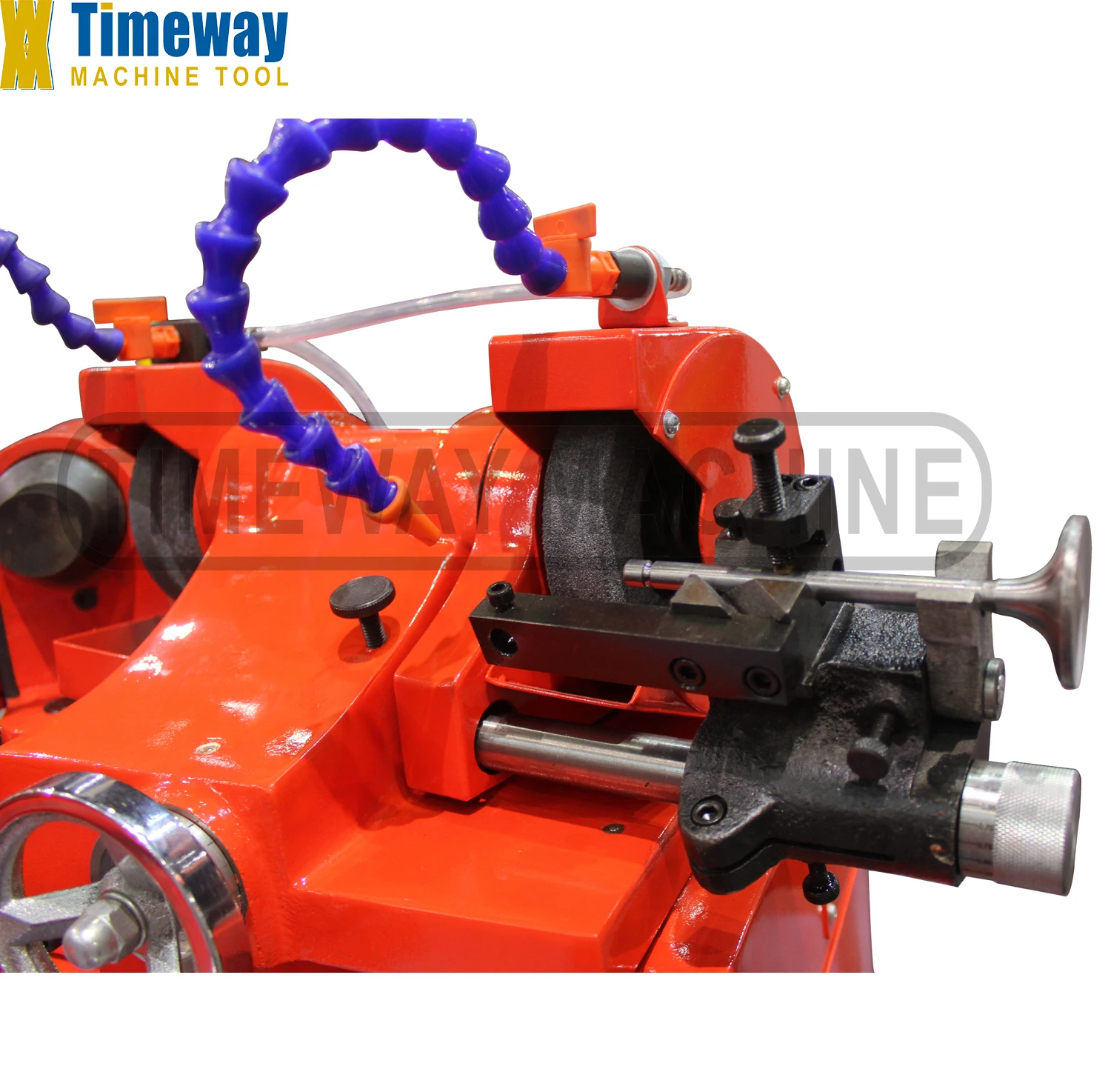

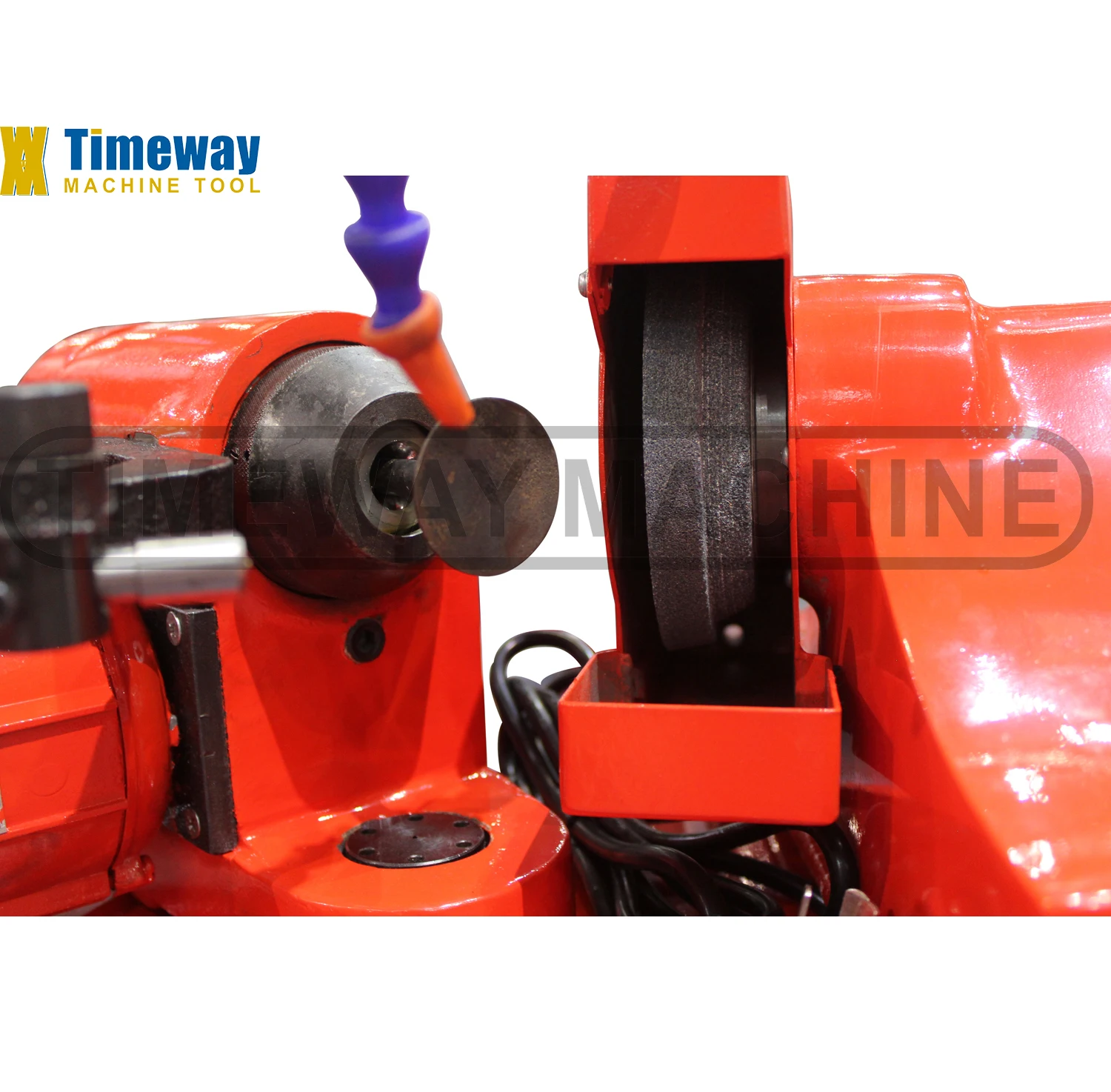

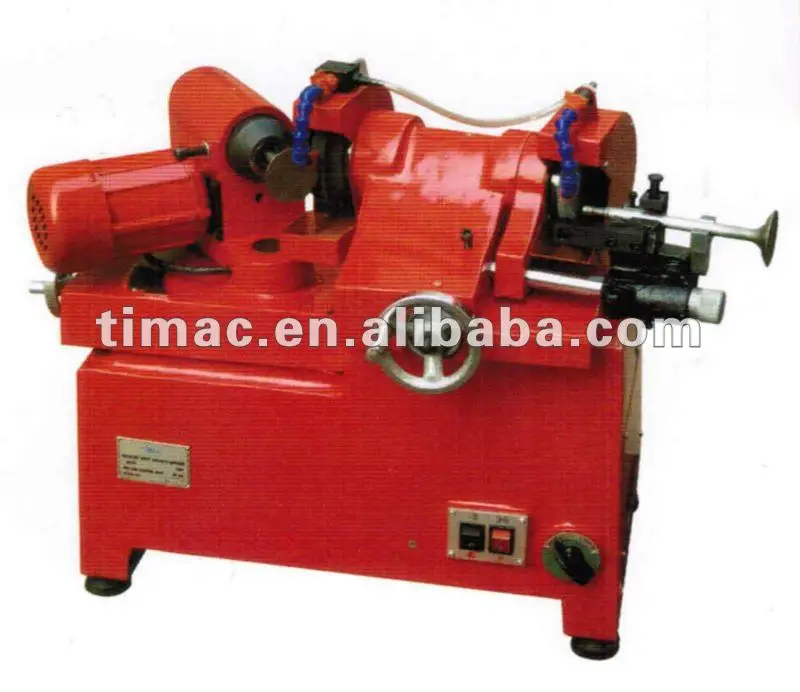

valve grinding machine
Features:
1. This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use.
2. The parts are ground with high surface finish and accuracy.
Parameter:
| Specification | Unit | VR90 |
| Max. dia. of valves to be ground | mm | 90 |
| Dia. of valve stems to be gripped (standard accessories) | mm | 6-16 |
| Dia. of valve stems to be gripped (special accessories) | mm | 4-7 |
| Dia. of valve stems to be gripped (special accessories) | mm | 12-18 |
| Angles of valves to be ground | (°) | 25-60 |
| Longitudinal movement of geared head | mm | 120 |
| Transverse movement of grinding wheel head | mm | 95 |
| Max. cutting depth of ground valve | mm | 0.025 |
| Grinding wheel spindle speed | rpm | 4500 |
| Geared head spindle speed | rpm | 125 |
| Motor output for grinding wheel head | kw | 0.37 |
| Motor output for geared head | kw | 0.09 |
| Weight | kg | 120 |
| Overall dimensions (LXWXH) | cm | 68x60x60 |
Packaging & Shipping
Company Introduction
Export Cases
Exhibitions
Customers Visited
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
