NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description
Shoe Upper Insole DTG Printer
__

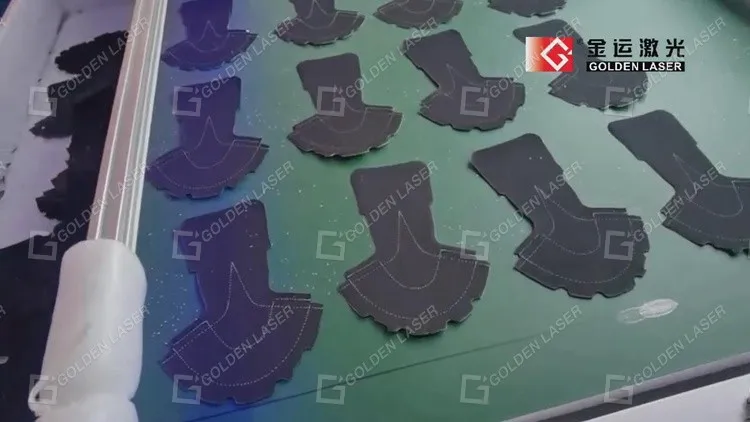

In the shoe industry, precise drawing of the stitching line of the shoe patterns is an indispensable process Traditional manual drawing not only requires a lot of labor, its quality also depends entirely on the proficiency of the workers. Goldenlaser JYBJ-12090LD is specially designed for precise stitching line drawing of shoe materials. The equipment can perform automatic recognition of the type of cut pieces and precise positioning. It is high-speed, high-precision and assembly line processing flow. The whole machine is automatic, intelligent, and easy to learn. The simplification of processes and the replacement of labor by machines are the way out for factories in the future. Therefore, GoldenLaser launched a fully automatic inkjet stitching line drawing machine to help shoe factories save labor, improve efficiency, and save costs.
Now it’s time for you to consider using automatic machinery solutions and giving your company an edge over the competition.

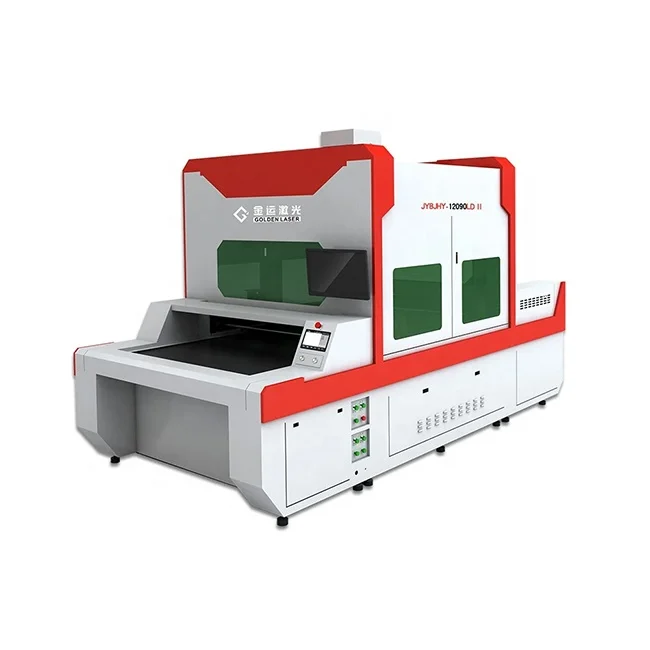

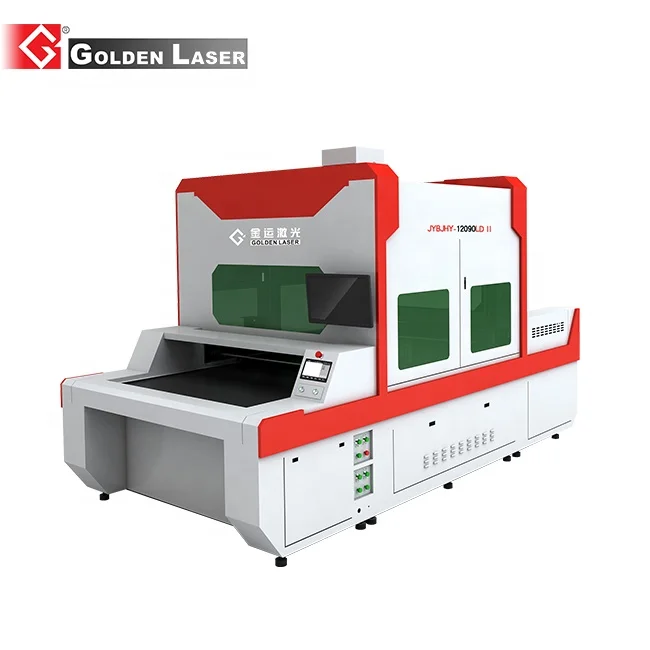

Machine Pics
__
Specification
JYBJ-12090LD Technical Parameters | ||
Maximum working speed | 1,000mm/s | |
Acceleration | 12,000mm/s2 | |
Repeating positioning accuracy | ≤0.05mm | |
Positioning accuracy | ≤0.1mm/m | |
Recognition accuracy | ≤0.2mm | |
Working table | Rubber belt driving transmission working table | |
Working table height | 750mm | |
Transmission system | Synchronous belt module transmission | |
Control system | Servo control system | |
Vision positioning | 2.4M pixels industrial camera | |
Noise | ≤65Dd | |
Power supply | AC220V±5% 50Hz | |
Power consumption | 3KW | |
Software | Golden Laser Vision Positioning Software | |
Graphic formats supported | AI, BMP, PLT, DXF, DST | |
Features
__
1. Fully automatic assembly line operation, only need a worker to load the material (automatic loading device is optional).
2. The whole machine consists of three stations: loading area, inkjet processing area, and drying and unloading area. The effective working range of each station is 1200mmx900mm.

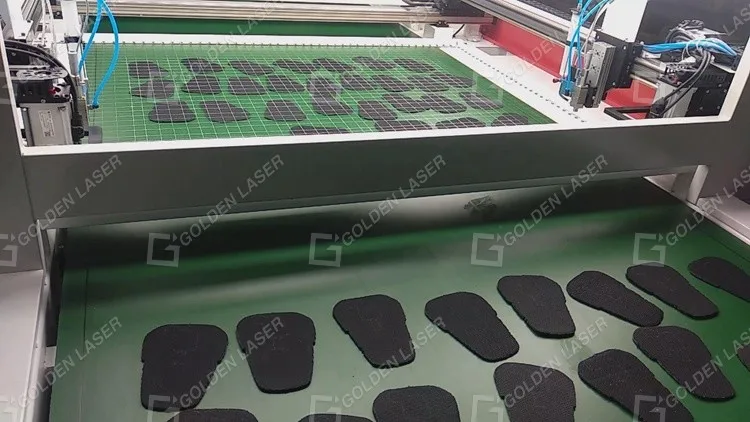

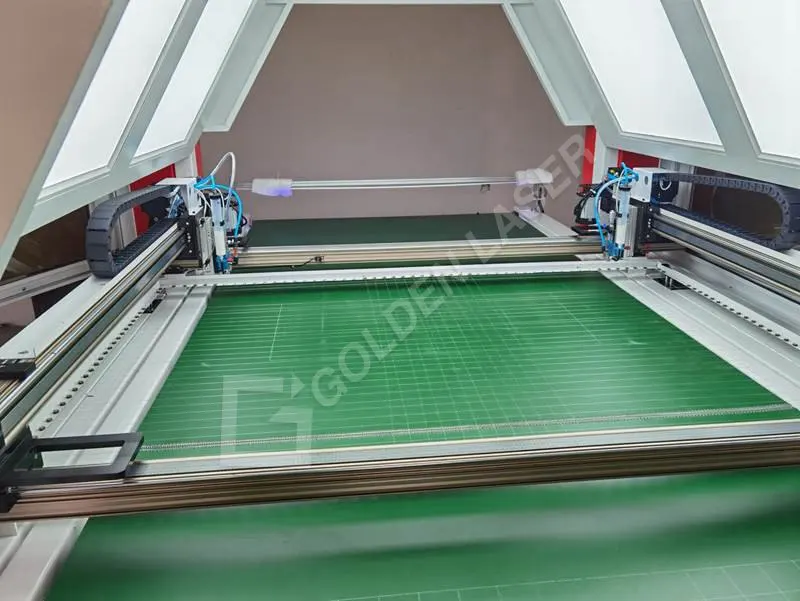

3. The inkjet processing area is designed with a grid-shaped pneumatic press screen, which can press and flatten the cut pieces, and the camera recognition software has a grid elimination function.
4. Equipped with high-precision industrial cameras, intelligent recognition of shoe uppers. Different types of uppers can be mixed and loaded, with software automatic recognition and precise positioning.

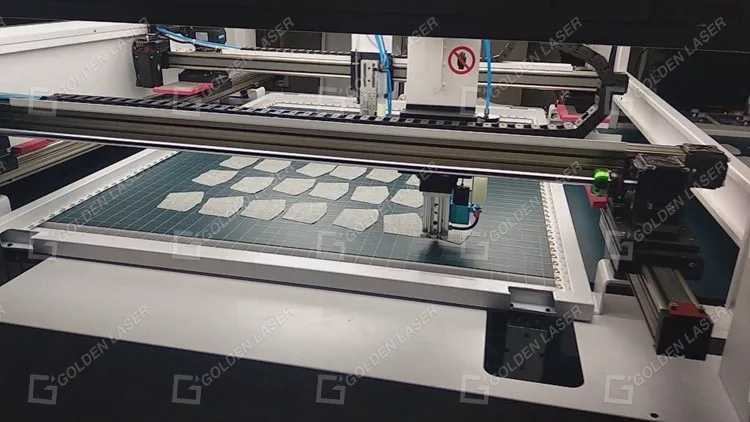

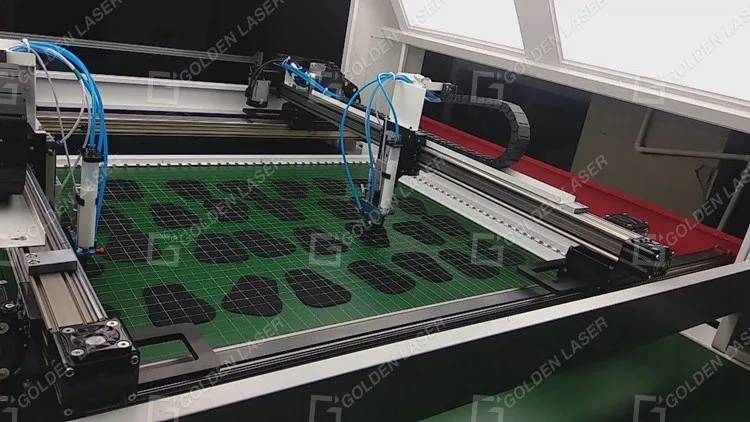

5. The inkjet head adopts X-Y gantry motion mode. Single head and double head are available. Imported servo driven module, fast speed, high precision and low failure rate.
6. High-frequency and high-speed inkjet head, with very slim spraying dots. Applicable to all kinds of disappearing ink and fluorescent ink.
7. Pneumatic inkjet head with pneumatic lifting function.
8. Collecting platform comes standard with drying system.
9. Suitable for inkjet marking of various shoe upper materials.
Workflow
__
1. Fully automatic assembly line operation, only need a worker to load the material (automatic loading device is optional).
2. The whole machine consists of three stations: loading area, inkjet processing area, and drying and unloading area. The effective working range of each station is 1200mmx900mm.
3. The inkjet processing area is designed with a grid-shaped pneumatic press screen, which can press and flatten the cut pieces, and the camera recognition software has a grid elimination function.
4. Equipped with high-precision industrial cameras, intelligent recognition of shoe uppers. Different types of uppers can be mixed and loaded, with software automatic recognition and precise positioning.
5. The inkjet head adopts X-Y gantry motion mode. Single head and double head are available. Imported servo driven module, fast speed, high precision and low failure rate.
6. High-frequency and high-speed inkjet head, with very slim spraying dots. Applicable to all kinds of disappearing ink and fluorescent ink.
7. Pneumatic inkjet head with pneumatic lifting function.
8. Collecting platform comes standard with drying system.
9. Suitable for inkjet marking of various shoe upper materials.
Workflow
__
▶ Manual or automatic loading
▶ High precision camera recognition▶ Inkjet marking

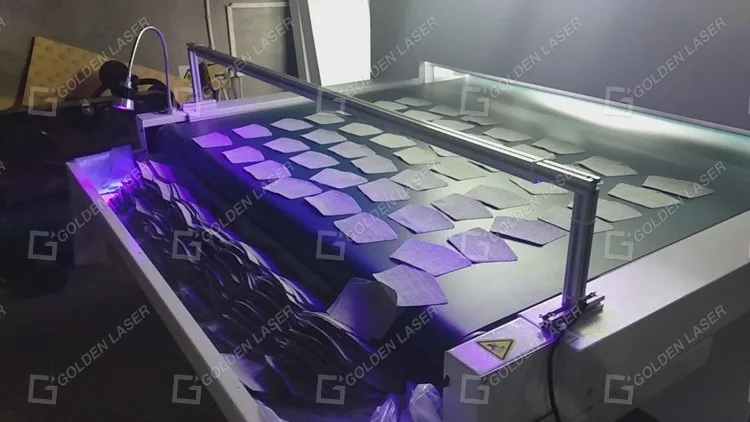

▶ Drying and unloading
Packing & Delivery

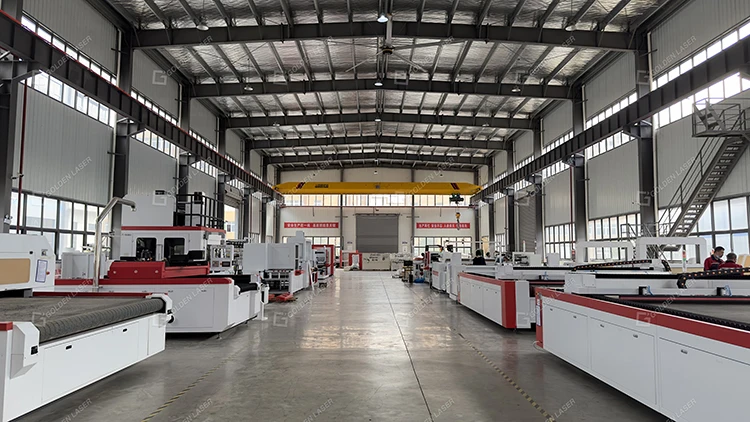

Company Profile
