Депая 12T автоматический гидравлический поднос для торта с поворотным механизмом высечки вырубной пресс
- Категория товара: Shoe Making Machines >>>
- Поставщик (Оптовый магазин): Hangzhou,Depai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

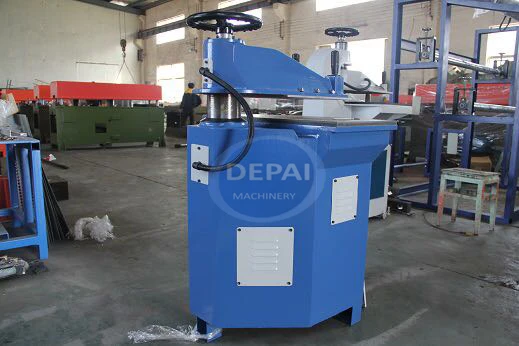

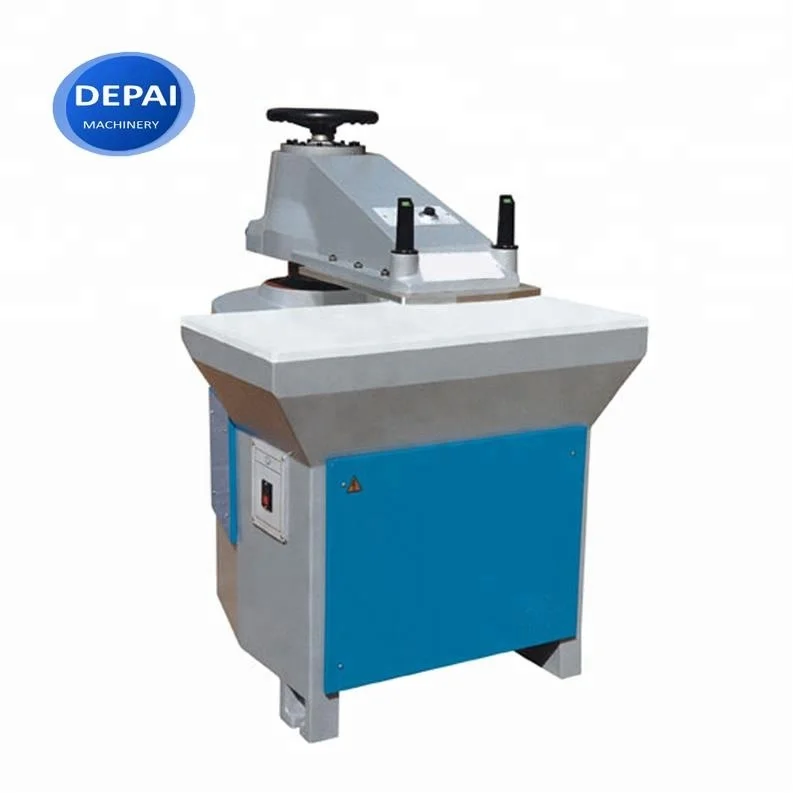

DEPAI 12T Automatic Hydraulic Cake Tray Swing Arm Die Cutting Clicker Presses Machine
Product Description
This machine applies to the use of cutting on wallet assembly, mobile phone sets, small toys, decorative items, purses and other non-metallic materials. It has a rotatable arm, choice of material is convenient.
Main Specification
Model | DP-GS-12T |
Cutting Force | 12ton |
Cutting Area | 900*410mm |
Arm Width | 330*450mm |
Maximum Stroke | 55mm |
Motor Power | 0.75kw |
Tension Distance | 140mm |
N.W(approx.) | 390kg |
G.W(approx.) | 410kg |
Color | Customized |
Overall Dimensions (WxDxH) | 670mm*760mm*1560mm |
Packing Size | 900mm*900mm*1700mm |
Voltage | Three/single phase,380v/220v |
Hydraulic oil | 46# 48# 68# |
Function | Cutting |
Driven Type | Hydraulic |
Machine | Machine for make pvc card |
Condition | New |
OEM&ODM | Yes and Welcome |
Material | Steel/Iron Cast |
Logo | Customized Logo |
Packing | Ply-wooden packing 20GP:21sets; 40GP:48sets |
Useage | Used to one layer or several layers of the materials such as, leather, rubber, canvas, nylon, cardborad, and so on. |
Sample Time | 5-7 working days after received sample cost |
Lead Time | 10-20working days after order confirmed(depend on order qty) |
Shipping | Machine by sea from Shanghai port or Ningbo port Doc by express:DHL/TNT/UPS/FedEx etc. |
Payment | T/T;L/C;Western Union |
Suitable Material
1. Abrasives
2. Clothing
3. Foam&Sponge
4. Footwear Components
5. Carpets&Flooring
6. Felt
7. Automative Components
8. Cork
9. Disposables
10. Electric,LCD, Mobile Phone
11. Envelopes
12. Filters
13. Gaskets,Seals&Washers
14. Furniture&Seating
15. Insulation
16. Laminates & Composites
17. Leathers
18. Medical Products
19. Packaging
20. Paper&Cards
21. Plastic Cards & Credit Card
22. Tapes
23. Textiles
24. PVC Panels
Feature
(1)Using high-quality seamless steel tube , supported by two upper and lower holes ,ensure that the pad rotation flexibility and reliability.
(2)Using both hands to operate the switch, to ensure the safety of operating
(3)level of arm position is adjusted by hand wheel on the machine. Cutting stroke is adjusted by time. So that so you can easily get the best cutting position, improve work efficiency and prolong the life of die cutter and mat.
(4)Use inertia of the flywheel storage energy , energy saving.

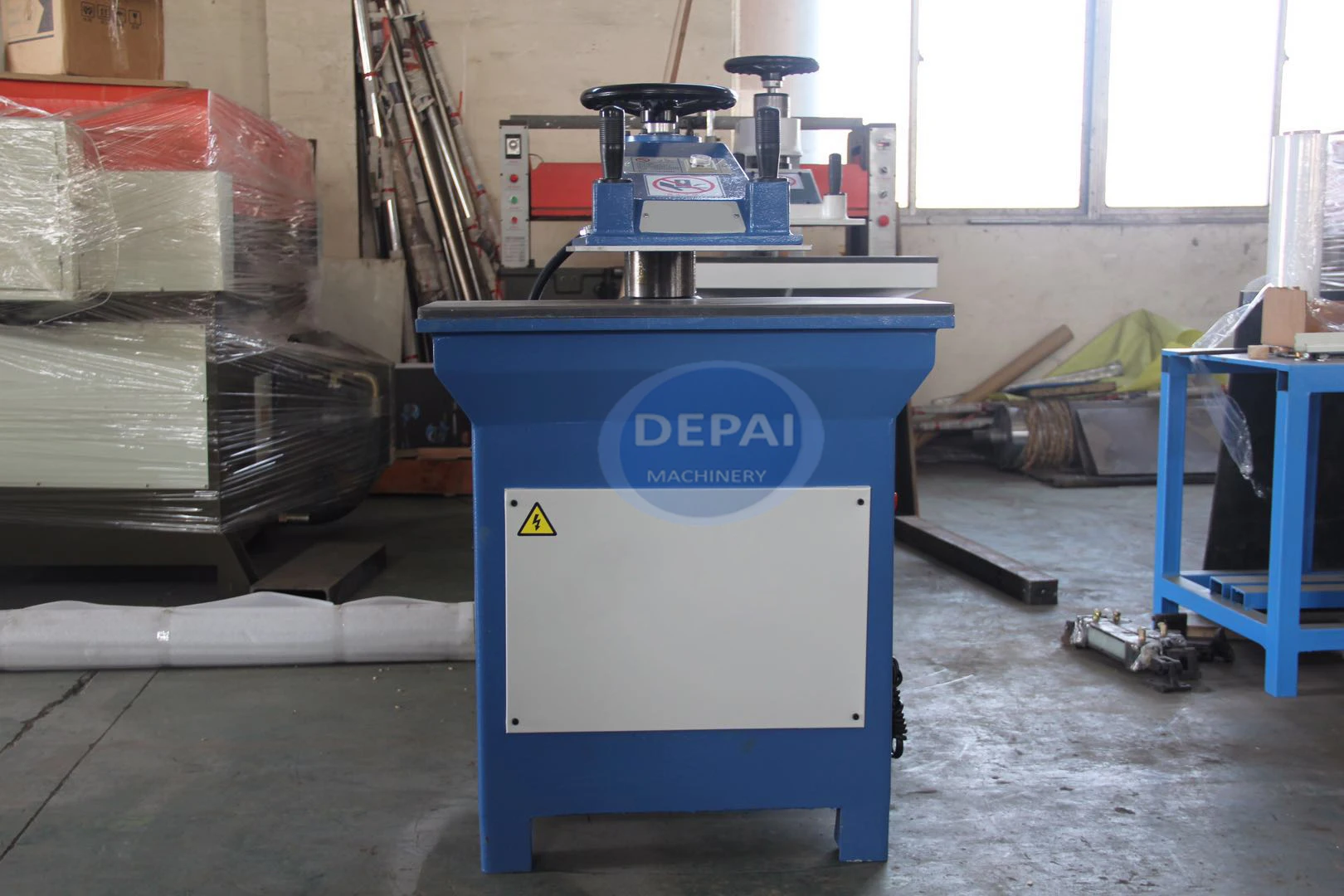

Detailed Images
