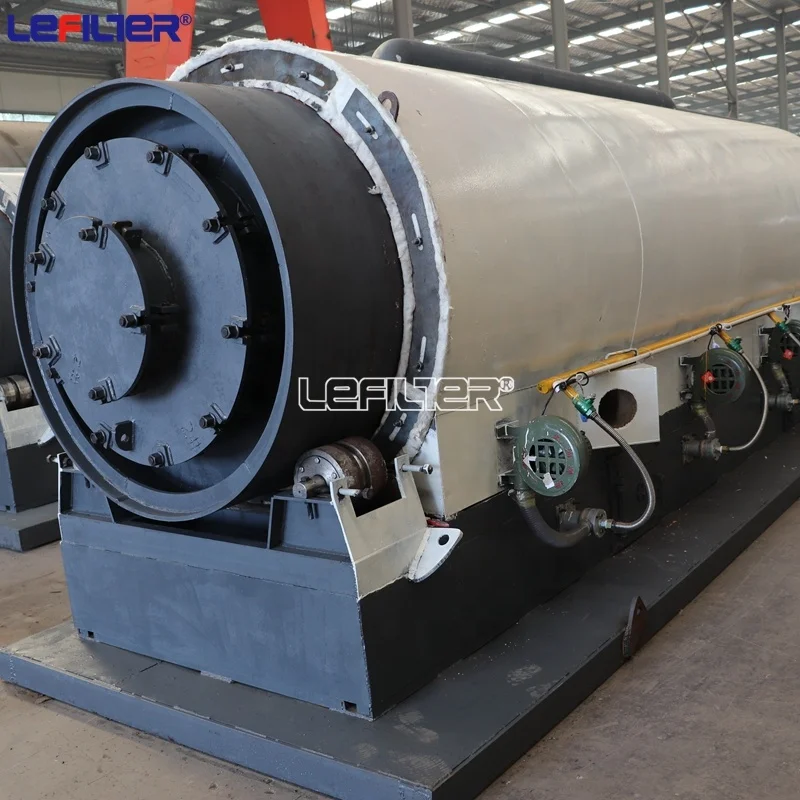

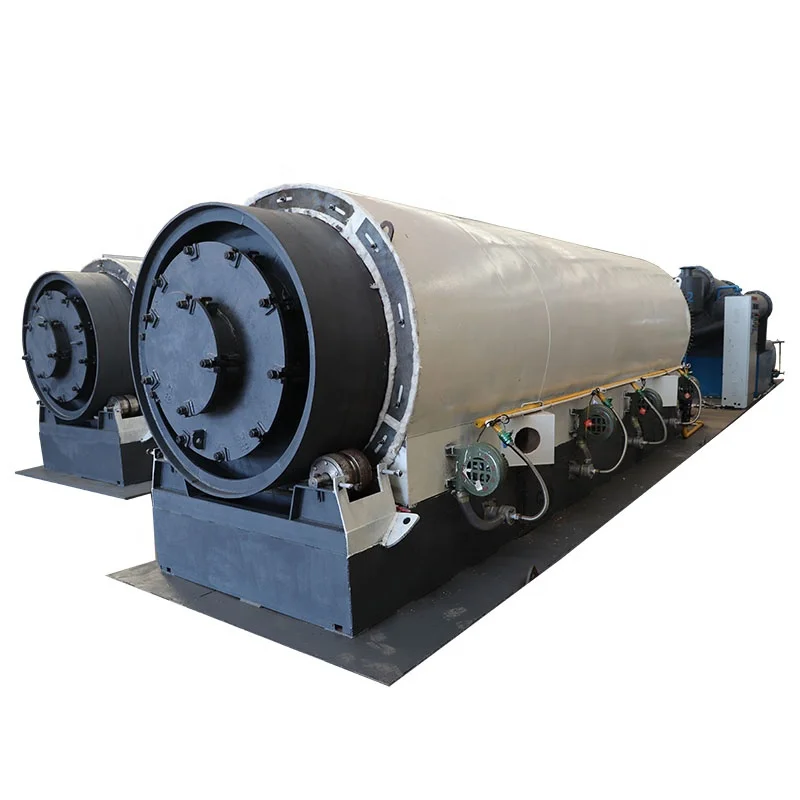

3-тонный пиролизный завод по переработке пластиковых отходов
- Категория товара: Rubber Recycling Machinery >>>
- Поставщик (Оптовый магазин): Xinxiang,Lifeierte,Filter,Co.,Ltd.,Shangqiu,Branch
Поделиться:
Описание и отзывы
Характеристики
Product Specifications
Raw Material | Oil Yield | For example | ||
Waste tire | 40-45% | Steel tire, canvas tire, etc. the engineering tire is large in size and needs to be cut, broken and then cracked | ||
Waste rubber | 35% | Such as rubber cable leather, rubber sole, conveyor belt, rubber track, etc. | ||
Waste chemical fiber carpet | 30% | |||
PMMA | 80-85% | Plexiglass, acrylic, etc | ||
PE material | 95% | Industrial packaging film, food packaging film, daily necessities, building materials, wires, cable insulation skin, etc | ||
PP material | 90% | Woven bags, packing bags, injection products such as food utensils, basins, barrels, bottle caps, car bumpers, etc | ||
PS material | 90% | CD, CD case, tape case, foam product, home appliance shell, etc. | ||
ABS engineering plastics | 40% | |||
We have our own lab to test the oil output rate of your raw material ,welcome to contact | ||||
Items | waste tyre pyrolysis plant | ||||||
Input-Raw Material | Waste tire/rubber/plastic/municipal solid waste/waste organic glass | ||||||
Final products | Fuel oil, N220, N330 carbon black, steel wire, flammable gas. | ||||||
P/N | LES-2266 | LES-2666 | LES-2675 | LES-2880 | |||
Capacity/24h | 6Ton/Batch | 10Ton/Batch | 12Ton/Batch | 15Ton/Batch | |||
Oil production(T)/24h | 2.7-3.2 | 3.6-4 | 4.5-5 | 5.4-6 | |||
Power | 5.5KW | 5.5KW | 7.5KW | 7.5KW | |||
Cooling water(T/h) | 4 | 5 | 6 | 8 | |||
Cooling type | Water-cooled | ||||||
Noise(dB) | 85 | ||||||
Operating | Intermittent | ||||||
Driving mode | Internal gear | External gear | |||||
Reactor material | Q345R/Q245R/310S+Boiler plate/Stainless steel | ||||||
Structure | Horizontal rotation | ||||||
Host weight(T) | 20 | 23 | 26 | 28 | |||
Reactor size(mm) | Ø2200*6600 | Ø2600*6600 | Ø2600*7500 | Ø2800*8000 | |||
Space needed | 200-300 square meters (Width:10m, Length:20m-30m) | ||||||
Labors number | 3-4 workers | ||||||
Total power | 20kw | ||||||
Heating fuel used | Wood,Coal,Fuel oil or Natural gas | ||||||
Fuel Oil | 40% | 1. Heating material : sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory , boiler factory, etc. 2. Used for heavy oil generator for electricity generation. 3. Deep process it into diesel oil by oil distillation machine, then can be used in cars , trucks, tractors, etc. |
Carbon Black | 35% | 1. Make it into pellet or briquette as heating material. 2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry. 3. Make it into plastic grains then sold to plastic industry. |
Steel Wire | 15 % | 1. Sell it to iron and steel factory directly. 2. Sell it to steel distributors. |
Flammable Gas | 8%-10% | 1.Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas. 2.Store it then supply the pyrolysis equipment heating ,it’s recycling. |
Feasibility Analysis
Note ： A. This analysis is made with capacity of 10tonstire per day per batch.
B. Please modify relative prices according to your actual market conditions.
B. Please modify relative prices according to your actual market conditions.
NO. | ITEM | DETAILS |
1 | DAILY CAPACITY | 10MT |
2 | Raw Materials | Waste tyres |
3 | Cost of tyres | 10T*1500¥/MT=15000¥ |
4 | Cost of Catalyst | 10MT*0.3%*5000¥/MT=150¥ |
5 | Labor (DAILY) | 4P*150¥/D/P=600¥ |
6 | Electricity & Water | 200¥ |
7 | FUEL COST | 0.45MT*1200¥/MT=540¥ |
8 | Other | 100¥ |
9 | Total Cost | 16,590.00¥ |
10 | Oil Income | 10MT*40%*4300¥/MT=17,200.00¥ |
11 | Steel Income | 10MT*13%*1400¥/MT=1,820.00¥ |
12 | Carbon Income | 10MT*35%*300¥/MT=1,050.00¥ |
13 | Gross Income | 20,070.00¥ |
14 | Daily Net Income | 20,070.00¥−16,590.00¥=3,480.00¥ |
15 | Monthly Net Income | 3,480/Day*25D=87,000.00¥ |
16 | Yearly Net Income | 87,000.00¥/M*11M=957,000.00¥ |
Product Display
Strength of Lefilter waste tyre recycling plant pyrolysis Equipment
A. We can supply hydraulic feeding system,which can shorten the feeding time,save labor,reduce costs,improve production efficiency.With power strength 80 ton and 15 kw motor ,it's competitive than other factories.
B. No leaking and safe with special high temperature flexible graphite packing.
A. We can supply hydraulic feeding system,which can shorten the feeding time,save labor,reduce costs,improve production efficiency.With power strength 80 ton and 15 kw motor ,it's competitive than other factories.
B. No leaking and safe with special high temperature flexible graphite packing.
C. Fully enclosed carbon black discharging system.
Automatic discharging by the reactor move forward or back-forward.No pollution caused by carbon black and will not flying out when discharging.
D.Good quality on raw material:
Reactor material is Q345R,which is used for furnace professionally,it has better performance under high temperature working environment than Q245R others used.
Reactor shell is Q235B material,and filled with refractory matters that can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.
E.Our pyrolysis plant is equipped with anti-explosion device,safety valves,emergency valves,pressure and temperature meters,as well as the alarming system to avoid emergency happens.
F. Environmental-friendly.
a:Emission Standard:Adopting special gas scrubbers to remove acid gas and dust from smoke .
b:Smell during operation:Fully enclosed during the operation
c:Water pollution:No pollution at all. All water are recycling used,after making the oil cool,then flow into water pool then reused.
d:Air pollution:no air pollution,the waste gas can be discharged into flue gas pool,it's closed.
e:Solid pollution:No solid pollution.All the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold directly with its value.
Automatic discharging by the reactor move forward or back-forward.No pollution caused by carbon black and will not flying out when discharging.
D.Good quality on raw material:
Reactor material is Q345R,which is used for furnace professionally,it has better performance under high temperature working environment than Q245R others used.
Reactor shell is Q235B material,and filled with refractory matters that can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.
E.Our pyrolysis plant is equipped with anti-explosion device,safety valves,emergency valves,pressure and temperature meters,as well as the alarming system to avoid emergency happens.
F. Environmental-friendly.
a:Emission Standard:Adopting special gas scrubbers to remove acid gas and dust from smoke .
b:Smell during operation:Fully enclosed during the operation
c:Water pollution:No pollution at all. All water are recycling used,after making the oil cool,then flow into water pool then reused.
d:Air pollution:no air pollution,the waste gas can be discharged into flue gas pool,it's closed.
e:Solid pollution:No solid pollution.All the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold directly with its value.

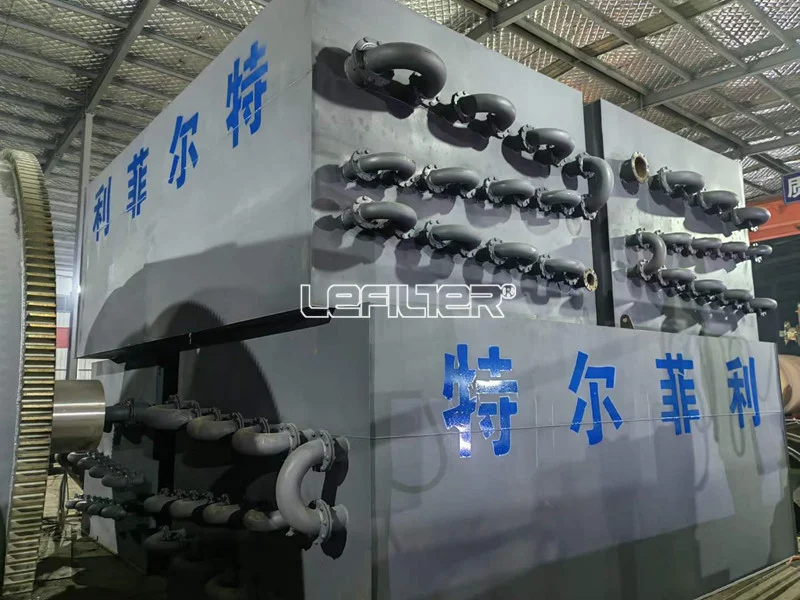

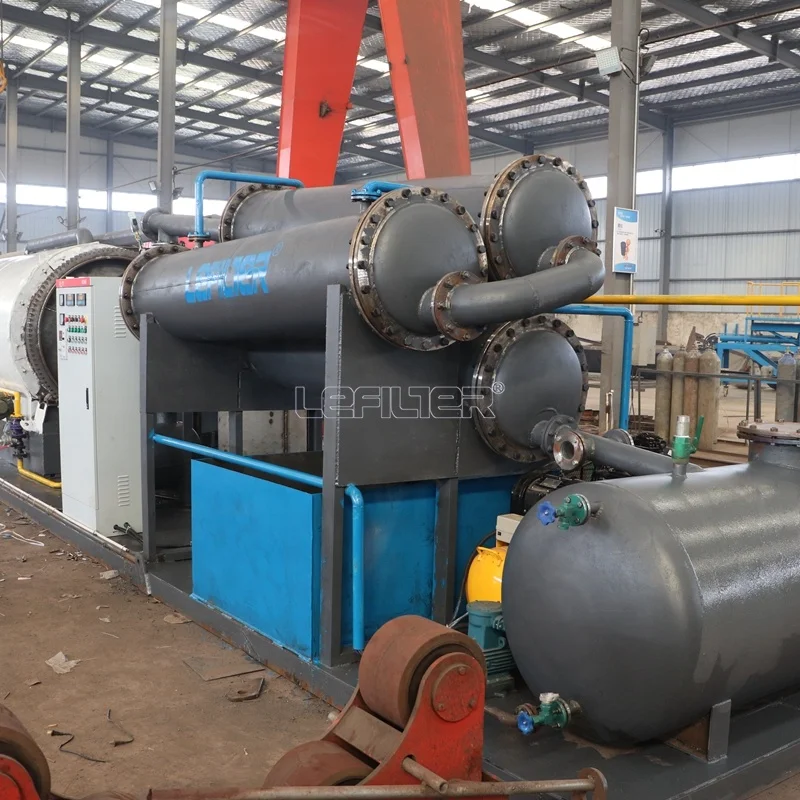

G.Box condenser is produced with 8 pcs 133mm tubes and 17 pcs 108 tubes,25 tubes totally can guarantee the high yield and not easily blocked .The length of oil gas will be arround 180m in the tubes and have enough time to cooling down the oil gas to oil.
Customer Feedback
Bangladesh client's feedback for our consultant service
Japanese Client's comment for our pyrolysis plant
Main Products
Company Profile

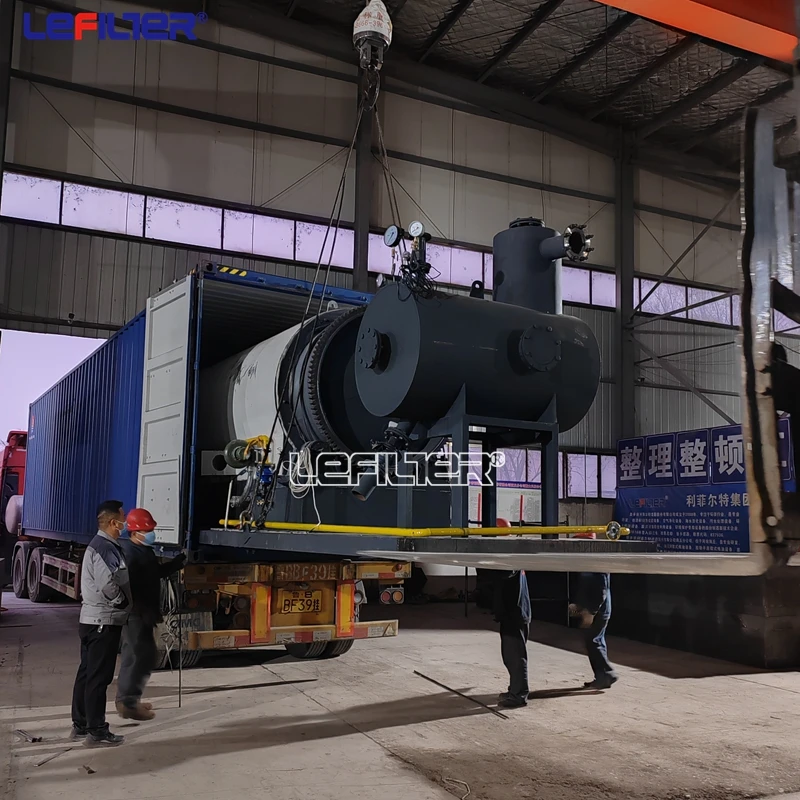

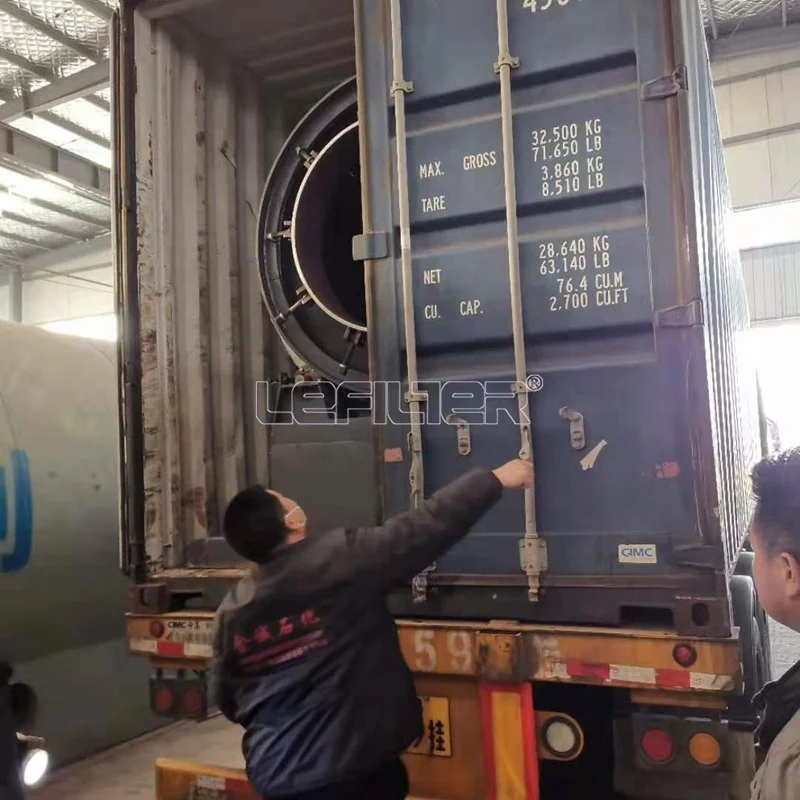

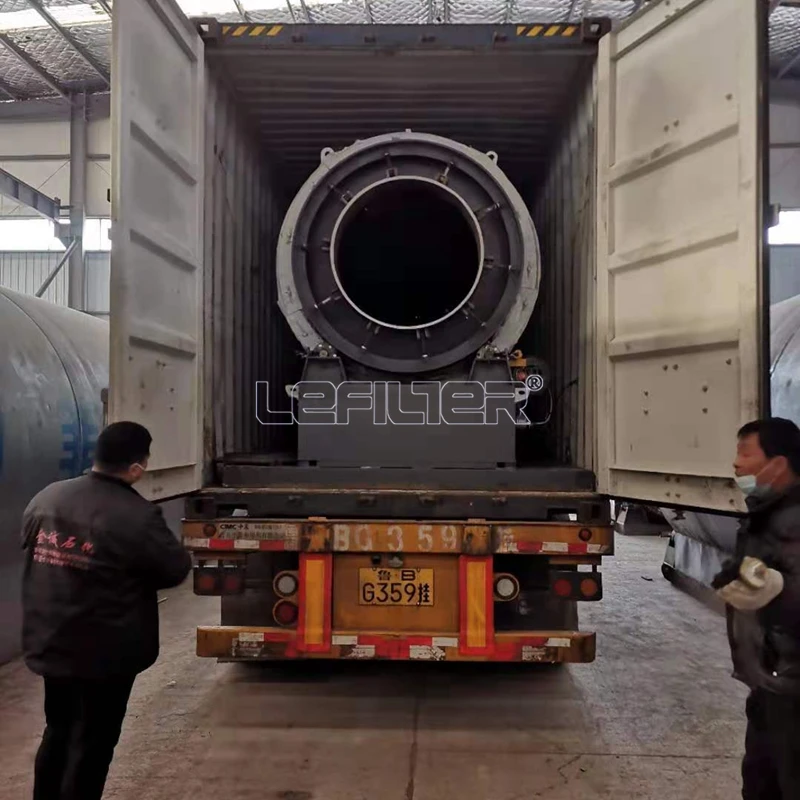

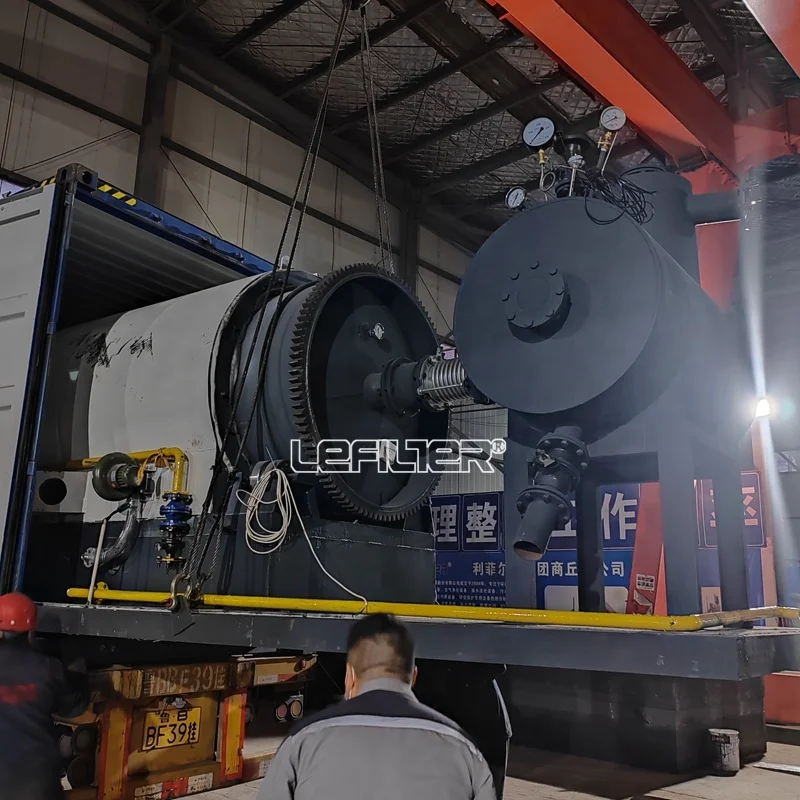

Packaging & Shipping
FAQ
1.What is your Qualification?
We are professional waste tyre and plastic pyrolysis plant manufacturer, with more than 20 years' manufacturing experience.
2.What kind of raw material can be processed by pyrolysis?
We specialized in manufacturing pyrolysis plant for waste tyre/waste plastic/waste oil slugge, MSW etc
Tires for car, truck, motorbike...
Plastic of PE, PP,PS,ABS,bags,acrylic, rubber, oil sludge industrial waste material etc all can be pyrolysised...
3.How many countries we have exported?
Our product have been successfully exported and Installed in India,Brazil,Russia,Viet Nam,Egypt,South Africa,Thailand,Indonesia,Poland etc 100+ country.
4.What is our Warranty Period?
The Warranty Period is ONE YEAR with lifelong service and 24 hours online service.
5. How about your after-service ?
We will provide one year free warranty for our machine, and after machine delivery, we have the engineers which can be sent to your site for machine installation, commissioning and traning your workers. You also can feel free to contact us, when you have any questions about our machine.
6. How long does it take for you to deliever the plants ?
A. In stock, within 15 days after received the advanced payment;
B. Out of stock, within 30 days after received the advanced payment.
We are professional waste tyre and plastic pyrolysis plant manufacturer, with more than 20 years' manufacturing experience.
2.What kind of raw material can be processed by pyrolysis?
We specialized in manufacturing pyrolysis plant for waste tyre/waste plastic/waste oil slugge, MSW etc
Tires for car, truck, motorbike...
Plastic of PE, PP,PS,ABS,bags,acrylic, rubber, oil sludge industrial waste material etc all can be pyrolysised...
3.How many countries we have exported?
Our product have been successfully exported and Installed in India,Brazil,Russia,Viet Nam,Egypt,South Africa,Thailand,Indonesia,Poland etc 100+ country.
4.What is our Warranty Period?
The Warranty Period is ONE YEAR with lifelong service and 24 hours online service.
5. How about your after-service ?
We will provide one year free warranty for our machine, and after machine delivery, we have the engineers which can be sent to your site for machine installation, commissioning and traning your workers. You also can feel free to contact us, when you have any questions about our machine.
6. How long does it take for you to deliever the plants ?
A. In stock, within 15 days after received the advanced payment;
B. Out of stock, within 30 days after received the advanced payment.
