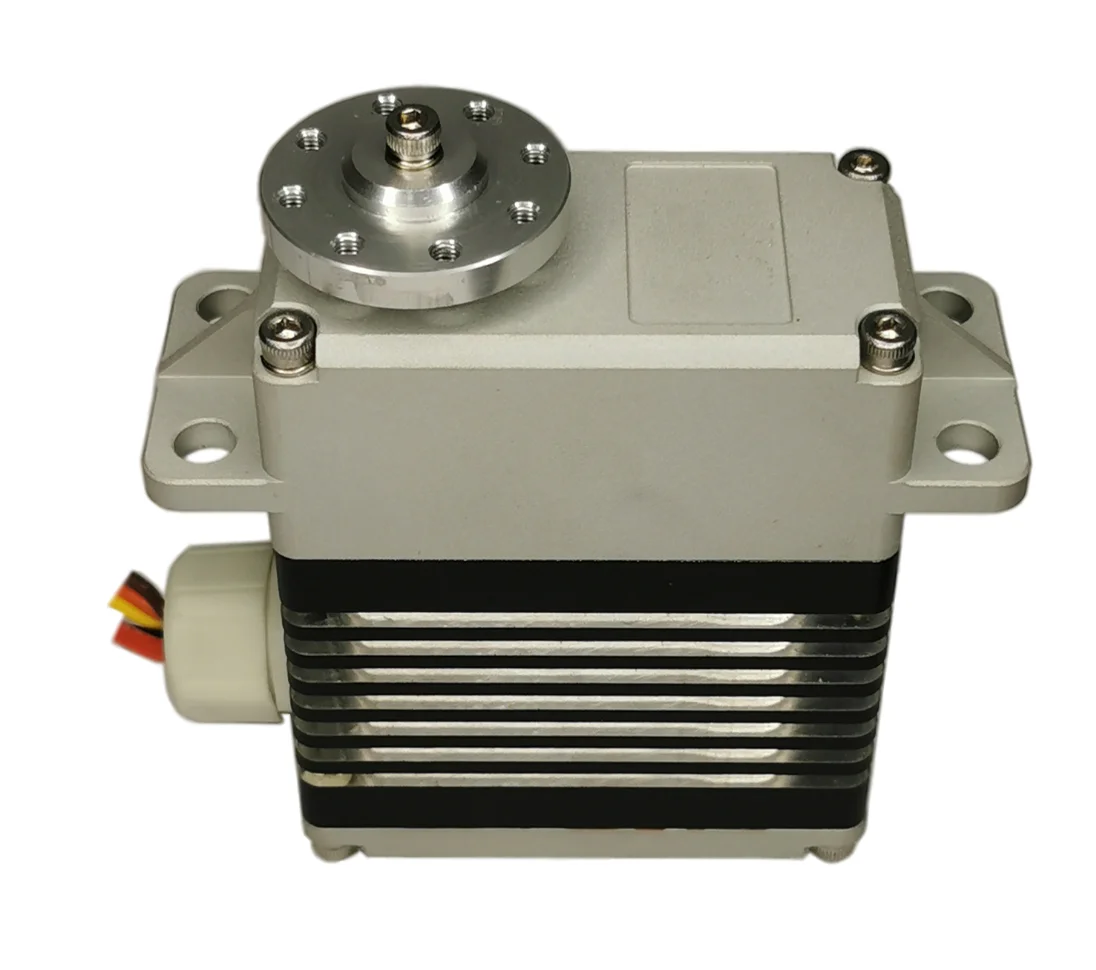

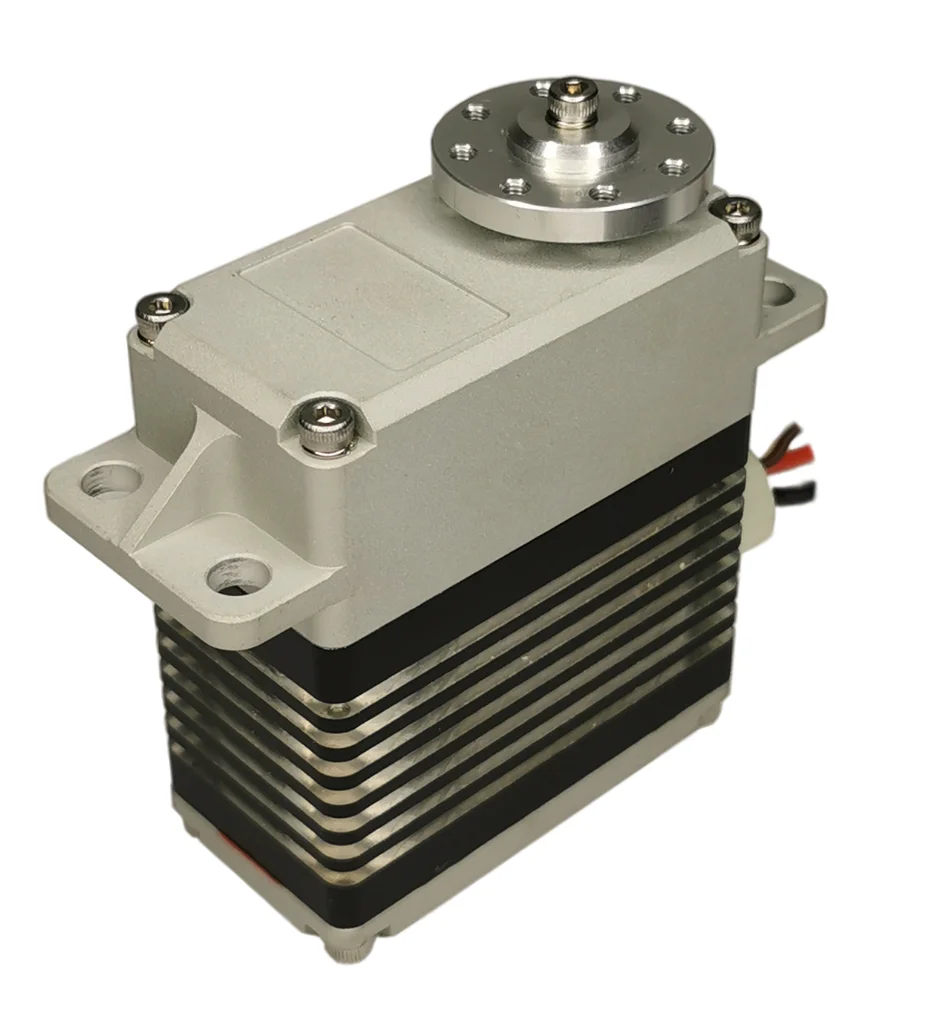

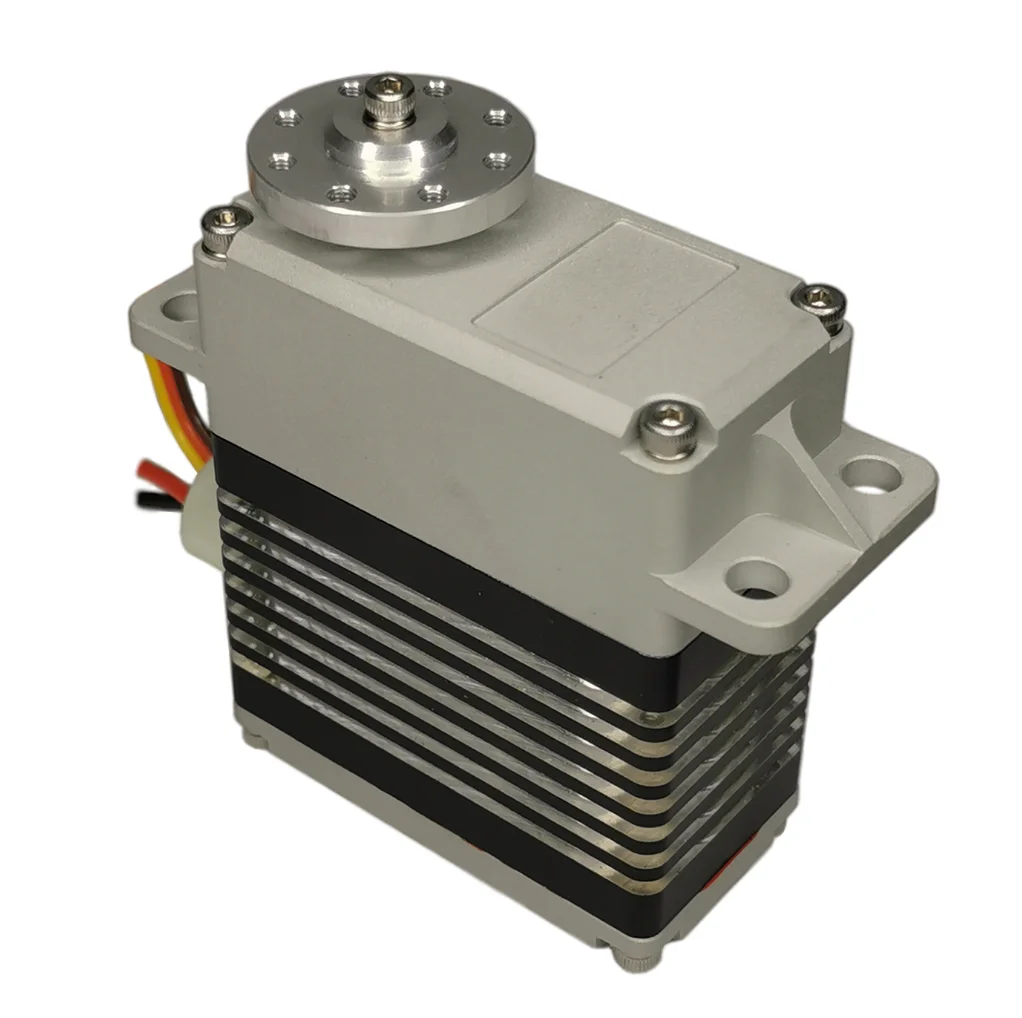

Сверхмощный сервопривод 14 8 В 110 кг с высоким крутящим моментом HS-1005SGT оборонной
- Категория товара: Aviation Parts & Accessories >>>
- Поставщик (Оптовый магазин): Beijing,Micropilot,UAV,Control,Systems,Limited
Поделиться:
Описание и отзывы
Характеристики
Batch sourcing can be customized according to customer requirements.
Such as LOGO, customized model, customized lettering and other services.
Bulk order delivery time is 45 days, monthly output of more than 8500 sets.
The warranty is 1 year, only change but not repair.
The following product parameters are actual performance.
Such as LOGO, customized model, customized lettering and other services.
Bulk order delivery time is 45 days, monthly output of more than 8500 sets.
The warranty is 1 year, only change but not repair.
The following product parameters are actual performance.

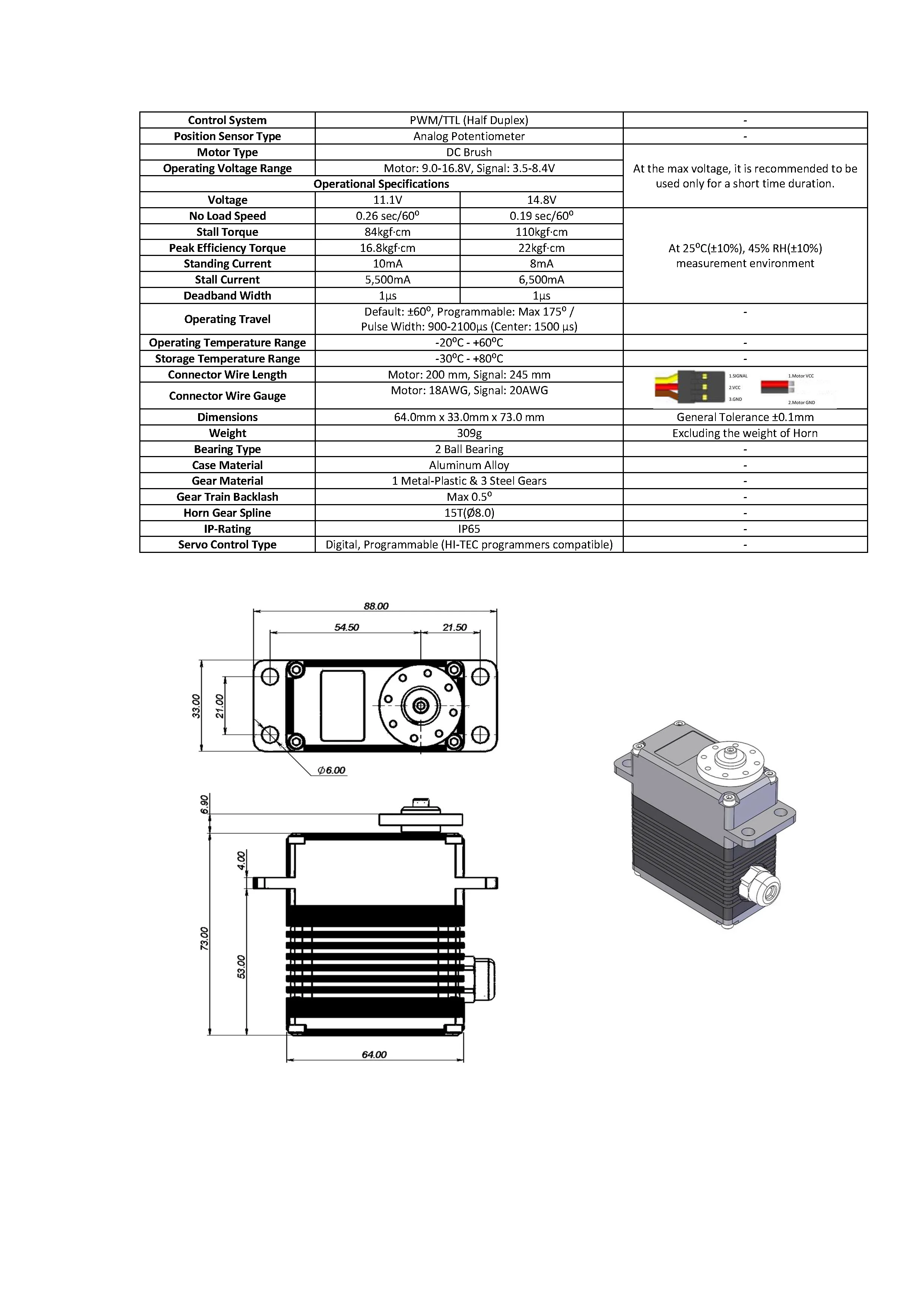

Control System | PWM/TTL (Half Duplex) | ||||||
Position Sensor Type | Analog Potentiometer | ||||||
Motor Type | DC Brush | ||||||
Operating Voltage Range | Motor: 9.0-16.8V, Signal: 3.5-8.4V | At the max voltage, it is recommended to be used only for a short time duration. | |||||
Operational Specifications | |||||||
Voltage | 11.1V | 14.8V | |||||
No Load Speed | 0.26 sec/60° | 0.19 sec/60° | At 25°C（±10%), 45% RH（±10%) measurement environment | ||||
Stall Torque | 84kgf.cm | 110kgf.cm | |||||
Peak Efficiency Torque | 16.8kgf.cm | 22kgf.cm | |||||
Standing Current | 10mA | 8mA | |||||
Stall Current | 5,500mA | 6,500mA | |||||
Deadband Width | 1µs | 1µs | |||||
Operating Travel | Default:±60°, Programmable: Max 175° / Pulse Width: 900-2100µs (Center: 1500 µs) | ||||||
Operating Temperature Range | -20°C -+60°C | ||||||
Storage Temperature Range | -30°C -+80°C | ||||||
Connector Wire Length | Motor: 200 mm, Signal: 245 mm | ||||||
Connector Wire Gauge | Motor: 18AWG, Signal: 20AWG | ||||||
Dimensions | 64.0mm x 33.0mm x 73.0 mm | General Tolerance±0.1mm | |||||
Weight | 309g | Excluding the weight of Horn | |||||
Bearing Type | 2 Ball Bearing | ||||||
Case Material | Aluminum Alloy | ||||||
Gear Material | 1 Metal-Plastic & 3 Steel Gears | ||||||
Gear Train Backlash | Max 0.5° | ||||||
Horn Gear Spline | 15T(∅8.0) | ||||||
IP-Rating | IP65 | ||||||
Servo Control Type | Digital, Programmable (HI-TEC programmers compatible) | ||||||
1.\tWhy should I choose your company?
A.\tOur company was established in 2001 and is a leading supply chain enterprise in Asia as an authorized agent for multiple brands. We not only provide a stable supply chain for many Chinese state-owned and central enterprises, but also for many large customers in countries such as Japan, South Korea, Germany, the United Kingdom, Australia, and the United Arab Emirates.
A.\tOur company was established in 2001 and is a leading supply chain enterprise in Asia as an authorized agent for multiple brands. We not only provide a stable supply chain for many Chinese state-owned and central enterprises, but also for many large customers in countries such as Japan, South Korea, Germany, the United Kingdom, Australia, and the United Arab Emirates.
2.\tHow do you ensure product quality?
A.\tAll our goods come from the standard production lines of brand manufacturers. They are 100% original and imported. All order information is traceable, such as order invoices, packing lists, customs clearance documents, tax payment information, and serial number ownership. Products are covered by the manufacturer's warranty, which is valid for one year.
3.\tIs the price list the final price?
A.\tNo, there is still room for negotiation. We are the highest level of agent, and our product price advantage is significant. For small retail orders, we need to ensure profit margins; for small batch orders, we can ship at the price of a second-level agent; for large quantity orders, we can ship at our purchase price; for very large quantity orders, we can apply for more favorable prices from the brand manufacturer.
B.\tIf for any special reason you switch suppliers, you may send us their historical price quotes and we can provide supply according to their historical prices.
4.\tCan you provide OEM/ODM services?
A.\tWe can only provide limited services, such as removing or modifying product labels before shipment, and changing product packaging according to customer requirements. However, we cannot modify the brand logo or remove trademarks on the hardware.
5.\tCan I get free samples or trials?
A.\tSome models can be obtained at a significantly lower price than the retail price for testing with already used samples. International customers need to pay for shipping, while customers in mainland China can enjoy free shipping. Please consult our sales staff for details.
6.\tWhat can I purchase from you?
A.\tWe offer UAV flight control systems, data link radios, drone engines, drones, and can also accept other product procurement commissions.
7.\tWhat services can you provide?
A.\tWe accept delivery terms: FOB, FCA.
B.\tWe accept payment currencies: CNY, USD.
C.\tWe accept payment methods: T/T, Alibaba, Taobao, Alipay, WeChat Pay, and cash.
D.\tLanguages supported: English, Chinese.
8.\tWhat platforms can I contact you through?
A.\tAlibaba, Taobao, Email, MobilePhone, WeChat, WhatsApp, LINE, Telegram, etc. Customers in need can consult our sales staff.
