Большой диаметр UH/P Графитовый Электрод 700 мм для стального
- Категория товара: Graphite Electrodes >>>
- Поставщик (Оптовый магазин): Hebei,Kaisa,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
large diameter UH/P graphite electrode 700mm for steel plant
SPECIFICATION LIST
UHP Size and Tolerance | |||||||
| Diameter | Length(mm) | ||||||
| Nominal diameter | Actual diameter | Nominal length | Tolerance | Short feet length | |||
| mm | inch | max | min | mm | mm | max | min |
| 200 | 8 | 207 | 202 |
1800/2000/ 2200/2300 2400/2700 |
±100 |
-100
|
-275
|
| 250 | 10 | 257 | 252 | ||||
| 300 | 12 | 307 | 302 | ||||
| 350 | 14 | 357 | 352 | ||||
| 400 | 16 | 409 | 403 | ||||
| 450 | 18 | 460 | 454 | ||||
| 500 | 20 | 511 | 505 | ||||
| 550 | 22 | 562 | 556 | ||||
| 600 | 24 | 613 | 607 | ||||
| 700 | 28 | 714 | 708 | ||||
Physical and Chemical Index of UH/P | |||||
Items |
unit | Diameter: 200-700mm | |||
Standard | Test data | ||||
Electrode | Nipple | Electrode | Nipple | ||
Electrical resistance | μΩm | 5.5-6.0 | 5.0 | 5.0-5.8 | 4.5 |
Flexure strength | Mpa | 9.5 | 15 | 13-15 | 17-19 |
Modulus of elasticity | GPa | 14 | 18 | 12 | 14 |
Ash content | % | 0.2 | 0.2 | 0.2 | 0.2 |
Apparent density | g/cm3 | 1.64-1.68 | 1.70-1.72 | 1.68-1.72 | 1.78 |
Factor of expansion(100-600℃) | x10-6/℃ | 2.0 | 1.7 | 1.5 | 1.4 |

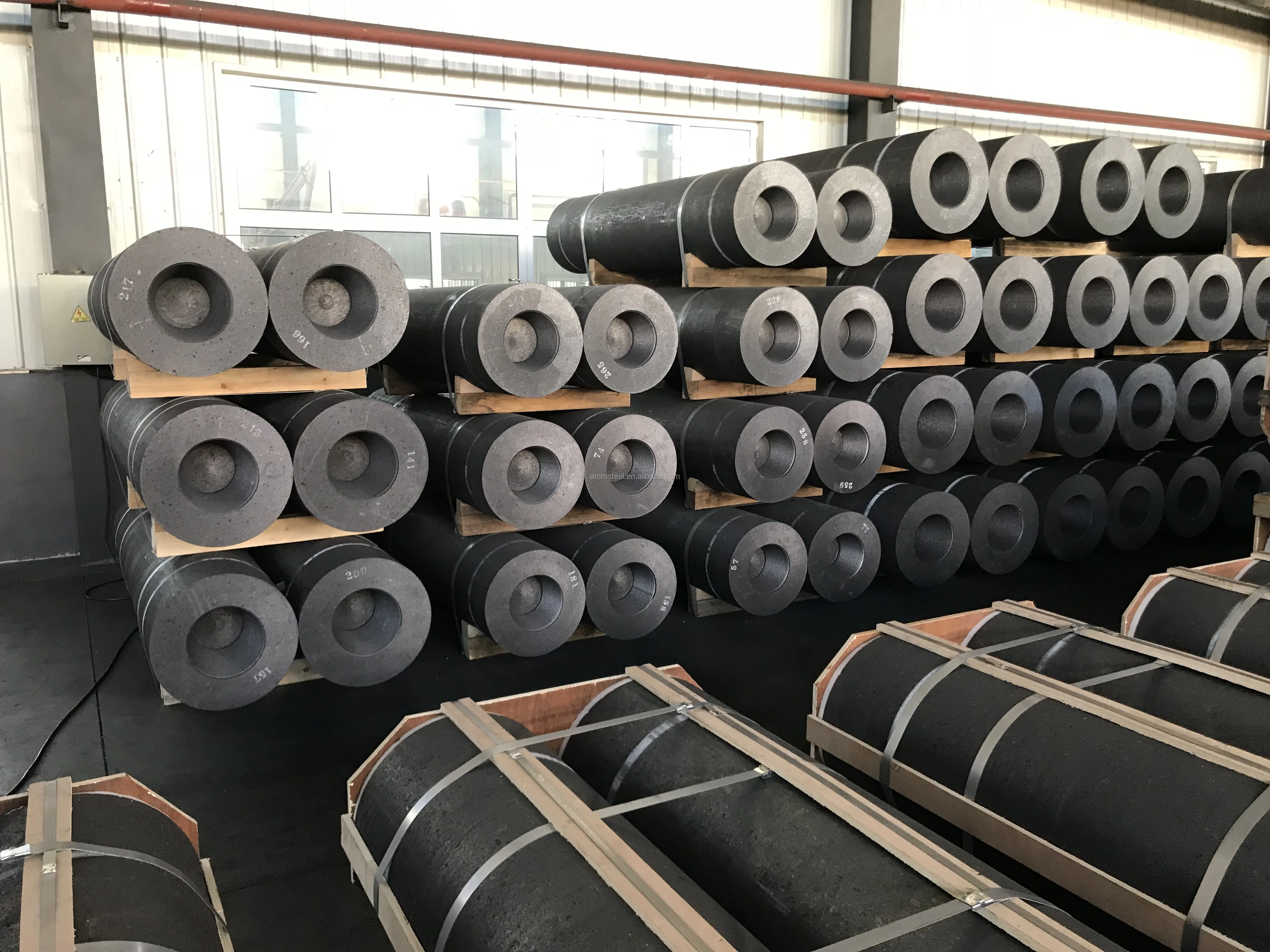

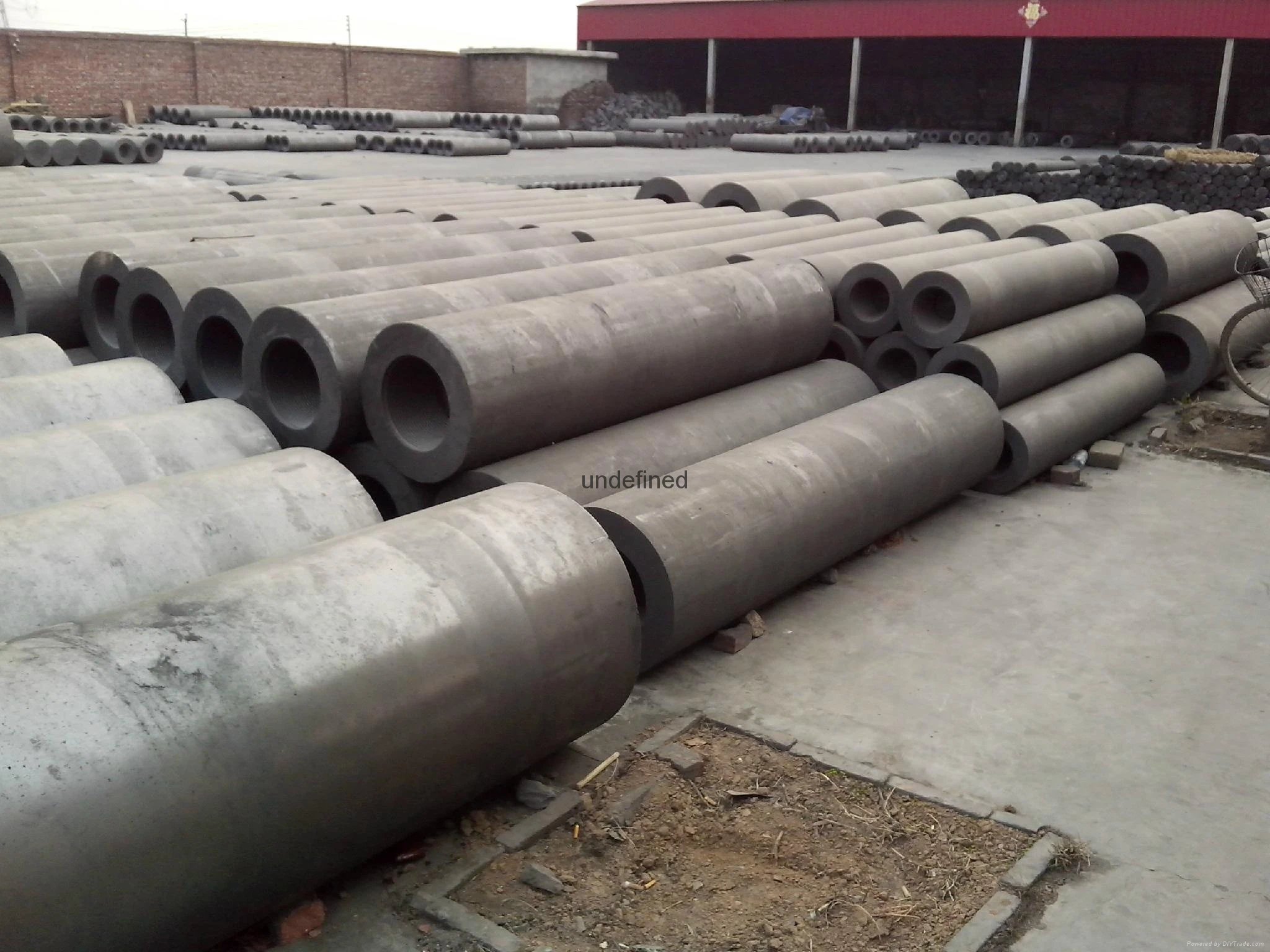

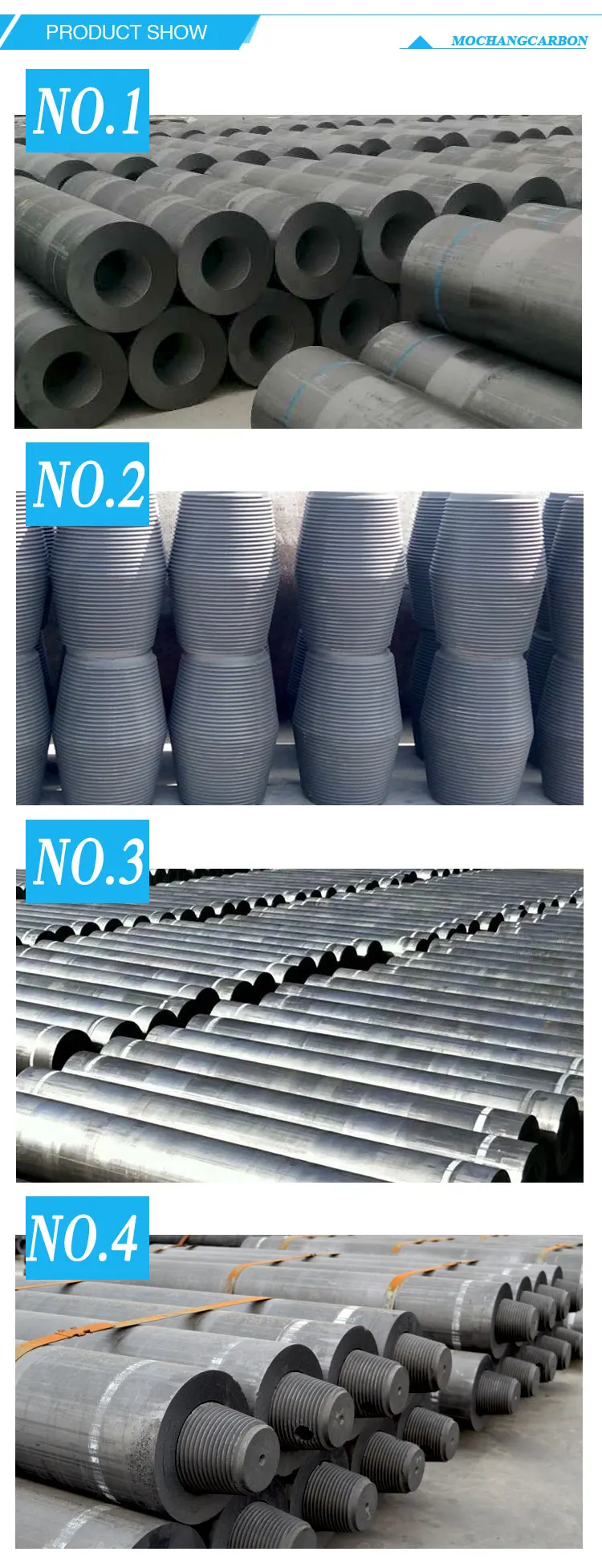

PRODUCT SHOW
Certifications
Company Profile
Hebei Kaisa Import and Export Co., Ltd. was founded in 2010, located in Hebei, China. Our main products are raw material chemicals, plastic raw materials. Our products have been widely used in petroleum, chemical, cosmetics and other industries. Products are sold all over the world, product quality is stable and reliable, in the same industry advanced level, well received by users. We are committed to technological innovation and scientific development. The most important thing is that we have established a long-term cooperative relationship and have strong technical support. We can provide professional technology and good service. Customer satisfaction and timely delivery are two constants. Good reputation is our strong backing. Because of this, we maintain our reputation for outstanding quality and timely delivery service. We sincerely hope to establish a long-term and mutually beneficial cooperative relationship. The greatest convergence of our common interests can be found. Kaisa has a highly skilled, responsible and dedicated team that will ensure that your requirements are met promptly and fully.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are both.we have ourselves products and also represent the products produced by our nearby factories . And you are warmly welcome to visit us and our factory!
Q2: How to contact with us?
A: Click the Alibaba "Contact Supplier" And then send us message the product you interest in, you will get reply within 8 hours.Any contact way shown in our website can be responded within 8 hours.
Q3:Which kind of payment terms do you accept?
A: For small order,you can pay by T/T,Western Union or Paypal,bulk order by T/T or L/C to our company account. However we not accept the O/A and D/P payment terms.
Q4: Can you give me a discount price?
A:Surely, it depend on your Qty.
Q5: How can I get a sample?
A:Free samples is available, but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.
Q6: How to confirm the Product Quality before placing orders?
A:Please tell us the name of the product (it is better to bring the CAS number), quantity and purpose. We will provide you with accurate prices and detailed information (COA, SDS). If you don’t know the specific product, please describe your purpose in detail, and we will let the engineer recommend a suitable product for you
