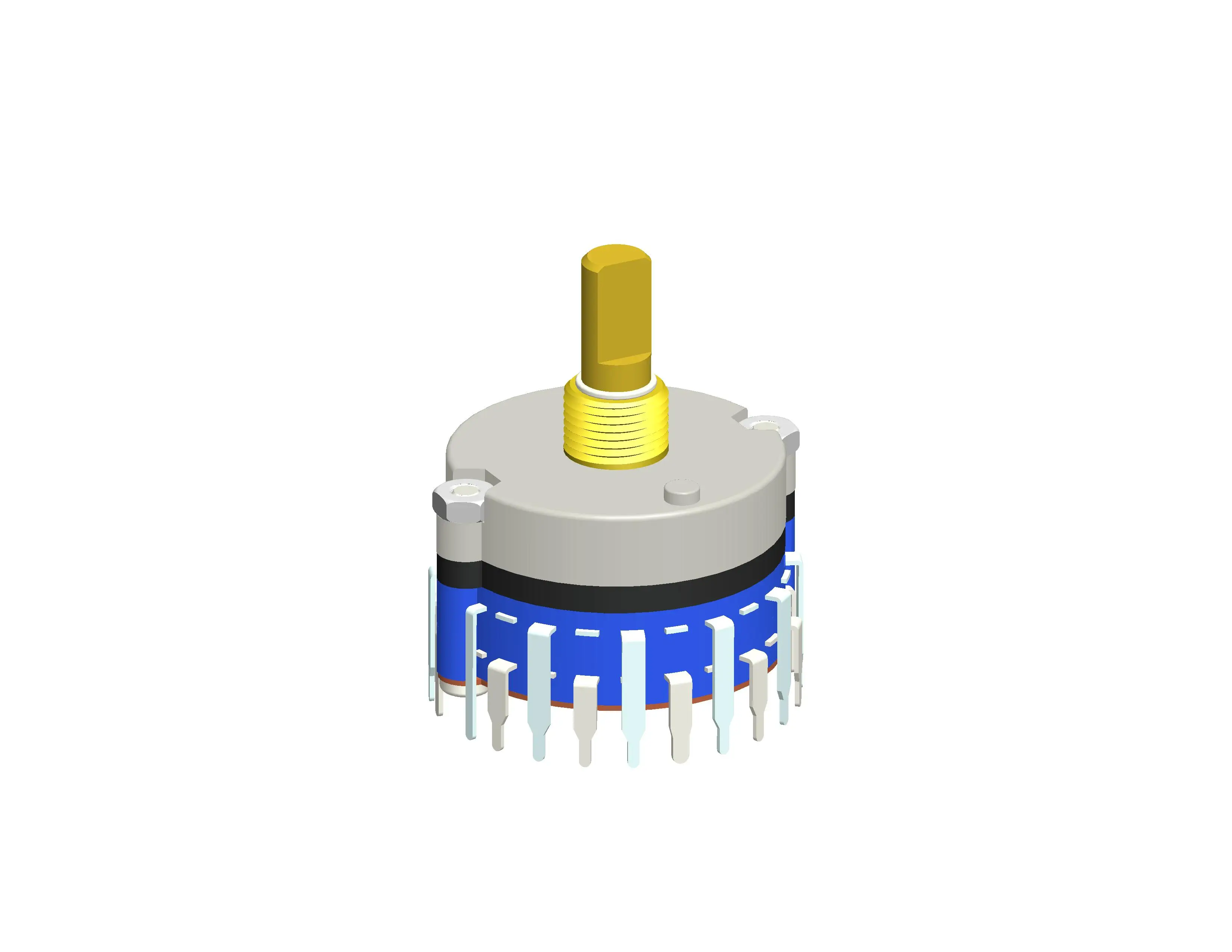

Поворотный переключатель трассы RE32-02-SWB0X-HA1-1-2-10
- Категория товара: Rotary Switches >>>
- Поставщик (Оптовый магазин): Soundwell,Electronic,Products,Guangdong,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Multiple Switch Model: | RE32 |
| Name: | Metal shaft rotary multi-way switch |
| Main Specifications: | Rated power:DC 30V 0.3A; Contact resistance:50mΩ Max ; Positioning Points:2~12 ; Operating temperature:-10℃~70℃; Service life:10,000 More than times; |
| Product Features: | For the vertical installation, the common terminal and the contact end integrated on a body. Sealing products, stable performance, with a sleeve attached lock function, do 2-12 stalls, positioning feel clear, smooth, shaped shaft and shaft length can be adjusted. |
| Applications: | Mainly applied to the amplifier, audio and other household appliances. The main function of the function switch, adjust the volume, adjust the brightness and so on. |
RE32ProductSpecifications
ONE,MECHANICAL CHARACTERISTIC
1,Rotational torque :200~1000gf.cm
2,Step angle :30°±3°
TWO,ELECTRICAL CHARACTERISTIC
1,Contact resistance :50mΩ Max
2,Rating power :DC30V 0.3A
3,Number of detent :2~12 detents
4,Insulation resistance :100MΩ 1 Minute at DC 500V
5,Dielectric voltage :1 Minute at DC 500V
THREE,ENDURANCE CHARACTERISTIC
1,Rotational life :10,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
