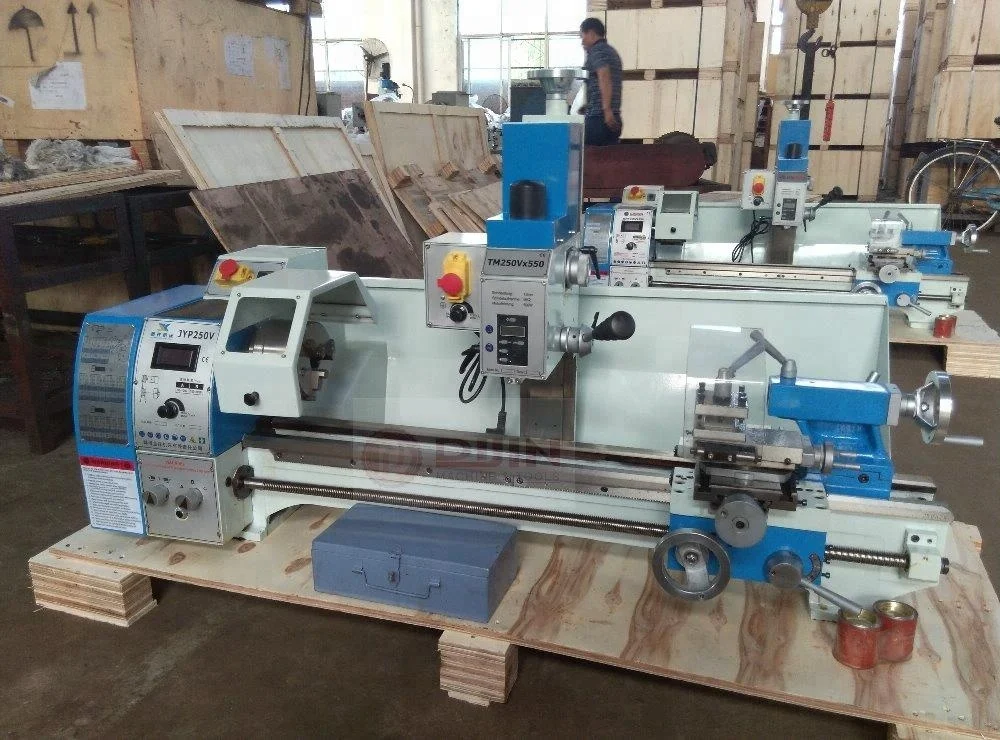

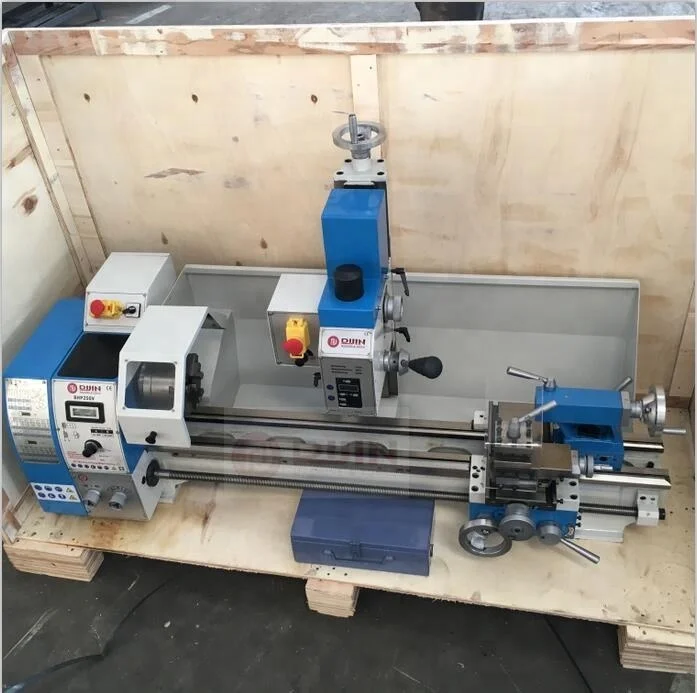

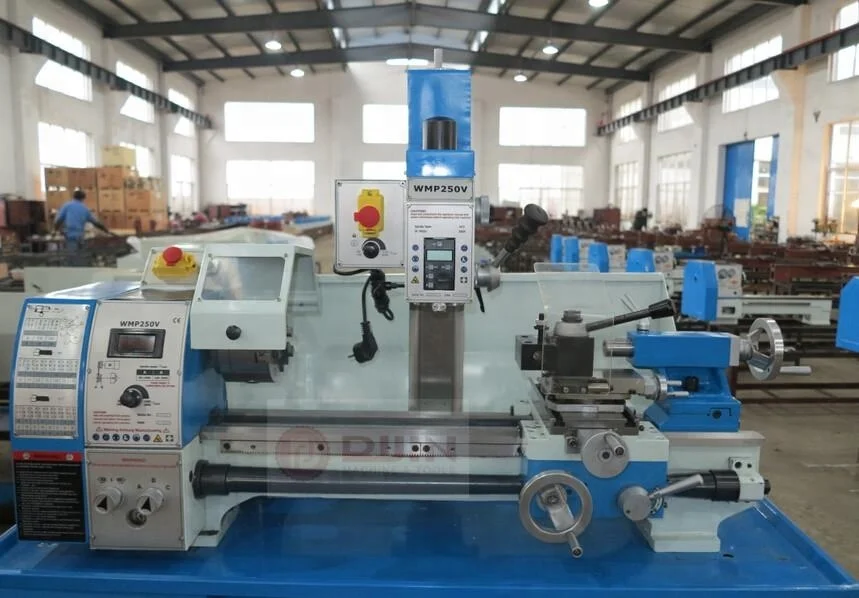

mini bench lathe bhp250v metal gear lathe drilling milling machine speed display brushless motor DIJIN brand
- Категория товара: Ручной токарный станок >>>
- Поставщик (Оптовый магазин): Shenzhen,Dijin,Machine,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

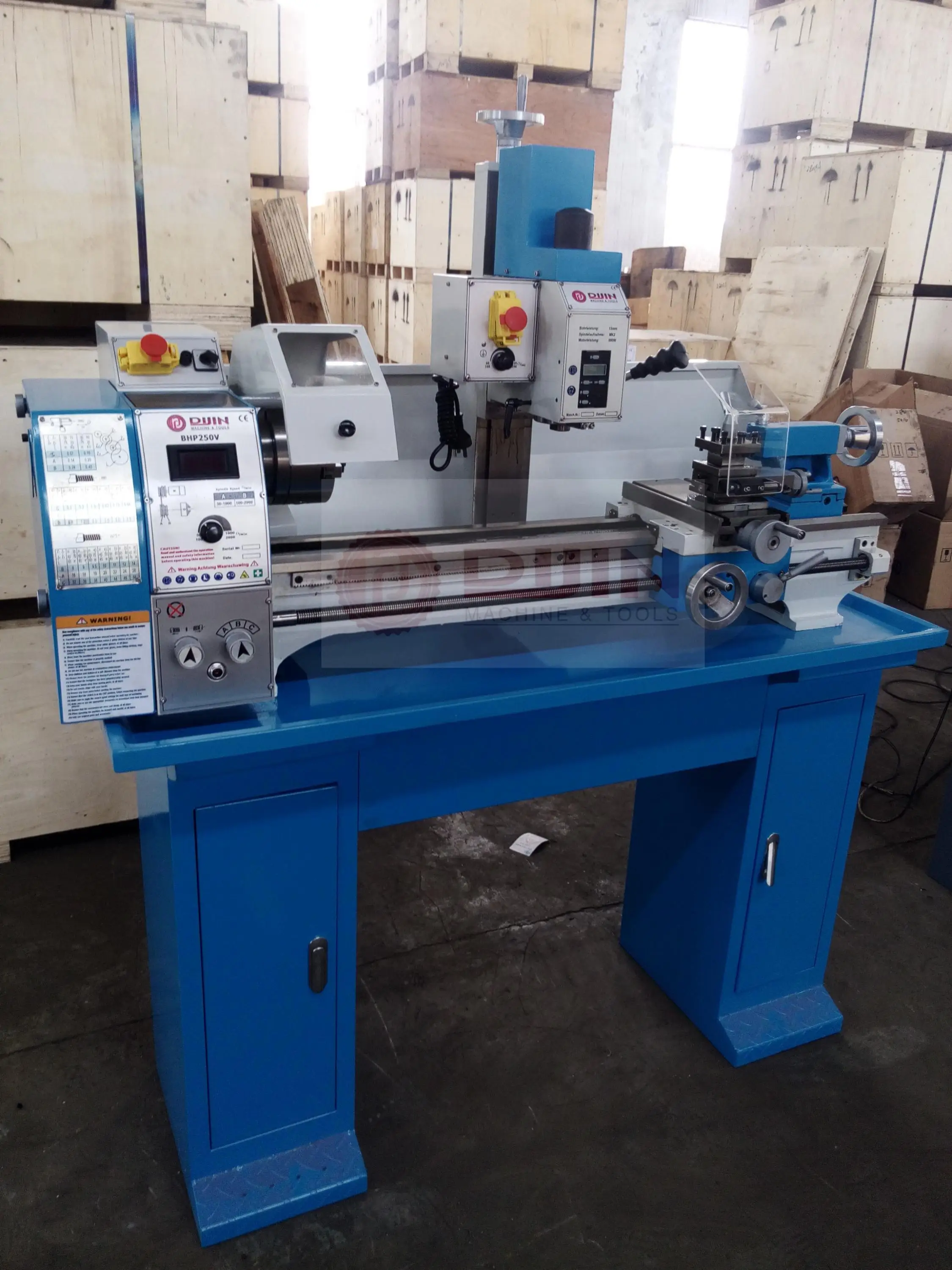

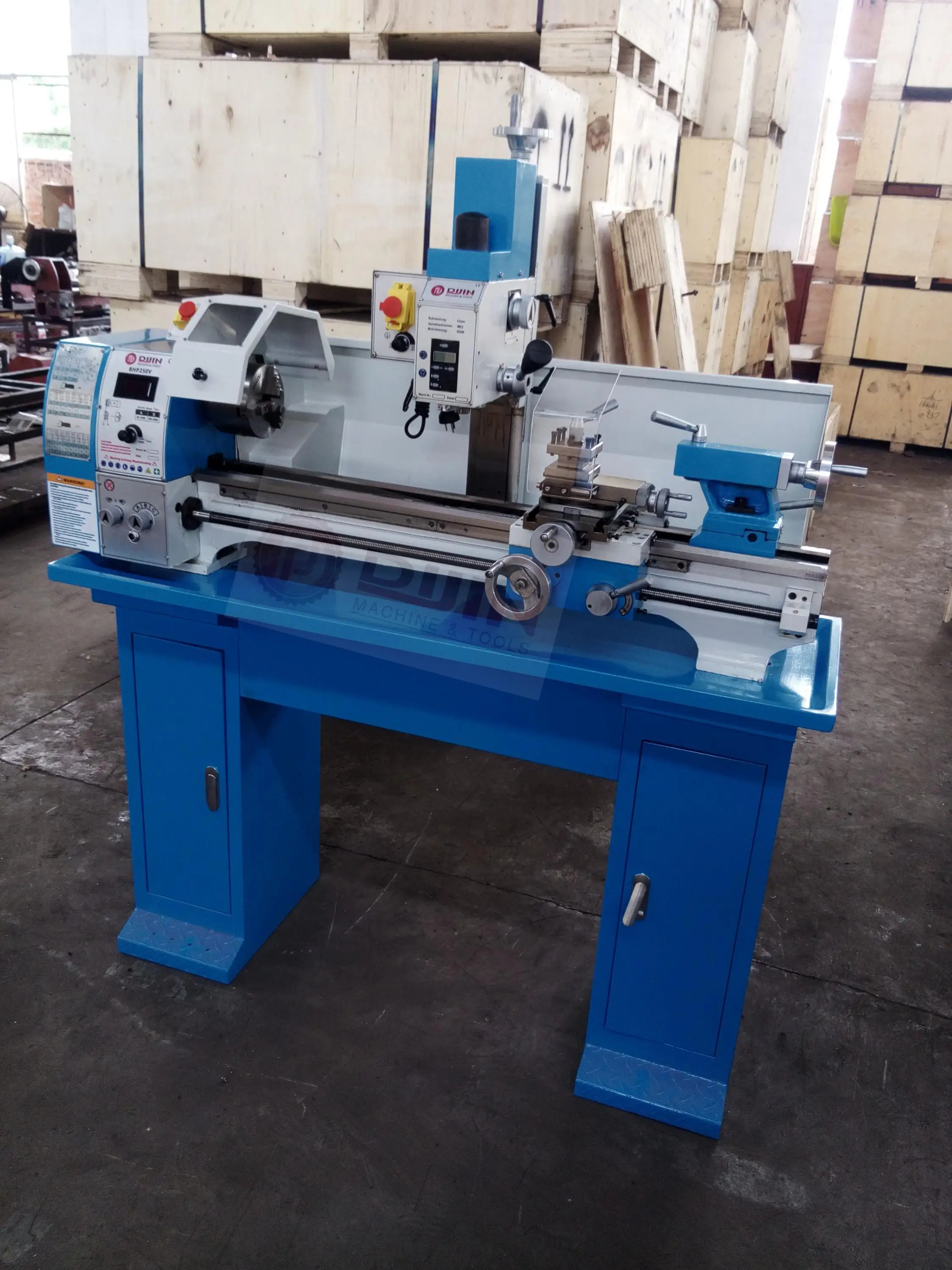

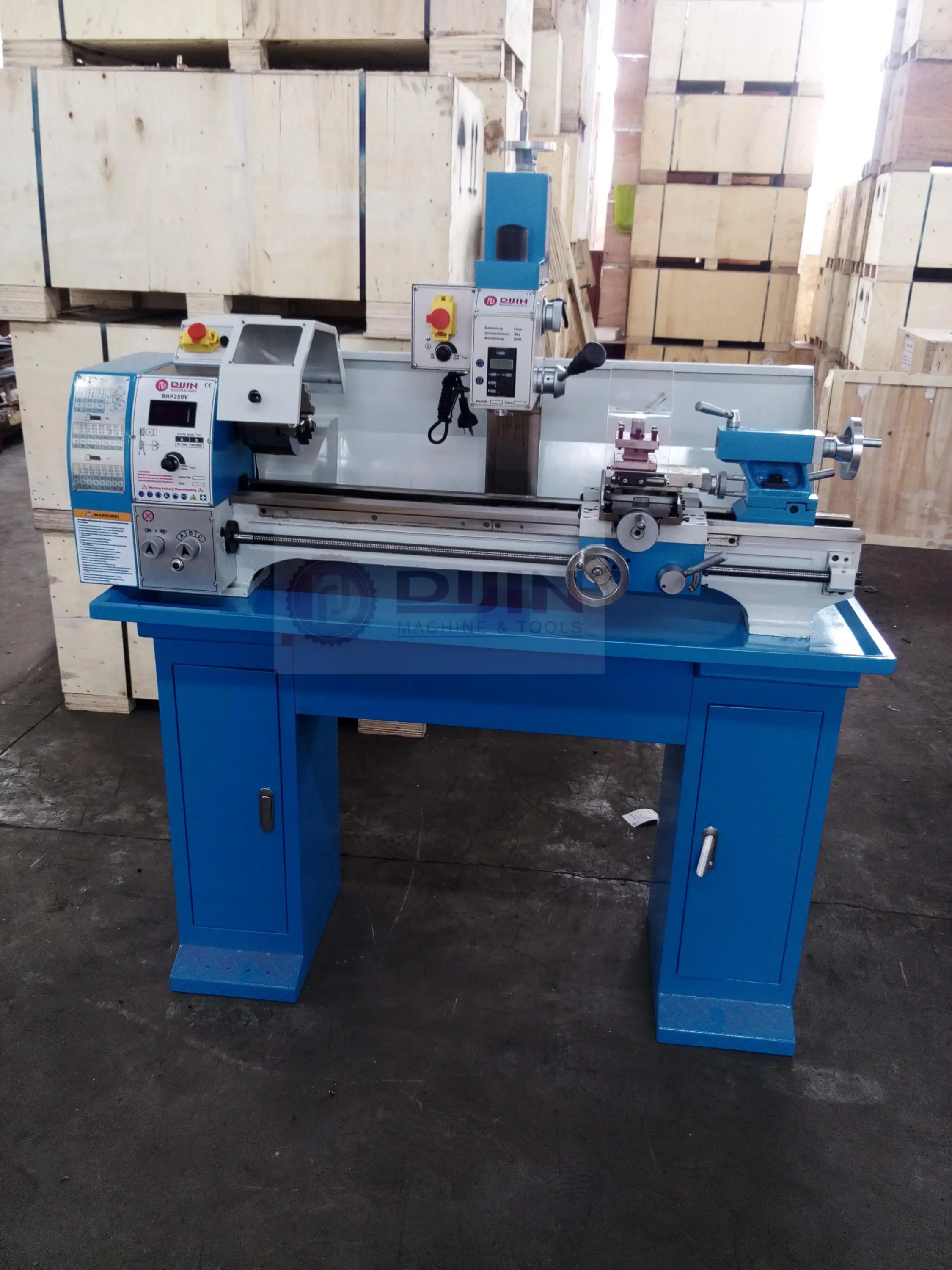

Combo lathe BHP250V
Feature :
1. Longitudinal automatic feed .

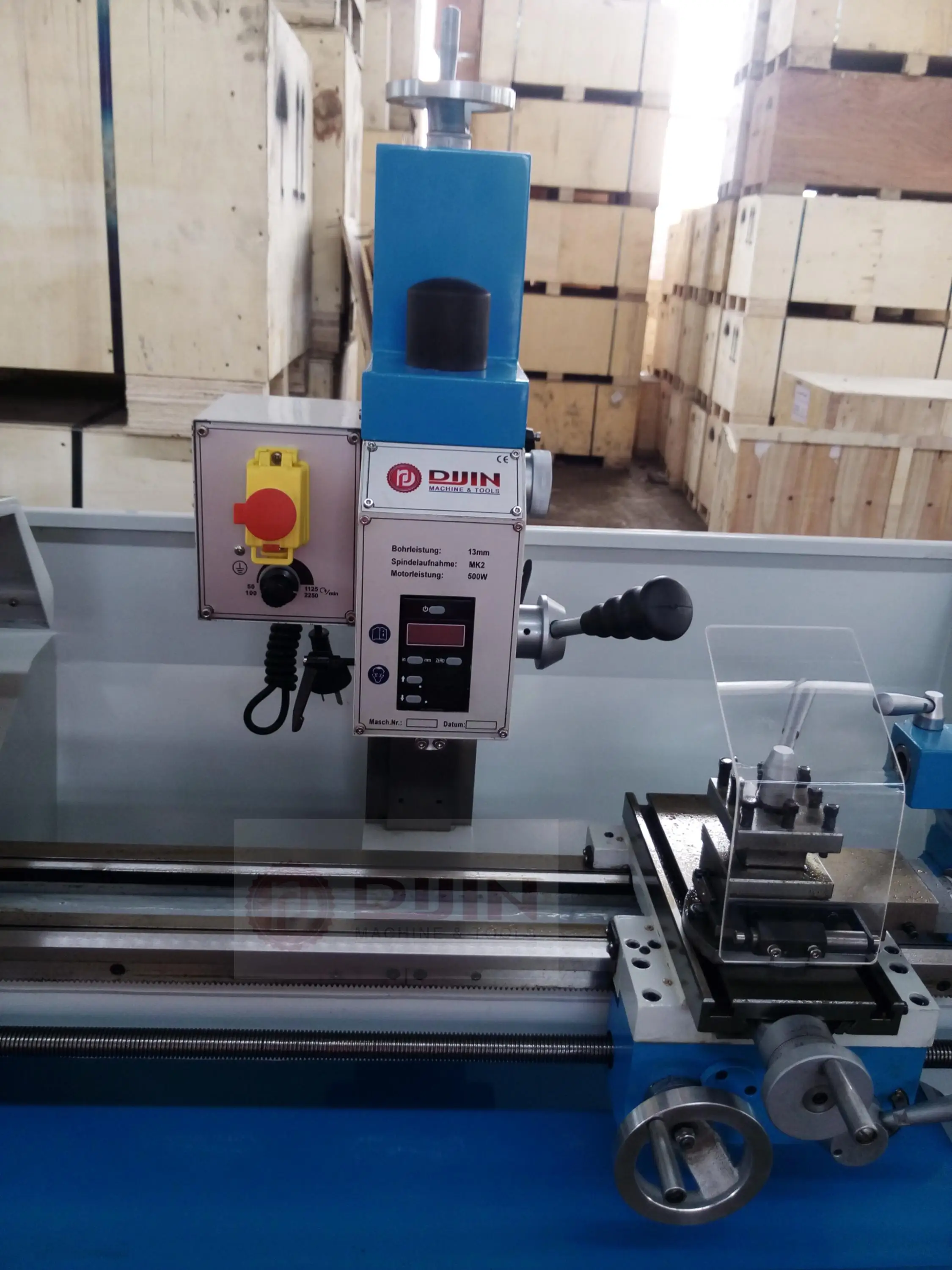

2. Milling head tilt +-90 degree
3. lathe bed surface hardening.
4. equip with three jaw chuck guard ,tool post guard .
We also can updated BHP250VF ,use two rod ,X,Y axis automatic feed .
Model BHP250V Specification:
Max distance between center | 750mm |
Max swing over bed | 250mm |
Max swing over cross slide | 165mm |
Taper of spindle bore | Mt4 |
Bed of width | 135mm |
Spindle bore | 26mm |
Range of spindle | 50-2000rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 115mm |
Tail stocks quill travel | 70mm |
Taper of tail stocks quill | Mt2 |
motor | 750W |
Max drill capacity | 16mm |
Max end mill capacity | 16mm |
Max face mill capacity | 50mm |
Taper of spindle | Mt2 |
Vertical travel | 210mm |
T-Slot | 10mm |
Main motor | 500w |
Spindle travel | 50mm |
Spindle speed | 50-2250rpm |
Overall Packing size | 1400*700*880mm |
Overall Net /gross weight | 200/230kgs |
