Новый стиль твердая головка цилиндра шлифовальная машина для
- Категория товара: Other Grinding Machines >>>
- Поставщик (Оптовый магазин): Zhejiang,Omnipotent,Spring,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Item Name | Double Grinding Machine |
| Style | M02-9B |
| Color | Grey/Blue |
| Steel Wire Diameter of Grinding Spring (mm) | Φ1- Φ9 |
| Diameter of Grinding Spring (mm) | ≤100 |
| Height of Grinding Spring (mm) | 20-250(400 customized) |
| Grinding Wheel Size (outside x inside x height) (mm) | Φ450 x 60 |
| Grinding Head Speed | 1,430n/min |
| Machine Size (length x width x height) | 2300x2000x2550mm |
| Net Weight of The Machine | 3000kg |
| Power | 3 phase 380V. AC.50HZ |
| Motor Power(motor 5 pcs) | 16.78 KW |
PRODUCT PARAMETERS

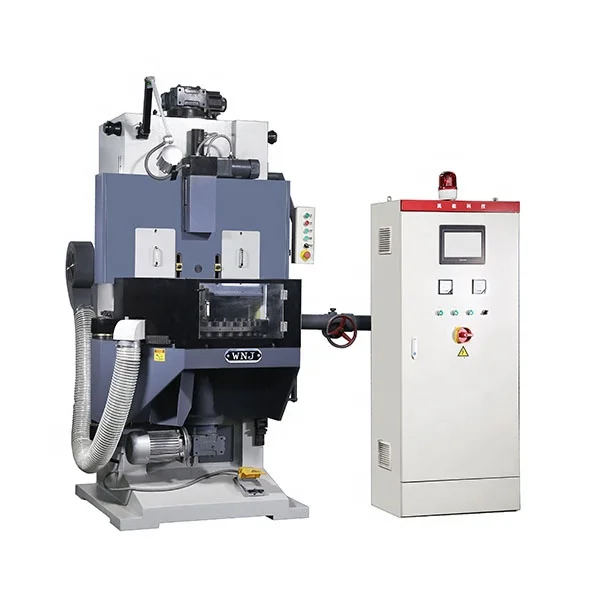

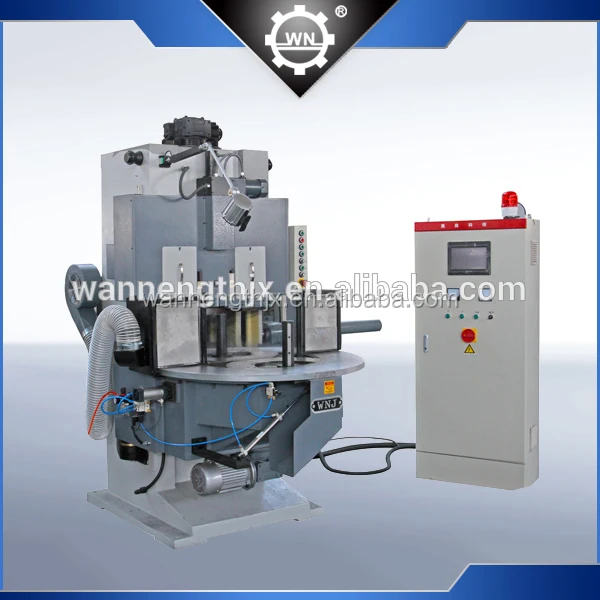

- M02-9 CNC spring end grinding machine is the newly developed grinding spring machine based on the advanced CNC end grinding technology at home and abroad.
- By the utilization of air cylinder ,this device could realize the circulating exchange of feed trays ,in the same time for process of grinding ,loading or unloading the parts ,as well as just feeding for grinding .
- It adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming.
- The feed speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen.
- This machine is convenient to operate and has a high efficiency and it is the ideal equipment for double-end grinding of large quantity spring.
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
